Noiseless Desktop Lab Circulating Water Vacuum Pump
Product Description
The pump adopts one modeling shell, small size on the basis of multi-purpose vacuum pump. It has small volume, light weight, beautiful appearance etc characters. Double-meter, double-tap pump and four-meter four-tap, double-side multi-purpose pumps is easy to do visual experiment for teachers as well as to turn off and on for students at any side.
Technical Parameters of Circulating Water Vacuum Pump:
| Model | SHZ-D(Ⅲ)double gauge,double tap | SHZ-D(Ⅲ)four gauge, four tap |
| Power(W) | 180 | 370 |
| Flow(L/min) | 60 | |
| Lift(m) | 8 | |
| Body material | Anti-corrosion/1Cr18 | |
| Max. pressure (M Pa) | 0.098 | |
| Sucking rate for single tap(L/min) | 10 | |
| Quantity of tap (Pcs) | 2 | 4 |
| Tank capacity(L) | 15 | |
| Remark | Can equipped with 2L, 5L glass reactor or rotary evaporator, The vacuum is better when the water temperature is between 4℃ and 10℃ | |
All Copper Core Coil Motor
180W high power Motor. High temperature resistance. Long working life |  |
 | Stainless steel axis of motor
Anti-corrosion, abrasion resistance and long operation life |
Sink
A model engineering plastic main part, not easy to deform, durable use with long service time. |  |
 | Independent two guages and two taps
Provide vacuum source for two containers |
Turbine bypass
Six-channel impeller design, great pumping speed and force. |  |
Features of circulating water air vacuum pump:
(1)Water-saving and recycling use. After testing in one working day, continuous use may save water more than 8 tons.
(2)Multi-function application. Provide vacuum conditions, as well as circulating cooling water to the reaction device. Suction air hole can work alone or in parallel.
(3)Corrosion resistant, free-pollution, stable performance, low noise and durable.
Application of Water Jet Circulating Vacuum Pump:
The circulating water pump is used as a vacuum source for rotary evaporator, glass reactor and other vacuum distillation device.
Similar product:
Vertical circulating water vacuum pump.
Packaging & Shipping
Packing:
- The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
- Both neutral and cuistomized packing are available.
Shipping:
- We can ship the goods to you by international express,such as DHL, UPS, TNT and so on. And you can choose the appropriate way based on your timeline and budget. Besides, you can choose to use your own shipping agent.
| Shipping method | Note |
| Express | Door to door, very convenient, don't need to clearance or pick-up |
| By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport,which you can have a local shipping agent to do for you. |
| By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you. |
FAQ
1.What's the minimum order quantity?
One set at present.
2.What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term will be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4.How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
5.Can you accept OEM terms?
Sure.
Our Service
Contact me to know more details about mini vacuum pump.
Please send your inquiry details in the below for our quotation.
Noiseless Desktop Lab Circulating Water Vacuum Pump
Noiseless Desktop Lab Circulating Water Vacuum Pump
Noiseless Desktop Lab Circulating Water Vacuum Pump
Похожие товары

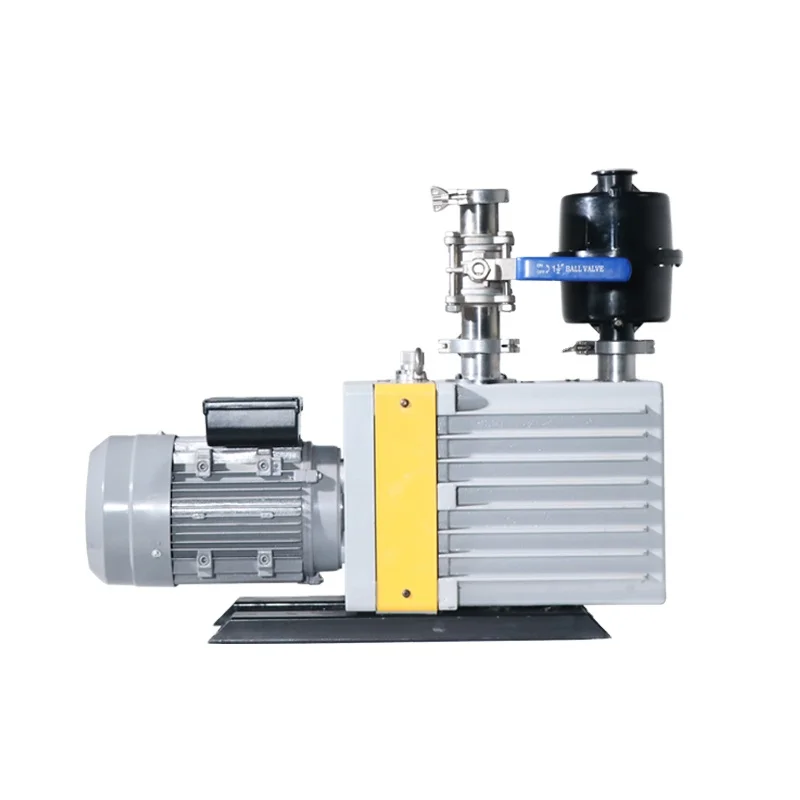

Лабораторный вакуумный химический насос для продажи

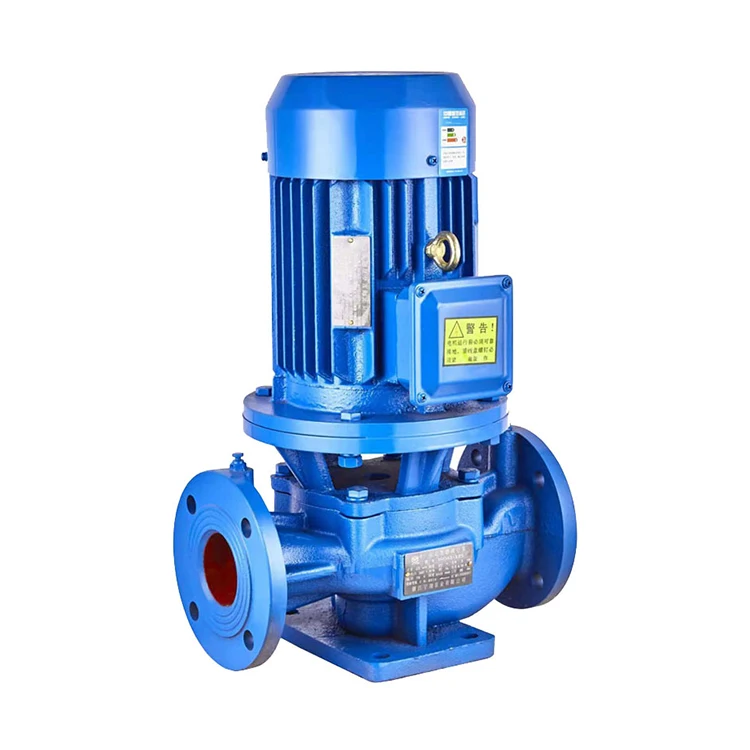

Встроенный вертикальный насос для орошения сельскохозяйственных промышленных котлов для очистки питьевой воды для вакуумного использования
15 315,08 ₽ - 21 878,68 ₽
Прецизионный насос из полиуретановой смолы
18 596,88 ₽ - 21 878,68 ₽

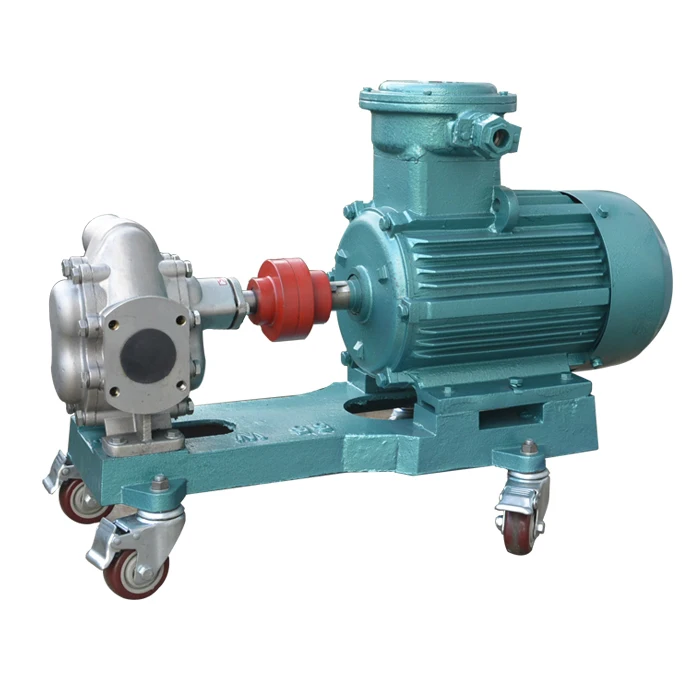

Горизонтальный шестеренчатый масляный насос серии KCB с быстрой доставкой
20 784,75 ₽ - 21 878,68 ₽

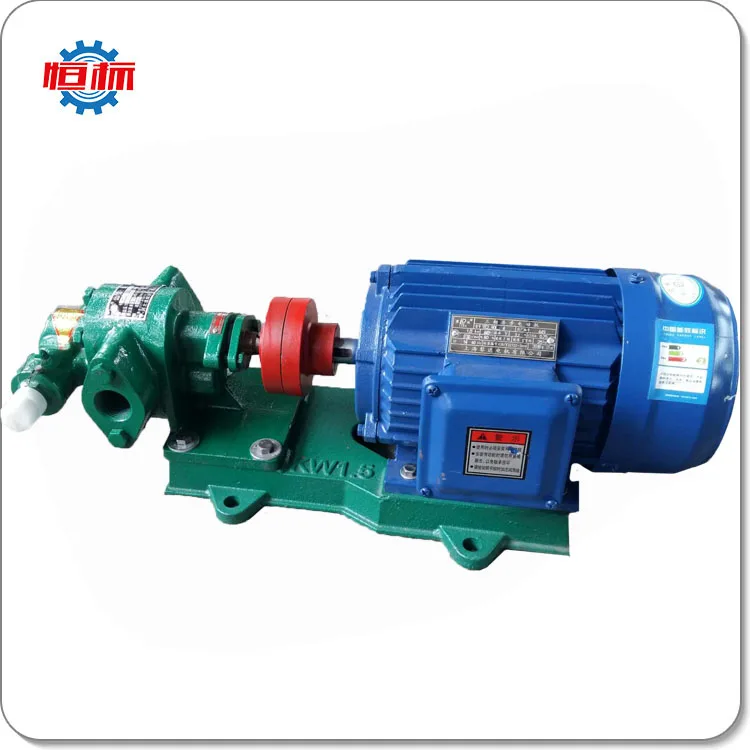

Шестеренчатый насос для переноса масла KCB/2CY, насос для переноса пальмового масла
19 690,82 ₽ - 21 878,68 ₽

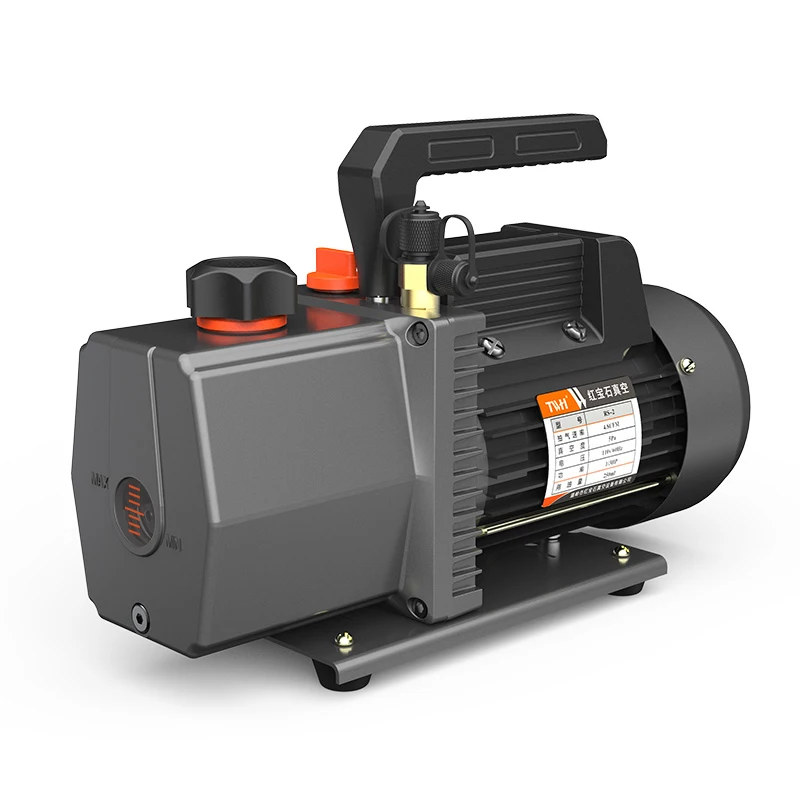

Вакуумный насос RS-3 эффективности 7CFM одноступенчатый вакуумный насос для высоковакуумной системы кондиционирования воздуха
7 876,33 ₽ - 12 252,07 ₽

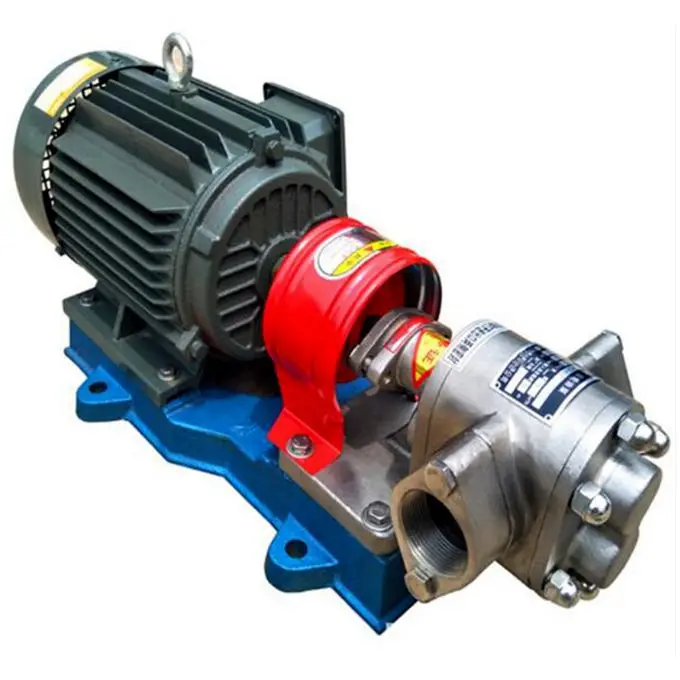

KCB Электрический трансмиссионный масляный насос с высокой эффективностью
