Free maintenance chlorine comparator test kit


BOQU Residual Chlorine Analyzer takes online disinfection monitoring to a new level of reliability by offering industry-leading performance, reduced pH dependency, and no requirement for zero calibration. Chemtrac’s line of membrane covered Free and Total Chlorine sensors have no moving parts, no bottles of reagent to change out monthly, and quarterly maintenance takes less than five minutes to perform. BOQU Instrument offers a versatile solution to your disinfection monitoring needs with the flexibility to accept additional sensors








Product Description


Main feature of  Free maintenance chlorine comparator test kit
Menu: Design focus on object for easy operation and not need to learn.
Multi-screen display : it show chlorine, ph, tempearture and time at same one screen.
Chlorine calibration : It provide chlorine zero and slope calibration with clear menu.
Digital clock :Timer function


Output: 4-20mA,2 relays output and RS485.
Meter stability :The function of E-DOG Make sure working persistent normally .





free chlorine analyzer-1.jpg


YLG-2058 Residual Chlorine Controller





















































ModelYLG-2058
Measure range0-20mg/L
HOCL0-10mg/L
pH0-14pH
Temperature0-65C
Output4-20mA
Alarm relays220V,7A
Power220VAC or 24VDC
CommunicationRS485
ProtectionIP65
Overall dimension146*146*108mm
Dimension hole138*138mm




YLG-2508-01 Residual Chlorine Electrode





































ModelYLG-2058-01(Membrane)
Range0.005-20mg/L
Accuracy1%FS
Sorage temp-20~60C
Operation temp0-45C
HOCL response90%<9s
CalibrationLaboratory comparison method per 2 months
MaintenanceReplace membrane and electrolyte per 6months

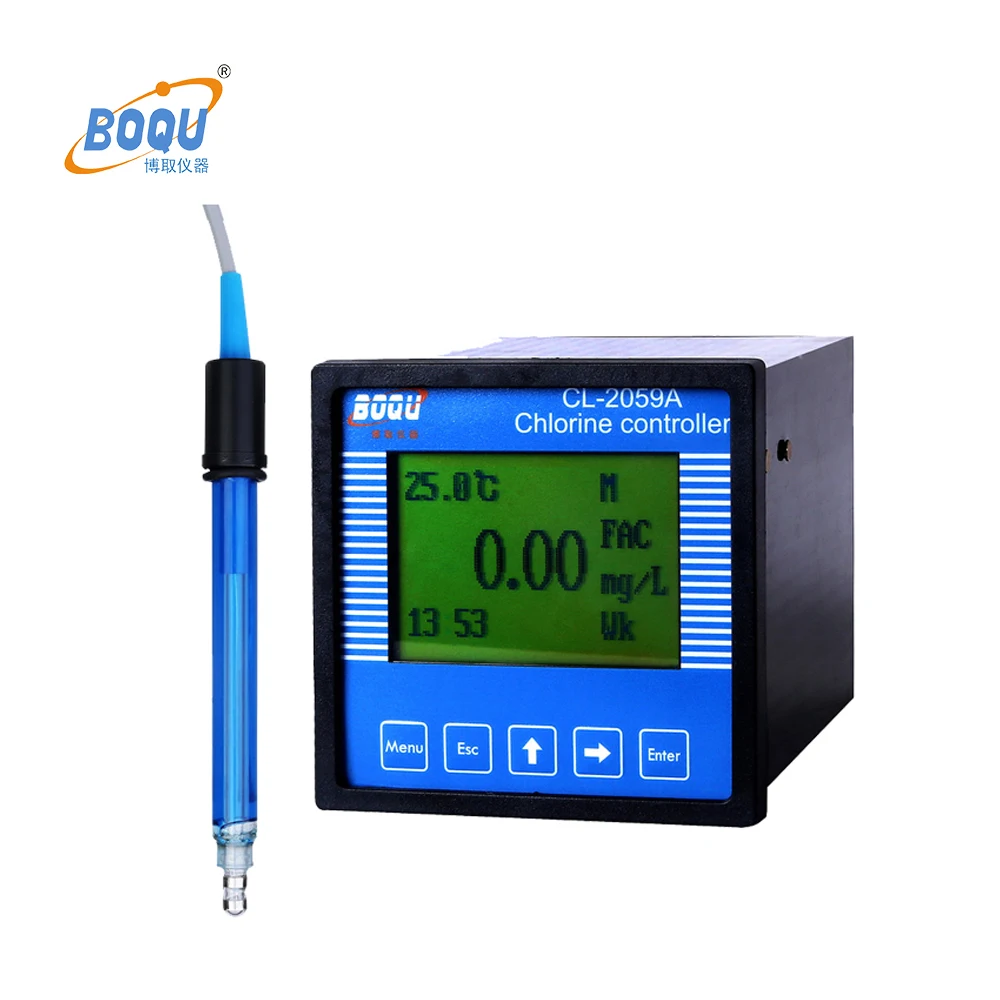

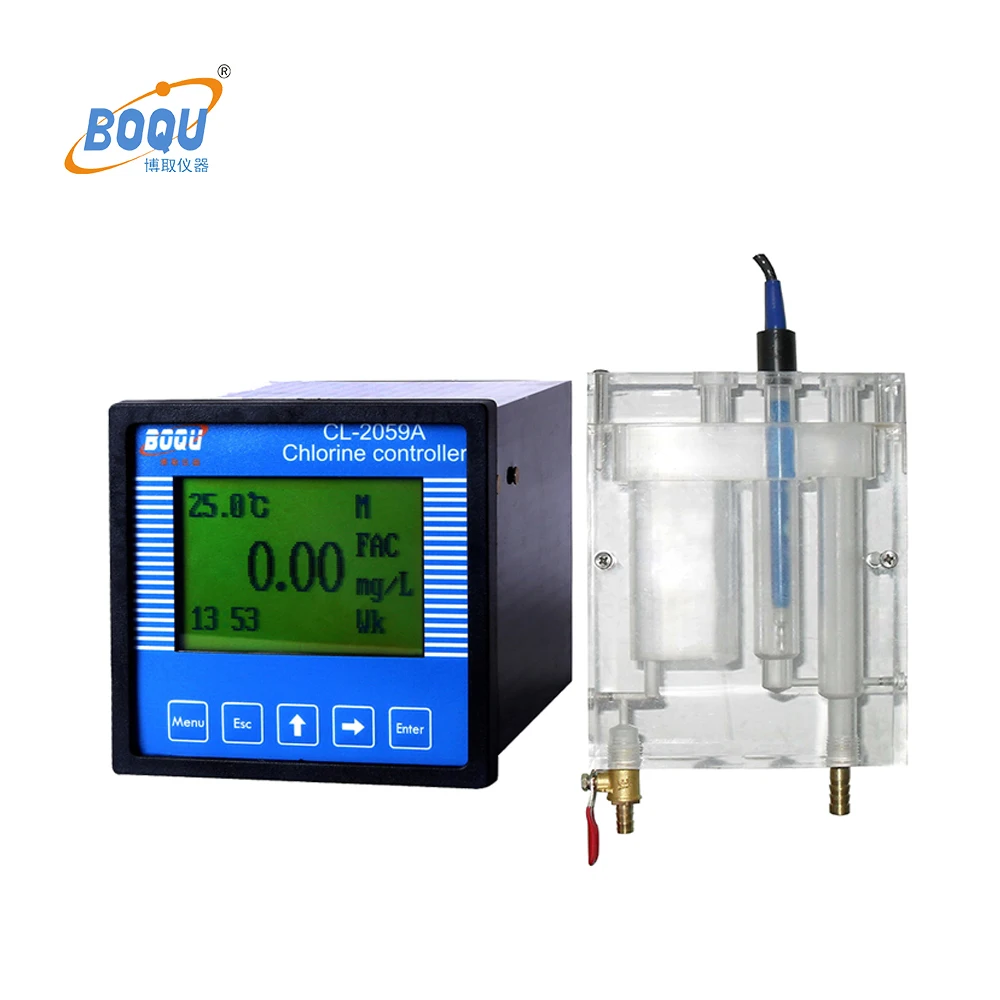

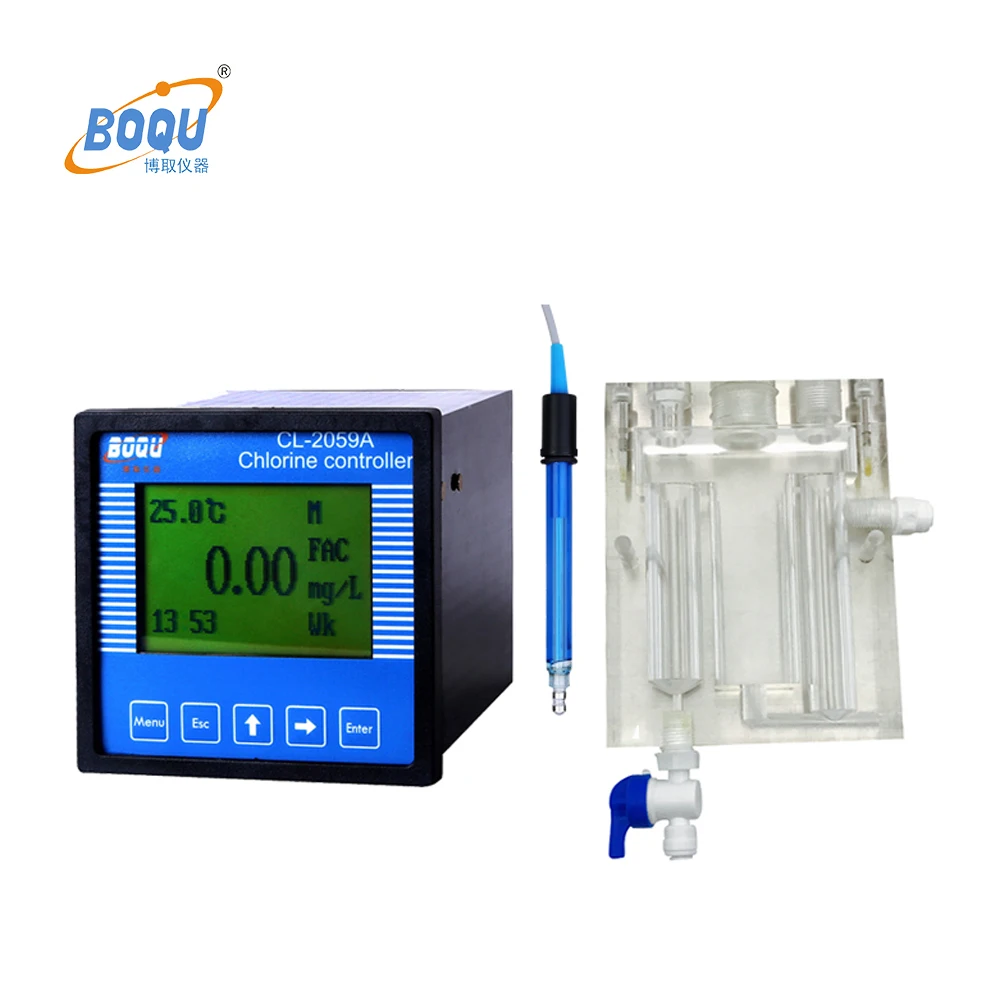

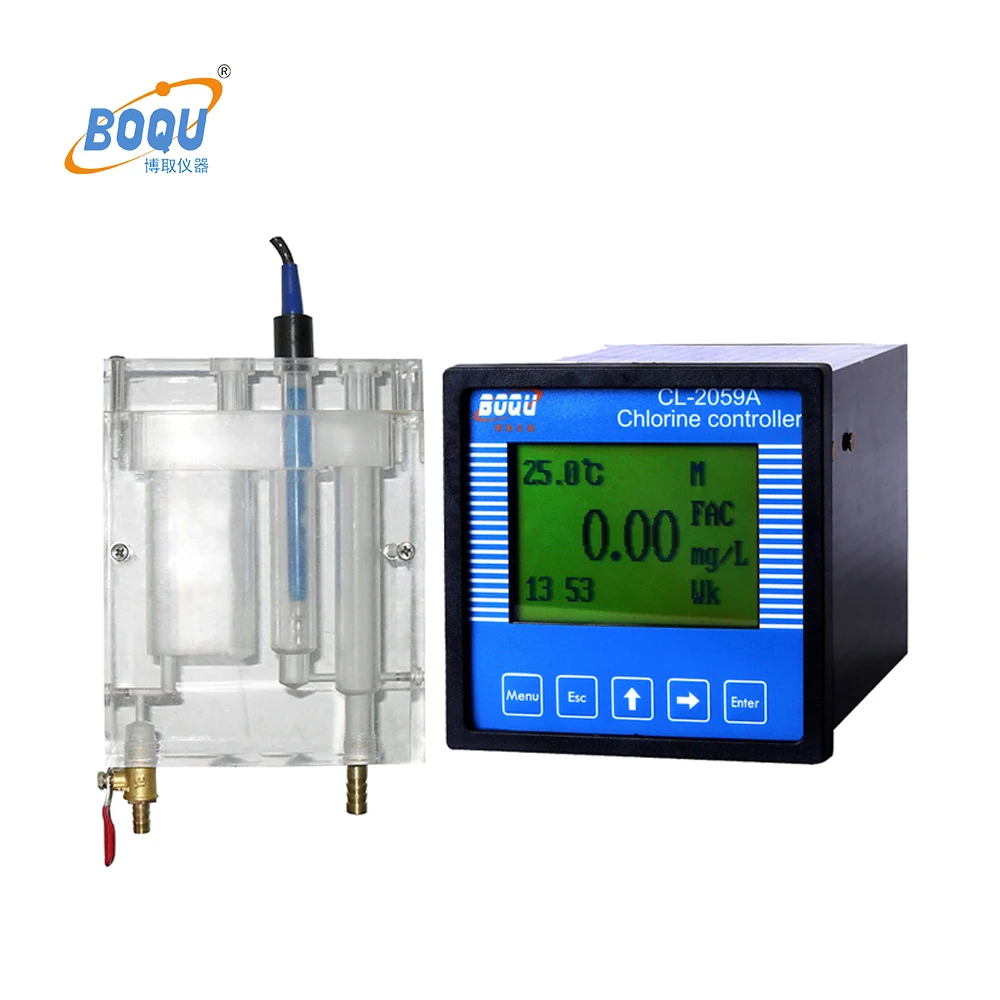

CL-2059A Residual Chlorine  Meter













































ModelCL-2059A
Measure range0-20mg/L
Accuracy1%FS
Temperature0-65C
Output4-20mA
Alarm relays220V,5A
Power220VAC or 24VDC
CommunicationRS485
Overall dimension96*96*118mm
Dimension hole92*92mm




free chlorine meter.jpg


CL-2059-01 Residual Chlorine Sensor





























ModelYLG-2059-01(constant voltage)
Housing materialGlass
Sensor materialPlatinum in glass bulb
Reference sensorGel with annular contacts
Working pressure0.1Mpa
Dimension12*110mm



 Features of Online Free Residual Total Chlorine CL2 Analyzer


1) DPD Colormetric principle


2) It can keep working more 30 days without changing reagent.


3) 2 relays, user can set it by self.


4) Low range and accracy .


5) Widely used for drinking ,cycle cooling water, Municipal water pipe network  etc.

































Range0~5ppm
Accuracy+/-5%FS or +/-0.03 ppm CL2
Low limit0.03mg/L
Using conditionsample flow:200~400ml/min,inlet pressure:0.1~5bar,temp:5~40C
Power220~230,50HZ/60HZ
Relay2 relay, user can set it for alarm by self
InstallationWall mounted.




Certifications


BOQU was found since 2007, now has more 100 production,R&D engineers, instruments has be exported to over 75 countires.,Now BOQU has been named as High-Tech Enterprice by goverment,ISO,CE, SGS is our common certicates. the core technology of electrode ,controller and 50+ software property is our based. all instruments has been recognized by National Metrology Bureau.there is many small factories in China, you should be carefully if they provide you very low price. this is tips for you in free.certificate.jpg








Installation


Application of Free maintenance chlorine comparator test kit


1)Continuous online monitoring for residual chlorine in any water
2)Water treatment plant residual chlorine dosing control
3)Secondary chlorination free chlorine dosing control
4) Distribution monitoring
5)Cooling tower monitoring and control
6)Pasteuriser dosing control
7)Seawater chlorination control
8)Bromine monitoring in seawater
9)Food washing
10)Chloramination control







Exhibitions


The BOQU Instrument is a young, energetic and professional team. We will continue to focus on R&D and manufacturing of high-end water quality monitoring instruments and sensors.we keep to create benefits for our customers,We work hard for the material and spiritual aspects of all employees,and contribute to the progress and development of humanity. forever to guard the earth's water quality.


foreign exhibition.jpg





Factory Show


BOQU Instrument only focus on development and production Water Quality Sensors and Analyzers since found, now staff is over 100 people and with an annual growth rate of 35%. we have  own R & D center,many senior engineers has over 10 years R&D experience in water quality anlyzers and water quality sensors.Now our company has got more than 50 technical certificates for controller software and 23 technical patents,therefore we won the National High-tech Enterprise Certificate in 2010. At present, the annual quantity of water quality sensors and meters is over 100,000pcs, it’s the biggest factory in Shanghai.







Why to choose BOQU?


Why choose BOQU Instrument of Free maintenance chlorine comparator test kit ?


1.National High-tech Enterprises Certificates


2.Instruments has been exported to over 70 countries.


3.BOQU has more 50+ Softwares property


4.100% QC inspection Before Shippment.


5. ISO,CE,SGS standard and factory price.


6.All instruments has been 100% recognized by Bureau of National  Metrology
