Hot selling string cutting machine

Who are we ?

Yuanzhi Automation Technology Co., Ltd was established in Shenzhen in January, 2001. Our company has a team of experienced system engineers, advanced programmers, circuit designers, precision machinery designers, structural engineers and mechatronics engineers. They are engaged in researching and developing the software and hardware of industry control system and have committed to the development, production, sales and service of new automation system and automation equipment. Now we have made outstanding achievement in CNC technology, automation.

What is our product ?

Our products include,

Automatic cutting machine: standard cutting machine, hot cutting machine,widen type cutting machine, higher type cutting machine, cutting machine with feeding device.

Automatic screwdriver machine:Screw feeding machine,simple table screw tightening machine,XYZ screwdriver machine, robotic screw fastening machine.

Automatic glue dispenser machine:standard glue dispenser machine,AB glue dispenser machine,multi-head glue dispenser machine and customized glue dispenser machine.

Automatic PCB separator machine:400mm/600mm/900mm/1200mm PCB cutting length.

Intelligent SMD components counter:YS-801,YS-802,YS-IH881,YS-IH882,SMD counter with printer and scanner.

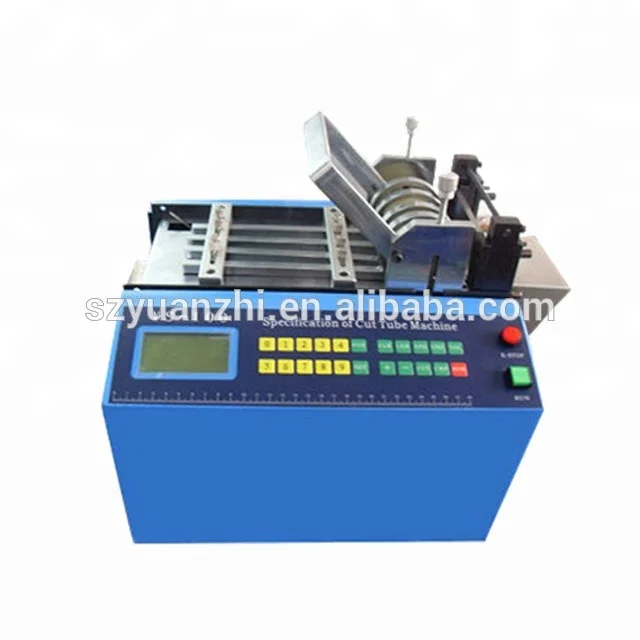

Hot selling string cutting machine

Application

The cutting machine is suitable for cutting tube, ribbon/webbing/belt, cable/wire, sheet, film etc.

Tube:  PVC tube, heat shrink tube, braided tube, fiberglass tube, Teflon tube, corrugated tube, mesh tube, sponge tube, silicone hose, etc.

Cable: Flat cable, copper wire, nylon rope, ribbon cable, etc.

Tape: ribbon, belt, webbing, label, rubber band, nickel strap, cotton tape, elastic band, plastic tape, zipper, conductive tape, foam, double-sided tape, etc.

Sheet: foam sheet, Nickel sheet, diffuser sheet, plastic/rubber sheet, pvc sheet, etc.

Film: plastic film, reflecting film, insulation paper, PE, Copper/Aluminum foil, release paper, etc.

one machine suitable for cutting various kinds of materials

Features

1.High speed: It can cut 100~120 cut per minute. (50mm long)

2.Accuracy: Cut-length is accurate, cut length can be set between 0.1-9999.9mm.

3.Cutting type: For cold cut and Optional hot cut. Hot cut suitable for materials that needs hot sealing, such as Nylon webbing, polyester webbing, etc.

4.Automatic operation: It works automatically only by setting length and quantity. Save labor, high efficiency.

5.Automatic stopper: It stops automatically if materials run out during operation

6.Memory: Set-length, set-QTY & set-speed are not erased even if power off & on

7.Application:The cutting machine is suitable for cutting tubes, cable, webbing/ribbon/belt, small wire, sheet and film, etc.

8.High speed, high accuracy, designed for cutting non-adhesive materials.

Specification

Model: YS-100

1. Voltage: AC220V/50Hz & AC110V/60Hz

2. Power : 250W

3. Cut Length : 0.1-9999.9mm

4. Cut Width : 0-100mm

5. Cutting Thickness : 0-12mm

6. Dimension : L360*W300*H350MM

7. Net Weight : 28kg

Typical specifications

Electrical Source 220V 50/60HZ

Power   250W

Cut Length   from 0.1 MM to 9999.9MM

Cut Width    from 0.1 MM to 155MM

Cut Speed   It depen on the cut length,from 50 PCS to 120PCS per minute

Net Weight  29KG

Outer size   L360*W370*H350 mm

Packaging detail

Carton or wooden case within foam plastics.

L700MM*W550MM*H450MM.

Computerized Cutting Machine

YS-100/YS-120/YS-160

Specifications

Voltage:220/110v 50/60HZ

Power:250w

Cutting Length:0.1-9999.9mm

Cutting Width:0-100mm

Weight:28kg

Size:L360*W300/320/360*H350mm

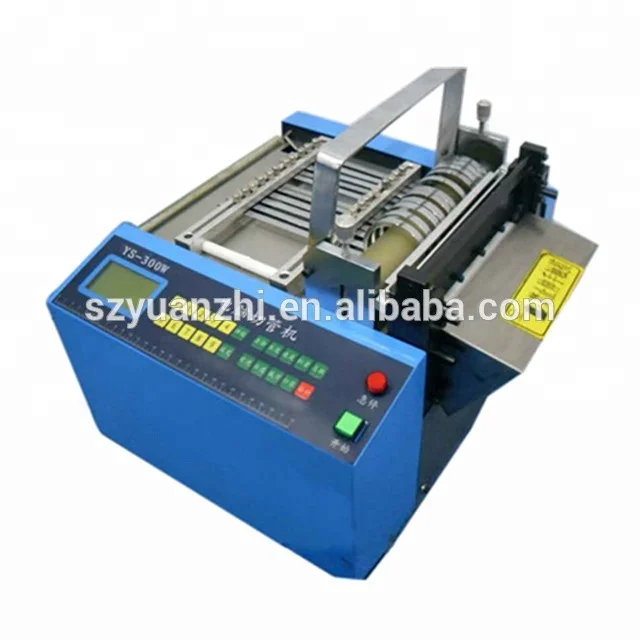

YS-100W/YS-120W/YS-160W/YS-200W

YS-250W/YS-300W/YS-400W/YS-500W

Specifications

Voltage:220/110v 50/60HZ

Power:500w

Cutting Length:0.1-9999.9mm

Cutting Width:0-100mm

Weight:28-38kg

Size:L360*W(300-700)*H350mm

Intelligent and High Speed Cutting machine

YS-IH611X series is new developed high speed cutting machine. It is updated according to YS-100~YS-300W series. The speed is 2~2.5 times more than others. Hot sale Machine.

YS-IH6110/YS-IH6112/YS-IH6116

Specifications

Voltage:220/110v 50/60HZ

Power:250w

Cutting Length:0.1-9999.9mm

Cutting Width:0-100mm

Weight:28kg

Size:L360*W300/320/360*H350mm

YS-IH6110W/YS-IH6112W/YS-IH6116W

YS-IH6120W/YS-IH6125W/YS-IH6130W

Specifications

Voltage:220/110v 50/60HZ

Power:500W

Cutting Length:0.1-9999.9mm

Cutting Width:0-100mm

Weight:28-38kg

Size:L360*W(300-500)*H350mm

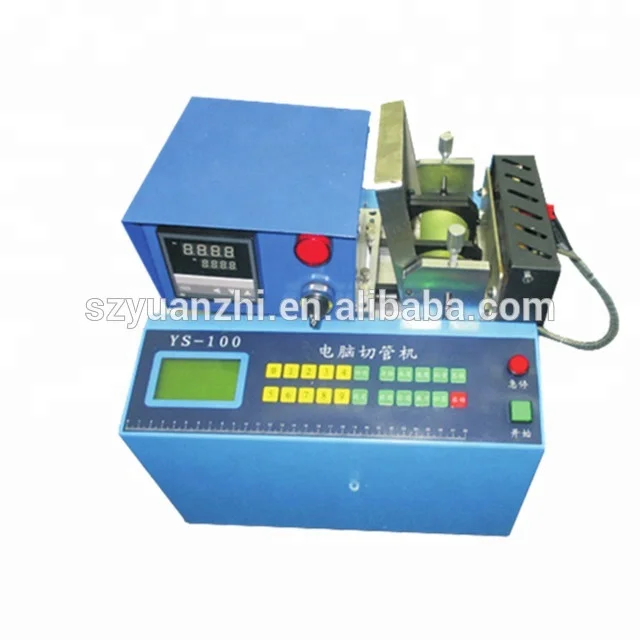

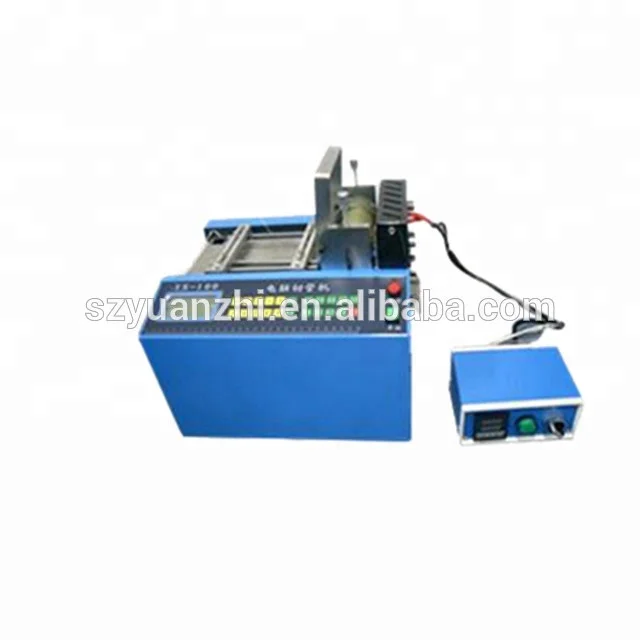

Hot and Cold Cutting Machine

Applications

Suitable for hot cutting material to fuse together

Specifications

Voltage: 220V/110V 50/60Hz

Power: 500W

Temperature: 0°---750° adjustable

Cutting Length: 0.1---9999.9mm

Cutting Width: 0-100mm

Weight: 30KG

Size: L360*W300*H350mm

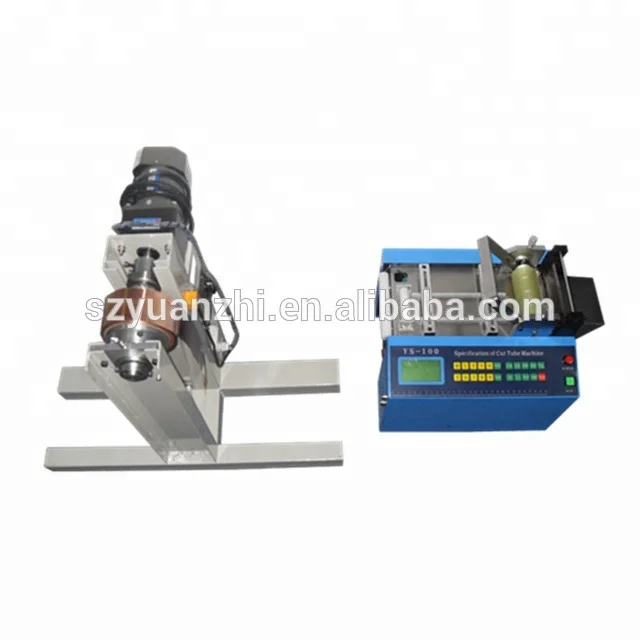

Automatic Cutting Machine With Feeding Device

Introduction

Automatic feeding system is applicable for bigger and heavier material cutting machine. It is suitable for all cutting machine models.

Ordering information

Model No     Cut Width    Machine Size     Net Weight  Power

YS-100, YS-100W     0-100MM     L360*W300*H350MM      29kg     250W/500W

YS-120, YS-120W     0-120MM     L360*W320*H350MM      30kg     250W/500W

YS-160, YS-160W     0-160MM     L360*W360*H350MM      33kg     250W/500W

Model No     Cut Width    Machine Size     Net Weight  Power

YS-200W     0-200MM     L360*W400*H350MM      35kg     500W

YS-250W     0-250MM     L360*W450*H350MM      40kg     500W

YS-300W     0-300MM     L360*W500*H350MM      45kg     500W

PS: For cutting tubes, according to the diameter of the tubes, choose suitable machine.

YS-100: Cut tubes with diameter less than 13mm

YS-120WH: Cut tube with diameter less than 22mm
