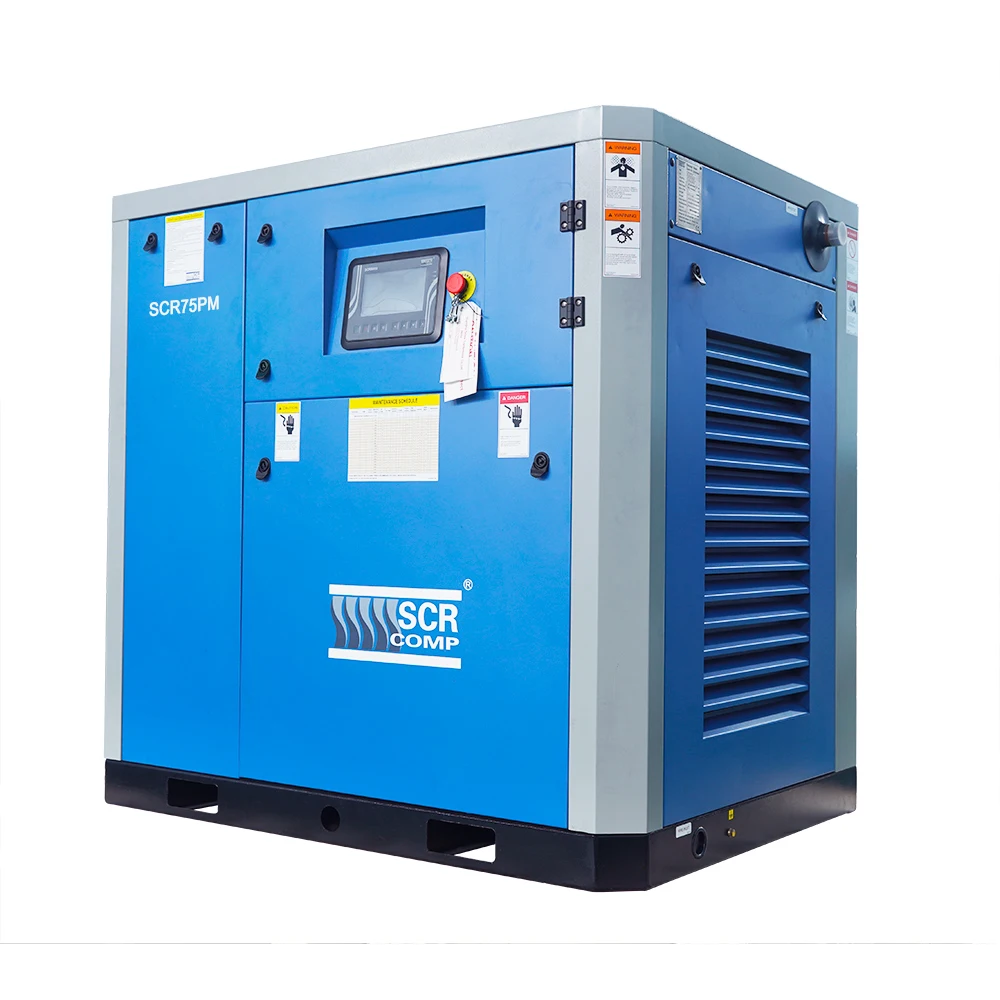

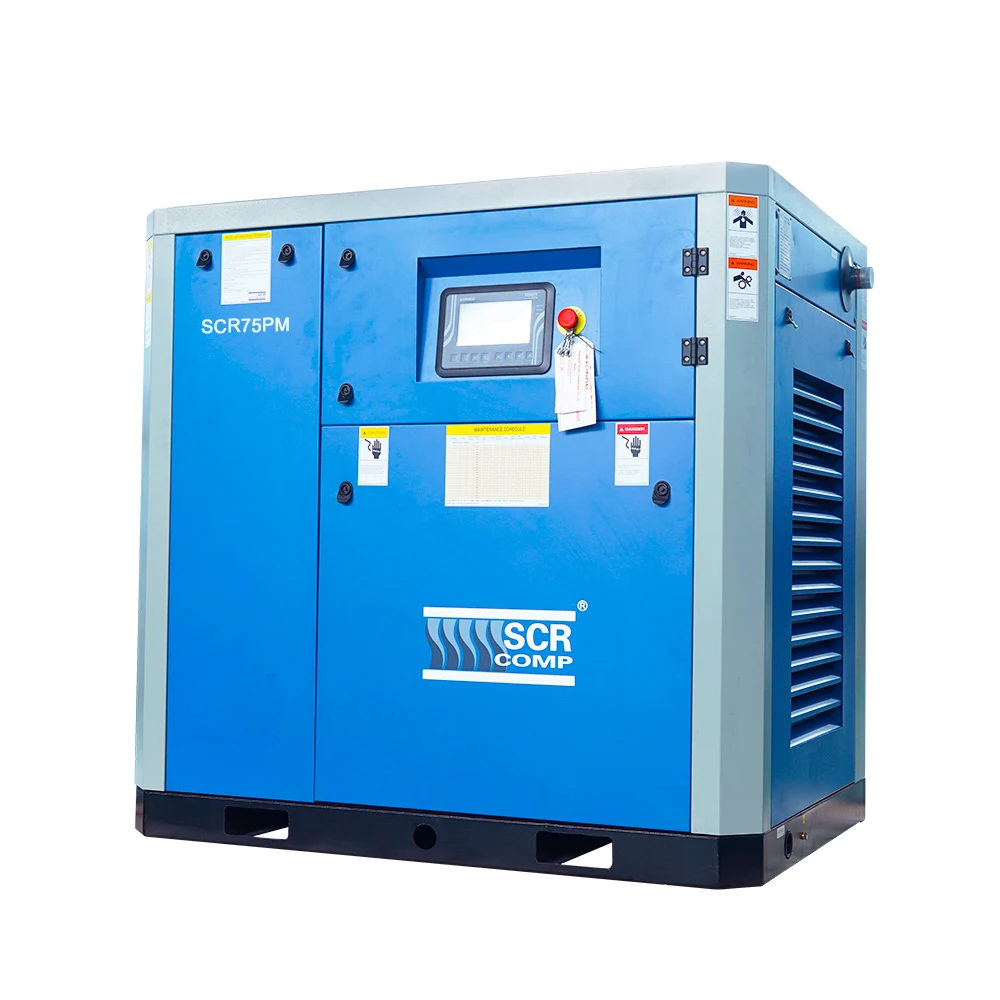

Промышленный Воздушный компрессор PM (SCR75PM) с низким уровнем шума 55 кВт 75 л.с. 8 бар
- Категория: >>>
- Поставщик: Shanghai Screw Compressor Co. Ltd.
Сохранить в закладки 60776091712:
Описание и отзывы
Характеристики
Product Description
Product Technical Description
| Model : | Energy Saving Series (PM) |
| Type: | Oil Injected Permanent Magnetic Screw Compressor |
| Voltage: | 380V/50HZ/3P, 220V/60HZ/3P, 400V/50HZ/3P, 415V/50HZ/3P or Customer′s Requirements |
| Working Pressure: | 7~13bar |
| Installed Motor Power: | 20~75 Kw |
| Color: | Blue |
| Driven Method: | Taper Connection Direct Driven |
| Air End: | Original Ally-win Air End from Germany. |
| Trademark: | SCR |
| Transport Package: | Standard Wooden Packing |
| Available Certificate: | CE, ISO, UL, ASME, GHOST |
| Origin: | Shanghai, China |
| application: | Packing,Painting,Precision Electroplating,Peparing |
Product Features
1. China-Japan latest technology cooperation, high reliability.
2. Oil Cooling Permanent Magnetic Motor.
3. IP65 protection grade & heavy duty air filter, suitable for high dusty environment.
4. IE4 Efficiency motor efficiency.
5. Most energy saving mode, Only work at loading.
6. Wide frequency range 25%-100%.
7. Premium Magnetic material resist more than 180℃ temp.
8. Reliable PM motor supplier from Italy.
9. Direct Taper connection, no transmission power loss, easy maintenance.
10.Touch Screen PLC with preset running schedule, more intelligent control.
11. Both main motor and fan motor are inverter control, more accurate control.
12. Easy for installation and service.
13. Fantastic Energy Saving, save up to more than 30-40%.
 | 1. PM Motor And Germany Ally-win Air End
(1)IP65 protection grade, IE4 oil cooling PM motor. (2)Direct driven between air end and PM motor, without transmission loss. (3)max. 3000RPM.

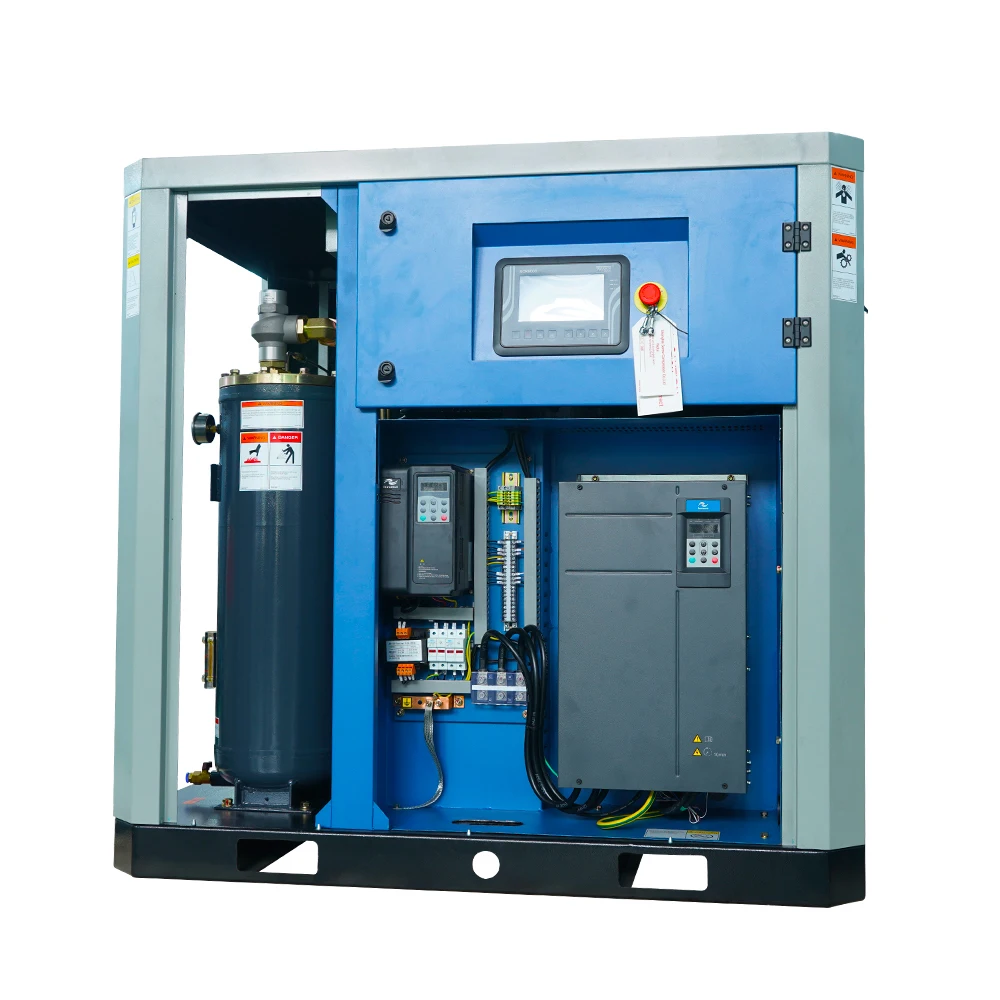

2. Inverter
(1)Inverter control, more than 30% energy saving.
(1)pre-set running schedule. (2)Different working pressure at different set time. (3)Remote control and monitoring.
4.Heavy Duty Filter
(1)Suitable for dusty application
|
| Model | SCR75PM-7 | SCR75PM-8 | SCR75PM-10 | |
| Capacity/Pressure(m3/min,/BAR) | 10.2/7 | 10.1/8 | 8.4/10 | |
| PM Motor | Power(KW) | 55KW(75H.P) | ||
| Speed(r/min) | 3000 | |||
| Starting way | VSD Startup | |||
| Volt(V) | 380/400/415(220) | |||
| Motor safety grade | IP65 | |||
| Motor isolation grade | F | |||
| Electrical Supply | 380(400,415)V/50Hz/3Phase, 220V/60HZ/3P | |||
| Outlet Temperature(ºC) | ≤ Environment Temperature+10ºC | |||
| Driven way | Direct Driven | |||
| Noise level at 1 meter | 75±3dB(A) | |||
| Cooling method | Oil cooling | |||
| Oil content | 1~3 ppm | |||
| Outlet Connection | Rc 2 | |||
| Dimension | Length(mm) | 1800 | ||
| Width(mm) | 1200 | |||
| Height(mm) | 1550 | |||
| Weight(KG) | 1230 | |||
Product Categories
Advantages
 | Professional online consultant to solve your question about compressor system. |
| Free site design consultant, and energy saving solution to help you save operation cost. | |
| Negotiable technican available to service machinery overseas. | |
| Online professional after-service until solve the problem. | |
1 year warranty after commissioning or 16months against shipping date, (except maintenance consumables). | |
| A sufficient number of spare parts are available, make sure the good after service. |
Application
About SCR
1989 Start Sells of Screw Compressor
2008 Establish Shanghai Globe Screw Compressor Technology focus on airend technology through technology cooperation with Germany.
2010 Get UL certificate, start to sell in US.
2015 Promotion of oil cooling PM compressor, two stage compressor. Export oil free compressor to UK, US etc. Export to more than 55countries around the world.
2018 Jan, 1st, Joint Venture with Japan Anest Iwata to have better future development.
|  |
2002 Establish SCR factory in Jinshan Area.
2009 Attend Germany Hannover Mess, Get CE certificate, start to sell in Europen market.
2013 Export low pressure compressor.
2016 EPM, Low pressure PM compressor be published.
|
FAQ
1 What trade terms do we provide? What kind of settlement currency do we offer? |
Trade term :CIF ,CFR ,FOB,Ex-Works |
2 How long is our delivery? |
Our standard delivery time is 30-40 days after confirmation order & receiving recipets for standard compressors, for the other non standard requirement will be discussed case by case. |
3 What is the voltage of the compressor? |
The available voltage include 380V/50HZ/3Phase, 400V/50HZ/3P, 415V/50HZ/3P, 220V/60HZ/3P, 380V/60HZ/3P, 440V/60HZ/3P. At the same time we provide other voltage according to customer requirement. |
4 Can our compressor run in high temperature environment? What is the working temperature range for our machine? |
Yes ,our machine would run in high temperature environment ,until now our products have been sold to many countries which would meet high temperature in summer ,such like Iraq, Saudi Arabia, Egypt, Algeria, etc. |
5 What’s the min. Order requirement ? |
Min. Order requirement is 1PCS. |
Contact Us
Похожие товары
KT-RM100 лабораторный трубчатый роликовый смеситель для образцов крови/химический раствор/Вязкие вещества/жидко-Твердые
409,00 $ - 429,00 $
Высококачественный органический соус для пиццы, Сделано в Италии, стеклянная банка 340 г, изготовлена из свежих томатов

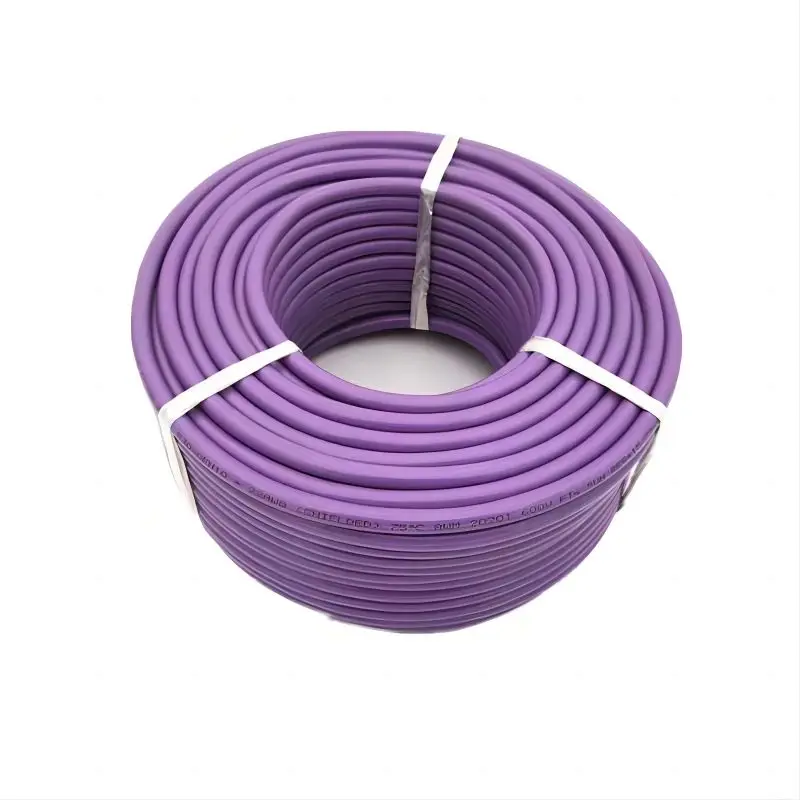

6XV1830-5EH10 6XV1830-5EH10 SIMATIC, запасная часть сетки, промышленный процессор Ethernet-связи, диагностический кабель
1,50 $ - 2,00 $

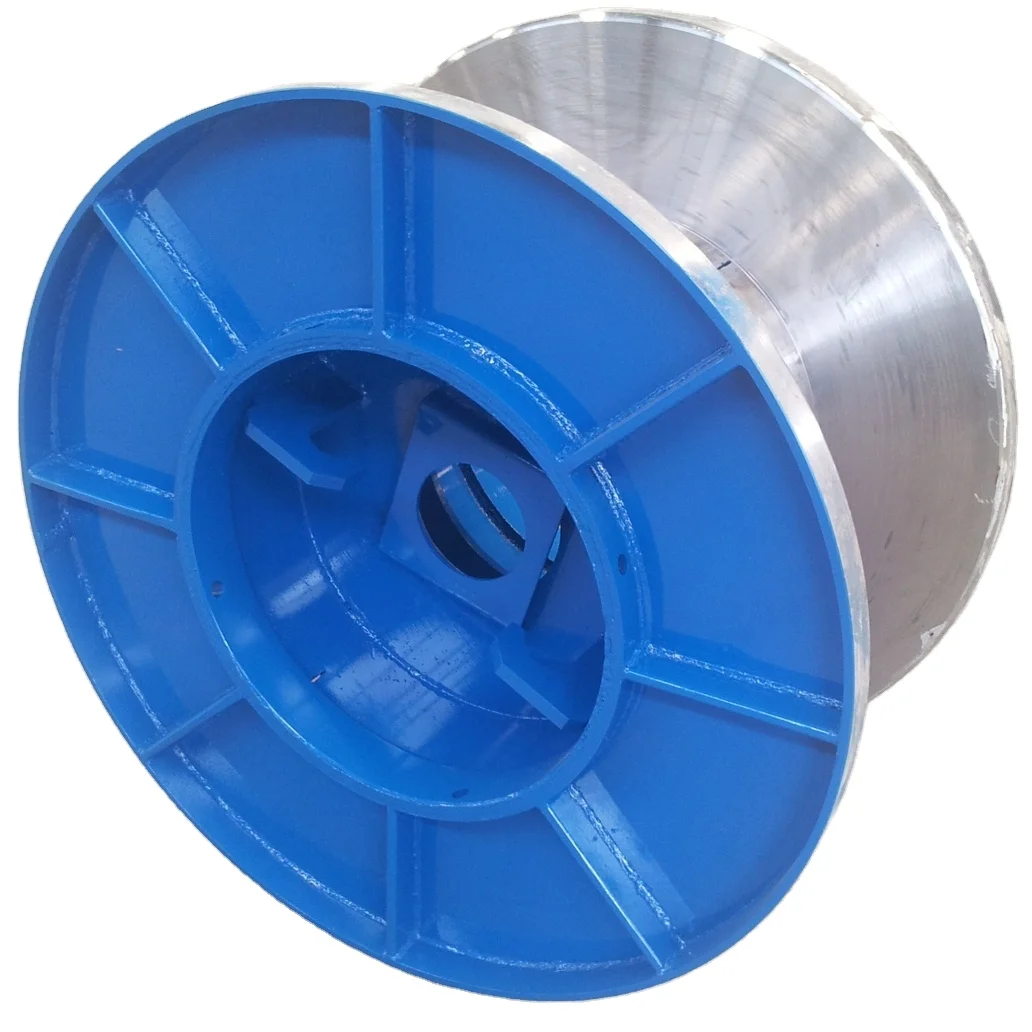

Производство резьбовых катушек со стальной фланец, технологический кабель, катушка с металлическим фланцем, технологическая катушка
500,00 $ - 600,00 $

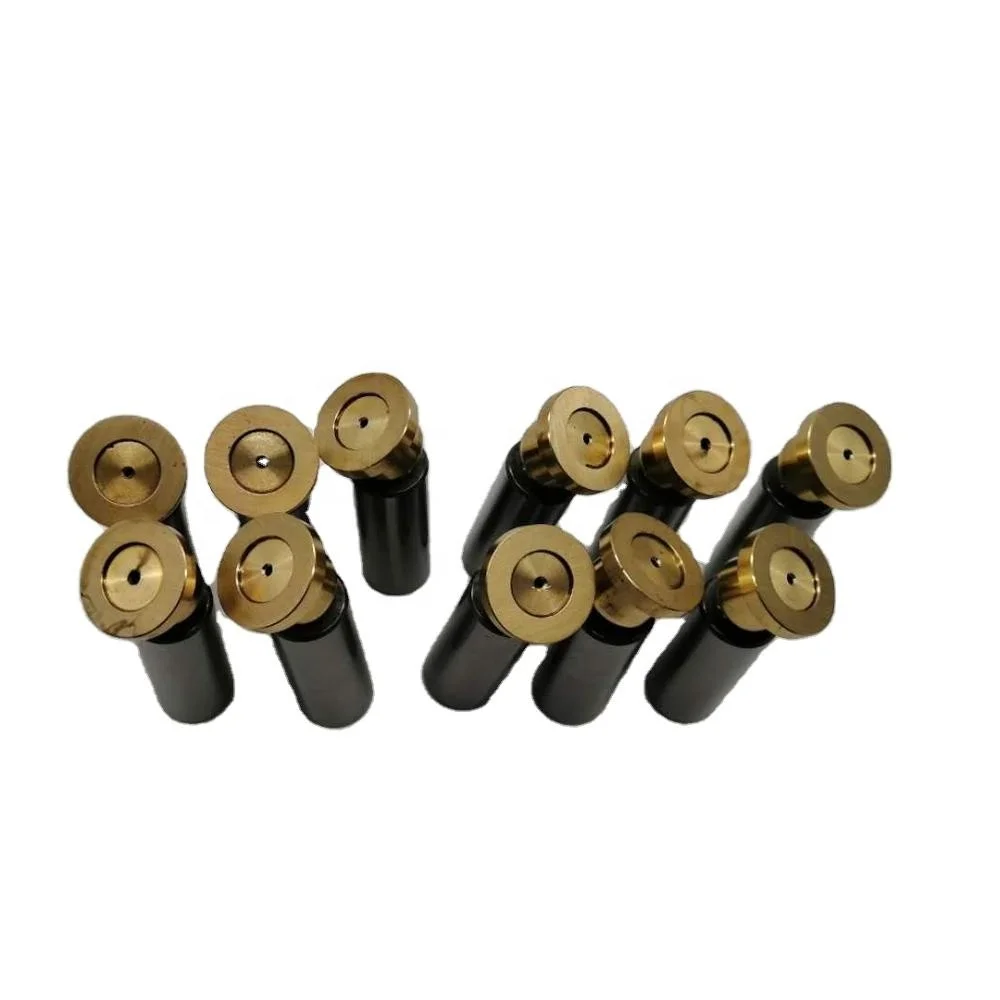

Главный гидравлический насос PVK-3B-725 обуви поршень для ZX60 ZX65 EX75UR экскаватор handok запчасти

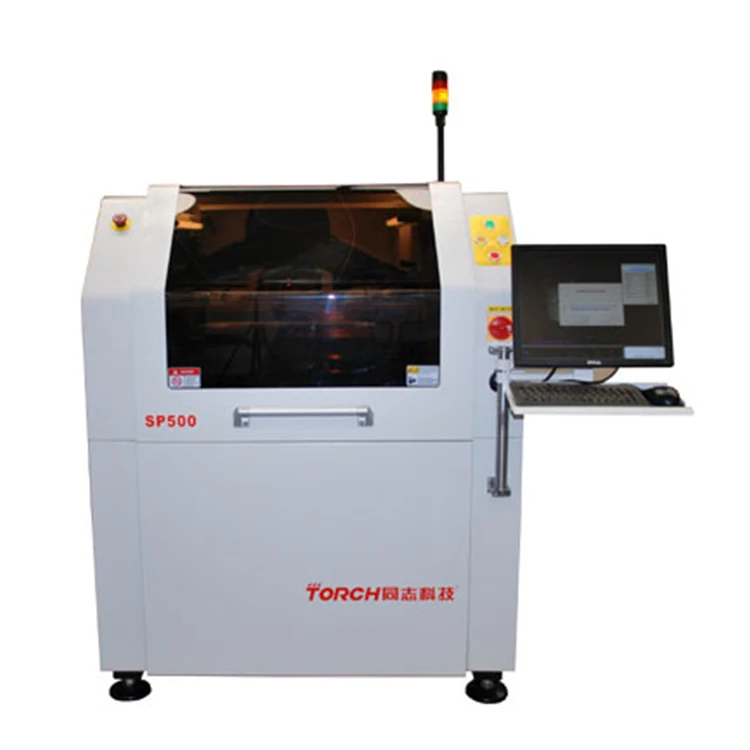

Онлайн автоматический Трафаретный принтер/SMT PCB линия сборки/SMT печатная машина SP500 (факел)
