Подводный погружной насос для скважин с низким объемом SURGEFLO SPX 12 8 Chinese

Подводный погружной насос для скважин с низким объемом SURGEFLO SPX 12 8 Chinese

Категория: >>>
Поставщик: Fujian Baida Pump Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

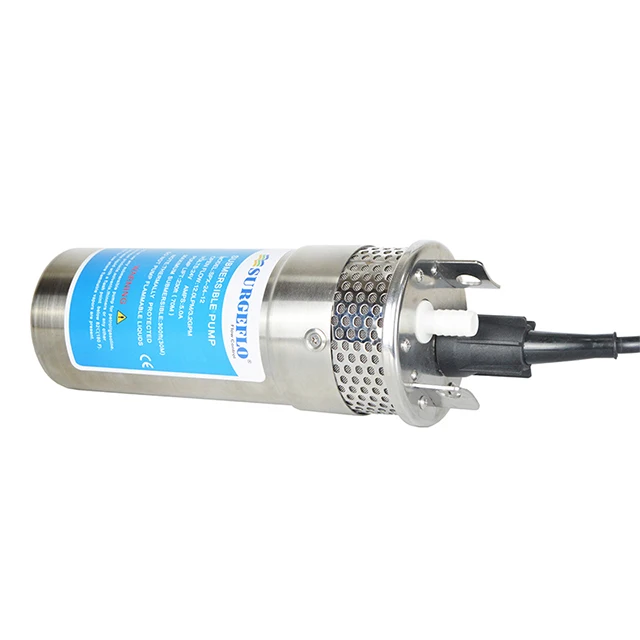

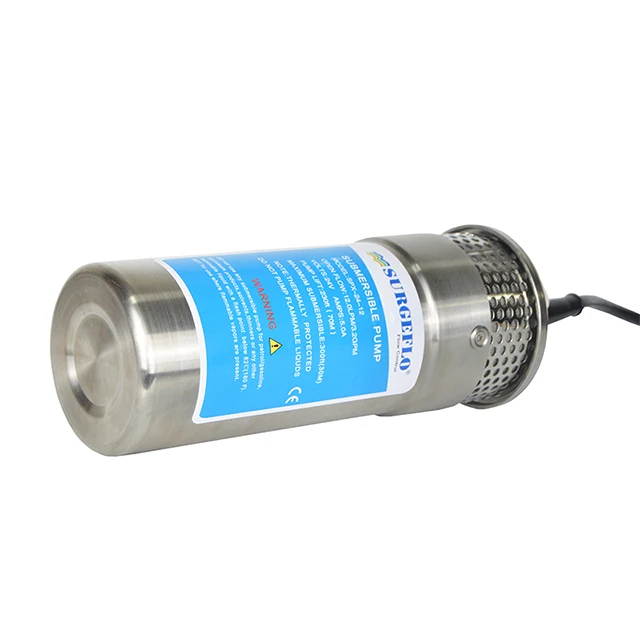

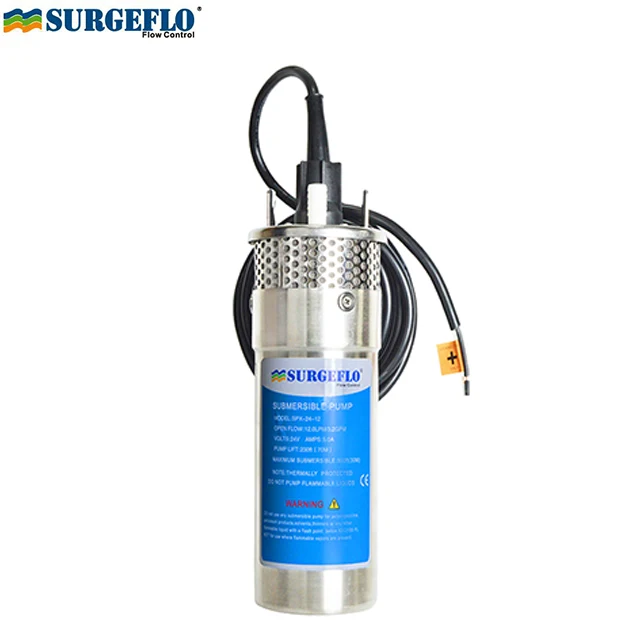

SURGEFLO SPX-12-8 Chinese low volume submersible tube well water pump

Features:

● Stainless steel submersible pump
● Built thermal protector
● Low power,high effect
● Small volume,widely used
● Large flow,high lift

● For 4" wells or larger
●Quick disconnect with "Watertight-Gland" Design Pat Pend
●Corrosion-proof housing with stainless-steel fastener
●Run dry without damage
● State of the art solid diaphragm
● Stainless Steel Pump case
● Pump Design: Positive Displacement 3 Chamber Diaphragm Pump
● Motor: Permanent Magnet Thermally Protected
● Wire Length:3M

Specifications: pump included:
A high-efficiency positive-displacement diaphragm submersible solar water pump. The system is designed for off-grid households as a near zero recurring cost replacement for diesel.This pump max flow rate can be 720LPH(189GPH), the Max head can be 100M.
Its unique water-tight power connector stops water wicking and prevents potential condensation problems.
Great for livestock watering.irrigation,pondaeration,remote homes and cabins

Application :

Solar water intake

Water intake at high altitude

Food beverage filling & liquid transfer

Any other pressurization system

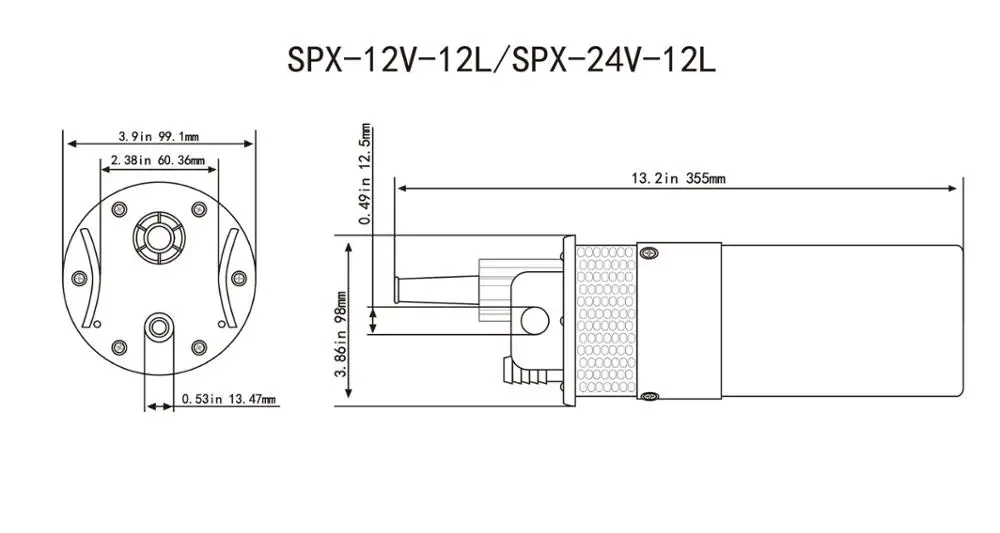

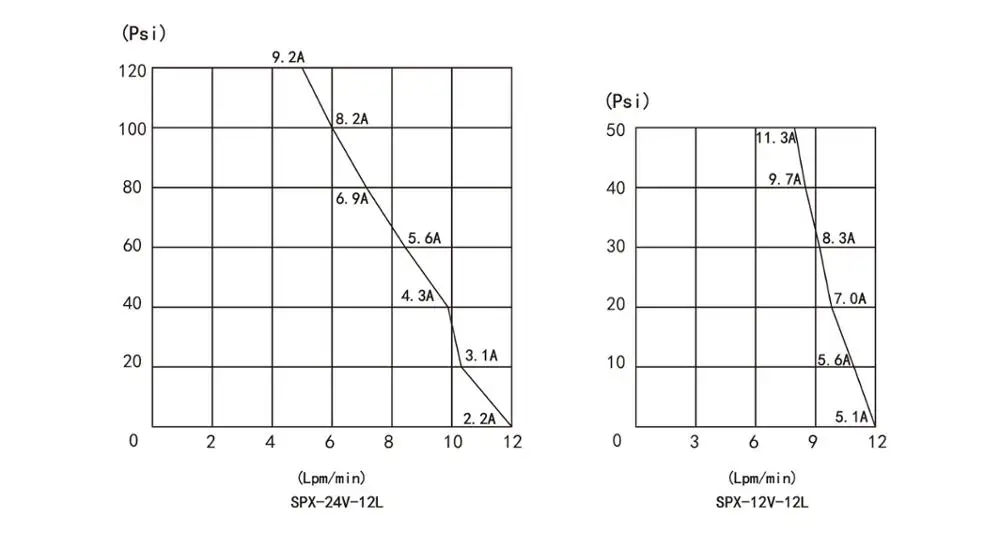

Technical Data:

\t Pump Design	\t Positive Displacement 3 Chamber Diaphragm Pump
\t Motor	\t Permanent Magnet, Thermally Protected
\t Voltage	\t 12/24VDC Nominal
\t Amps	\t 5.0A Maximum
\t Max flow rate	\t 12.0LPM / 3.2GPM
\t Maximum Lift	\t 328 feet Maximum (100 Meters)
\t Maximum Submersion	\t 100 Feet Maximum (30 meters)
\t Outlet Port	\t 1/2'' (12.7mm) Barbed Fitting
\t Inlet	\t 50Mesh Stainless Seel Screen
\t Materials	\t High Strength Engineered Plastics,Stainless Steel Fasteners
\t Typical Applications	\t Potable Water Well Pump

\t Model	\t Rated voltage (V)	\t Maximum flow (LPM/GPM )	\t The absorption process(m)	\t Lift (m)	\t Rated current(A)	\t packing size (mm)	\t N.W/G.W(KG)
\t SPX-12-8	\t 12	\t 8.0/2.1	\t 30	\t 100	\t 8.0	\t *385135115*	\t 2.92/3.26
\t SPX-24-8	\t 24	\t 8.0/2.1	\t 30	\t 100	\t 4.0	\t 385135115	\t 2.92/3.26
\t SPX-12-12	\t 12	\t 12.0/3.2	\t 30	\t 100	\t 10.0	\t 385135115	\t 3.70/4.03
\t SPX-24-12	\t 24	\t 12.0/3.2	\t 30	\t 100	\t 5.0	\t 385135115	\t 3.70/4.03

Products Show

Click for More Information!!!

Submersible pump
(Moedel):SP-12/24

High pressure pump
(Moedel):DP-160S

Diaphragm pump
(Moedel):FL-40

Diaphragm pump
(Moedel):FL-701

Oil pump
(Moedel):FP-12

Sewage pump
(Moedel):MP-4500

Our Service

1. All enquiries will be valued and replied with 24 hours;
2.we will give you any professional suggest, according to different market and products for new customers;
3. Our Inspect Department will test each batch to ensure high quality, with material test & performance test;
4.Quick & efficient delivery to guarantee your inventory;
5.Good package to protect the products;
6.Your any feedback will be highly appreciate to make sure we can do better and better;
7.Accept OEM & ODM, our strong design team support custom products according to customer requirement;
8.Sample or small order is welcome;

Cooperative Express

DHL,FEDEX,UPS,TNT,EMS

Payment Method

T/T,L/C,western union,PayPal

Customer Service

the pump warranty is 12 months.we can supply 1% spare parts for after service.

Our Company

Fujian baida pump Co.,Ltd., is the company which combine with factory and trade. Professional production the pumps of SURGEFLO brand, such as: diaphragm pump, sewage pump, submersible pump, oil pump, pressure tank water supply system and so on. The products are exported to all over the country and more than 30 countries and regions in the world, and have a large number loyal users of recreational vehicle?and yacht manufacturing. We have advanced integration producing departments and perfect quality management system, every water pump will pass the strict test in inspection department before putting on the market. Please be assured purchase!

Professional R & D

Our factory has 10 people R&D department, which can customize the product for you.

High-quality Materials

Our factory use the best quality copper wire to manufacturing the motor, which prolong the life of water pump greatly.

Advanced Equipment

Our factory has the most advanced automatic equipment, which enhance the output greatly.

Our Certifications

Customer Photo

Address:

301 Room No.2 Building Chengyang Town Iron Lake Mechanical and Electrical Industrial Zone Standardization Factory, Fu'an City,Ningde City,Fujian Province

FAQ

1.Q: What's your MOQ?
A: Normally our MOQ can be 1cartons . we also do retail. So MOQ can be negotiated.

2.Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.

3.Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or PayPal.

4.Q: What's your shipping item?
A: We ship items via EMS, DHL, UPS, TNT, China Post.

5.Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 7-15days after order confirmation (by air or by sea)

6.Q: What's your main products of your company?
A: We specialized in all kinds of water pump(Solar submersible pump,micro gear pump,high performance diaphragm pump,Marine pump,RV pump )for over 10 years with excellent quality and competitive

7.Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush motor , the pump warranty is 12 months.we can supply 1% spare parts for after service.

8.Q: Do you accept customized?
A: Yes , we have different customer make their own OEM product.so we also can make product as per your requirement.

9.Q:Are you a trading company?
A:We do trade . Also we have our real factory , and our factory has pass ISO-9001, we have good quality control.

10.Q:What is your terms of payment.
A:T/T, 30% in advance, balance against B/L copy.
