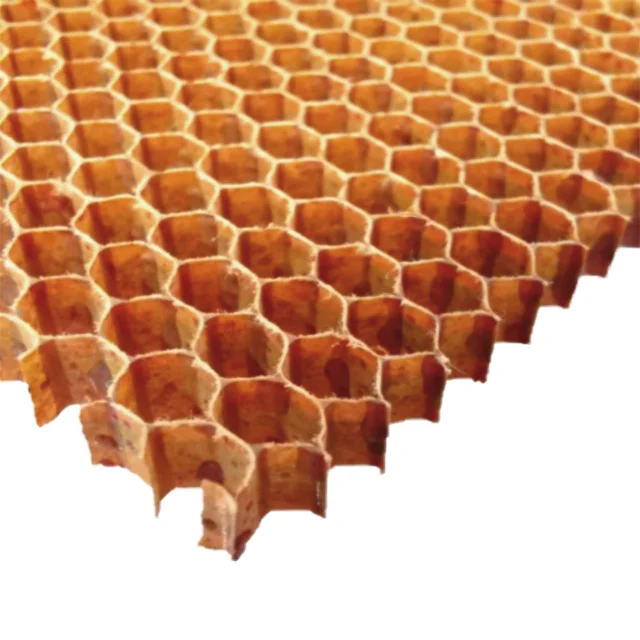

Аэрокосмический класс, 10 мм, Nomex, арамидная бумага, ячеистая сердцевина для изготовления доски для серфинга, лыж, Автогонки, высокая прочность, хорошая форма
26,00 $ - 28,00 $
Вращающийся роторный испаритель для химической лаборатории оборудование спиртовой дистилляции лучшего качества
- Категория: >>>
- Поставщик: Shanghai Yuhua Instrument Equipment Co. Ltd.
Сохранить в закладки 60777413870:
Описание и отзывы
Характеристики
Technical Date
Model | RE-1010 | RE-1020 | RE-1050 | ||
Electrical requirements | 220V/240V, 50/60Hz | 220V/240V/380V, 50/60Hz | |||
Glass material | High borosilicate glass 3.3 | ||||
Evaporating flask | 10L (2.6 gallon) | 20L (5.3 gallon) | 50L (13.2gallon) | ||
Maximum load | Not to exceed 60% of the flask’s capacity | ||||
Rotation speed | 20-120rpm It can be self-tuning | 20-120rpm It can be self-tuning | 20-90rpm It can be self-tuning | ||
Evaporating speed | H2O≥3.2L/h, Alcohol≥6.5L/h | H2O≥5L/h, Alcohol≥11L/h | H2O≥9L/h, Alcohol≥19L/h | ||
Receiving flask | 5L (1.32gallon) | 10L (2.6 gallon) | 20L (5.3 gallon) | ||
Condenser | Main Condenser+Assistant Condenser | ||||
Heating temp. range | Ambient to 99℃ (210℉) | ||||
Bath Dimensions | φ400*240mm | φ470*255mm | φ540*310mm | ||
Bath type | Motorized lift with drain port | ||||
Ultimate vacuum level | <3torrs （PTFE + Viton gaskets seal） | ||||
Unit Dimensions(W*D*H) | 1050*550*1800mm | 1130*550*1920mm | 1350*550*2300mm | ||
Characteristics
VERTICAL DOUBLE CONDENSER
Vertical type double condensing tube, with large condensing area, high recovery efficiency.

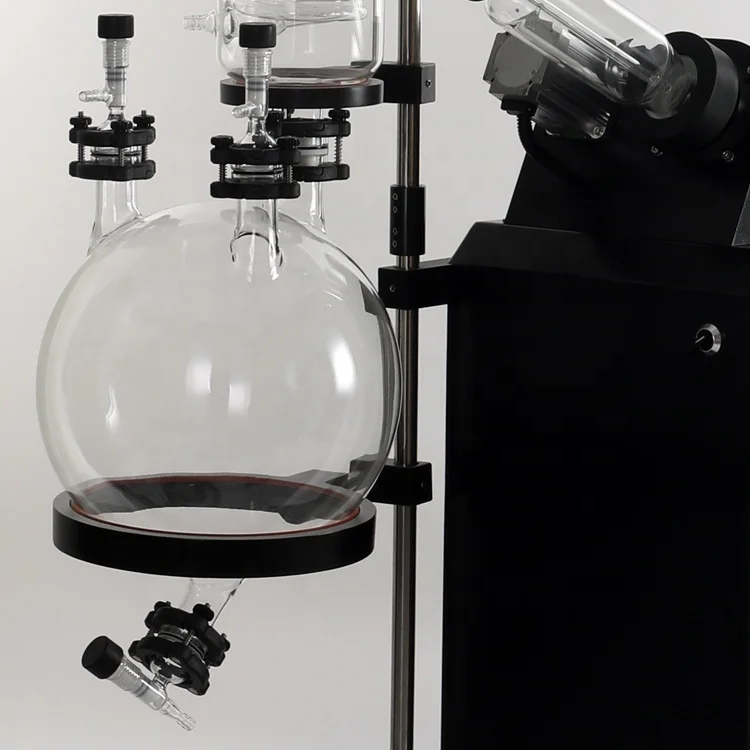

RECEIVING FLASK
Two vacuum valve design on it, without affecting the overall vacuum, rapid pressure relief and discharge.
BUMPING TUBE
Preventing unexpected solution bumping into receving flask.
CHECK VALVE
Continuous collected without affecting the system vacuum, improve the work efficiency
PID CONTROLLER
The temp. is controlled by PID, with smaller temp. overshoot, faster stable time, better temp. control accuracy. RS485 communication is optional.

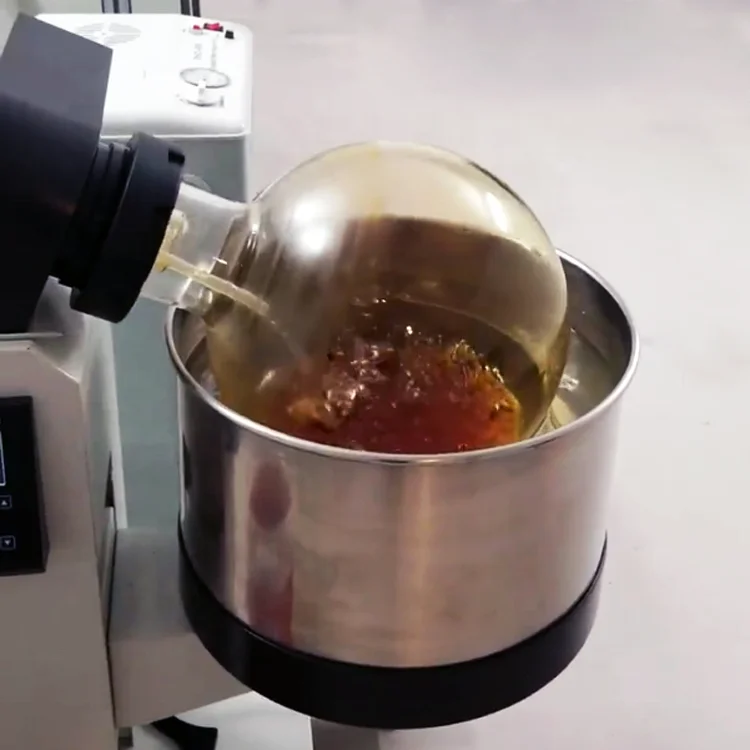

ELECTRIC LIFT BATH
Electric lift 304 Stainless steel heating bath, easy to operate. Bottom with discharge valve. heating power 6kw and 9kw optional.
QUICK OPEN FIXTURE
Quick opening fixture, easy installation and disassembly.
ROTARY SEAL
Rotary seal (contact with material directly) with modified tetrafluoron, better corrosion resistance
VACUUM GAUGE
Ultimate vacuum level: <3torrs
PULLEY WITH KNOB
Universal pulley, easy to move and can be fixed.

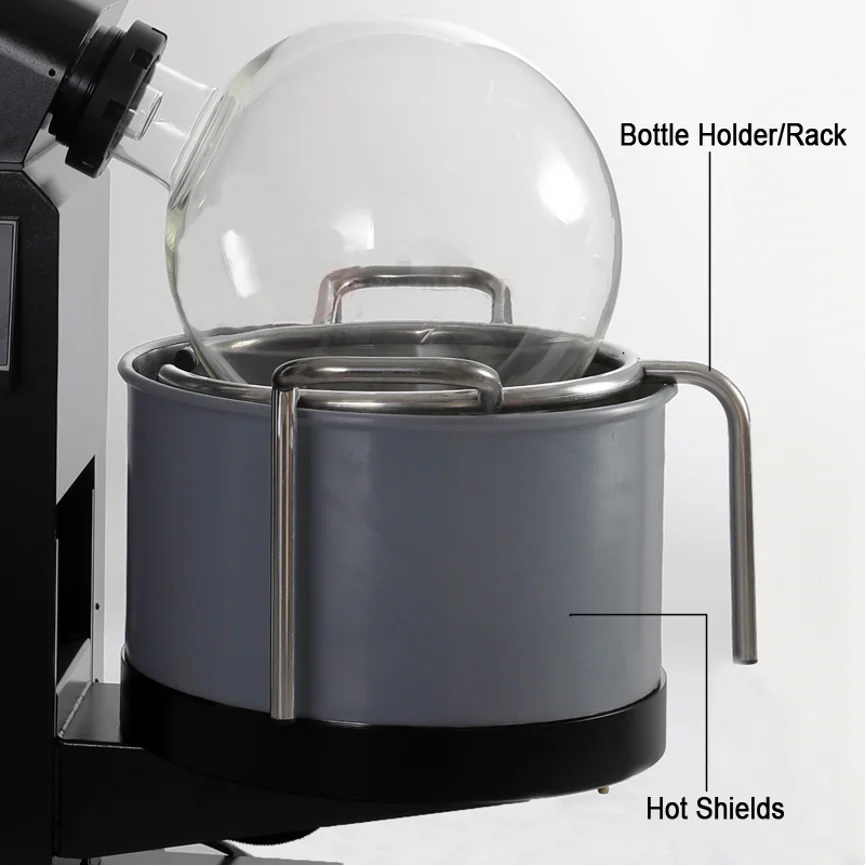

HOT SHIELDS
Hot Shields Optional. To avoid scalding when the pot heating.
BOTTLE HOLDER/RACK
Multi-function stainless steel bottle holder, single person can also operate.
Application
The rotary evaporator is suitable for extracting solvent or separating mixed solution. It can be used in the following experiments or product production:
• Concentration of solutions; • Reclamation of solvents; • Separation of chemicals;
• Vacuum drying of wet solids; • Essential oil extractor;
• Efficient and gentle removal of solvents from samples.
It's mainly used in Pharmaceutical, Biotechnology, Chemistry, Food Industry and laboratory, ect.
• Vacuum drying of wet solids; • Essential oil extractor;
• Efficient and gentle removal of solvents from samples.
It's mainly used in Pharmaceutical, Biotechnology, Chemistry, Food Industry and laboratory, ect.

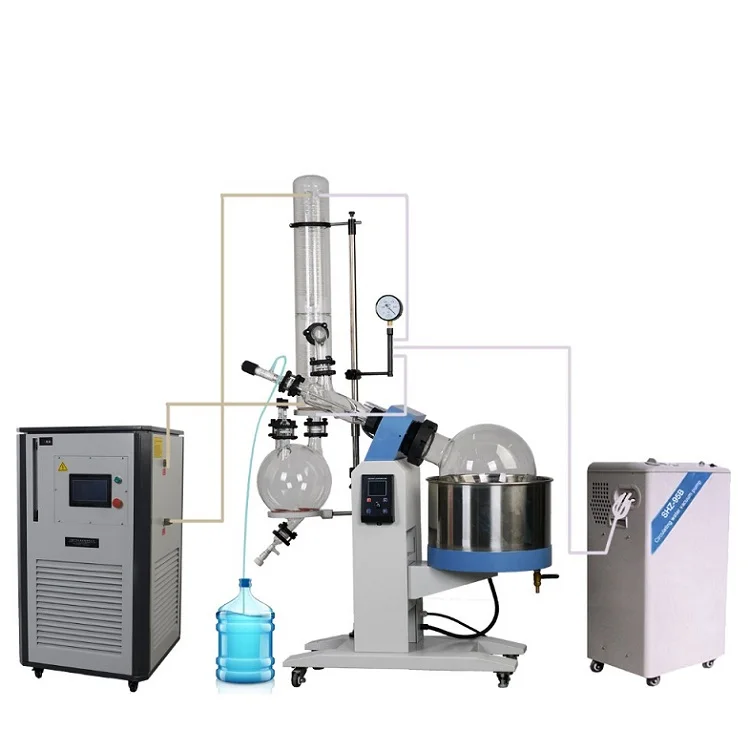

Turnkey Solution
The principle of is that under the vacuum condition, according to the different boiling point, constant temperature heating and rotated at constant speed to forms a large area of film on the bottle wall, high-efficiency evaporation. The vapor is cooled by the efficient glass condenser and recycled into the collection bottle, then you can get the target solvent. And the product usually fitted with the Vacuum Pump, Chiller to form a system device. Know more!
Customer Reviews
Packing & Shipping
Our Company
Yeahon was founded in 2008 and based in Shanghai, committed to providing lab and pilot apparatus applied in biochemical, pharmaceutical, fine chemical and research filed. We have 2 factories in Shanghai and Henan, covering an area of nearly 10,000 square meters, with short production cycle, high quality and low price, and guaranteed quality!
Our core products mainly include molecular distillation equipment, rotary evaporator, glass reactor, vacuum filter, drying oven, electric overhead stirrer, temperature control equipment and other supporting equipment.
Our core products mainly include molecular distillation equipment, rotary evaporator, glass reactor, vacuum filter, drying oven, electric overhead stirrer, temperature control equipment and other supporting equipment.
FAQ
Q1. What is your products range?
• Rotary Evaporator, Glass Reactor, Recirculating Cooling Chiller, Circulating Water/oil Bath, Short Path Distillation, Molecular Distillation Equipment, Electric Stirrer, Vacuum Pump, Hydrothermal Synthesis Reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have two factories located in Shanghai and Henan.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 5 working days after receiving the payment if the goods are in stock. Or it is 10 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
• Rotary Evaporator, Glass Reactor, Recirculating Cooling Chiller, Circulating Water/oil Bath, Short Path Distillation, Molecular Distillation Equipment, Electric Stirrer, Vacuum Pump, Hydrothermal Synthesis Reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have two factories located in Shanghai and Henan.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 5 working days after receiving the payment if the goods are in stock. Or it is 10 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
Contact Us
Shanghai Yuhua Instrument Equipment Co.,Ltd
Email: judy@shyhyy.com
Whatsapp: +86 18569916957
Phone NO.: +86 18569916957
Add: Chuigui Road, Huangdu Industrial Park, Jiading District, Shanghai, China
Don't hesitate to contact us, this is the product you need. Please click "Send" immediately!
Email: judy@shyhyy.com
Whatsapp: +86 18569916957
Phone NO.: +86 18569916957
Add: Chuigui Road, Huangdu Industrial Park, Jiading District, Shanghai, China
Don't hesitate to contact us, this is the product you need. Please click "Send" immediately!
Похожие товары

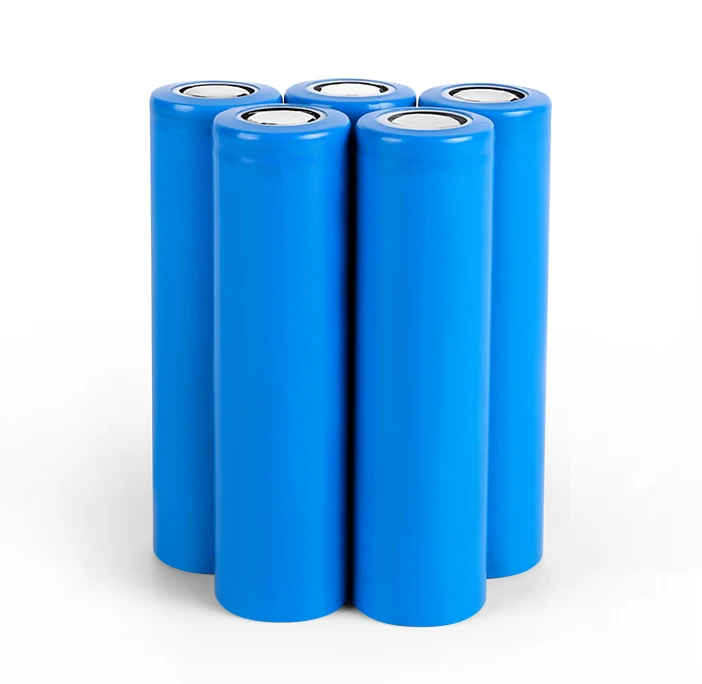

Styler литий-ионный аккумулятор 18650 18650
2,13 $ - 3,08 $

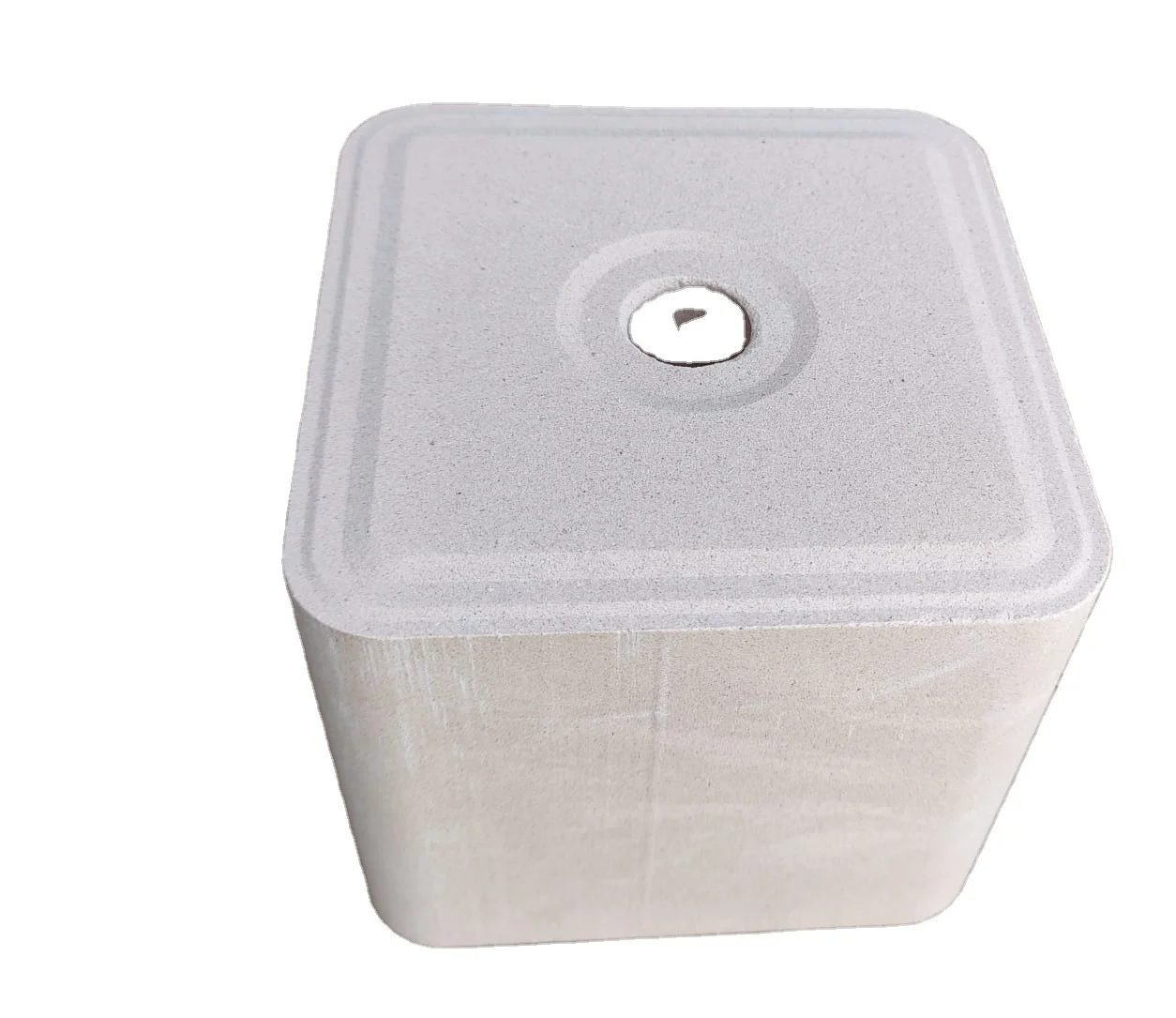

Сжатая соль лизать гималайское Животное Лизать Соль, сжатые блоки соли для лошадей, крупного рогатого скота, гималайское прессованное солонка

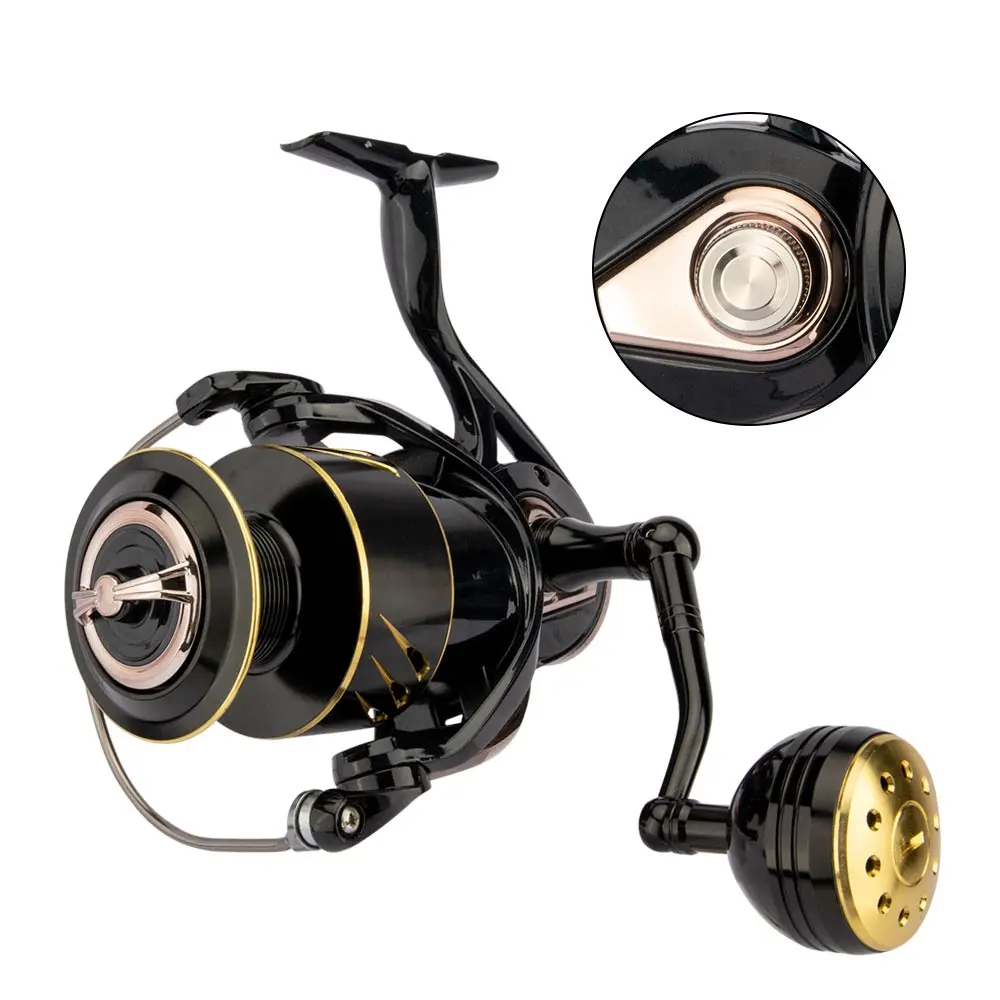

Лидер продаж HONOREAL 6000 8000, Спиннинг для морской рыбалки, электрические удочки и катушка для морской рыбалки

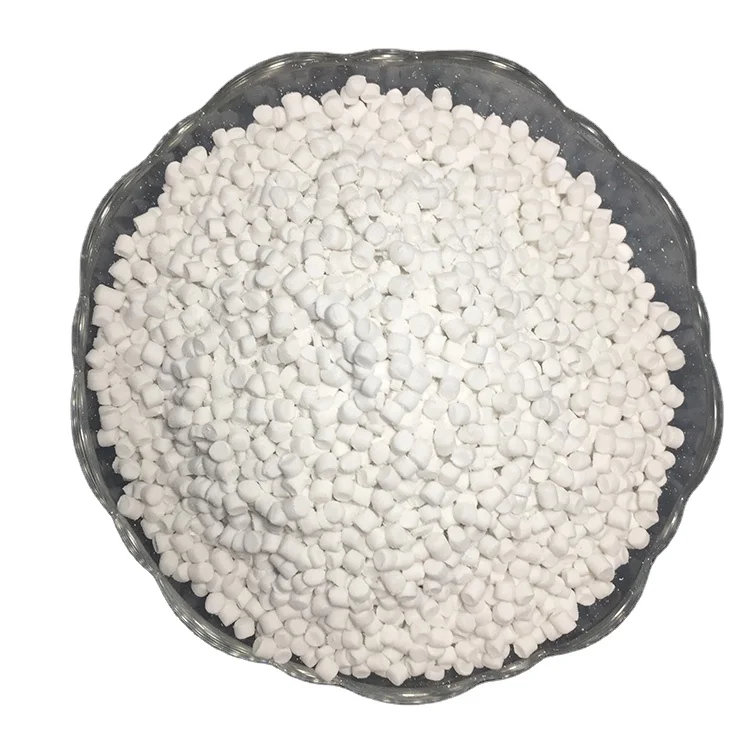

Ударные полистироловые смолы HIPS 514 HIPS гранулы

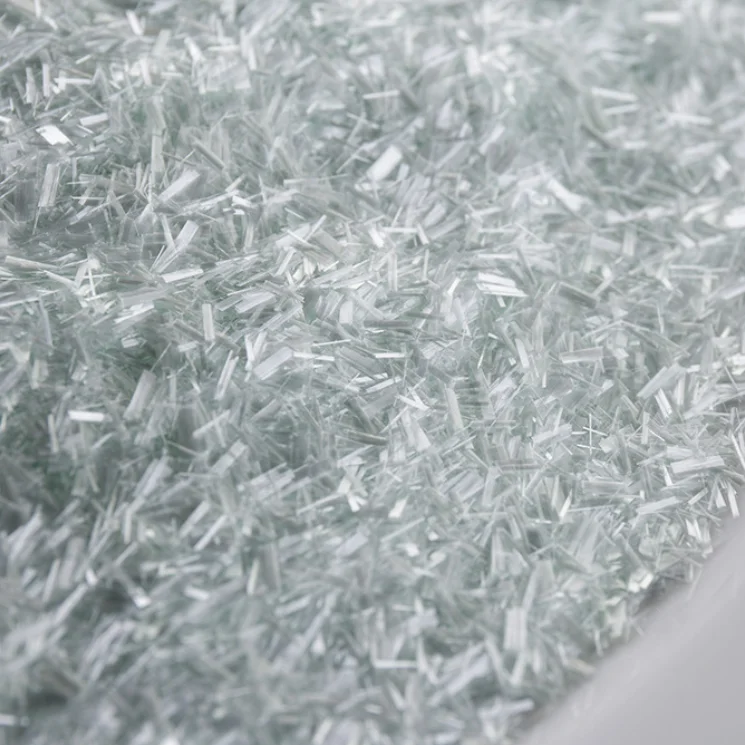

Стекловолоконные рубленные нити без щелочей для бетона рубленных стекловолокон BMC 0 2
1,34 $

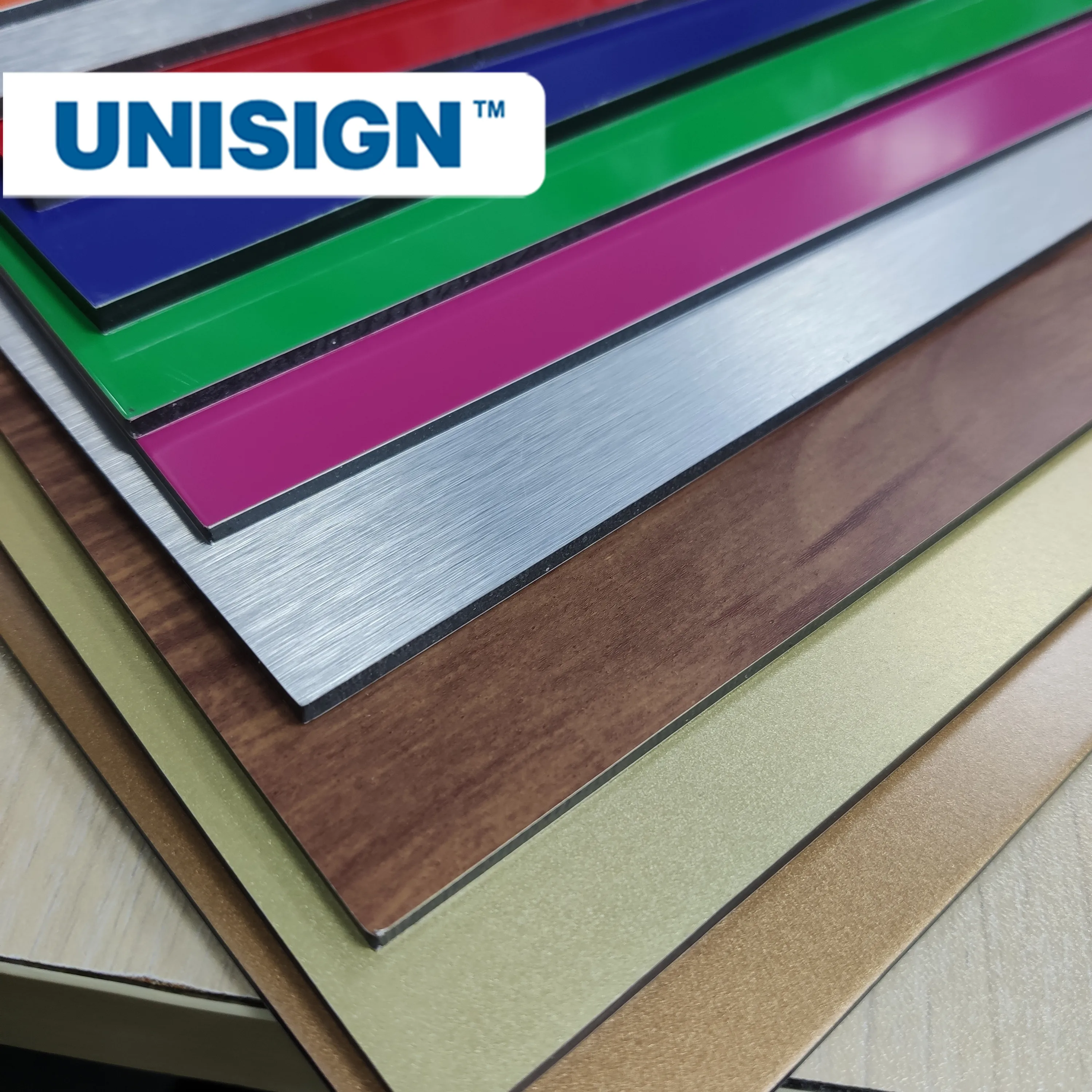

Зеркальная 3 мм внутренняя панель из ПЭ ACP алюминиевая композитная наружная огнестойкая стенка
