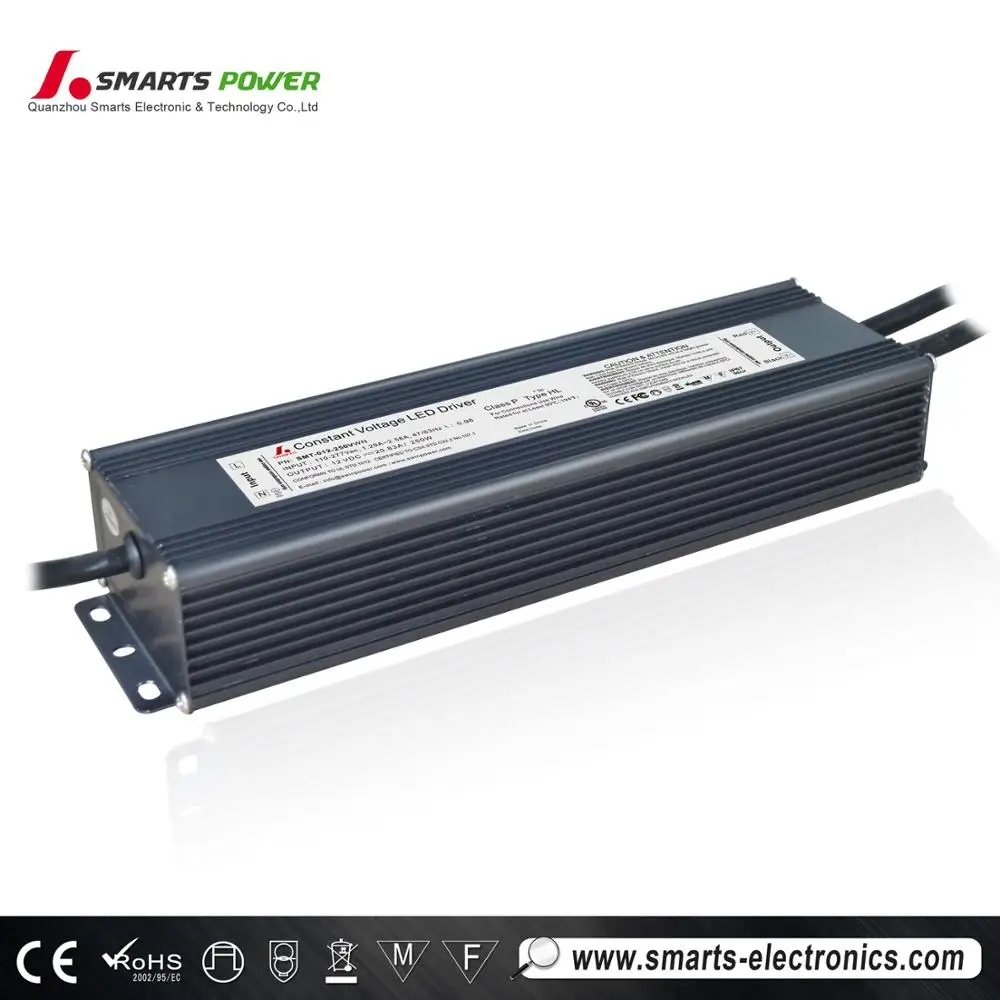

277VAC 150W Светодиодный драйвер постоянного напряжения производит с сертификацией UL сертификация

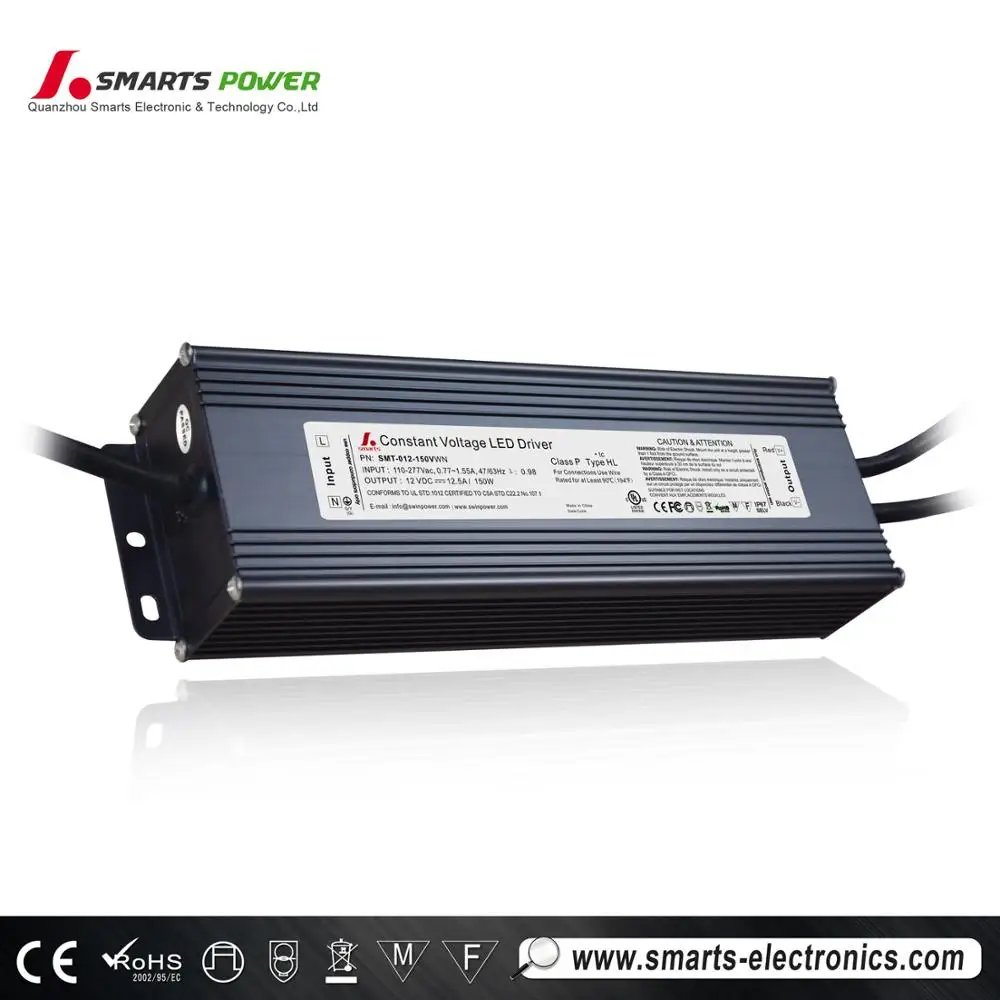

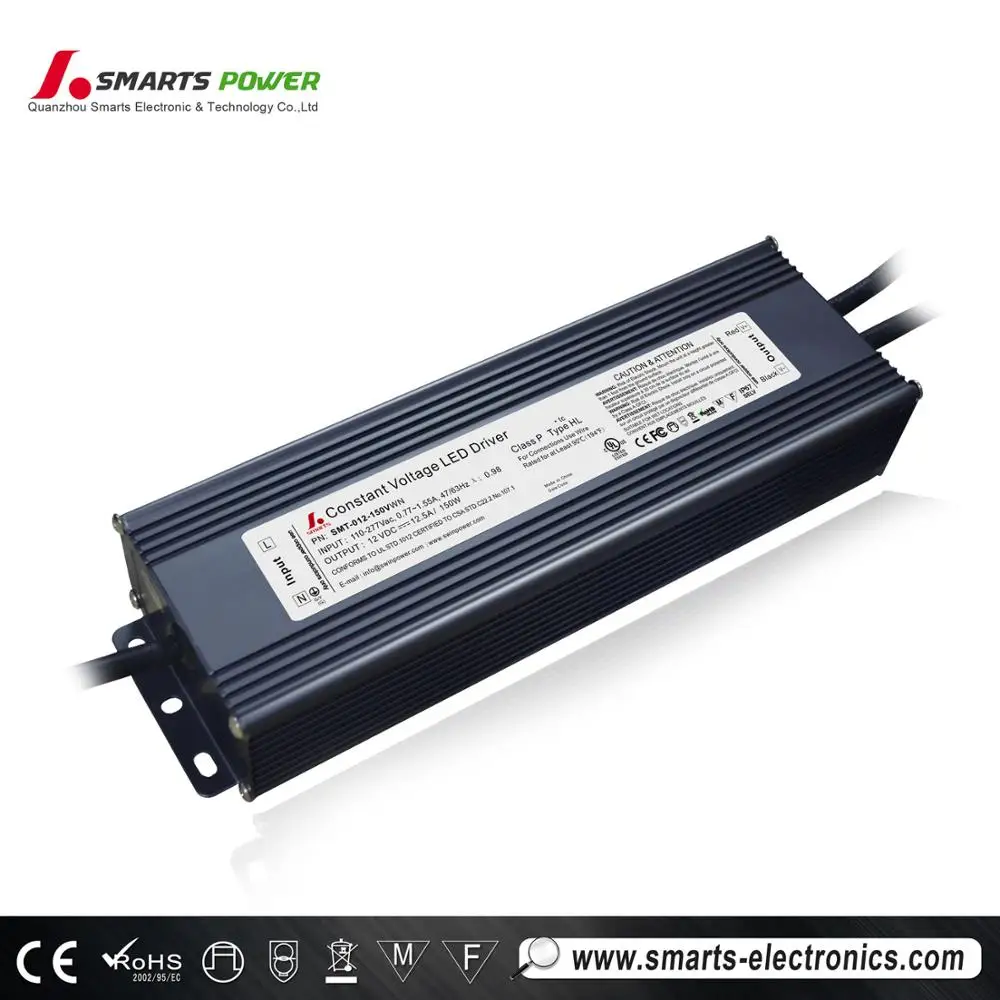

Our 277VAC Constant Voltage LED Driver compliant with worldwide safety regulations for lighting, it is certified to USA / Canadian Standards and is compliant to the strictest Electrical Safety Codes.

The iP67 150w led driver provides a constant Voltage of 12V DC and feature two distinct ports for input and output: the 120V AC/277v AC input (black wire) has 3 wire connections: one for the live wire (black), one for the neutral wire (white) and one for the ground (green). The 12V DC output (white wire) features 2 connections: one positive (red) and one negative (black).

 Features
·Output constant voltage type
·Input voltage range 100-277VAC
·Built-in PFC function / PF>0.98 / E fficiency > 86%
·Protections"short circuit/over voltage/over heat
·IP20 design for indoor installations
·Cooling by free air convection, Full protection plastic case , for dry, damp location.
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lightings.
·7 years warranty

 ^{Specification}

model		SMT-012-150VWN	SMT-024-150VWN
Output	DC Voltage	12V	24V
	Voltage Accuracy	±0.5V	±0.5V
	Rated current	12.5A	6.25A
	Rated power	150W	150W
Input	Voltage Range	100~277V AC
	Frequency Range	47~63HZ
	THD(Typ.) @full load	<20%
	Power Factor ( Typ.)	0.98@120VAC  0.99@277VAC	0.98@120VAC  0.99@277VAC
	Full Load Efficiency(Typ.)	>87%	>88%
	AC Current(Typ.)	1.8A/110VAC
	Inrush Current (Typ.)	15A, 50%, 1.4ms@120VAC;55A,50%,220us@230VAC;30A,50%,1.4Ams@277VAC
	Leakage current	<0.5mA/110V
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed.
	Over temperature	100℃±10℃ shut down o/p voltage, automatically recover after cooling.
	Over Loading	<120% constant current limiting, auto-recovery
	Over voltage	<140VAC(90~135V) , <270VAC(170~265V)
Environment	Working TEMP.	-40~+60℃
	Working Humidity	20~90%RH,non-condensing
	Storage TEM.,Humidity	-40~+80℃,10~95%RH
	TEMP.coefficient	±0.03%/℃(0~50℃)
	Vibration	10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z  axes
Safety&EMC	Safety standards	UL8750
	Withstand voltage	I/P-O/P: 1.90KVAC
	Isolation resistance	I/P-O/P:100MΩ/500VDC/25℃/70%RH
	EMC EMISSION	FCC Part 15 B
	EMC IMMUNITY	Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level (surge4KV)
Others	Net Weight	1.5Kg
	Size	256*78*47mm (L*W*H)
	packing	329*279*176mm , 10PCS/ctn
Notes	1. What is class 2 standard? Answer:  the requirements of class 2 are :1. less than or equal to 5A 2. less than 100w. And should satisfied with these two conditions at the same time.
100-277Vac\\UL(E507826)\\IP67
