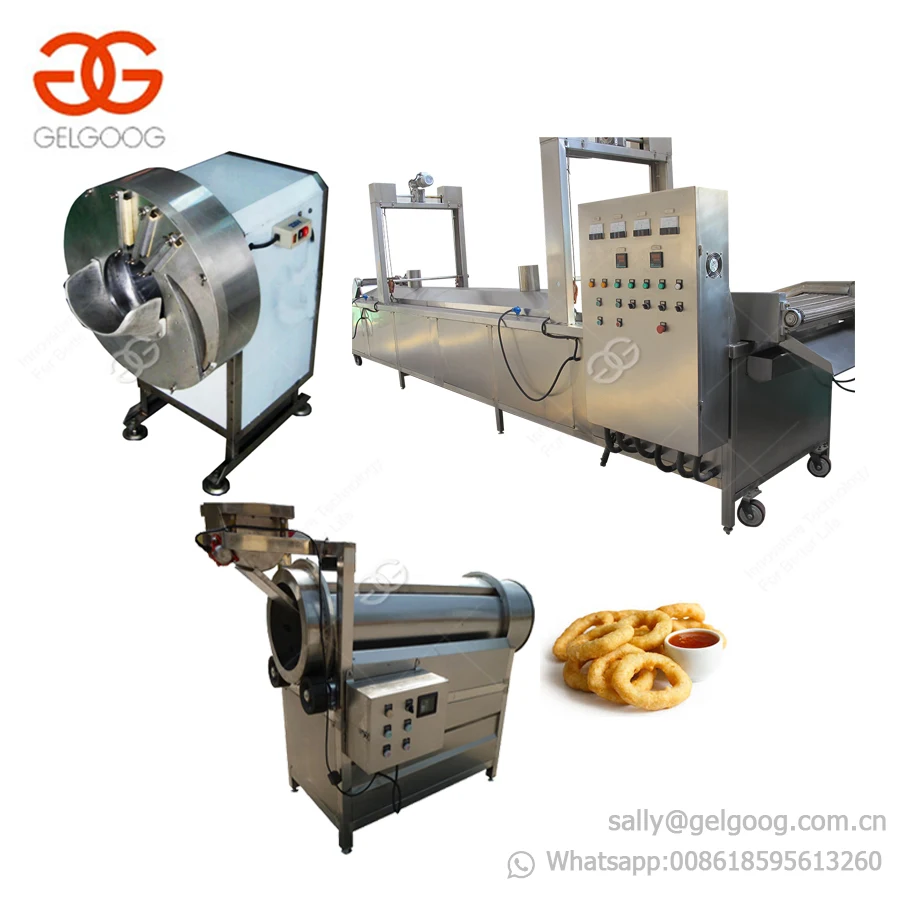

Working flow of onion rings making machine:
Peeling---Washing---Cutting---Coating---Frying --- Deoiling.

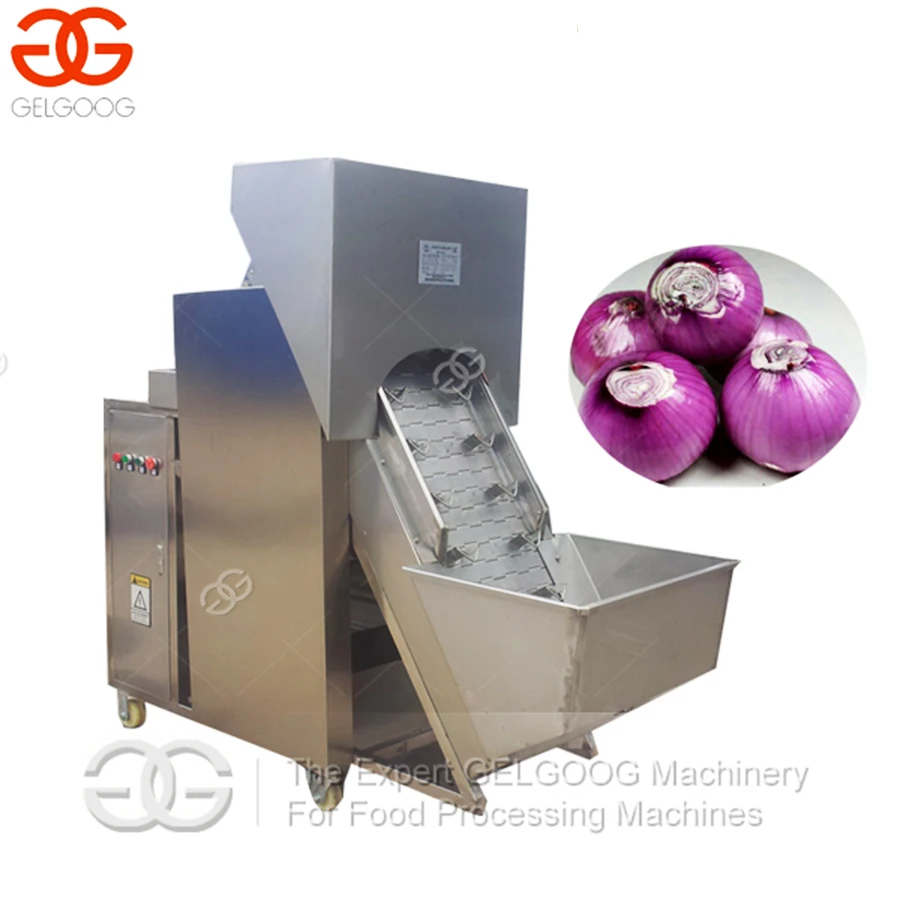

Descriptions of onion peeling machine:
1. Suitable for use in onion size diameter 2.5cm-5cm
2. Peel the principle of pneumatic peeling is connected to air compressor, using air compressor, peel off the onion peel
3. The onion peeling machine has a cortical controller, which can be controlled by setting the number of layers to be peeled: one, two, or three.
4. With regard to scrap rate the scrap rate is the weight of the onion peel that takes up the weight of the onion.The more layers you peel, the higher the scrap rate.
5. Onion is round and flat, peeling machine can go.Just if you want to cut the root, you need a different machine, we can customize it for you.
Applications of onion washing machine:
This washing machine applies to onion,vegetables, fruits, aquatic products and other granular, leafy, root cleaning products, immersion.We can customized the washing machine according your capacity requirement.
4.Onion Ring Flour Coating Machine
6.Fried Onion Ring Deoiling Machine
Parameters of Onion Rings Making Machine:
No. | Name | Technical parameters |
1. | Onion Peeling Machine (GG-3A) | Power:400W Air Compressor Required:7.5KW Capacity:300kg/h Weight:140kg Dimension :730*680*1420MM |
2. | Conveying and Lifting Machine (GGF-1300) | Power: 0.55Kw Voltage: 380v/3ph Dimension: 1500*800*1300mm Material: SS304 |
3. | Onion Washing Machine (GG-3500) | Capacity: 800-1200kg/h Power : 1.1kw Weight : 540kg Size: 3500*1200*1400mm |
4. | Cooling Machine (GG-4000) | Voltage : 380V/50HZ,3ph Power: 10.1KW Capacity: 500-1000kg/h Dimension: 4000*1100*1400mm |
5. | Onion Cutting Machine (GG) | Voltage : 380V/3ph Power: 0.75kw Capacity: 500-800kg/h Weight: 100kg/h Dimension: 650*550*900mm |
6. | Conveyor (GG-1500)
| Power: 0.75Kw Voltage: 380v/3ph Dimension: 1500*800*1300mm Material: SS304 |
7. | Flour Coating Machine (GG-2400) | Power: 0.75kw Voltage: 380v/3ph Capacity: 1000kg/h Size: 2400*1000*1500mm |
8. | Conveyor (GG-1500)
| Power: 0.75Kw Voltage: 380v/3ph Dimension: 1500*800*1300mm Material: SS304 |

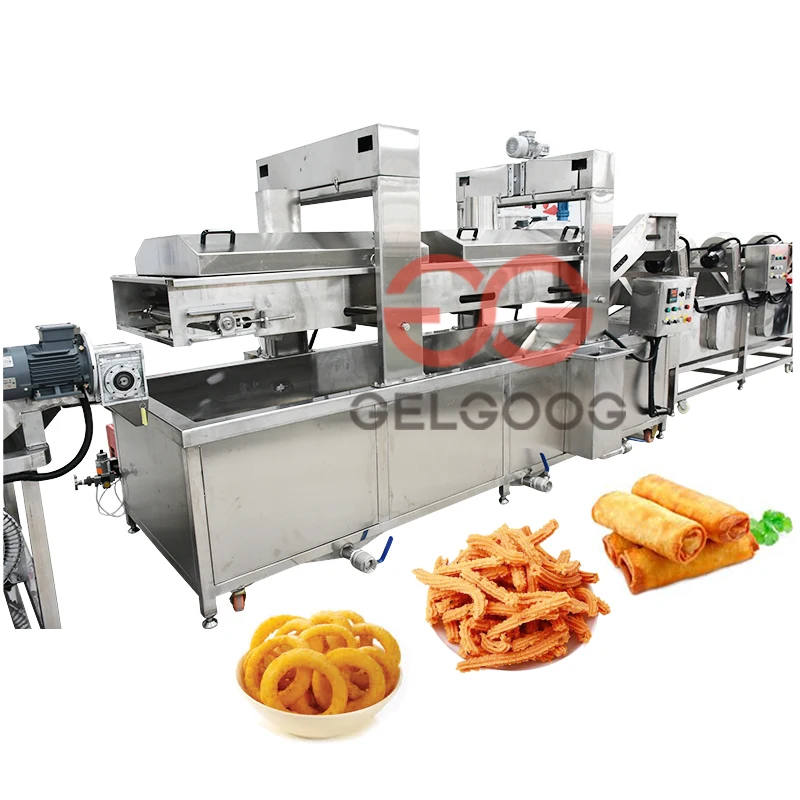

9. | Diesel Type Continuous Fryer with oil filter (GG-5000) | Heating type: Diesel Capacity: 400-500kg/h Size: 5000*1200*2400mm Weight: 1300kg |
10. | Deoiling Machine (GGD-1000) | Size: 1800*1000*1200 Power: 0.5KW Weight: 200kg Capacity: 1200kg/h |
♥ Why choose us?
1.Our professional designers design machines according to your needs.
2.Video will be provided to customers.
3.Instruction book with every set of machine
4.Provide vulnerable parts
5.Quick response to any question about the machine
6.Competitive price as direct manufacturer
7.Superior quality
8.Good after-sale service
♥ After-Sales Service
1.Training how to instal and use the machine.
2.Engineers available to service machinery overseas.
3.Free warranty within one year
4.Our company also provides you with life-long technical support and accessories.
5.If you have some problems when you are using our products, please contact us at any time.
If you are interested in the onion rings making machine,
warm welcome contact with me!
