Светодиодная матрица apa102 с низкой мощностью 5 В гибкая печатная плата 8x32 панель шагом 10 мм

Low power 5v led matrix apa102 8x32 flexible pcb led panel with 10mm pitch

Detail use information:

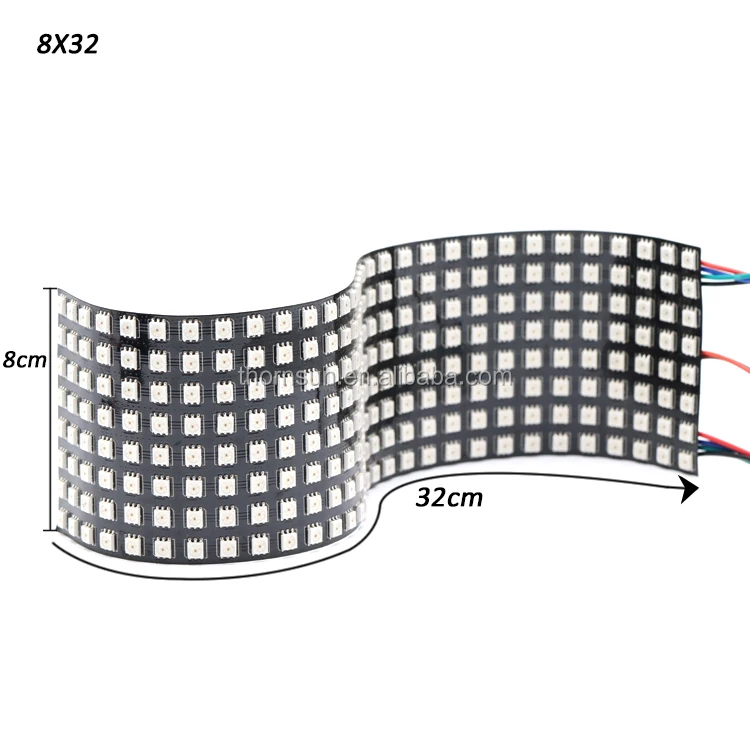

32X8cm RGB dc5v digital apa102 led matrix

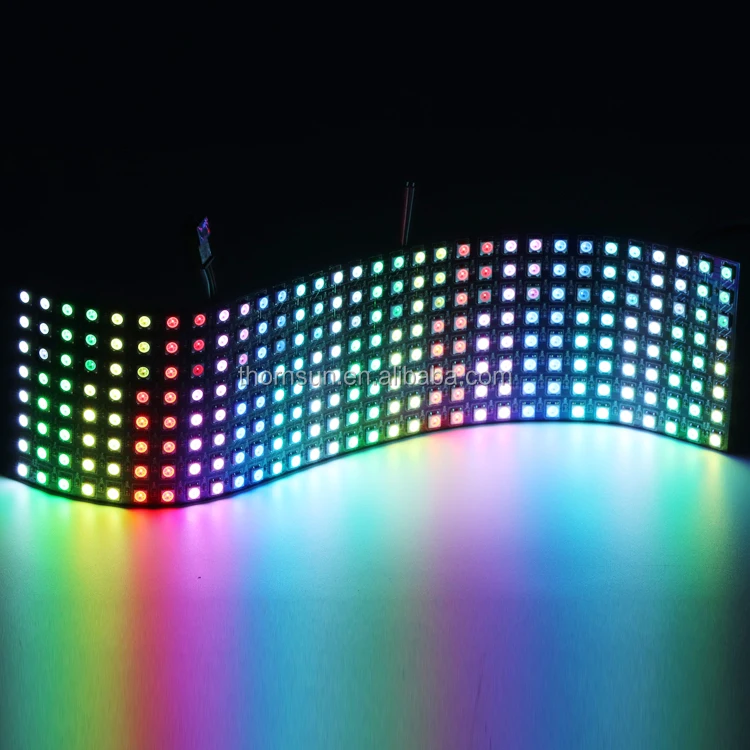

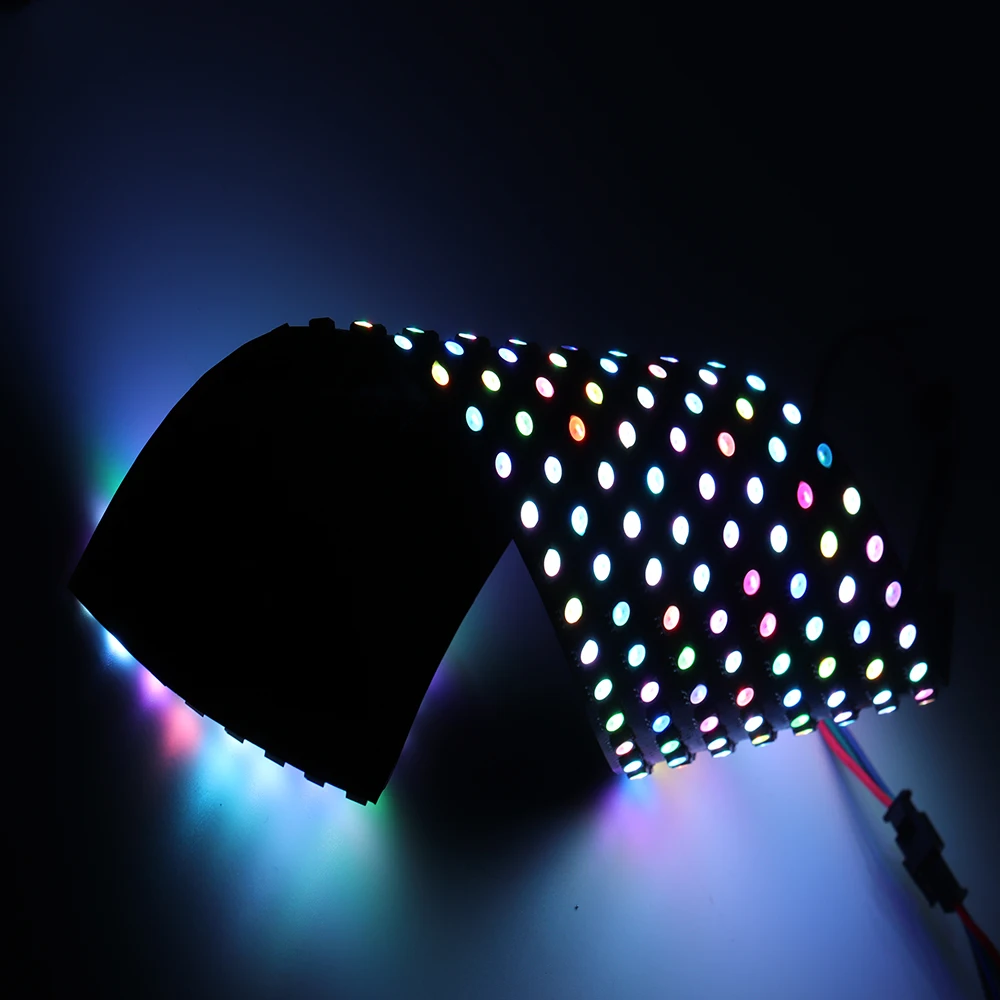

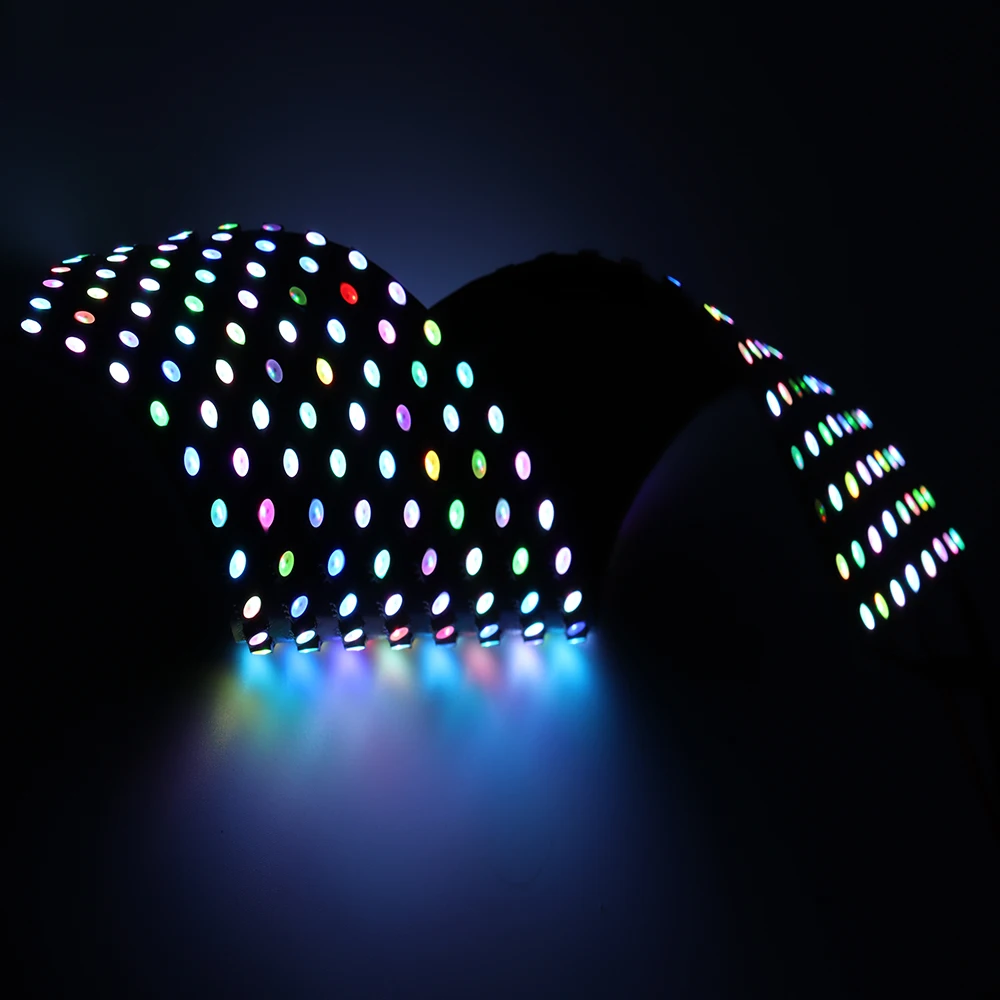

1)You can create animations, games, or even incorporate them into a fun e-textiles project. On top of all that,thanks to its flexible backing, this LED Matrix can be bent and bowed to fit onto almost any curvy surface.

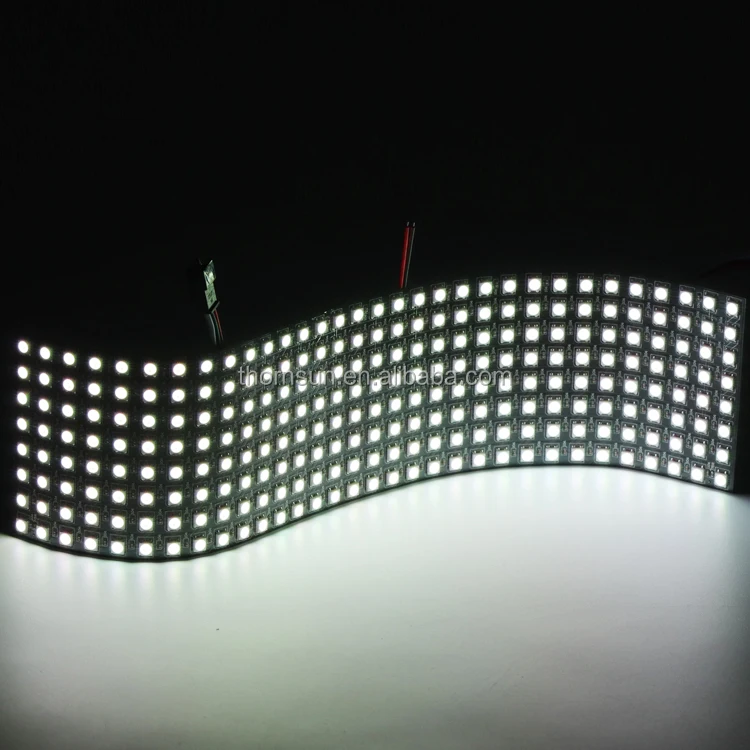

2)These panels require a 5V low voltage input for power which needs to be able to source a good amount of current – up to 5A in most uses (15A if all LEDs are set to bright white, which is NOT recommended).

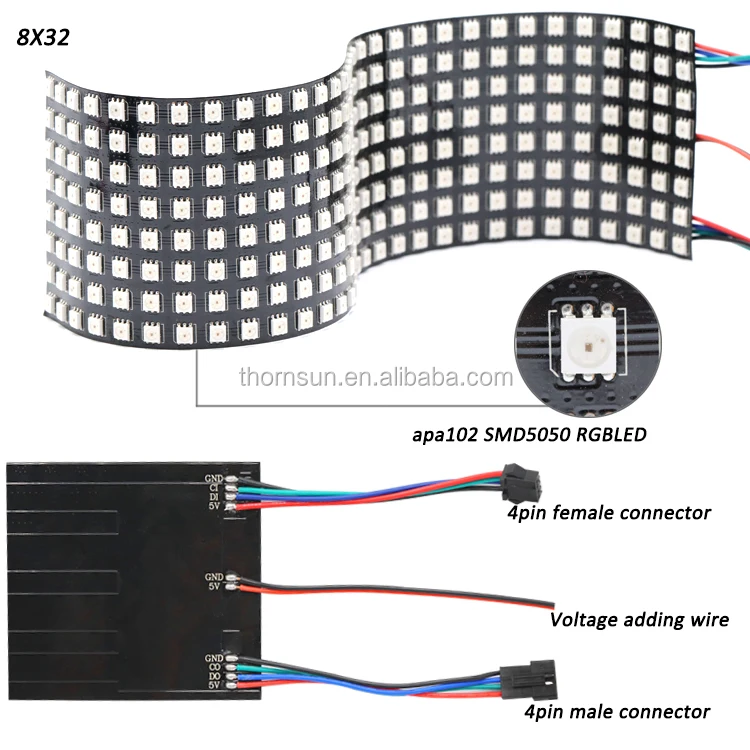

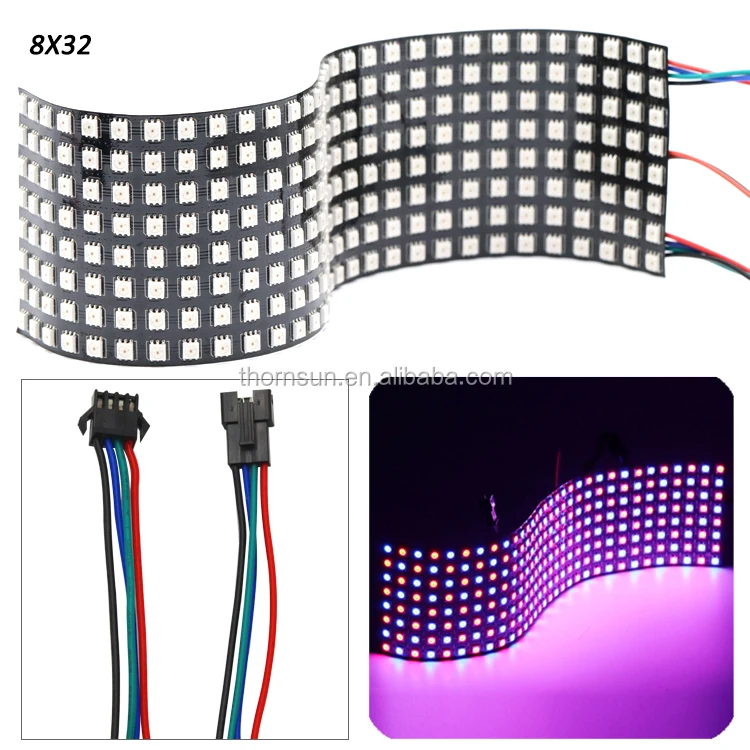

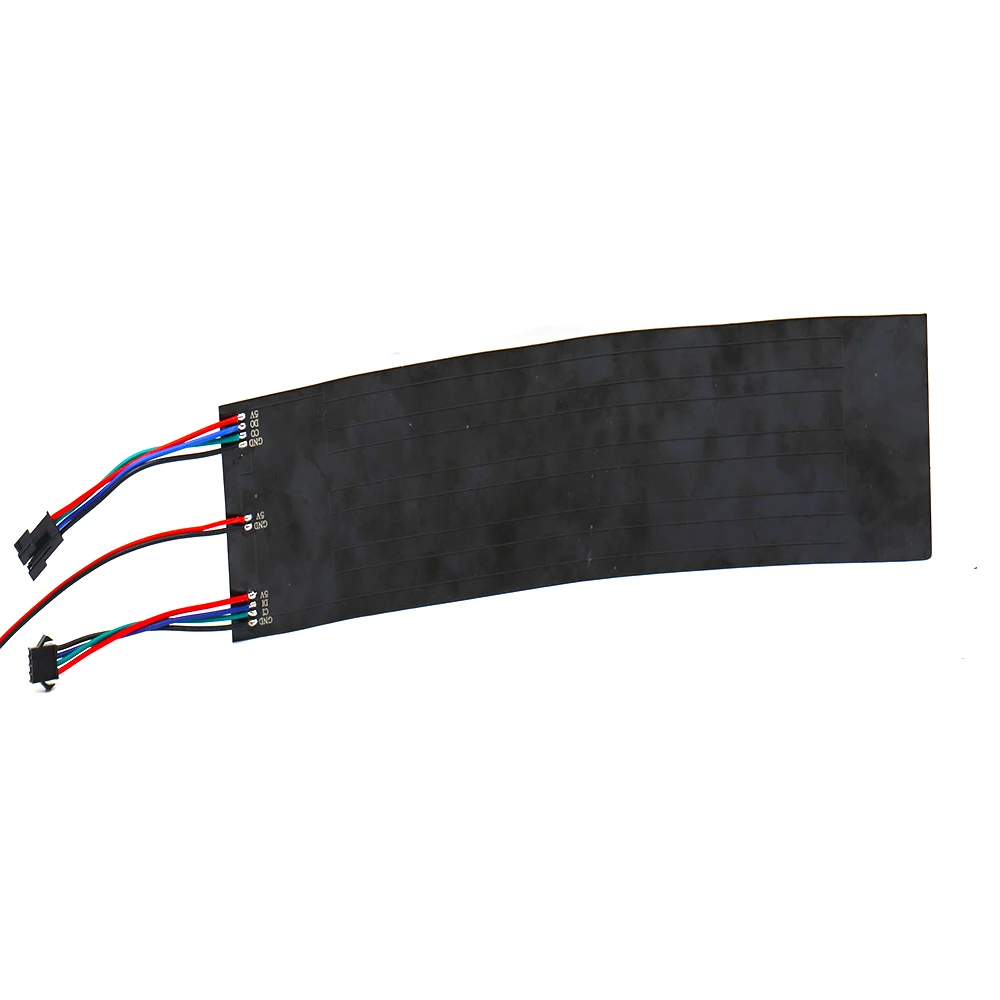

3)Attached to each flexible LED matrix are two 3-pin JST SM connectors and two sets of bare power cables (input / output), which provide you connections for DC5V+, COM-, DAT, and GND. Needless to say, if you are looking for a large panel of addressable LEDs to fit the contours of almost any surface you've come to the right place.
4)Note: Repeated / Over bending may significantly reduce the structural integrity of the flexible panel. It is advisable when bending it over curved surfaces to not be too rough with this product as you may damage LED traces or the panel itself.
Needless to say, do NOT fold this matrix in half!

Connection:
32X8cm RGB dc5v digital apa102 led matrix
SPI signal :LED strip+ LED power supply +led controller
DMX control :LED strip + LED power supply+DMX controller +DMX decoder
LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino.........(off line /PC online)
LED power supply :Meanwell power supply ,T- series ,A-series .... (waterproof /non-waterproof )

Controller and Power supply:
T-1000S +Meanwell power:
