Ht-8a truck Construction Machinery Detecting Instrument Excavator Diagnostic scanner.

Type: Engine Analyzer
Power: 28W
Applicable Models: All series of  excavator. All equipment with
engine.  PC200-8 to PC2000-7. ZAX-3 VOLVO all series
8 all series
Place of Origin:GUANGDONG China (Mainland)
Brand Name: beyondparts  OEM
Model Number: HT-8A
Brand: BEYONDPARTS
Input voltage: DC24V
USB: 2.1/1.1
Application 1: Hydaulic system
Application 3: EFI engine system
Application 2: Electro control system

Packaging

Items per Carton: 1 Sets /
Package Measurements: 40X50X20 CM
Gross Weight: 18.00 KG
Package Size per Unit: 40X50X20 CM
Gross Weight per Unit: 18.00 KG/ Set
Package Type: all packed in portable case, and in carton

Specifications

HT-8A excavator diagnostic tool
1,Widdly usded for famous excavators
2,Vehicles of C-A-T,KOM-ATSU,HI-TACH..
3,Independent develop

HT-8A heavy equipment Multi-diagnostic tool for excavators

HT-8A is an multi brand diesel engine diagnostic tool with many functions. It
contains detecting software system for trucks, excavators, construction
vehicles and generators with different brands. Brands such as CA-TERPILLAR,
VOLVO, C-UMMI-NS, K-OM-ATSU, I-SU-ZU, K-OBE-LCO, H-I-N-O, HI-TA-CH-I, C-ASE, DO-OSAN are all
available. It can be used to scan and diagnose the hydraulic system,
electronic control system, and engine system (EFI). Special functions such as
data analysis, fault code reading & clearing, calibration of throttle, time
and hydraulic flow, off-cylinder test, injector QR coding, ECM & ECU
programming are supported.

The HT-8A installed Windows XP operating system. 8" TFT display with touching
screen operate. Core i3 CPU ensure fast working speed. Software versions in
different languages are provided according to customer’s requests. All the
industrial designs allow the tool works steady in temperature range from -30
°C to 60°C and other bad conditions.

Applications:

1,Vehicles and equipment that support SAEJ1939 or 1708
communication protocol.

Application: Hydraulic system, Electronic control system, EFI engine system.

Functions: data analysis, fault code reading & clearing, calibration of
throttle/time/hydraulic flow, off-cylinder test, injector QR coding, ECM &
ECU programming.

2, . Equipment with  engines.

Application: EFI engine system. Engines such as SAA6D107-1, SAA6D125-5,
SAA6D140-5, SAA6D170-1 are supported.

Functions: ECM & ECU programming, data analysis, fault code reading &
clearing, off-cylinder test, GPS setting.

3, Equipment with engines.

Application: EFI engine system.

Functions: data analysis, fault code reading & clearing, off-cylinder test,
injector QR coding, ECM & ECU programming.

4,  All series vehicle.

Application: Hydraulic system, Electronic control system, EFI engine system.

Functions: data analysis, fault code reading & clearing, calibration of
throttle/time/hydraulic flow, off-cylinder test, injector QR coding, ECM &
ECU programming.

5, VOLVO. All Volvo vehicle.

Application: Hydraulic system, Electronic control system, EFI engine system.

Functions: data analysis, fault code reading & clearing, off-cylinder test,
calibration of hydraulic flow, GPS setting.

6, All series EFI engine.

Application: engine system

Functions: data analysis, fault code reading & clearing, off-cylinder test,
injector QR coding, ECM & ECU programming.

7, . Excavators with HINO EFI engine.

Application: engine system, electronic system

Functions: data analysis, fault code reading & clearing, injector QR coding,
ECM & ECU programming.

8,

Application: engine system.

Functions: data analysis, fault code reading & clearing, off-cylinder test,
injector QR coding, ECM & ECU programming.

PC Specifications:

CPU: Core i3 1600MHz (dual core)

Memory: 2GB

HD: 60GB

Display: backlit 8 " TFT with touching screen

Operating system: Windows XP

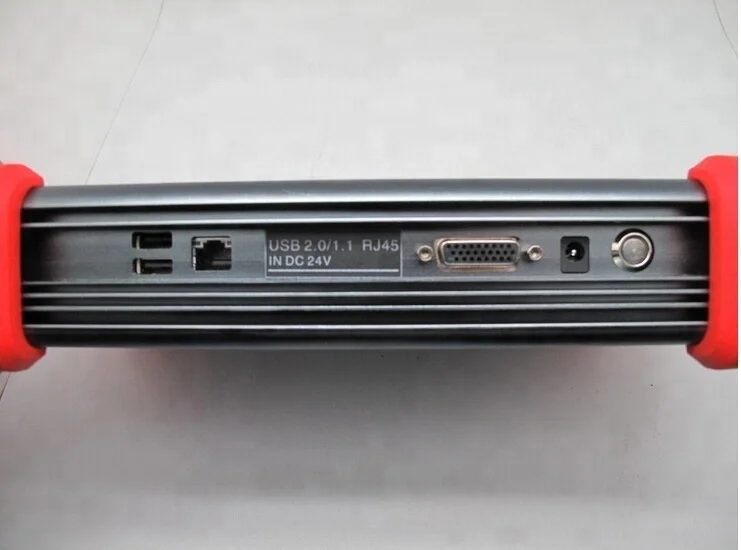

Communication interface: RS232, OBD and USB Ethernet

USB: USB2.0/1.1×2

RJ45: 100M

Battery: 3600mA lithium battery inside

Housing: Strong Aluminum housing with protective rubber boot

Input voltage: DC 12V-24V provided by vehicle battery

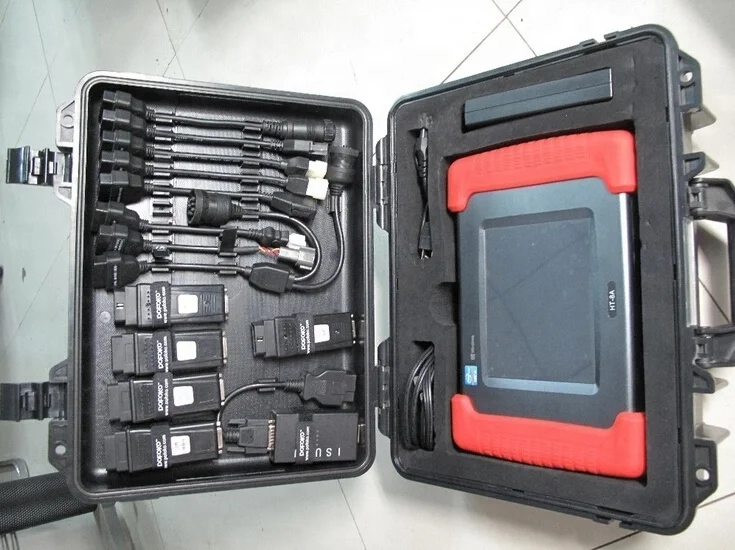

Paking list:

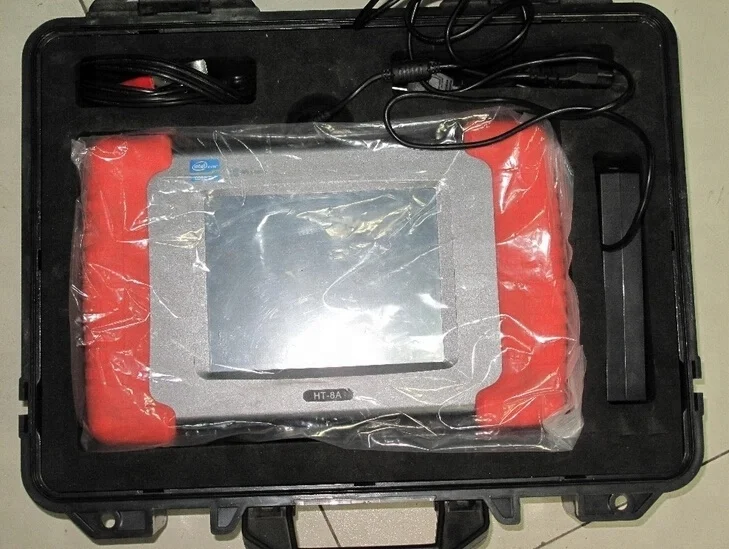

Main machine
HT-8A

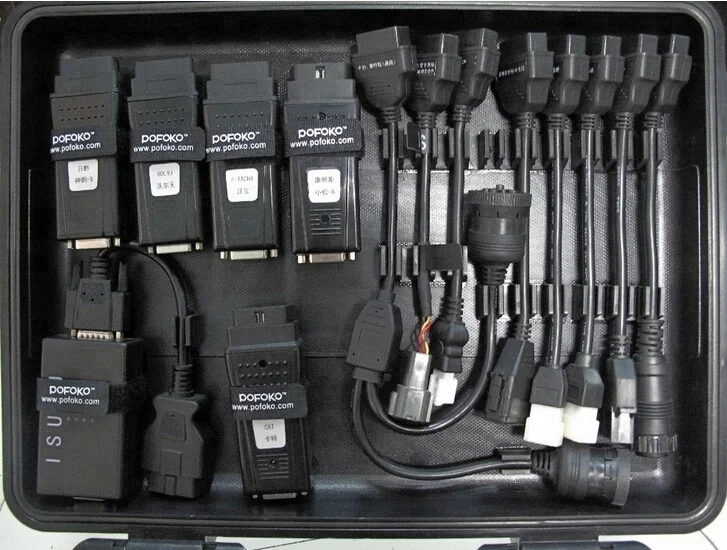

Diagnostic plugs
Main test cable DB26P
8 series
Power adapter 220V( from any voltage) to 19V
ZX-3
Cigar light interface
EX,ZX series
Battery clip
VOLVO (quadrate)

Data link adapter
Adapter
VOLVO (round)
Adapter
ZX-3 generator
Adapter
(9+6)

Adapter
Accessory

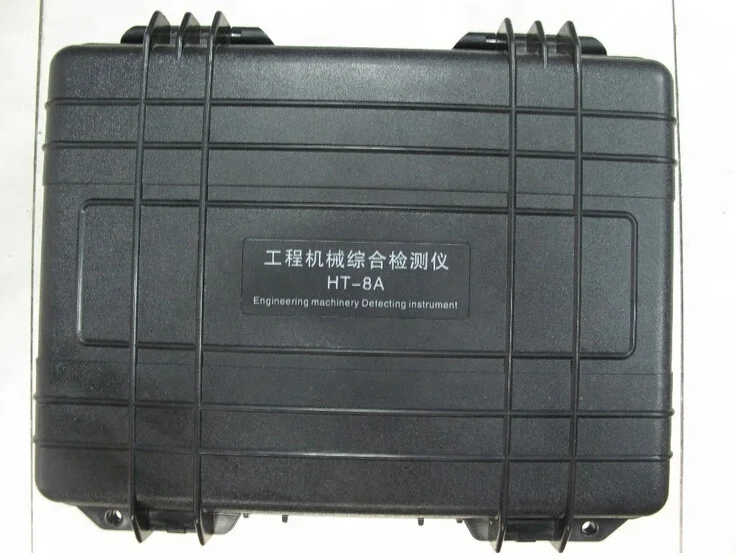

Portable case
VOLVO Adapter
Instruction
Adapter
Install disk
