Новый дизайн высокоскоростной 80 мм мини принтер для этикеток термальный принтер киоска банковских атм/торговых
- Категория: >>>
- Поставщик: Shenzhen Masung Technology Co. Ltd.
Сохранить в закладки 60778880091:
Описание и отзывы
Характеристики
Products Description

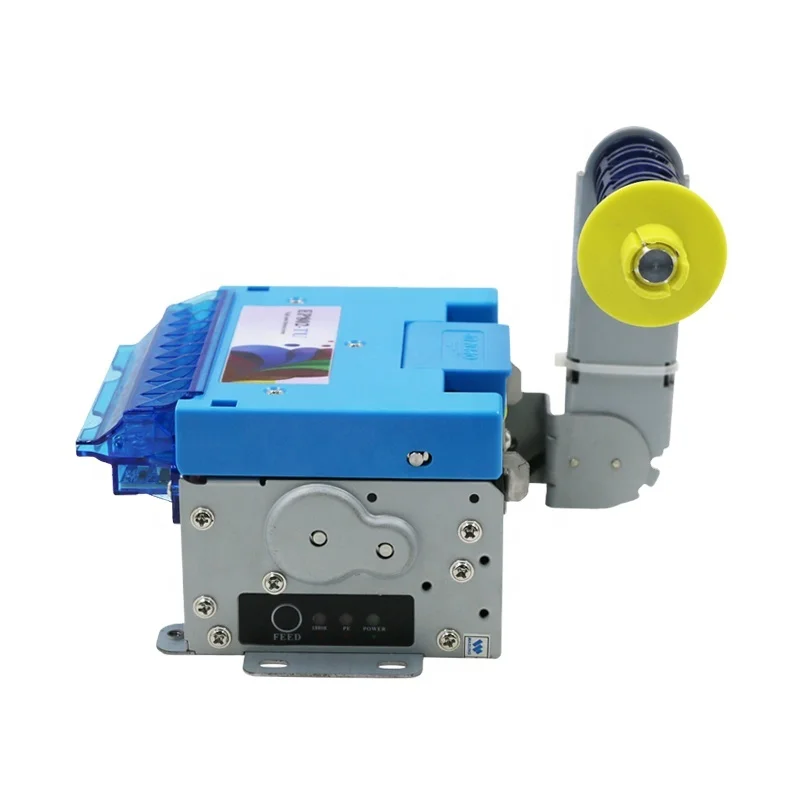

MS-NP80A is a fully integrated Kiosk Printer suitable for all your Kiosk, ATM,Self-service
terminals & Parking system printing requirements. With a high maximum print speed of 250 mm per second, it has the benefit of
fitting in smaller cabinet spaces where it provides an Easy paper roll replacement and rear paper feed with auto load and cut
feature. A clean paper path ensuring reliable ticket presentation and delivery. Serial and USB Communication options standard in
each printer, with a individual power switch for easier and safe maintenance
terminals & Parking system printing requirements. With a high maximum print speed of 250 mm per second, it has the benefit of
fitting in smaller cabinet spaces where it provides an Easy paper roll replacement and rear paper feed with auto load and cut
feature. A clean paper path ensuring reliable ticket presentation and delivery. Serial and USB Communication options standard in
each printer, with a individual power switch for easier and safe maintenance
Product show

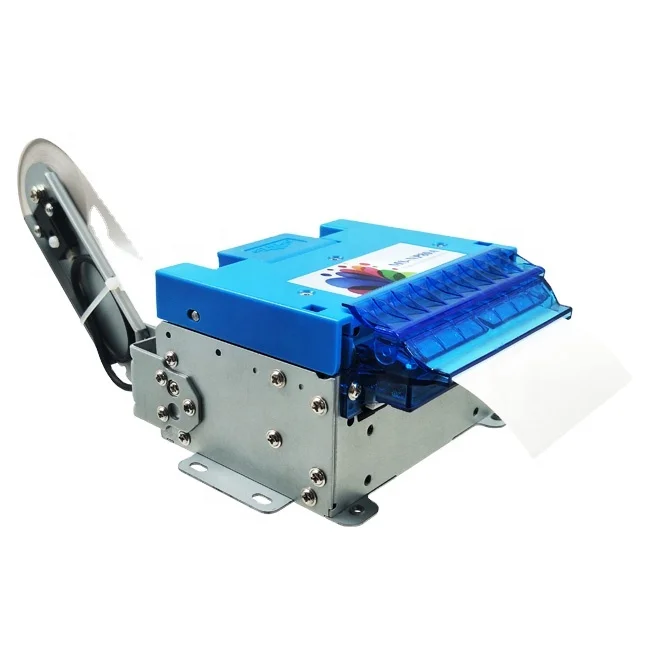

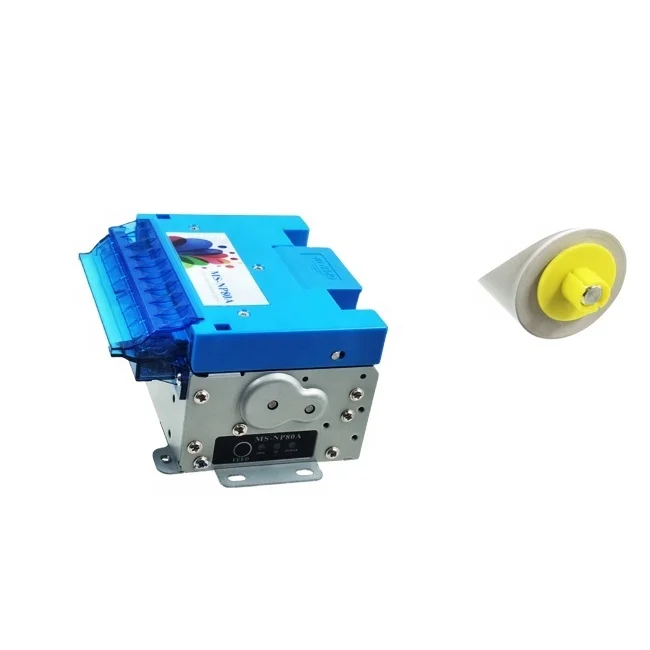

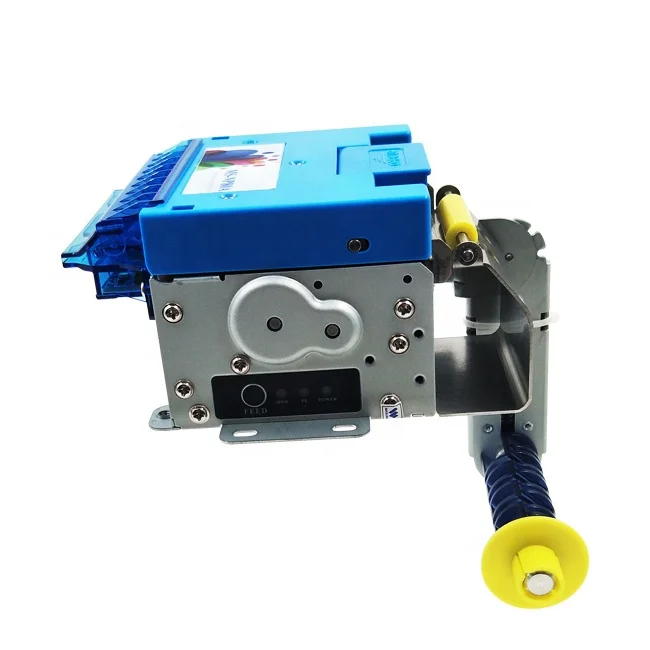

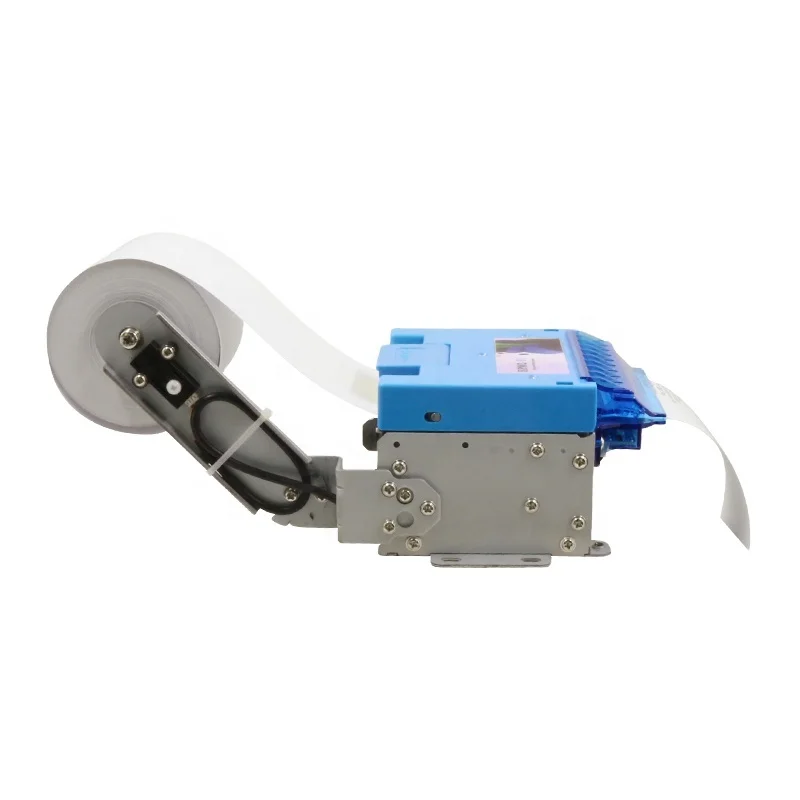

MS-NP80
Small compact-shelf and door mount design
Ultra-fast printing speed Max 250 mm/s
Adjustable paper width :60/80/82.5 mm
80 mm or 150 mm diameter roll paper (standard)
Paper thickness :from 55 to 80gsm
Full and partial cut option
Label printing option
Smart bezel :combined anti-block &anti-drag system
Highly reliable cutter with MTBF 1,000,000 cuts
Ultra-fast printing speed Max 250 mm/s
Adjustable paper width :60/80/82.5 mm
80 mm or 150 mm diameter roll paper (standard)
Paper thickness :from 55 to 80gsm
Full and partial cut option
Label printing option
Smart bezel :combined anti-block &anti-drag system
Highly reliable cutter with MTBF 1,000,000 cuts
Details Images
Control board | _3_TU VER04 | ||||||
Thermal printer head | Brand name: AOI | ||||||
Auto cutter | Brand name: OYANE | ||||||
Printing | Printing method | Thermal dot line | |||||
Dots | 640dots | ||||||
Speed | 250mm/s (max) | ||||||
Printing width | 80mm (max) | ||||||
Paper width | 80/82.5 mm | ||||||
Paper thickness | 0.06~0.2 mm | ||||||
Paper loading | Easy loading ( horizontal 180°) | ||||||
Cutting method | Full/partial | ||||||
Print head life | Over 50KM | ||||||
Printing format | inverse、underline、italic、bold | ||||||
Cutter life | 60μm paper | 1,000,000 cuts | |||||
200μm paper | 500,000 cuts | ||||||
Baud rate | 9600、19200、38400、115200 | ||||||
Font | ASCII | 9*17、12*24 | |||||
Chinese | 24*24dots | ||||||
Detection | TPH temperature | Temperature sensor | |||||
Mechanism open detection | Micro switch | ||||||
Paper near end detection | Photo-interrupter | ||||||
Black mark detection | |||||||
Paper cutting detection | |||||||
Paper presence detection | |||||||
Conditions | Power supply | DC24±10% V | |||||
Load current | 1.5A continuous 61mA Standby 3.2 A Peak | ||||||
Interfaces | RS232、USB | ||||||
Paper | Paper type | Thermal paper roll | |||||
Environment | operating temperature | -10~60℃（no condensation） | |||||
operating humidity | 20%~80%RH（40℃,85%RH） | ||||||
Storage temperature | -20~70℃（no condensation） | ||||||
Storage humidity | 10%~90%RH（50℃,90%RH） | ||||||
Dimension | Dimension | L*W*H=156*145.3*73.1mm | |||||
Weight | Approx 1.3kg (without paper roll ) | ||||||
Company Introduction
FAQ
1. About Price:
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry,
please let us know the quantity you want.
please let us know the quantity you want.
2. About Sample:
Sample is Free, but the air freight is collect or you pay us the cost in advance.
3. About language and operation system:
Our printers support 48 diffrent languages include Englishi,Russian,Spanishand so on.It backups IOS, Android, Windows, Linux, Oppos operation systems.
4. About warranty:
Each printer will have one year (12months) warranty. Free components will be offered for repair in warranty period, if the issue caused by non-artificial damages.
5.About MOQ :
No MOQ limitation for the standard products, but the unit price is different. For customized production, you can discuss the MOQ with our sales rep.
6. About Shipment:
We accept all kinds of shipping ways including: express, air, sea, car, or pick up by customers personally.
7. About Payment :
Terms For mass order, you can pay us by using T/T, LC, or others. About samples order, T/T, Paypal alibabare acceptable.
7. About Payment :
Terms For mass order, you can pay us by using T/T, LC, or others. About samples order, T/T, Paypal alibabare acceptable.
Currently,you can pay using Moneybookers, Visa, MasterCard and bank transfer.
Похожие товары
PUTY PT1010 персональный термопринтер термоусадочная трубка ПВХ принтер
222,83 $ - 228,18 $

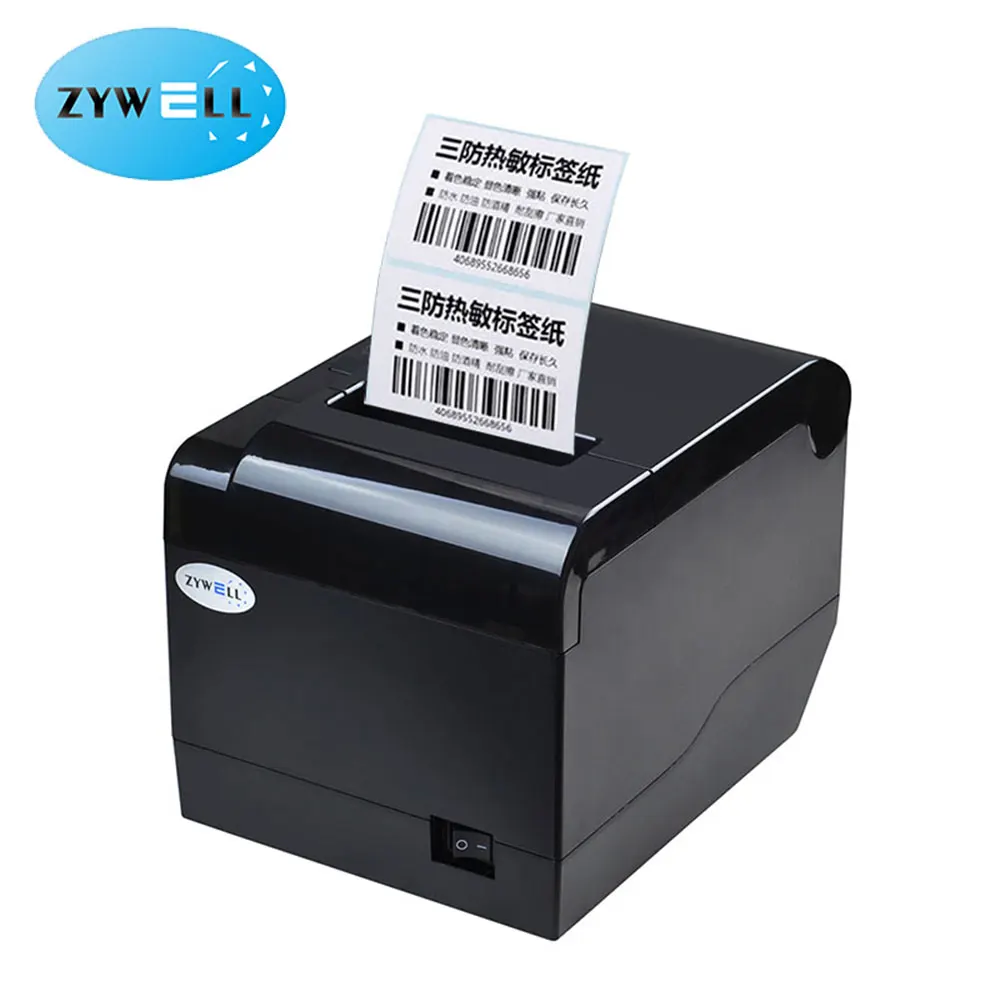

Zywell ZY809 с QR-кодом цена термопринтер для этикеток
39,00 $ - 43,00 $

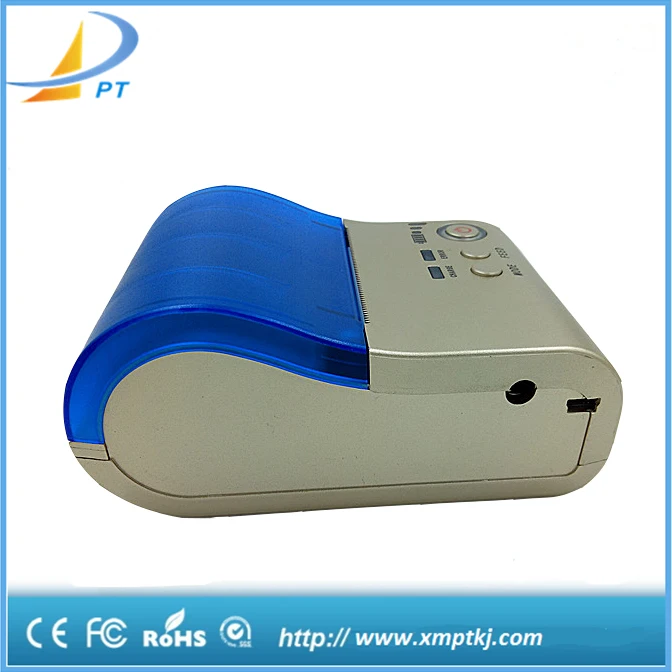

Мобильный ios bluetooth портативный термопринтер

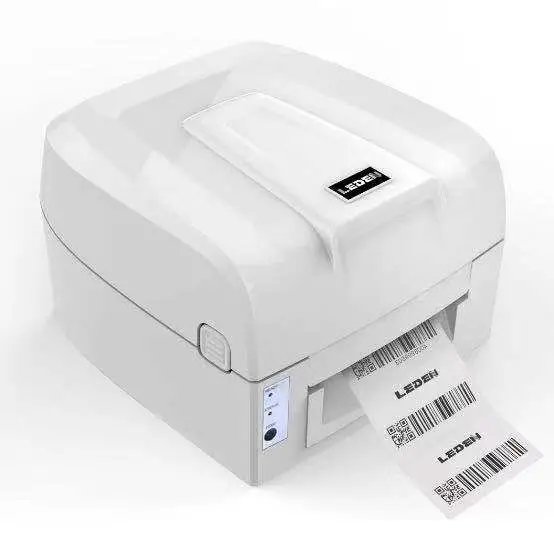

Горячая продажа принтер этикеток тепловой передачи 100E ручной штрих-кода печатающее
