1. The fuel is a renewable biomass fuel, and its operating cost is one-fifth of the electric boiler, which is one-third of the oil boiler.
2.The furnace adopts three-dimensional three-dimensional circulation air distribution, and has a secondary oxygen supply port. The combustion is complete, and the smoke is not visible to the naked eye, which fully meets the national requirements for boiler discharge.
3. The safety protection function of the control system has multiple protections such as low water level, overheating and overpressure to ensure no safety hazards.
400kg solid fuel boiler machine biomass steam boiler core advantages:
1. Easy to install, save a lot of installation materials and costs.
2. The fuel used is energy-saving and environmentally friendly biomass fuel with a wide range of sources, affordable ,low operating costs
3. One-step automatic control, easy to operate, safe and worry-free.

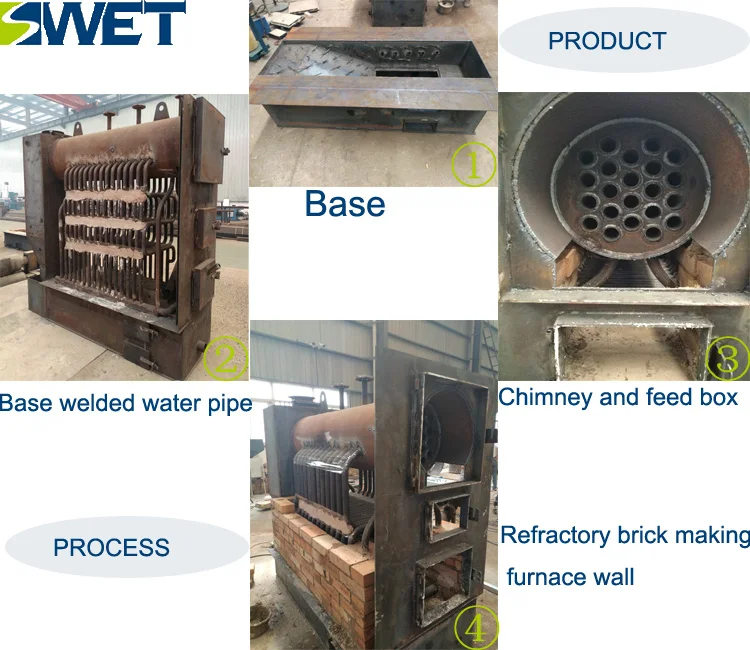

The 400kg solid fuel boiler machine biomass steam boiler production process:
the 400kg solid fuel boiler machine biomass steam boiler application area:
Application field description:
1. For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.
2.For hotel: Hotel disinfection, hotel restaurant, hotel ironing sheets and towels.
3.For school: school disinfection, school canteen, school bath, school cook machine
and so on...
our engineering case:
400kg solid fuel boiler machine biomass steam boiler cost analysis:
Fuel Cost analysis(Take 100 kg per hour as an example) | ||||
Equipment selection | Steam volume | Energy consumption | Unit Price | Operating costs |
Electrothermal steam boiler | 100kg | 72 kw/h | 0.08 USD/kw | 10.91 USD |
Fuel steam boiler | 100kg | 7 kg/h | 0.53 USD/kg | 7.42 USD |
Gas steam boiler | 100kg | 8 m³/h natural gas | 0.34 USD/m³ | 5.45 USD |
Biomass steam boiler | 100kg | 20 kg/h wood pellet | 0.08 USD/kg | 3.03 USD |
400kg solid fuel boiler machine biomass steam boiler technical parameters:
400kg solid fuel boiler machine biomass steam boiler technical | |||||||||||||
Rated evaporation | Rated pressure | Rated steam temperature | Feed water temperature | Design thermal efficiency | Water capacity | Steam outlet | water intake | Drain valve | Dimensions | Shipping weight | Full load biomass consumption | ||
L | W | H | |||||||||||
Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | mm | mm | mm | T | Kg/h |
300 | 0.7 | 170℃ | 20℃ | 87% | 28 | 25 | 15 | 25 | 2000 | 1400 | 2700 | 1.35 | 49.3 |
500 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 15 | 25 | 2500 | 1800 | 2500 | 4.1 | 76.8 |
1000 | 0.7 | 170℃ | 20℃ | 92% | 29 | 32 | 15 | 25 | 3000 | 2300 | 2500 | 6 | 153.5 |
1.Henan Swet Boiler Co., Ltd. is located in the historical city, Kaifeng, the ancient capital of the seven dynasties. The company was founded in 1954, and the company has strong technical force. The factory has more than 1,100 employees, including 217 engineers and technicians and 12 senior engineers.
2. The company has established a complete consulting service system, design, manufacture and installation of one-stop service, comprehensive pre-sale, sale, after-sales service, so that products and services follow. Henan Swet Boiler Co., Ltd. will provide users with all-round services with high-tech technology, high-quality products and reasonable.
Our Factory
The boiler will be covered with a plastic film and then transported into a wooden box for transport.
Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warranty under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB and ISO9001certificate
Q: How can I pay you?
A: T/T is very well used.We also accept other ways, depending on the circumstances
Q: What about the production?
A: Produce time is 30 days
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
Q:How to install a boiler?
A:Our boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.
Q:How many years is the boiler’s life?
A:The boiler is designed for 20years life.
Q:How to choose a boiler model?
A:Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based on your usage
Q:How is the warranty term?
A:If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
Pre-sale service:
1.24 hours phone,email,trademanager online services;
2. We will provide you with high-quality technical solutions, product design instructions.
3.We welcome you to visit our boiler factory to have a look and check;
After-sale service:
1.we will delivery the machine as soon as possible according to your requirement,within 20days;
2.We will send rich practiced experience engineers to you to install and test the machine and train
3.We will give you one year guarantee time after the machine can run well;
