IN PL30120 300*1200 30*120 1 фут * 4 36 Вт 40 48 54 диммируемая прямоугольная тонкая плоская светодиодная панельная потолочная лампа

Сохранить в закладки 60780901289:


Цена:915,57 ₽ - 937,50 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики


 banner001





IN-PL30120 300*1200 30*120 1FT*4FT 36W 40W 48W 54W Dimmable Rectangular Slim Flat LED Panel Ceiling Light Lamp






Product Overviews
































































































PL30120 300*1200 1FT*4FT Edge-Lit Flat LED Panel Light Parameters:
 Lamp Model:Power(w)Lumen Flux(lm)LED Qty.(smd)Packing Information
 IN-PL30120-36W36 Watts3060-3600lm2835/1800pcs Frame Size: 300*1200*10mm
 Product Size: 295*1195*9mm
 Light Emit Area:255*1155mm
 K3K 3Ply Box,Inner EPE Holder
 Pkgs. Size:126.0*35.0*3.5cm
 Pkgs. Gross Weight: 3.35kg
 K=K 5Ply Carton, 10pcs/ctn.
 Carton Size:128*38*38cm
 Carton Gross Weight:35.5kg
 IN-PL30120-40W40 Watts3400-4000lm 2835/200pcs
 IN-PL30120-48W48 Watts4080-4800lm2835/240pcs
 IN-PL30120-54W54 Watts4590-5400lm2835/270pcs
Voltage Input:AC100-265V, DC24V, 50/60HZ
Lumen Efficiency:90lm/W, 100lm/W, 130lm/W, SMD2835, SMD4014 LED Chip
Lumen Decay:<5% @ 5,000hrs

PFC/CRI:


PF>0.95@130lm/W, PF>0.90@85lm/W, Ra > 80, THD<15%

Lighting Design:


Side Emitting
Beam Angle:120 Degrees
CCT:WW:2700-3200K, NW:4000-4500K, CW:6000-7000K, R.G.B.W
Working Temp.: -22°F-+140°F(-30℃-60℃, Work Humidity:10-90% R.H.)
Driver Type:External Isolated Constant Current IC Driver, Efficiency:≥85%
IP Rating:IP44 Grade, Class III
Lamp Installation:Recessed Ceiling, Surface Mounting, Wire Suspending
Product Material:6063 Aluminum Frame + Paper Reflector + PMMA + PS LGP
Lamp Life Span:Over 50,000 Hours, Warranty 3 Years
Cover Color:White, Support Your Logo Printed On Panel Back Side And Carboard Box




 Infelite Side-lit Flat LED Ceiling Panel Light Features:


1. High bright SMD2835, SMD4014 LED Chips output 90lm/w,100lm/w130lm/w.
2. Extruded 6063 aluminum is good at heat dissipation, surface temperature stay below 65°.
3. Top grade 3mm T3 4mm T4 PMMA nanometer LGP, light more evenly, no glare.
4. Diffusion plate materials with more than 90% light transmittance, no shadow, no dark area.
5. Isolated constant current driver with over-temp.,over-current,overload protection function.
7. No UV, no infrared, no mercury and other hazardous substances for health and environment.
8. Dimmable solutions support Triac, 1-10V, 2.4G RF, DALI dimming driver for your demand.





Product Application:
Widley used in living room, bedroom, kitchen, washroom, school, university, meeting room, show room, showcase, hotel, restaurants, classroom, factory, warehouse, office, supermarket, department store, counters lighting, artwork lighting, airports and subway stations, factories, indoor home, coffee store, disco, shopping malls, hospitals, residential & institution buildings, household, exhibition hall, shops, jewelry store, museums, mood Lighting, banks, retail stores and other indoor lighting, architectural lighting, office lighting, commercial lighting area and so on.





Detailed Images

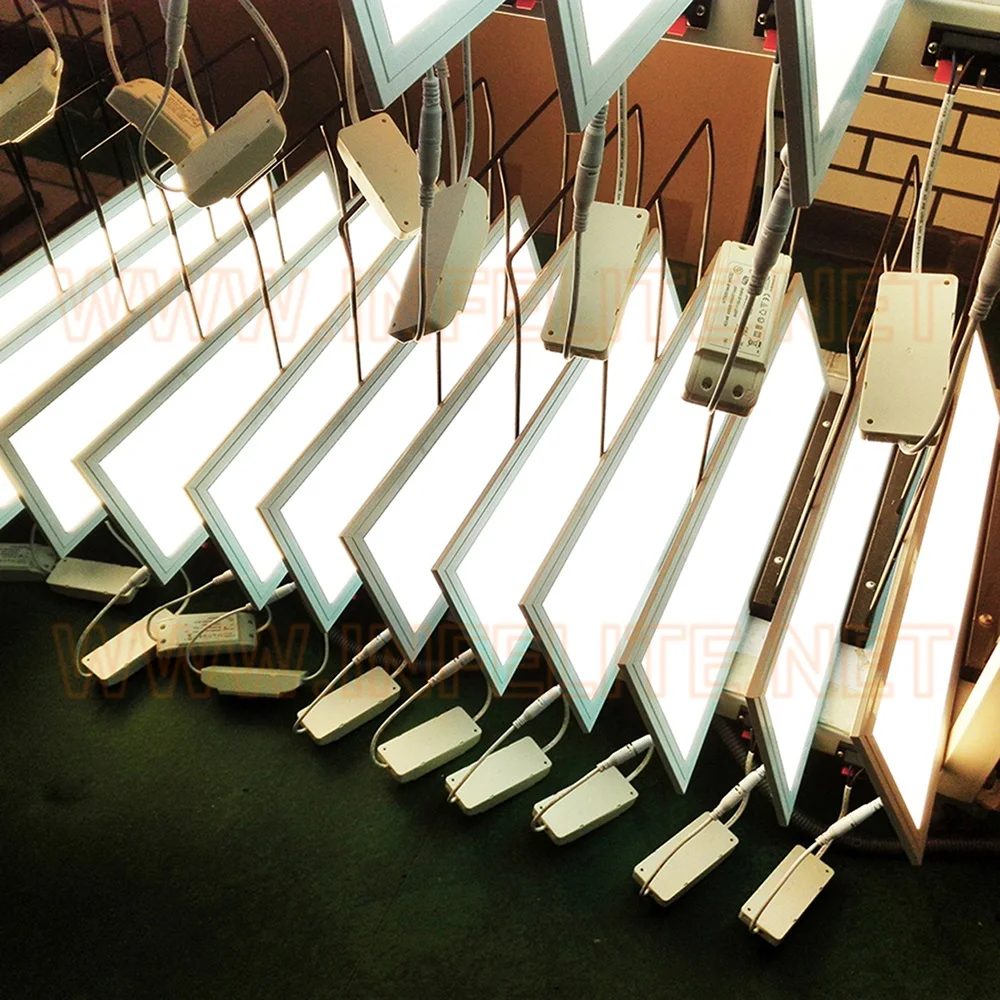

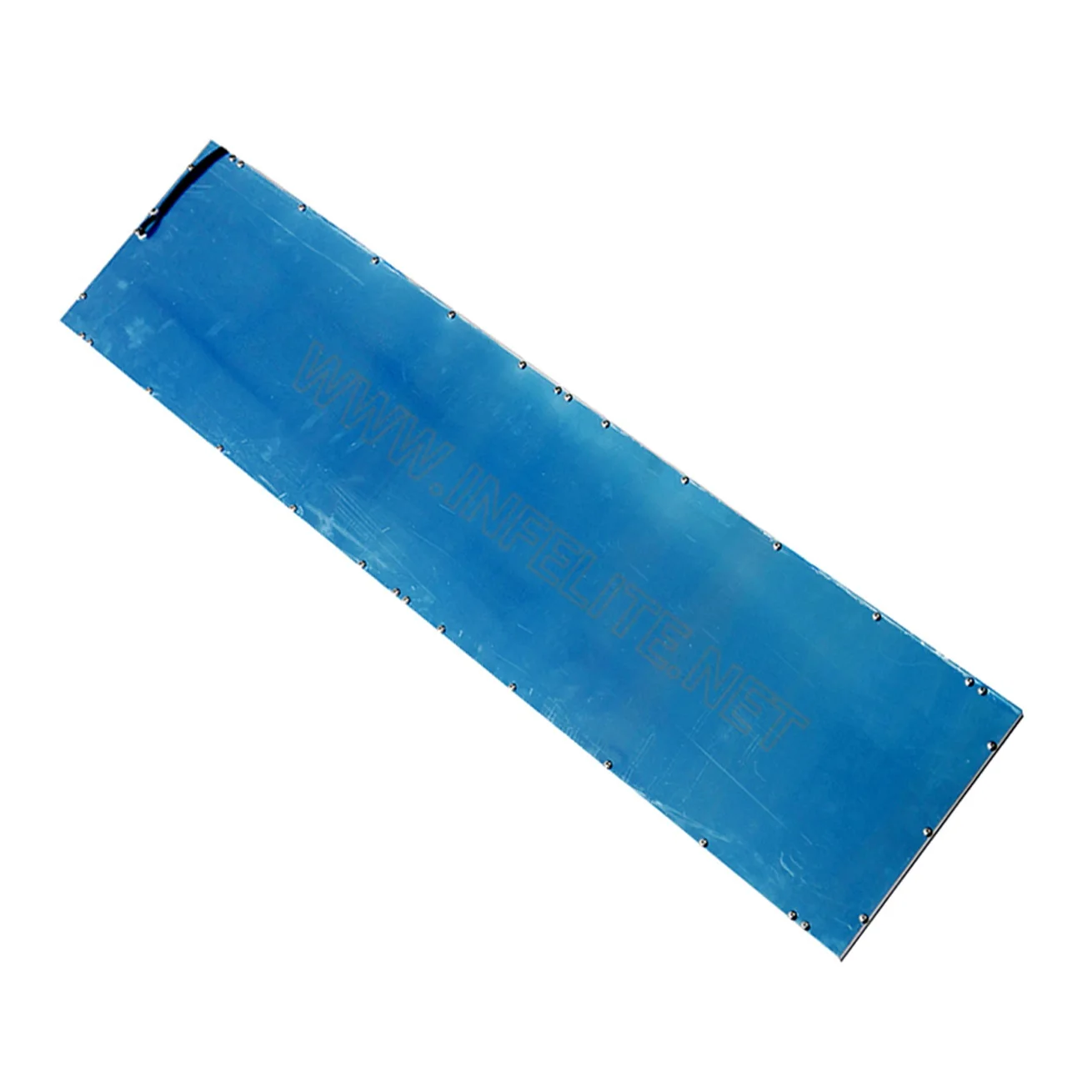

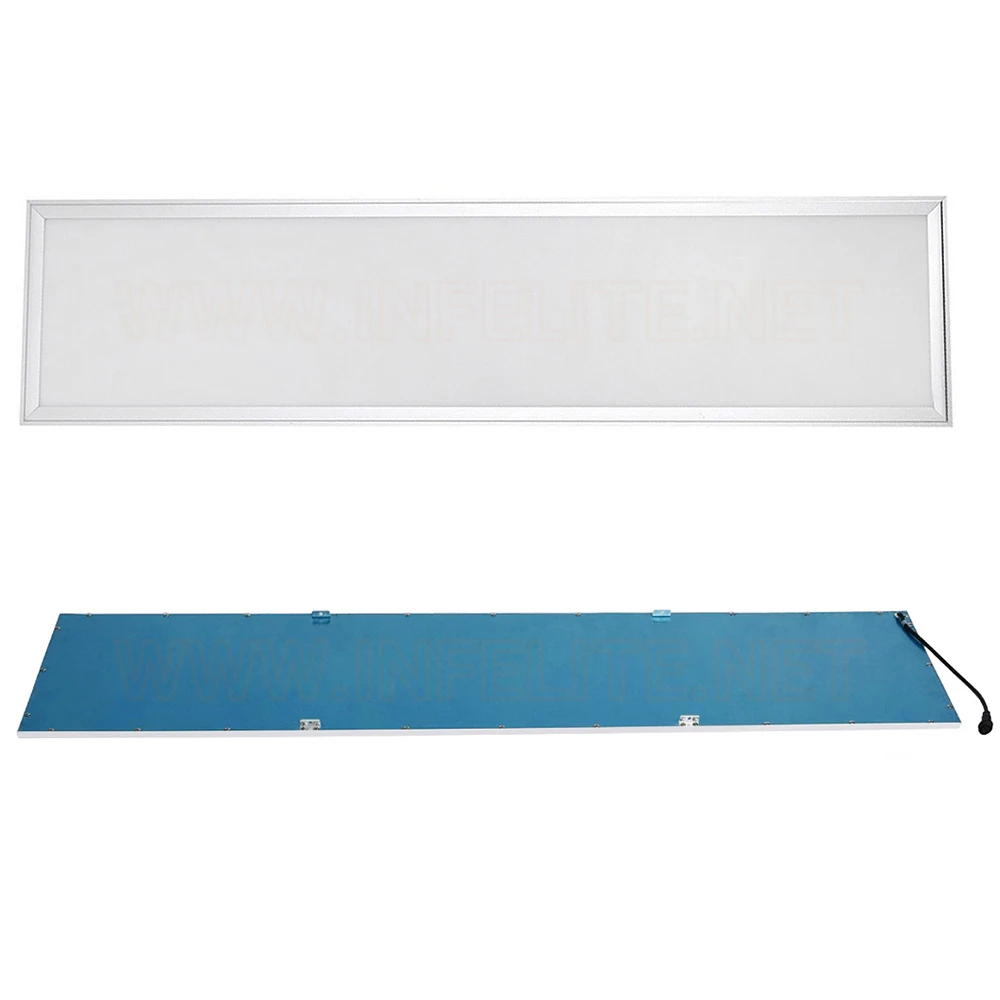

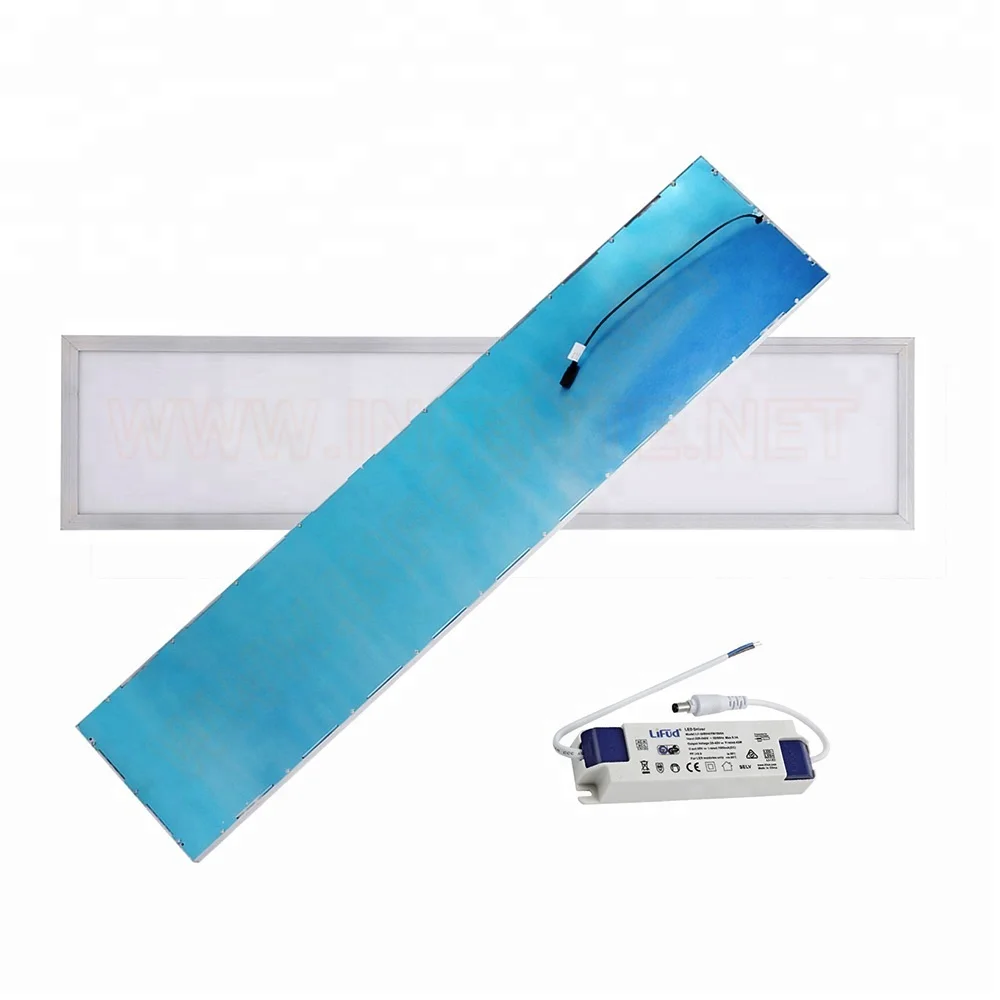

PL30120-01PL30120-09PL30120-08PL30120-03PL30120-13PL30120-11PL30120-12PL30120-16PL30120-15





Packaging Detials

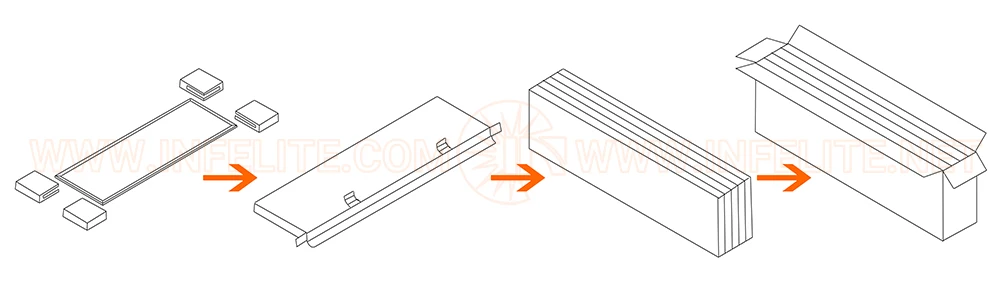

30120-packing


1.Rectangular Flat LED Panel Light 300*1200 1FT*4FT 48W,Unit Size:295*1195*9mm.





2.Pkgs. Size:1260*350*35mm, Carton Size:128*38*38cm,G.W.:35.50kg, 10pcs/Carton.

3.Package Content:1X LED Panel Light,1X LED Driver,K3K Cardboard Box,K=K Carton.

4.Welcome your Logo Printed On The Lamp Or Packing Box For Your Brand Marketing.





Payment & Shipping


1.Payment Method:Alibaba Trade Assurance, T/T, Western Union, MoneyGram, L/C, Paypal.



2.Shipment Method:Air Express, Sea Freight, Railway To Europe Or Appointed By The Buyer.

3.Leading Time:1~2 Days For The In Stock Ones, 4-12 Days For OEM Order Or Mass Order.





4.Delivery Time:Express:3-7 Days, Sea Freight:30-35 Days, Railway To Europe:20-25 Days.
shipment-method





Infelite Factory


                        Welcome To Visit And Investigate Our Infelite Factory !


Shenzhen Infelite Co.,Ltd is an innovative & experienced factory of LED commercial lighting fixture in China. With the complete industrial chain from SMT workshop to testing laboratory for LED illumination field, the main products of LED tube light, LED panel light, LED corn light, LED filament light are produced strictly under ISO9001:2008 quality management system and with CE, RoHS, EMC, TUV, PSE,SAA certifications approved.....


infelite-factory-tour





Our Certifications

new-certifications



Our Services


 1. Innovative Customize Solutions


Infelite provide high quality LED lighting solutions for the commercial sectors at competitive pricing, maximizing utility rebates and reasonable financing charges. The innovative solutions involve a new lighting fixture model design assistance, molding, photo-metric layout consulting, ROI analysis and lighting solution audit etc. Your logo printed on the packing box or laser marked on the products is available.





2. Customized OEM&ODM Service
If our existing design is not satisfactory, just tell us your request of design, such as lamp size, lumen output, lamp shape , heat dissipation solution could design out the product for your demond.We can make out the samples for you in as fast as 7~10 working days, and the test report is free for the samples.





3. 3 ~ 5 Years’ Quality Warranty
Our quality management system is compliant with standard ISO 9001:2008, all products produced by Infelite have 3 years limited warranty period at least, some items have 5 year limited warranty.
If item fails due to quality problem during warranty, we can send new replacement via air freight immediately if urgently. Or we prefer to send replacement with next order. Welcome to choose Infelite lighting to start a Long-Term Win-Win Situation!
