Product Description
Beijing Daelim is a professional manufacturer of transformers. It can produce Single phase transformer.Three-phase transformer, Pad mounted transformers, Dry transformer,Distribution transformer and High voltage transformer of 69KV and above. It can meet IEEE/ANSI/DOE/CSA and IEC standards.
Daelim has nearly 20 years of transformer export experienc., DAELIM transformer have at least two-year warranty, moreover Daelim have installation service team abroad, so if you have transformer needs, please contact us.
Product Name | 110KV 132KV 138KV 220KV power transformer |
High Voltage | 69KV or 110KV or 132KV or 138KV or 220KV |
Rated Capacity | 6MVA to 250MVA |
Standard | IEC, ANSI,CSA,BS, GB or other |

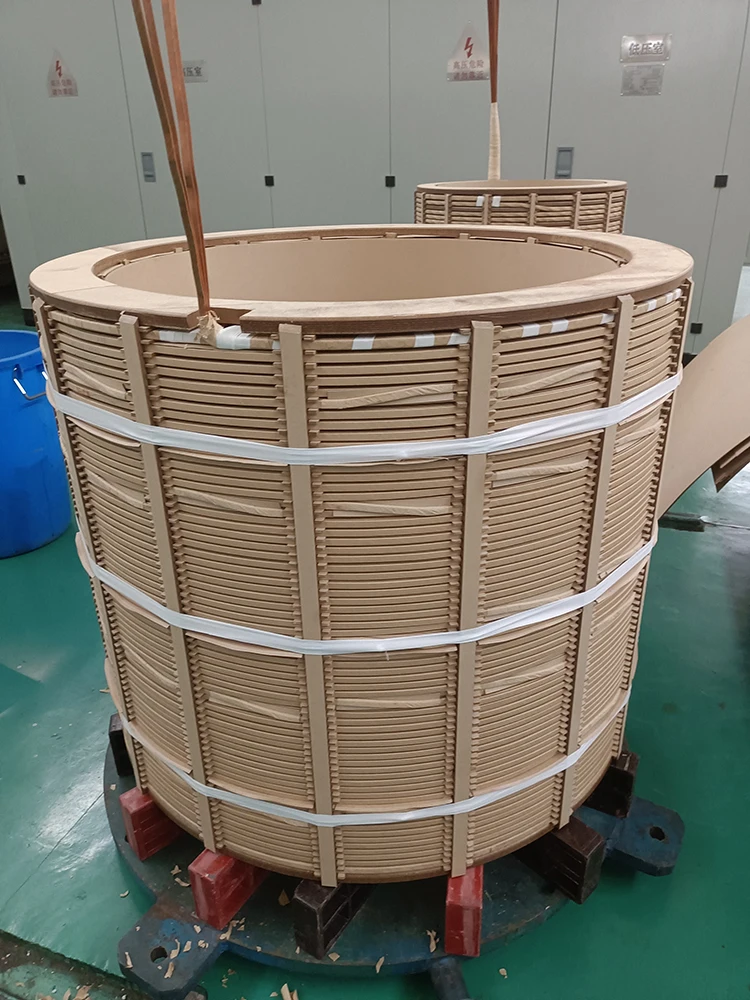

Core and Winding material | CRGO Slicon Steel Metal Core, Copper Winding. |
On-Load Tap Changer | Germany MR or Huaming China or Changzheng China or ABB |

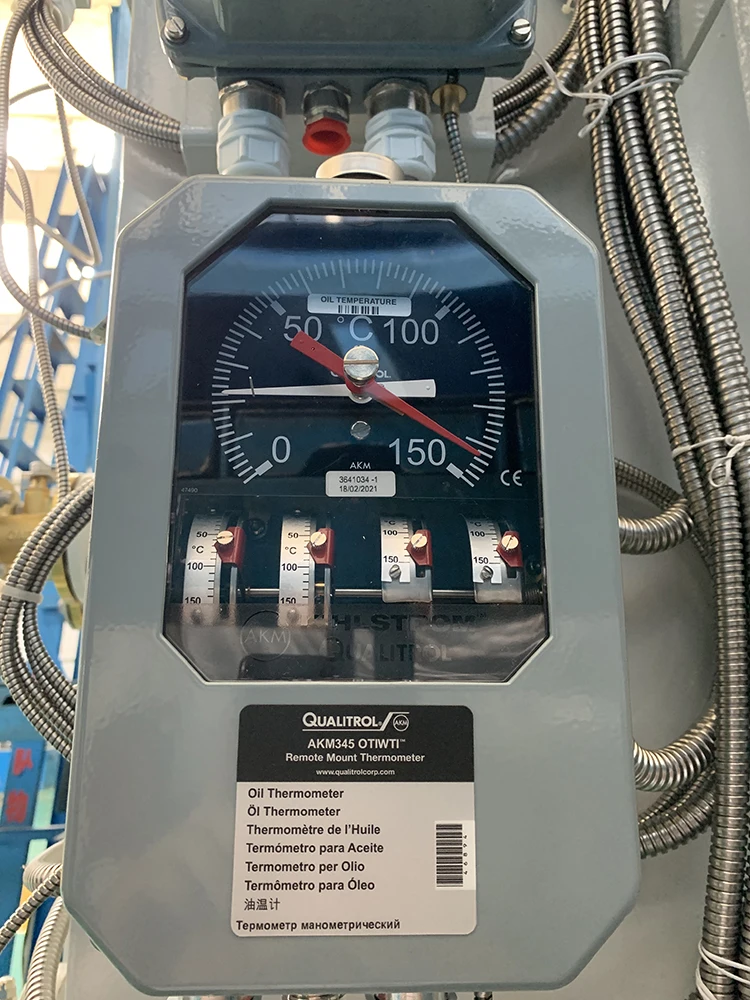

Main Accessories | MR, ABB, MESSKO,OMAN,Qualitrol or China Brand. |
Warranty | Provide 24 months gurantee period normally. |
Products Details

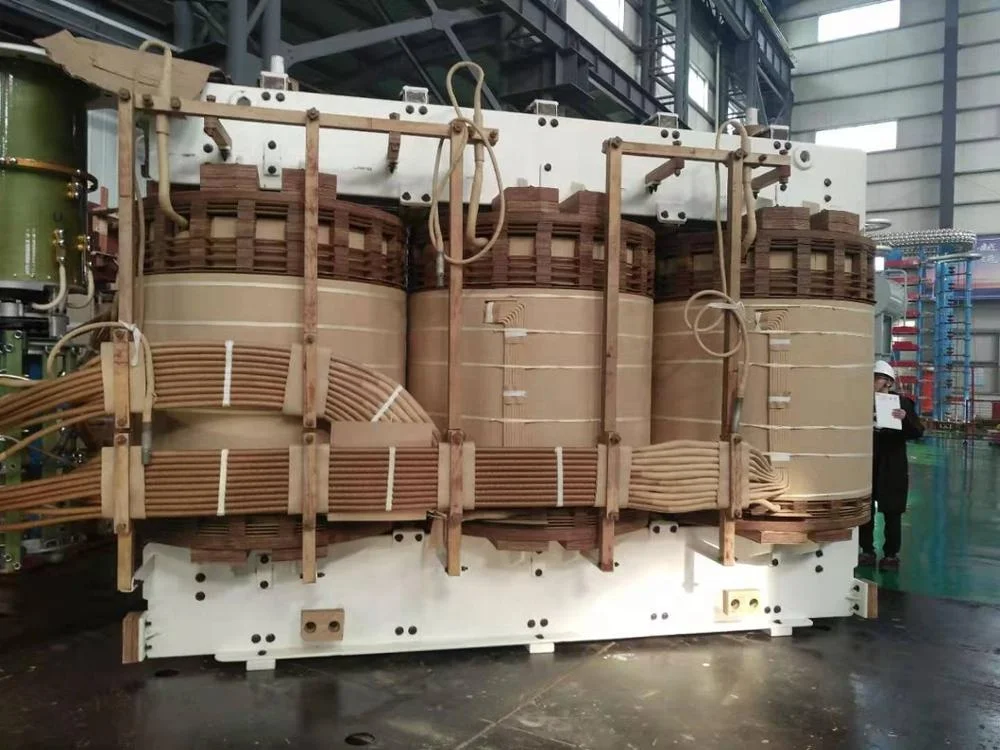

220 kV three phase power transformer
220kv three-phase oil-immersed power transformer is manufactured in accordance with the international electrotechnical commission standard IEC76 has excellent impact resistance, good mechanical performance, strong short-circuit resistance, low noise, low loss, good sealing performance, less maintenance and other characteristics.
Technical Data for 220kV Class Three Phase Two Wingding OLTC Power Transformer | ||||||||||
Rated Power (kVA) | High Voltage | Low Voltage | Connection symbol | Loss(W) | ||||||
No-load loss | On-load loss | |||||||||
31500kVA | 220 kV 242 kV | 6.3 kV 6.6 kV 10 kV 10.5 kV 11 kV 20 kv 34.5kv 35kv 37kv 69kv | YNd11 | 30000 W | 128000 W | |||||
40000kVA | 36000 W | 149000 W | ||||||||
50000kVA | 43000 W | 180000 W | ||||||||
63000kVA | 50000 W | 209000 W | ||||||||
90000kVA | 64000 W | 274000 W | ||||||||
12000kVA | 79000 W | 329000 W | ||||||||
15000kVA | 93000 W | 3850000 W | ||||||||
18000kVA | 108000 W | 4450000 W | ||||||||
Technical Data for 220kV Class Three Phase Two Wingding NLTC Power Transformer | ||||||||||
Rated Power (kVA) | High Voltage | Low Voltage | Connection symbol | Loss(W) | ||||||
No-load loss | On-load loss | |||||||||
31500kVA | 220 kV 242 kV | 6.3 kV 6.6 kV 10 kV 10.5 kV 11 kV 20 kv 34.5kv 35kv 37kv 69kv | YNd11 | 28000 W | 128000 W | |||||
40000kVA | 33000 W | 149000 W | ||||||||
50000kVA | 39000 W | 180000 W | ||||||||
63000kVA | 46000 W | 209000 W | ||||||||
90000kVA | 54000 W | 274000 W | ||||||||
12000kVA | 62000 W | 328000 W | ||||||||
15000kVA | 75000 W | 3950000 W | ||||||||
160000kVA | 90000 W | 404000 W | ||||||||
180000KVA | 102000 | 436000 W | ||||||||
240000kVA | 128000 W | 539000 W | ||||||||
Certifications
Through years of international engineering experience, our factory is capable of producing transformers meeting various international standards, such as IEC, IEEE, ANSI, CSA.
Transformer test
Below are the tests conducted by Beijing Daelim Geen EP Tech CO.,LTD.Before delivery, other tests required by clients can also be done accordingly.
Insulation resistance;
Resistance of all windings;
Check voltage ratio and vector group;
No-load test at rated frequency and rated voltage;
Impedance test;
Withstand voltage testing;
Induced over-voltage withstand testing;
Partial discharge measuremen;t
Oil leakage test;
Application&Project Cases
Application
The 220kV power transformers are used in power plant, substation and large-scale industrial enterprises etc.
Our transformers are designed and manufactured with the latest technology. The transformers are conforming to IEC, ANSI, BS and other international standards.
We offer customized solutions for satisfying your special requirements.
Our transformers are designed and manufactured with the latest technology. The transformers are conforming to IEC, ANSI, BS and other international standards.
We offer customized solutions for satisfying your special requirements.
This transformer is used in a substation project in Ecuador. We can high voltage and capacity regulating transformer, furnace transformer, oil field transformer etc. As high-tech product that promoted by the country, the product has many advantages Such as high efficiency, low loss. Its social benefits are remarkable that is will save much of electricity consumption and operating cost.
International Project Cases
DAELIM's Padmount transformers have been used in Canada, México, Australia, Myanmar, Kenya, Vietnam, Venezuela, Egypt, Nigeria,etc.
Our factory
DAELIM uses the highest quality materials and engineering expertise to provide the right unit for your energy needs. If you need a transformer with unique specifications or features, we can work with you to modify a stock unit or fabricate a new system to order.
DAELIM also produce :Power transformer, Pad Mounted transformer, Single Phase Transformer, Dry Type Transformer, Distribution Transformer.If you have transformer needs, please contact us.
