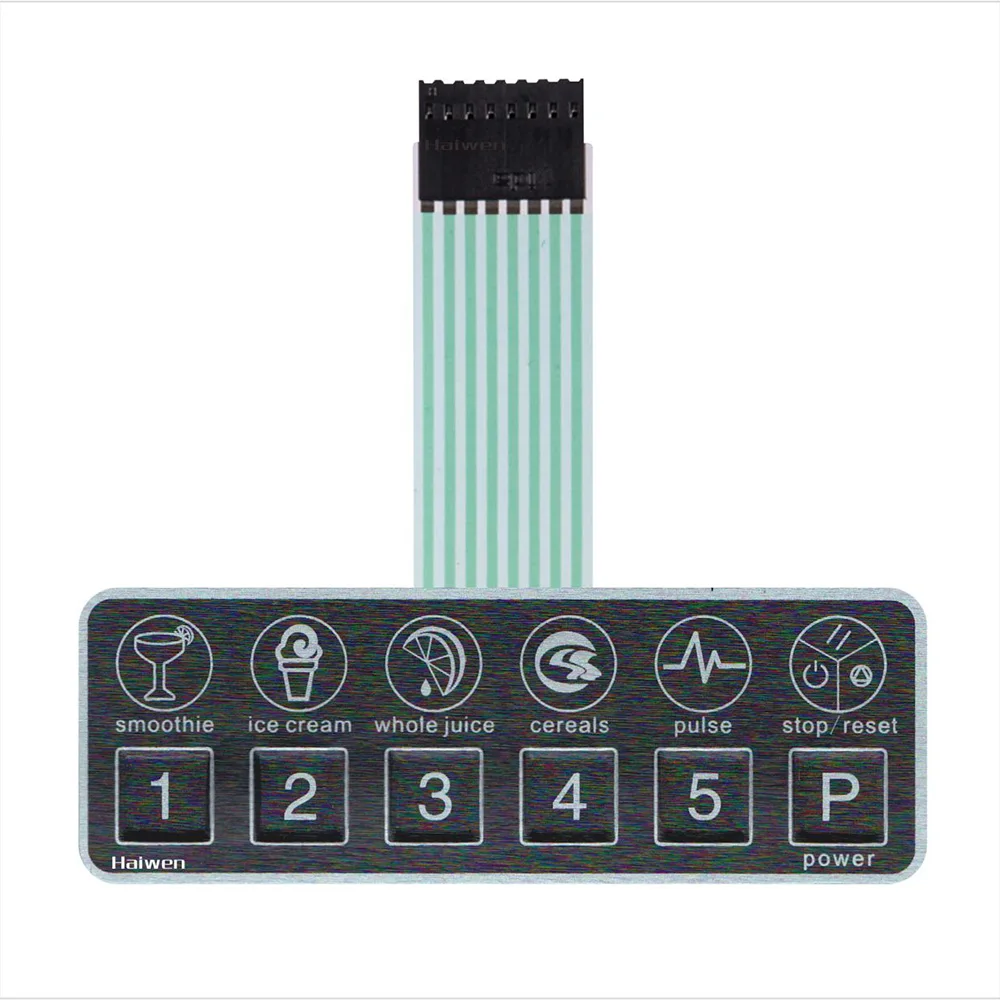

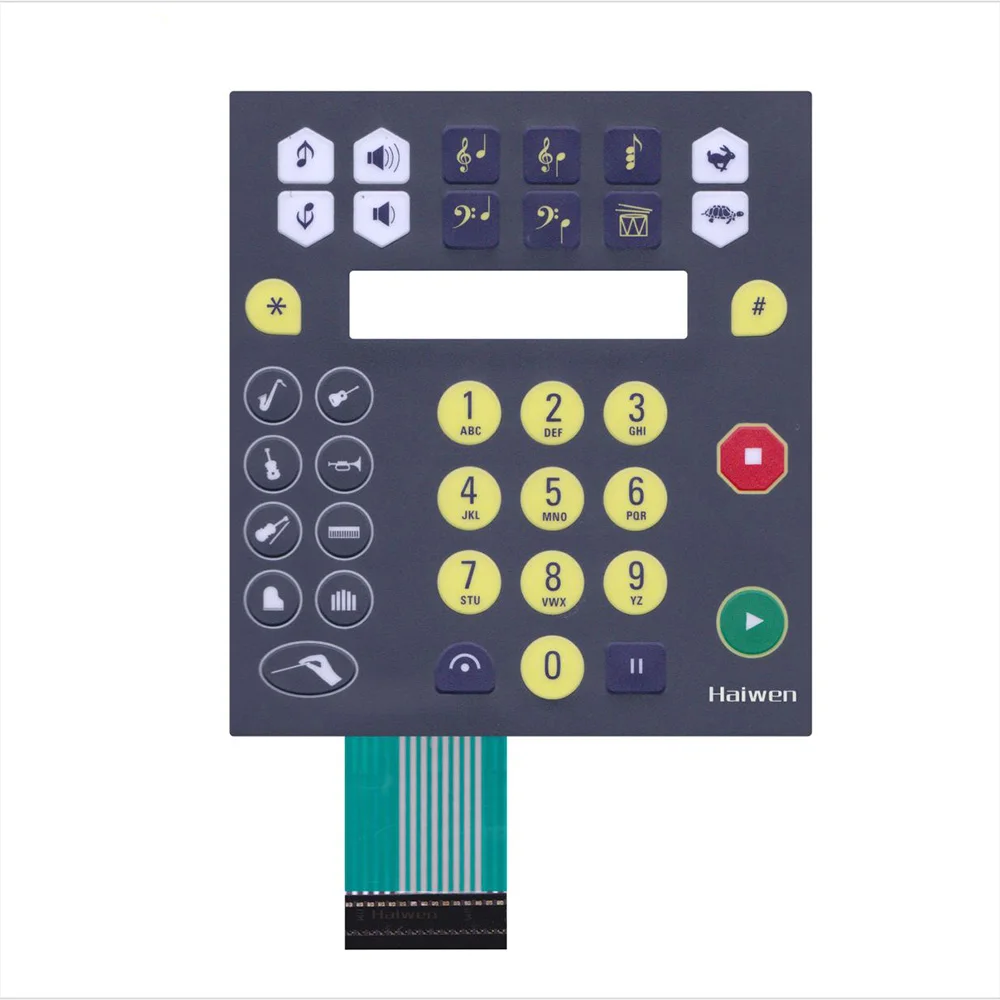

Мембранная клавиатура с тисненым тактильным покрытием высшего качества и хорошим обслуживанием

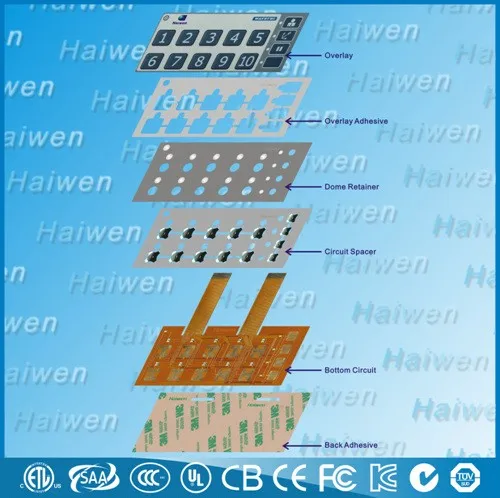

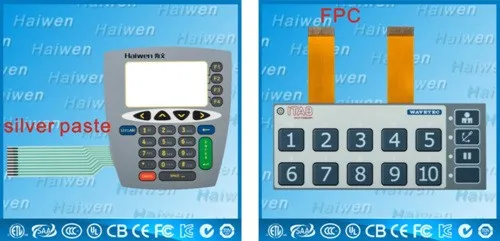

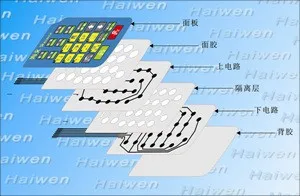

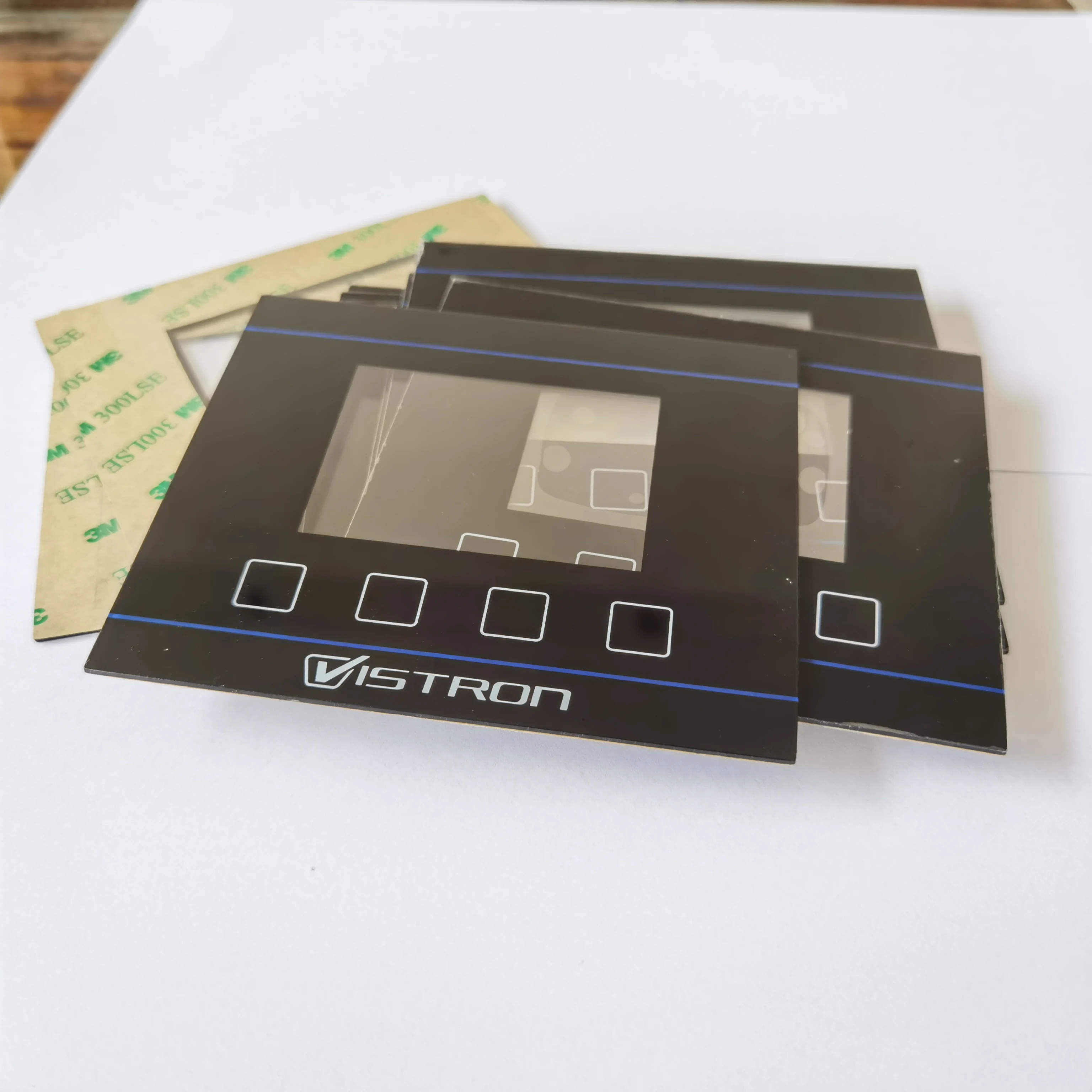

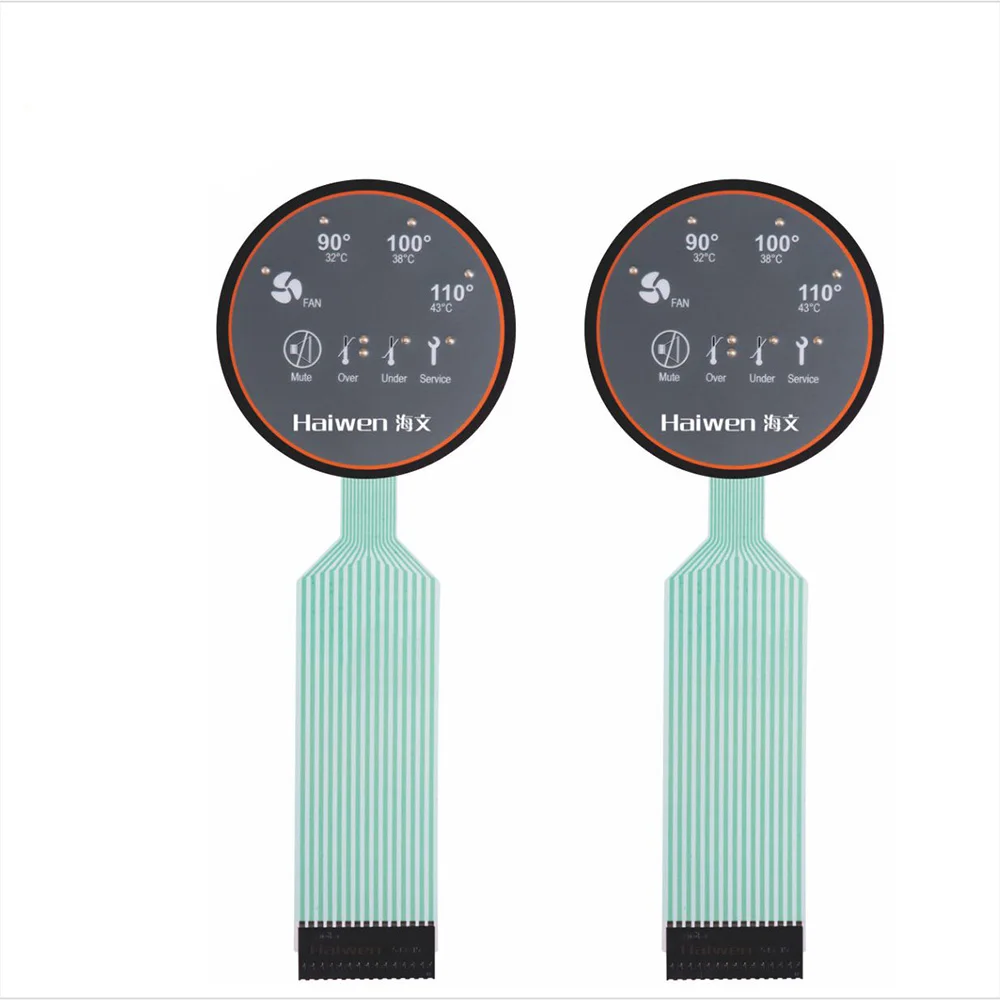

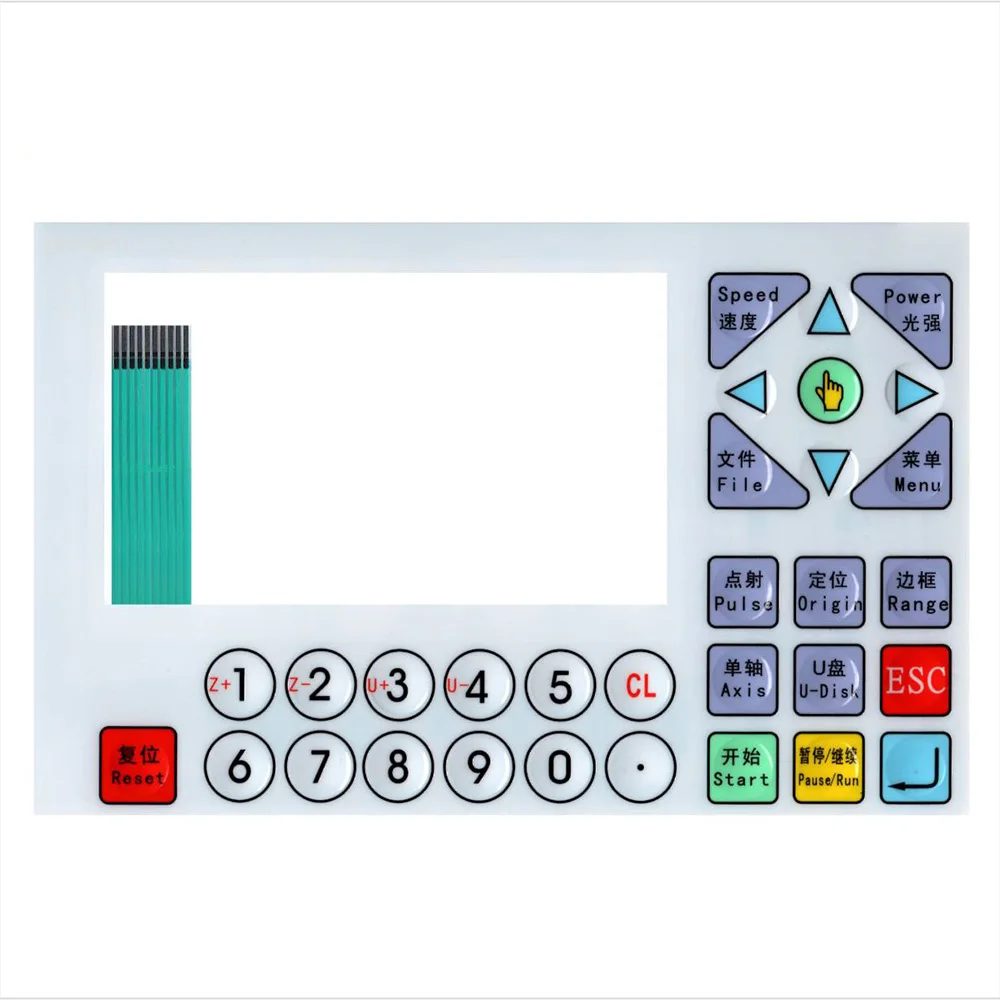

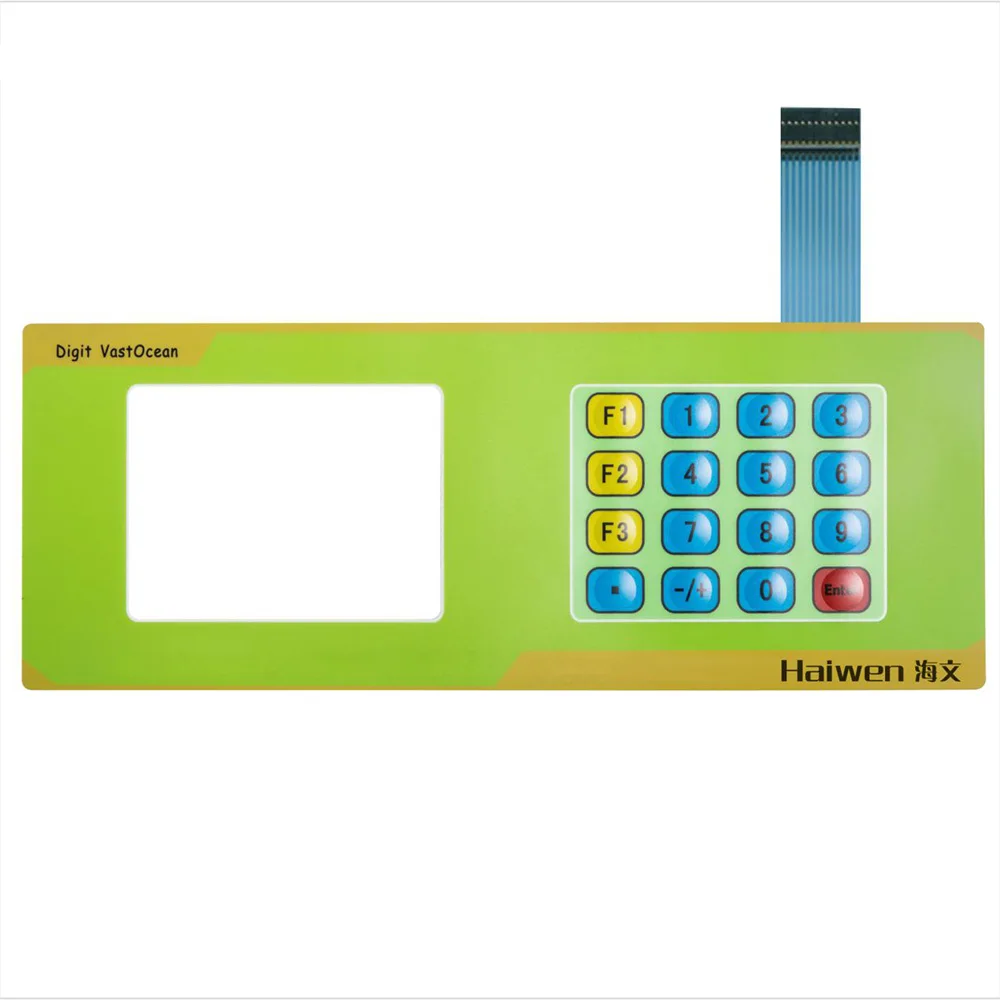

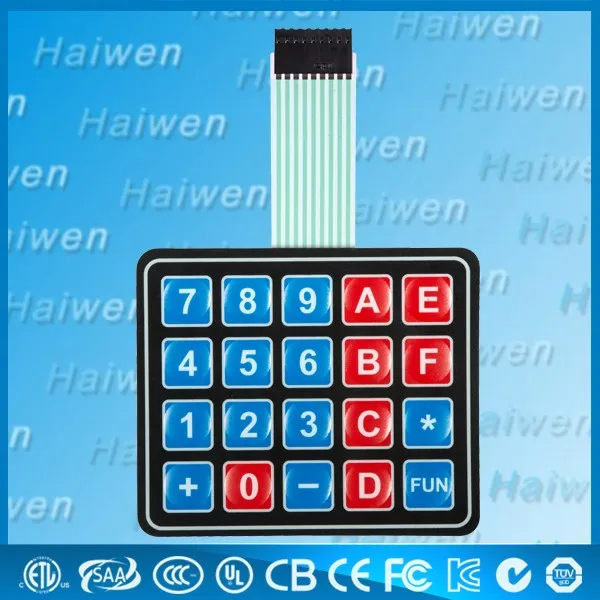

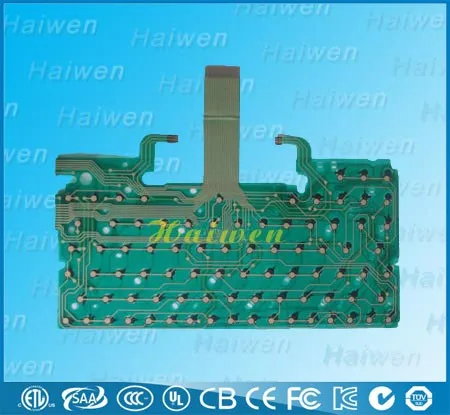

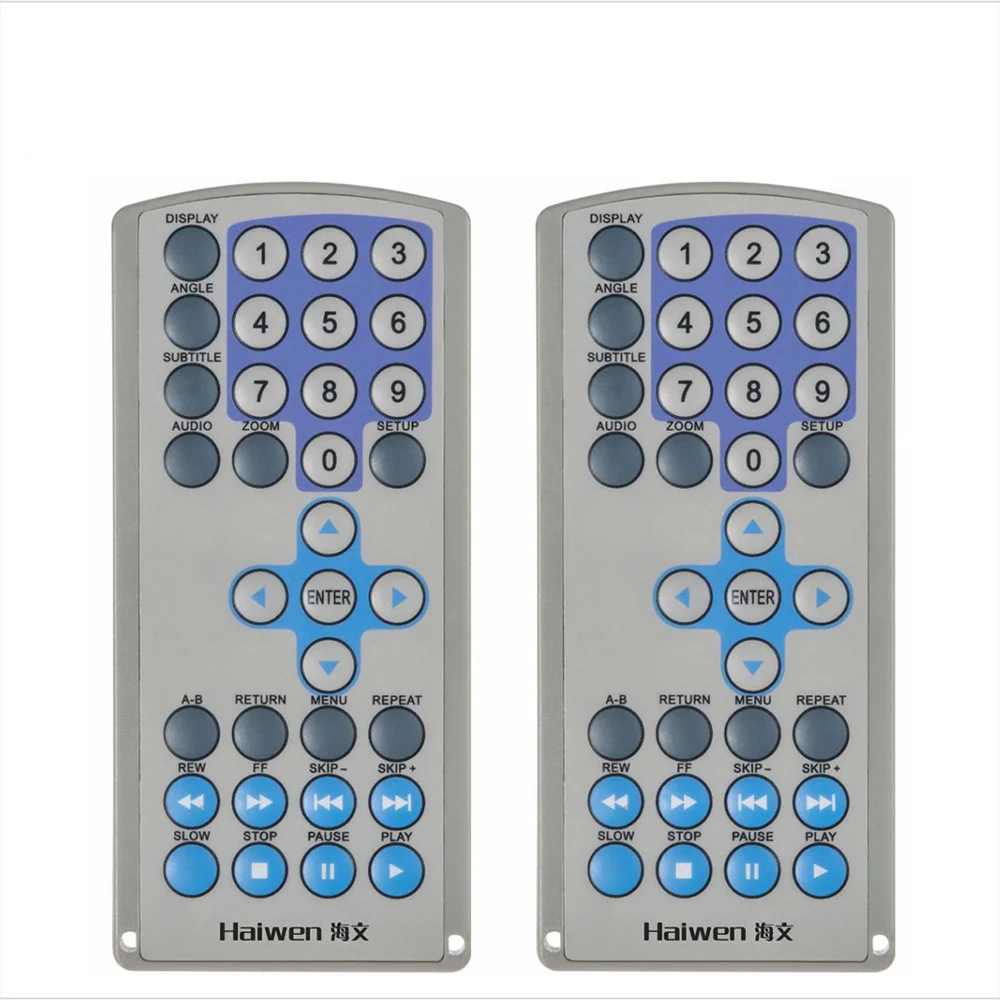

Gold-plated metal domes added to the membrane keypad provide the upper circuit layer. That contributes the keys to visual, audible, and tactile feedback. The keypad can performance well in high temperature environment. The product are mainly used as control keyboard for movable electric appliances. Also, keypad of Haiwen can be customized based on customer's design such as button icons, colors etc. Transparent window is manufactured with UV ink. Selecting Autotype F200 matte PET to screen print the overlay appears elegant and colorful. The circuits are made of Acheson ED-820B silver paste, so that it can be low resistance and function well. The rear adhesive is 3M300lse.

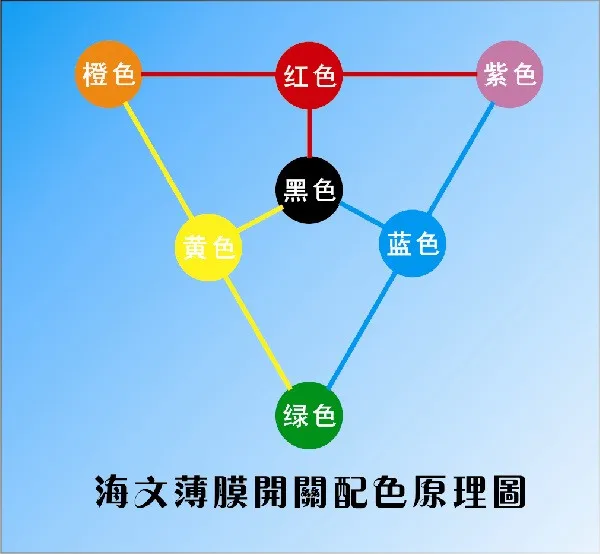

Membrane keypad has the advantage of the whole flat, thin shape, quality, small, dust-proof, good, good water resistance, is a semi-enclosed structure. In addition, the panel design, and great freedom of choice of colors. Positive range of applications of desktop computers, copiers, fax machines, toys, square computer, word processor and other areas of expansion.

For the production of membrane keypad substrate of the following:

(1) polycarbonate film

Polycarbonate film great temperature range (-135 ~ 135 ℃), when the temperature or humidity changes, the performance of this material changed little, from 100 to ensure the panel can be various types of equipment under a variety of harsh environment use.

(2) PVC film

Poor heat resistance, especially in high temperature conditions, the softening temperature of 59 ℃, less flexible polycarbonate film good. But it has a high elongation (130%), but also because of its low price, it is suitable for use in the general conditions.

(3) polyester film

Flexibility and heat resistance are good, the price range of between polycarbonate film and PVC film. But its hard to process into films matt type surface texture, often isolated and the transparent sheet, while the vast majority of the surface of polyester film of plastic printing ink can not get satisfactory results, generally requires the use of a particular special ink.

(4) Polyethylene film

Polyethylene film with excellent physical properties and chemical properties, and ability many chemicals, such as alcohols, aliphatic hydrocarbons, aromatic hydrocarbons, esters, ketones and alcohol ether etc. However, the higher the price of polyethylene film.

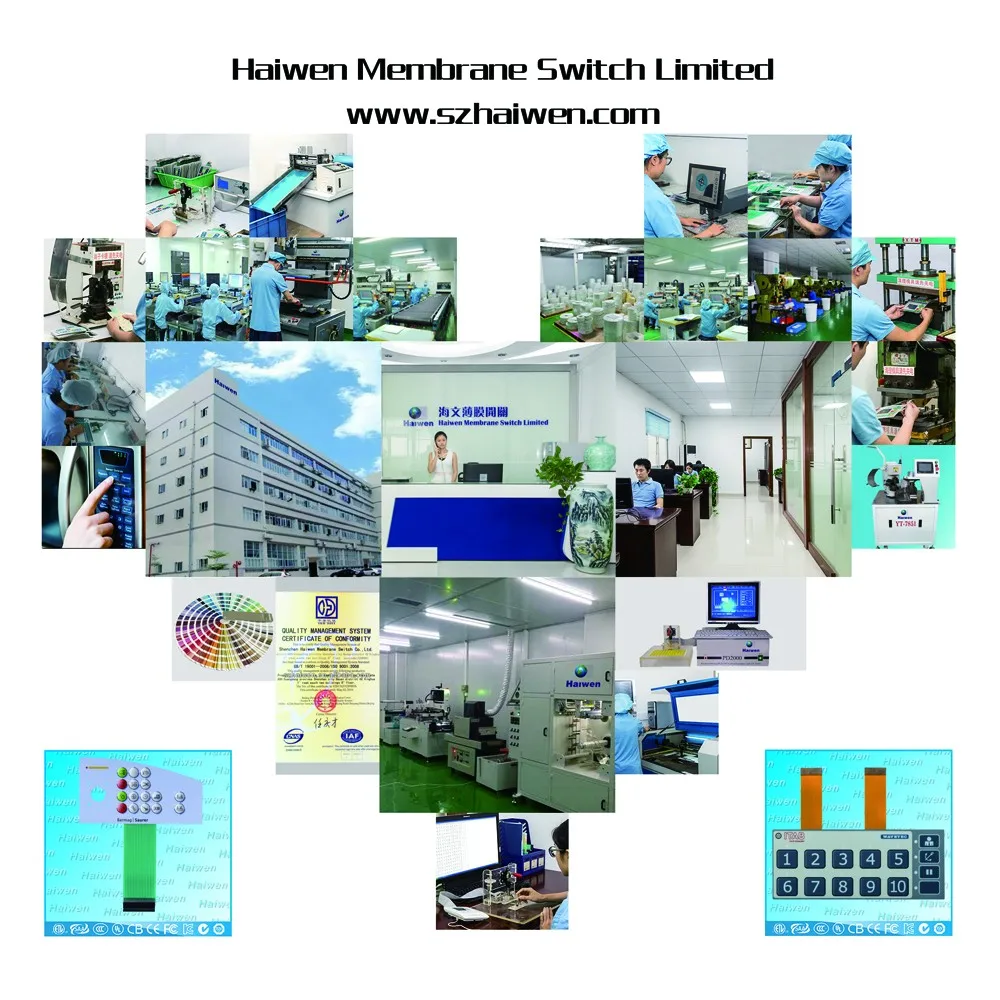

Shenzhen Haiwen Membrane Switch Co., Ltd.(short for Haiwen) , which was founded in 1998. Today Haiwen has factory with more than 1000 sqm,and some advanced manufacturing equpments,testing facilities and instruments .Now we can manufacture many kinds of products . For example,rigid circuit board,flexible circuit board,rigid-flexible board,FFC,membrane switch,membrane keypad,graphic overlay ,nameplate,IMD,touch screen,glue dispenser,rubber keypad,circuit board assembly and others .

Haiwen does always focus on providing the high quality products and first class service to the market.We do the production strictly as per the ISO9001:2008 requirements.All of our products are RoHS compliant . In addition,all of our products are 100%fully inspected and tested by our quality department .We don't allow any flawed products to be marketed.

We looking forward to the long term business cooperation with you ! Welcome you to contact us for any business ! We believe that we will be one of your faithful and creditable business partners in the near future.

For more details , you can go and visit our website : en.szhaiwen.com

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
