2 4 6 8 местный Винтажный Классический автомобиль с бензиновым или электрическим питанием для продажи по заводским ценам

Сохранить в закладки 60784039240:


Цена:6 250,00 $ - 6 500,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


2 4 6 8 seats gasoline or electric powered vintage classic car for sale with factory prices

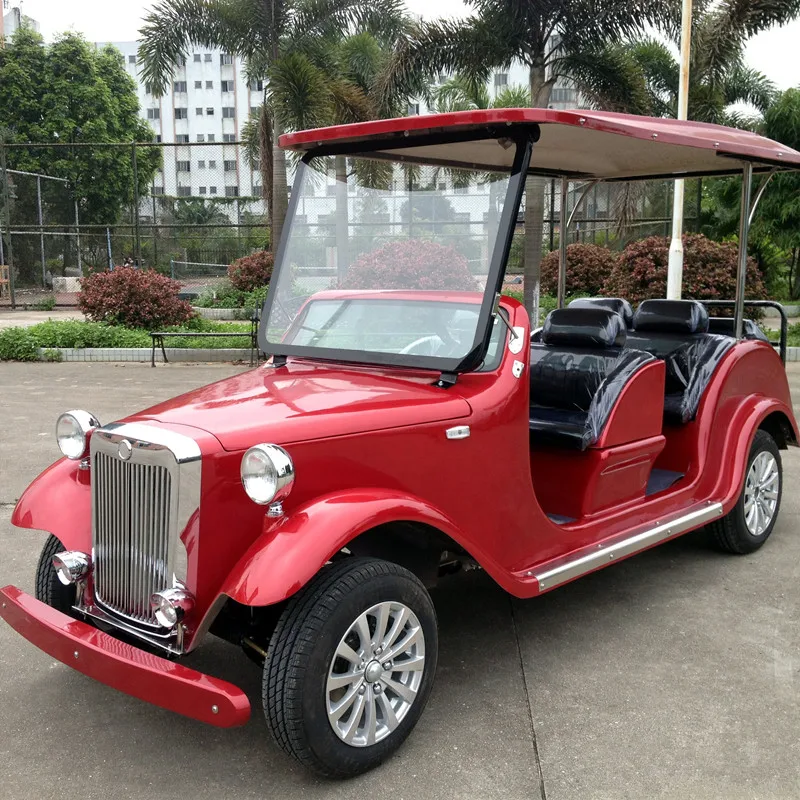

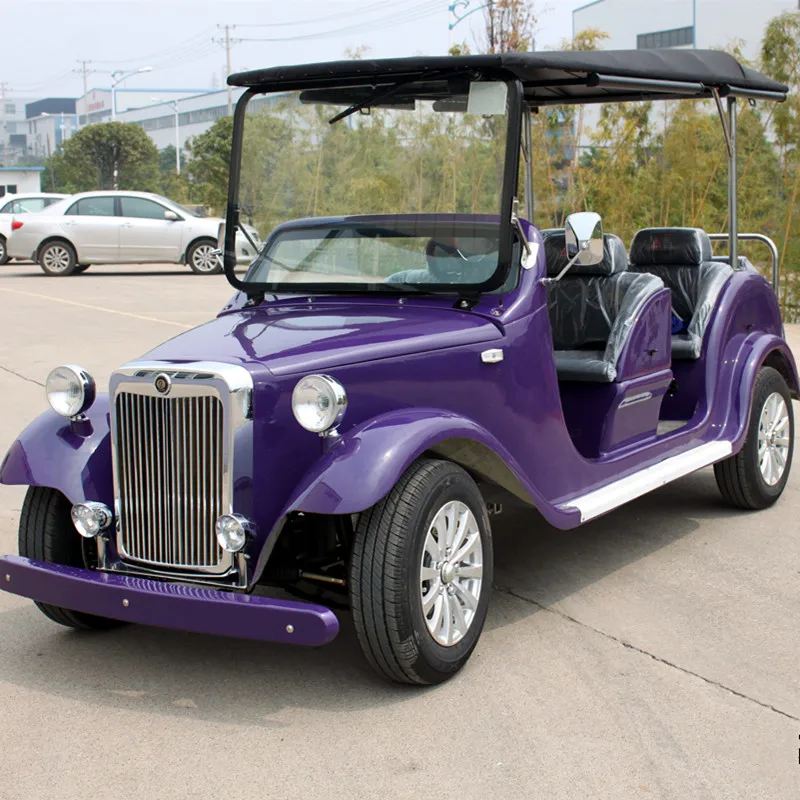

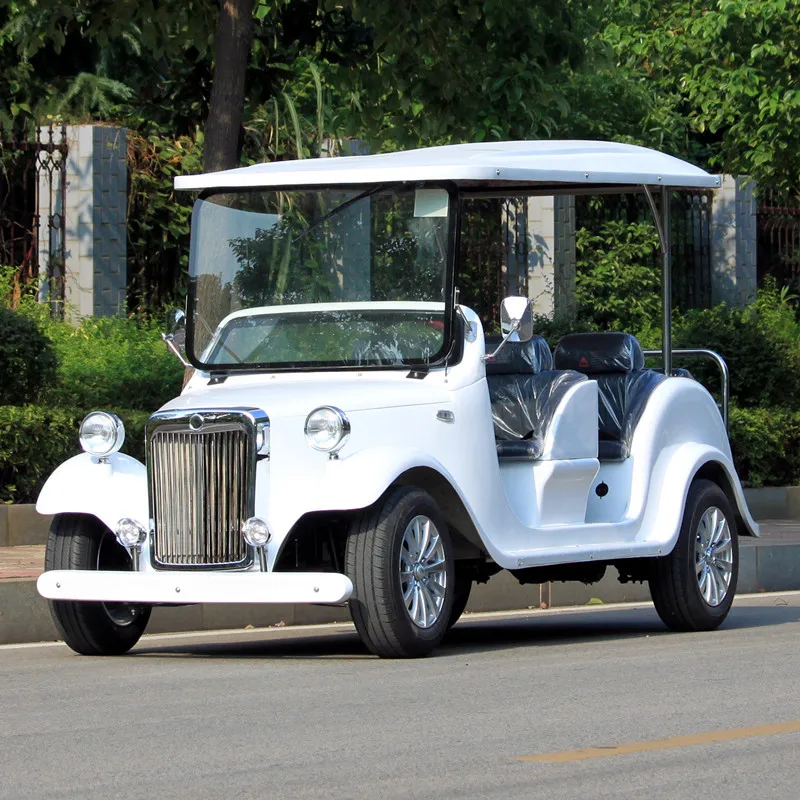

Detailed Images



6C 3.jpg6C 800 4.jpg6C 13.jpg6C 14.jpg6E (7).jpg6 9.jpg


Standard specs



BATTERY POWER

GASOLINE POWER

Model no.:

JHLYC-E4-2S

Model no.:

JHLYC-G4-2S

                                                                                               KEY COMPONENTS

Motor:

4kw DC or 5kw AC Motor

Engine:

High quality 300CC Single Cylinder, Vetical, 4-Stroke, water cool, Sohc-4 vavle

Controller:

Imported Curtis Controller,  275A-400A

Horse power &Torque:

23.12HP(17KW),  25N.m

Battery:

48v 180ah  Six cells 8-volt deep cycle(Standard)

Options: Maintanenece free battery OR Lithium battery

Drive Train:

Automatic, continuously variable transmission (CVT)

Charger:

100-240v intelligent pulse charge

with the function to recover the battery

Fuel

25L

                                                                                                    BODY & CHASSIS

Frame:

High intense steel frame with power coating

Body&Roof:

glass fiber reinforced plastics

Windshield:

Laminated glass with rain wiper

Cushion&  Backrest:

Reborn sponge with artificial leather and plastic bottom cover (with different colors)

Dashboard:

Black plastic, with F/R switch, battery power indicator, ignition key,mp3,charger port,music player

Black  plastic,with  Fuel gauge, water temperature sensor,ignition key,mp3,charger port,music player

Color:

Any color as requirements(we also accept custom colors)

                                                                                               STEERING & SUSPENSION

Steering:

Self-compensating rack and pinion

Suspension:

Front independented&rear Lifted heavy duty leaf spring with dumper&spring absorber

Brake System:

Rear hydraulic brake with pedal park brake

Rear hydraulic brake with pedal park brake

Accelerator:

stepless speed change

Transimission:

Motor Shaft Direct Drive

Shaft drive

Rear Axle:

Differential  model

Gear Selection:

F-N-R

F&R tyre:

175/70R14

Start way:

Electric start with key

                                                                                                     PERFORMANCE

Passenger

6 Person

Range (loaded):

More than 90kms

More than 300kms for each full tank.

Max.speed:

30km/h

45km/h

Max.climbing ability(loaded):

35%(full loaded)

40%(full loaded)

Brake Distance:

≤4M

≤4M

Curb weight:

815kgs

700kgs

Max.loading :

1200kgs

1200kgs

Charging time:

8-10 hours



Battery lifespan:

More than 800times charge cycles (for standard battery)



                                                                                                      DIMENSIONS

Overall   dimensions:

4120*1570*1940mm

Min ground clearance:

150mm

Wheelbase:

2730mm

F&R Tread:

1210mm/1150mm

Loading:

2units /20ft container, 4units /40GP container, 6units / 40HQ container

                                                                                                 ELECTRIC SYSTEMS

Lights:

Head lights, night lights,tail lights,brake nights,turnning lights,  the lights powered for gas power model is one 12v 12 ah dry battery.

Combination   switch:

Combination swith under the steering wheel with the switchs of head light,turnning lights and horn



Have 4 6 8 12 seats for choice!

Related Products

 3 (3).jpg6E (1).jpg0509_8-(2).jpg0309_7.jpg

Packaging&Delivery


Company informations


Yongkang jinghang sightseeing vehicle co.,ltd specialized ln designing and producing gas and electric golf carts,sightseeing cars since 2002 which is one of the earliest factory in this industry in china,our factory make the frame and do the paintting by ourself, we Create gas golf cart in china in 2005 and currenty we are the only factory with the core and unique technology in producing gas golf carts,gas sightseeing cars maturely in china, most of our workers are very experienced,skilled that followed the factory for many years,we also accept many kinds OEM service.



Certifications


Our Advantages

1: Competitive factory prices, many types(like ezgo, club car and yamaha types) for your choice.

2: Professional and direct&fast factory after service supported.

3: Both gas powered and battery powered offered for your choice

4: Earliest factory in industry,experienced and skilled workers, stable quality and good craftmanship.

5: Strong production ability that enable fast and punctual delivery of your orders.

6: Many of the OEM services are acceptable as required.



FAQ


1, Is sample order availale?

Yes



2,Is Oem available?

Yes, we are factory that accpet many kind of OEM.



3,What is your warranty?

2 years for gas golf carts, one year for electric golf carts.



4, How is your delivery time?

Normally 15-30 days depending on the quantity



5,What is your main market?

North america,south america,middle east,south asia,africa,,etc.



6,What is the shipping cost?

Please tell us your destination port and quantity required.



7,How is your after sale service?

We are factory that with factory direct after sale service and dedicated people for after sale service.



8, What are your products range the exact prices?

2 4 6 8 10 seats golf carts with gas and electric power,8 11 14 23 seats sightseeing bus with gas or electric power, 2 4 6 8 12 seats classic car with gas or electric power, utility carts withg gas or electric power.



Please inquiry for the quotaitons.
