Product Description
Counter flow closed circuit cooling tower
GWBB is one of the series closed cooling tower we developed.It is a high-efficientcy heat exchange equipment developed on the latest advanced heat exchange technology.It's widely used in chemical industry, industrial refrigerating ,medicine ,food industry , elctronics and hotels,theaters,etc.
Futures: Water saving ,space saving,Energy-saving, money saving
Cooling medium | Soft water ; Methanol；Methyl ether |
Watet flow | 30Tons-450tons |
Cooling type | Counter flow |
Suitable environment | Cold or dry area |
Operation Pinciple

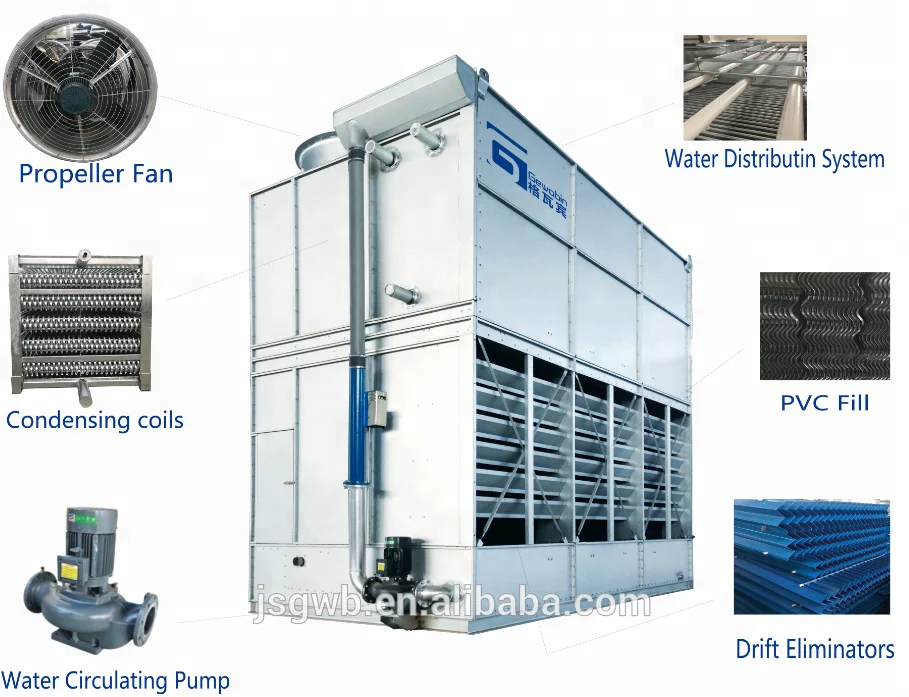

products details
Shell
Material:galvanized sheet
/Stainless304,316,321/Magnesium-plated aluminum-zinc plate
Feaure: high strength ，heat resistance,and corrosion resistance,
Feaure: high strength ，heat resistance,and corrosion resistance,
Numerical Control for cutting and bending is more accurately.
Thickness:φ2mm
Thickness:φ2mm
Condensing coils
Material: Stainless steel 304, 316, 321
Features:
1.Stainless steel coil has high strength, corrosion resistance high pressure resistance;
2.high heat exchange efficiency and long service life.
3.Hold 3.0Mpa testing pressue for 24 hours. Do 3 times Air tightness test Thickness:
Pipe diameter: Regular pipe φ 25mm, thickness： φ1.5mm
Motor:Siemens
Blade type:Aluminum alloy/Carbon fiber
Feature:
1.Three aluminum alloy fan avoids hot reflux effectively.
2.High blowing rate,low damping,low noises,good perormance and high efficiency.
Motor：Siemens/WEG
Type: Vertical type/ Horizontal type
(Choose depend on your needs)
(Choose depend on your needs)
Feature:
1.The Water pump uses a high-quality mechanical seal that is not limited by the steeringhigh
2. blowing rate,low damping,low noises,good perormance and high efficiency.
1.Large discharge and anti-blockage nozzles,guaranteed even spray
2.Allow the water to cover the surface of the coil to the maximum extent under the action of the wind, and fully exchange heat
3.Easy to disassemble and clean
MAIN FEATURE
1. Excellent Heat Exchange Performance
the cooling tower adopt the technology of the combination of coil and stuffing to avoid the dry spot and dirt formed on the coils.
so the performance of the heat exchanger is dramatically effective.
2. Convenient Maintenance
the cooling tower is designed with access door and reparing ladder. It is easy for technicains to inspect the working condition of
the cooling tower.Technicians can enter into the cooling tower during operation time
3. Convenient Transportation and Installation
The cooling tower is designed to be standard upper body part and bottom body part,. It is easy for the transportation and
installation of the cooling tower
Product Paramenters
Product materials are available for selection.We can design and customize as your requirements.1.Galvanized sheet casing+SS coil
2.Stainless steel casing +SS coil
2.Stainless steel casing +SS coil

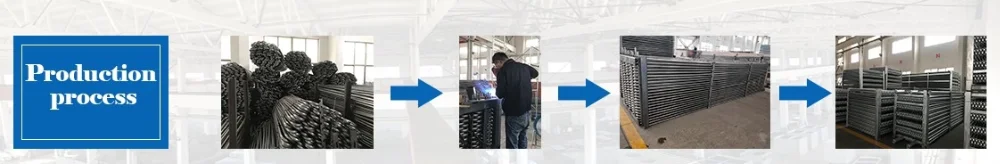

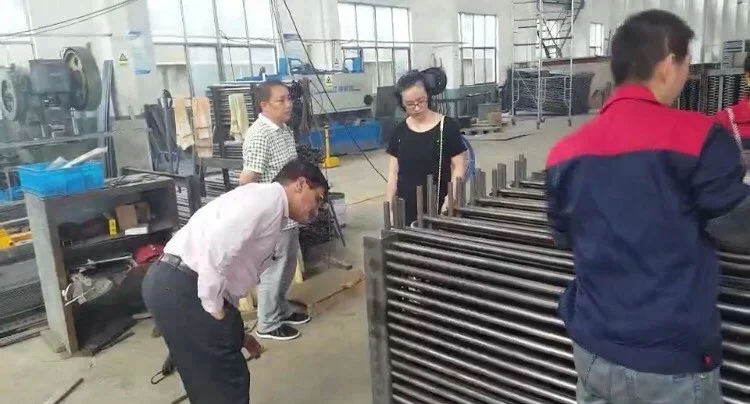

Product progress
Why Choose Us
Jiangsu Gewabin Heat Technology Co., Ltd is a manufacturer and trader specializing in the research,design,development and production of refrigeration with well-equipped facilities and strong technical force.

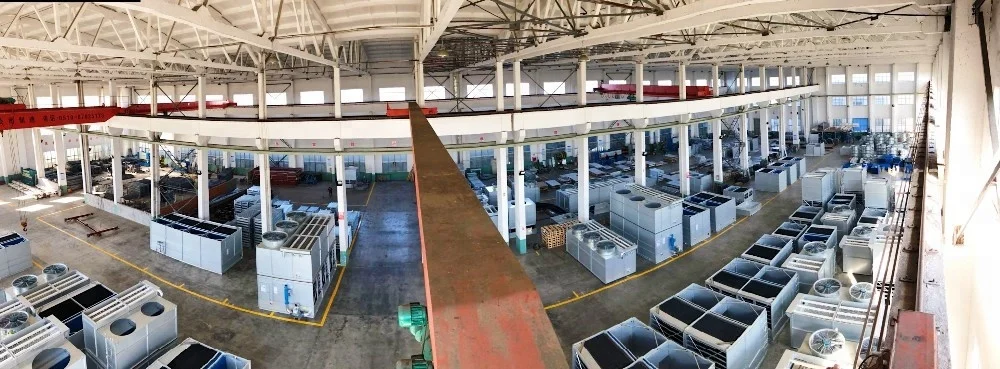

We are located in beautiful and rich Yixing city, with convenient transportation access . We are constantly improving ourselves,and now our main production base has reached 15,000 square meters
We are located in beautiful and rich Yixing city, with convenient transportation access . We are constantly improving ourselves,and now our main production base has reached 15,000 square meters
.All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We have domestic and foreign technology development products include evaporative condenser, closed circuit cooling tower, air coolers, compressor and evaporator.We can also customize products according to coustomers' requirements, and we provide processing services and OEM products.
Packing & Delivery
Packing
1) Generally, two body parts: upper and bottom boxes;
2) Shipped by one 20/40container,upper and bottom body parts shipped are assembed separately;
2) Shipped by one 20/40container,upper and bottom body parts shipped are assembed separately;
3) Packing with plastic film to to protect evaporative condensers from swearing in the long distance transportation.
Delivery time: 30-35 days after payment

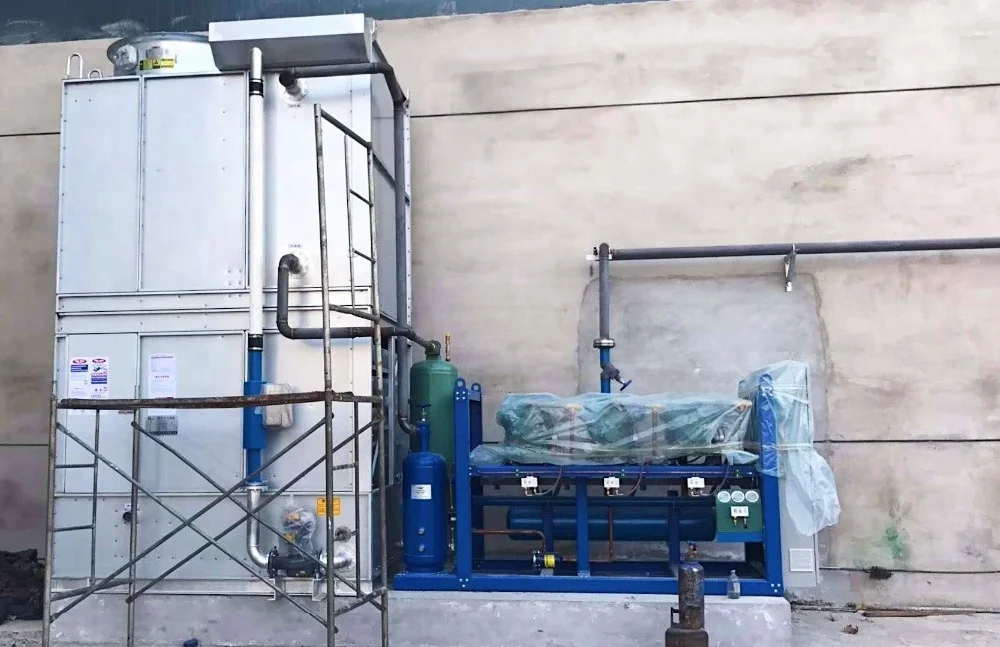

Application
FAQ
1.Q: Your company is a manufacture or trading company?
A: We are a leading cooling tower manufacturer in China.
2.Q: What if I don't have the professional engineer to install or maintain the product?
A: We could send experience engineers on site to install the product and train your staff for equipment operation and maintenance.
3.Q: How can I choose a suitable model?
A: As long as you provide the following information, we can help select the model for you.
Your Water flow ,Wet-bulb temperature,Inlet and outlet temperature.
EXAMPLE:
Water Flow Rate: (Explanations: How many Tons of water required per hour?)
Inlet Water Temp.: (Explanations: Temperature of hot water to be cooled)
Outlet Water Temp.:
(Explnations: Temperature of cooled water, usually it can't be lower than the wet-bulb temp.)
Wet-bulb Temp.: (Explanations: Highest wet bulb temp. of the location/area or city to install the tower is essential to know to
evaluate the size of towers)
Power Supply:
(Explanations: 380V/3 Phases is standard, which we could have in stock,Other can customized
A: We are a leading cooling tower manufacturer in China.
2.Q: What if I don't have the professional engineer to install or maintain the product?
A: We could send experience engineers on site to install the product and train your staff for equipment operation and maintenance.
3.Q: How can I choose a suitable model?
A: As long as you provide the following information, we can help select the model for you.
Your Water flow ,Wet-bulb temperature,Inlet and outlet temperature.
EXAMPLE:
Water Flow Rate: (Explanations: How many Tons of water required per hour?)
Inlet Water Temp.: (Explanations: Temperature of hot water to be cooled)
Outlet Water Temp.:
(Explnations: Temperature of cooled water, usually it can't be lower than the wet-bulb temp.)
Wet-bulb Temp.: (Explanations: Highest wet bulb temp. of the location/area or city to install the tower is essential to know to
evaluate the size of towers)
Power Supply:
(Explanations: 380V/3 Phases is standard, which we could have in stock,Other can customized
Похожие товары
Японская Мясорубка Ohmi с тонкой текстурой, говядина без косточек, вагюй

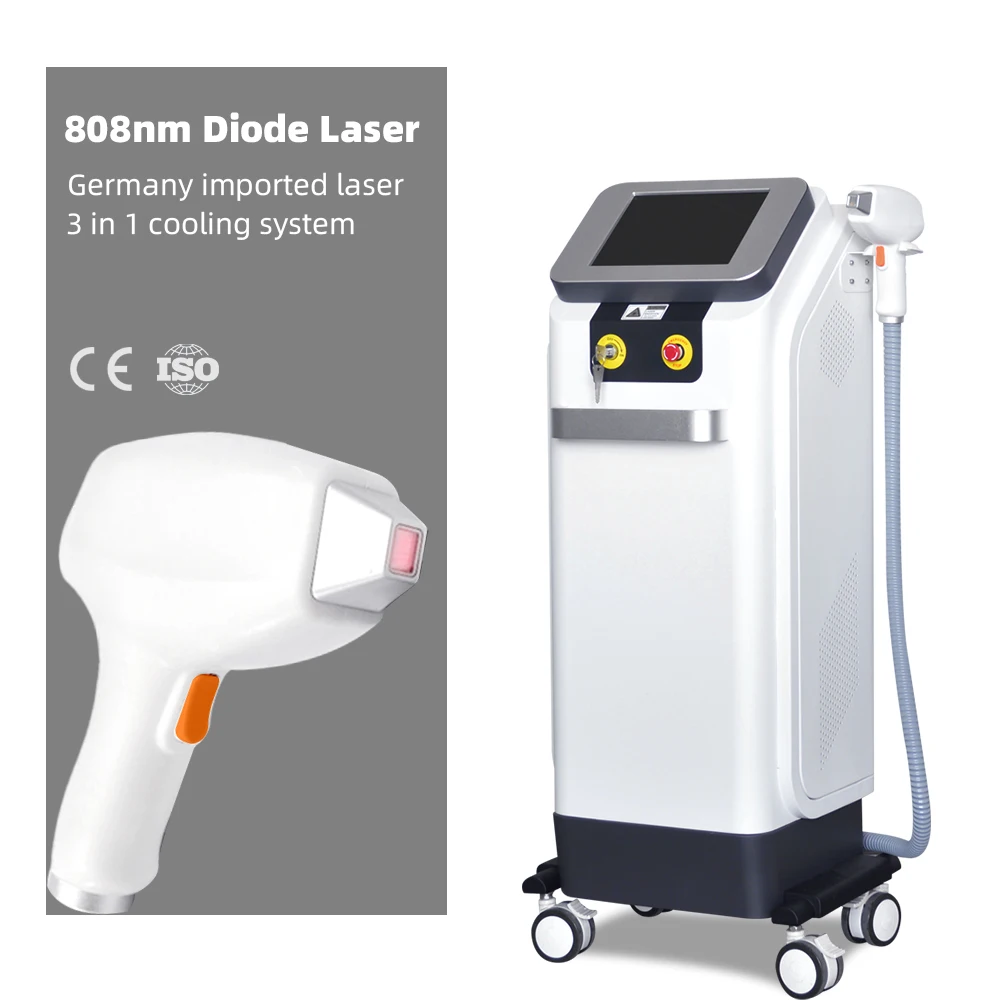

Постоянное удаление волос лазера диода 600w 808nm лазерный эпилятор Золотой стандартное устройство для салона красоты
5 310,00 $ - 5 900,00 $

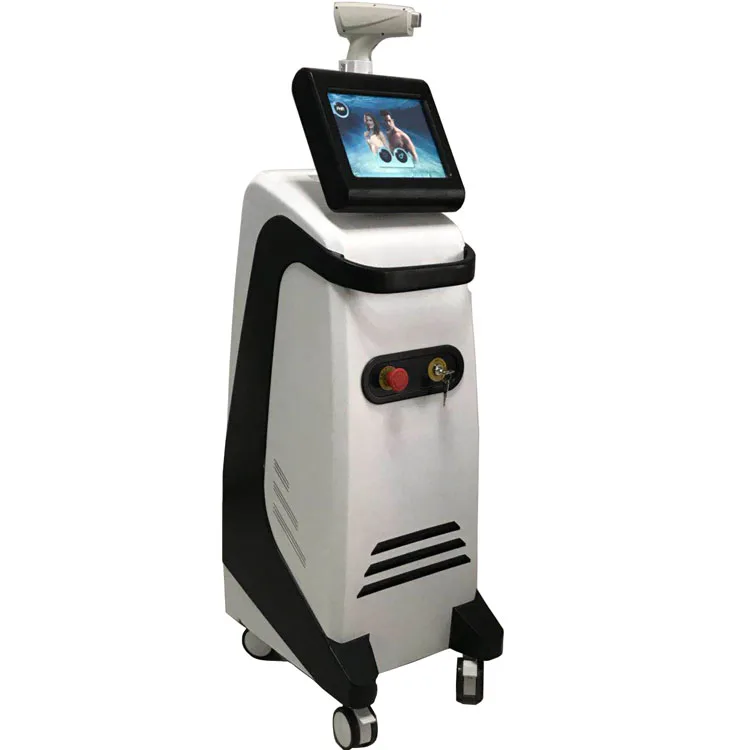

Новый корпус высокого качества 600 Вт 808 755 1064 машина для удаления волос с помощью диодного лазера с тремя длинами волны
2 800,00 $ - 3 300,00 $

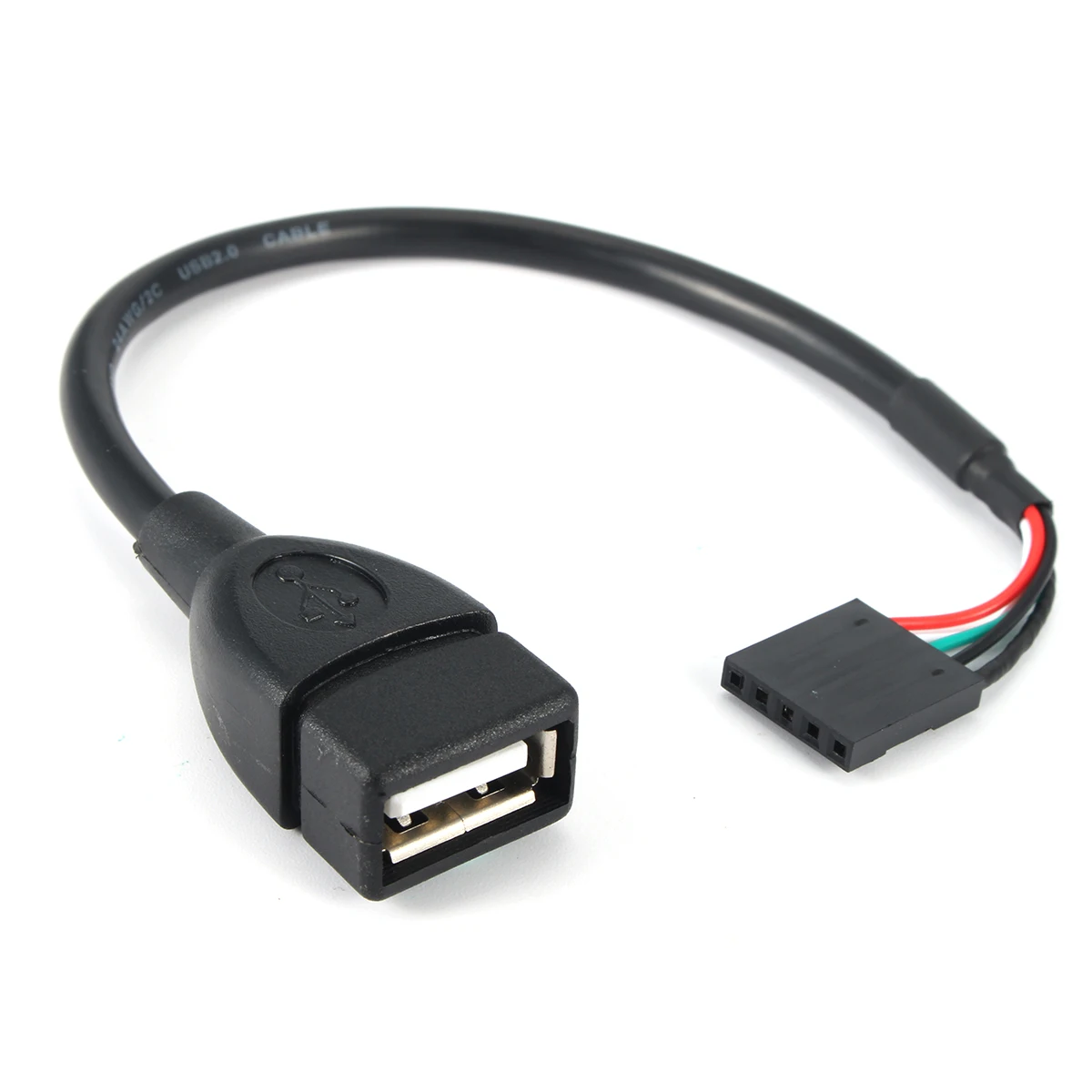

Заводская поставка, низкая цена, основная плата, 5-контактный кабель dupont для USB2.0, Женский удлинитель USB
0,32 $ - 0,58 $
2021 Испарительный конденсатор аммиака используется горячего погружения гальванизированный испаритель катушки и охлаждающий змеевик
15 169,00 $ - 15 518,00 $
2021 фреон Испарительный конденсатор для уменьшения используется нержавеющая сталь для Испарительный конденсатор катушки
15 186,00 $ - 15 518,00 $

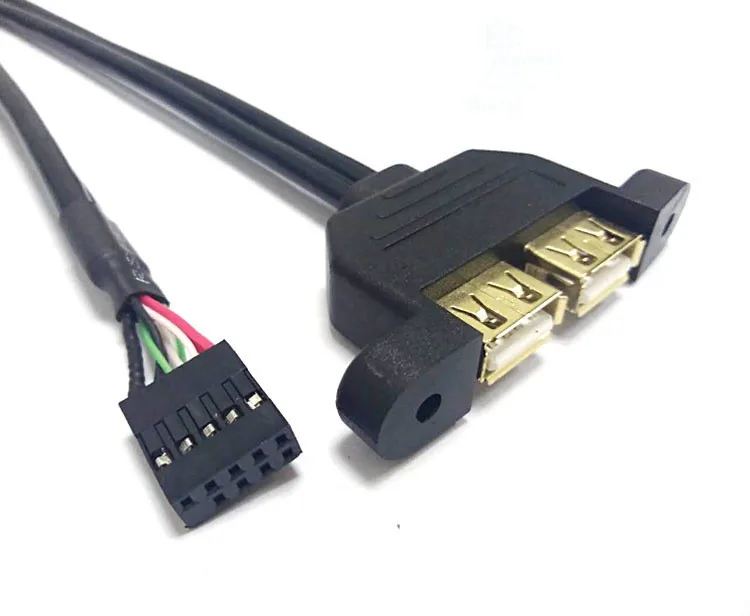

Индивидуальные DuPont 9pin ph2.54мм к двойному USB 2,0 гнездовой панельный Удлинительный кабель с резьбовым отверстием для крепежной панели
