Высокое качество серии PLG непрерывный лоток диск пластины сушилка/машина для просушки в зеленом цвете

Brief introduction

On the basis of intermittent stirring dryer, a disc plate dryer is a kind of multi-layer fixed hollow heating circular carrier disc developed by continuous improvement, which is developed by continuous improvement. The drying process is to pass the heat carrier into each layer of hollow disc. In the way of heat conduction, the wet material placed on the surface of the disk is heated indirectly, and the wet portion of the rolling material is evaporated under the operating temperature under the action of rotating the rake and rake, and the steam is discharged with the tail gas of the equipment, so that the qualified dry finished products are continuously obtained at the bottom of the equipment.

Compared with the traditional drying equipment, it has the advantages of high thermal efficiency, low energy consumption, uniform drying, good product quality, small occupation, less auxiliary equipment, less pollution, continuous production, convenient operation and wide range of application. Therefore, there is a broad prospect in drying technology, which has attracted more and more attention and research.

According to the product performance, drying requirements and processing capacity, the disc dryer adopts a series of measures, such as adjusting the speed of spindle step-less, manually adjusting the height of the disc feeder, controlling the temperature distribution of each layer of the heating disk, and cooling at the end of the period, etc. Give full play to the disc continuous dryer's superior performance.

Product Description

Working Principle:

The wet material is continuously added to the first layer of drying disk of the upper part of the dryer. The arm with the rake blade rotates to make the rake blade continuously roll over the material. The material flows along the exponential spiral line through the surface of the drying disk, and the material on the small drying plate is moved to the outer edge, and falls to the outer edge of the lower drying disk at the outer edge.

The size of the drying plate is arranged alternately up and down, allowing the material to flow continuously through the whole dryer. The hollow drying disk is filled with heating media in the form of saturated steam, hot water, heat conductive oil and high temperature molten salt, and the heating medium is in the form of saturated steam, hot water, heat conductive oil and high temperature molten salt The heat medium enters from one end of the drying tray and is derived from the other end. The dried material falls from the last layer of the dry tray to the bottom of the shell and is finally removed from the rake blade to the outlet. Moisture overflows from the material and is discharged by a drain on the top cover, and the moisture of the vacuum tray disc dryer is discharged from the vacuum pump outlet on the top cover. Dry materials discharged from the bottom layer can be directly packed.

By adding finned heater, solvent recovery condenser, bag dust collector, dry material back mixing mechanism, induced fan and other auxiliary machines, it can improve its dry production capacity, dry paste and thermosensitive materials, and can easily recover solvent. And can be pyrolysis and reaction operation.

Features of Tray Disc Plate Dryer:

1. Continuous operation, high thermal efficiency. The continuous drier dries by conducting heat transfer. In the drying process, only a very small amount of air (or no air) is passed into the dryer, and its tail gas is carried very little, so its thermal efficiency can reach more than 65%.

2. Low power consumption and low noise. Because the material layer is very thin, the rotation speed of spindle is low, the power of material transfer system is small, the power consumption of the whole drying device is only 1/5 to 1/7 of the power consumption of heat transfer device in convection mode, and the noise is very small.

3. The material is heated evenly and the drying time is short. As the material is rolled along the trajectory of Archimedes spiral in the drying process, the walking distance of the material is 5 times the radius of the dry disk, and the layer by layer falls down, so the material contact heating disk time is basically the same, and the heat is very uniform.

4. Small material loss, good to environmental protection.

5. The drying ability is great.

6. Equipment closed continuous operation, low labor intensity of workers.

7. Drying medium can utilize steam produced by waste heat boiler, thus saving a lot of coal.

8. Product quality is stable.

Applications:

1. Organic chemical products: polyvinyl chloride resin, antioxidant 168, chlorinated paraffin, rubber accelerator, oil-soluble aniline black dye, acid black dye, Indigo and other organic chemical raw materials and intermediates.

2. Inorganic chemical products: light calcium carbonate, active calcium carbonate, magnesium carbonate, sulfur concentrate, pyrite, copper-nickel ore, aluminum hydroxide, white gray black, strontium carbonate, barium carbonate, potassium carbonate, Silica powder, barium sulfate, potassium sulfate, magnesium hydroxide, copper sulfate, nickel sulfate, sodium chloride, iron oxide red, iron oxide black, lithium hydroxide, nickel hydroxide, Zirconium hydroxide, calcium phosphate, sulfur, etc.

3. Medicine, Food: ampicillin toxin, Deng Salt, Vitamin B12, Vitamin C, Drug Salt, Medicinal Alumina hydroxide, caffeine, Tea, flower extract, ginkgo leaf, chocolate powder, starch, corn germ and other raw materials and pharmaceutical intermediates.

4. Feed, fertilizer: potassium carbonate, biological potassium fertilizer, protein feed, bran, distiller's grains, grain, seed, herbicide, cellulose, feed calcium bicarbonate, etc.

Operating Process of Tray Disc Plate Dryer:

• Basic configuration of disc continuous dryer flow: wet materials are evenly added to the top of the disc continuous dryer through a quantitative feeder, and the drying process is finished in the drier, and the dry materials are discharged from the bottom of the dryer.
• Disc continuous dryer plus heat dispenser flow: suitable for drying process with high evaporation intensity. On the basis of basic configuration, a finned heater is added to the dryer with small flow of hot air, which is used to absorb the moisture released from the material during the drying process, and to prevent the moisture from condensation at the top of the dryer and in the exhaust cylinder.
• Disc continuous dryer plus hot air system flow: suitable for drying process with high evaporation intensity. On the basis of basic configuration, it is equipped with finned heater and exhaust fan to remove the moisture content from the drying process quickly by entering the hot air, which further strengthens the heat transfer and drying process. Moisture is prevented from dew in the exhaust pipe at the top of the dryer.
• Disc continuous dryer plus dust removal device flow: suitable for toxic, harmful, pollution to the environment and easy to drift materials drying, such as pesticides, dyes and their intermediates. On the basis of basic configuration, it is equipped with bag dust collector, finned heater and induced fan to capture the trace and light materials contained in the tail gas, which can protect the environment and reduce the loss of products.

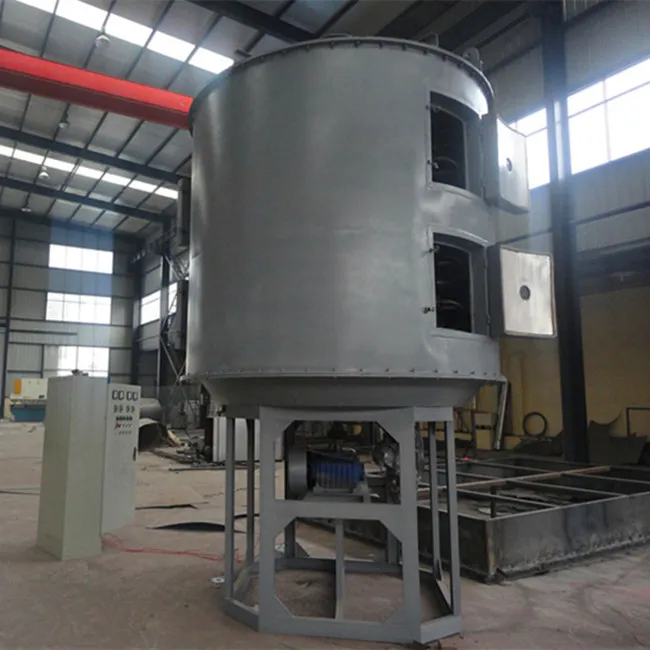

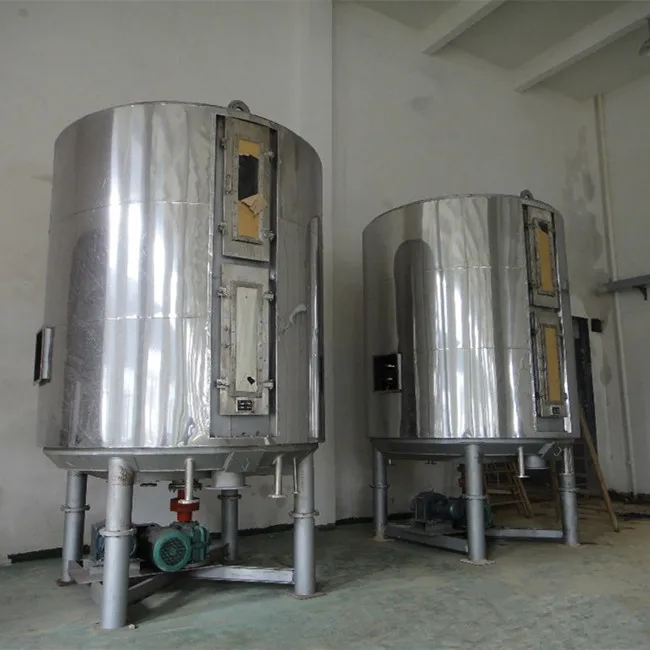

 Detailed Images

Packing & Delivery

1. Our tray disc plate dryer/drying equipment should been cleanned first, then packaged with the transparent coating, next it will been shipped into the marine container with steel wire fixing.

2. If there is over-size drying machine, we will choose the flat rack container to shipping.

3. First the drying machines are transported by land to China's maritime ports, then shipped and delivery, and final the containers are shipped to the customer's designated port of arrival.

Our Service & FAQ

Sale service:
1. Ensure product with high quality and pre-commissioning before delivery.
2. Delivery on time.
3. Provide full set of documents as customer’s requirements.

After-sale service:
Provide considerate services to minimize customers’ worries.
1. Assist customers to prepare for the first construction scheme.
2. Install and debuging the drying equipment.
3. Train the first-line operators.
4. Exame the drying equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship with all my customers.

Service commitment:
We provide customers 12-months warranty to make sure the machine work well, and always keep certain inventory level of spare parts, which means the replacements can be sent to you timely. At the same time, we send every customer a preferential and reasonable quotation.

FAQ

Q: How can i visit your factory?
A: Our company is in Changzhou city, and it is very near Shanghai city. It takes about 1 hour to get to Changzhou. Or we can even visit you in Shanghai.

Q: Are you a factory or a trading company?

A: We are a manufacturer, and have been in the drying industry for more than ten years.

Q: What’s the MOQ of your products?
A: 1 set.

Q: How is the quality of your products?
A: Our products come with best quality, and passed CE certification. And exported to lots countries around the world, such as Australia, Malaysia, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.

Q: What to do if the drying machine has a problem?
A: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.

Q: How long is the warranty of your equipment?
A: One year. In other worlds 12 months.

Q: What is your payment term?
A: Our usual payment term is T/T. 30% T/T in advance, another 70% T/T before shipment. Other ways can also be received after we discussion and agreement, like L/C.

Q: Does your price include freight?
A: The price we offer usuallly is FOB Shanghai price. If you request CIF, please give us your delivery port, and even can offer the EXW price (machine cost) for you.
