Сверхмощный горизонтальный преобразовательный токарный станок CW61125
- Категория: >>>
- Поставщик: Taian Taizhuo Machinery Manufacturing Co. Ltd.
Сохранить в закладки 60787523943:
Описание и отзывы
Характеристики
Product Description

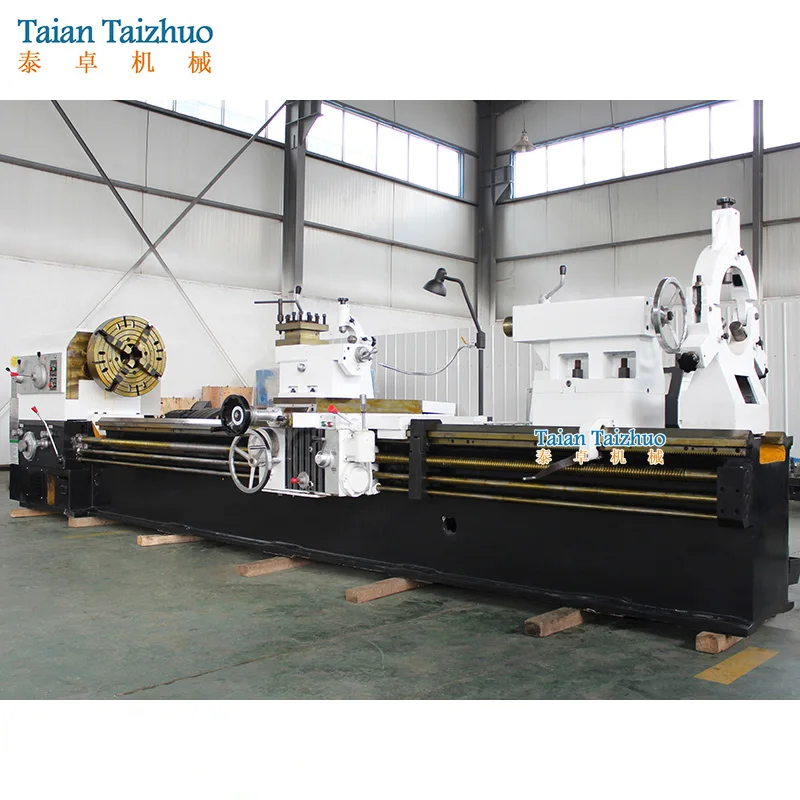

Heavy Duty Horizontal Convertional Lathe Machine CW61125
Item | Unit | CW61125 |
Max swing over bed | mm | 1250 |
Max. swing over carriage | mm | 800 |
Max. swing over gap | mm | 1400 |
Effective length of gap | mm | 310 |
Max workpiece length | mm | 1500/3000/4000/5300/15000 |
Bed width | mm | 600 |
Weight capacity | kg | 2000 |
Hole through spindle | mm | 104 |
Spindle head form | ISO-D11 | |
Spindle taper | MT5 | |
Spindle speed (Number) | rpm | (18steps)4.8-640 |
Longitudinal feeds range | mm/r | 64kinds 0.06-24.3 |
Ratio of transverse feed to longitudinal feed | 1/2 | |
Bed saddle fast moving speed | mm/min | 4000 |
Metric threads range | mm | 50kinds 1-240 |
Inch threads range | inch | 26kinds 14-1tpi |
Moudle threads range | mπ | 53kinds 0.5-120 |
Thread section number range | DP | 24kinds 28-1DP |
Maximum lateral travel of the lower tool holder | mm | 500 |
Maximum stroke of the upper tool holder | mm | 200 |

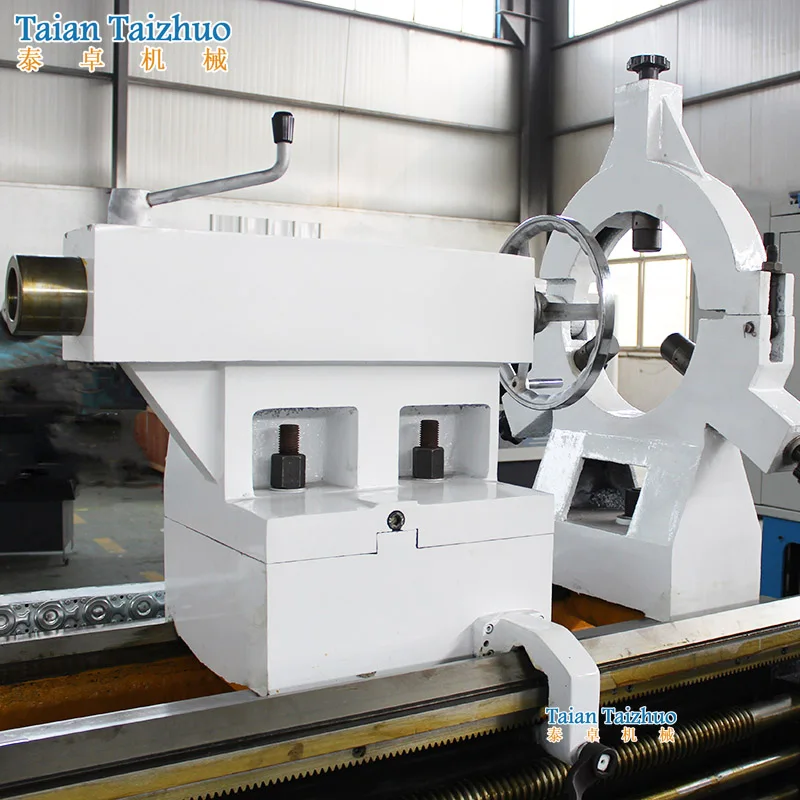

Taper of tailstock sleeve | MT5 | |
Max.travel of tailstock | mm | 250 |
Main motor power | kw | 11 |
Coolant pump motor | w | 90 |
Machine size | mm | 3700x1560x1900 |
Net weight | kg | 5500 |
Standard configuration:

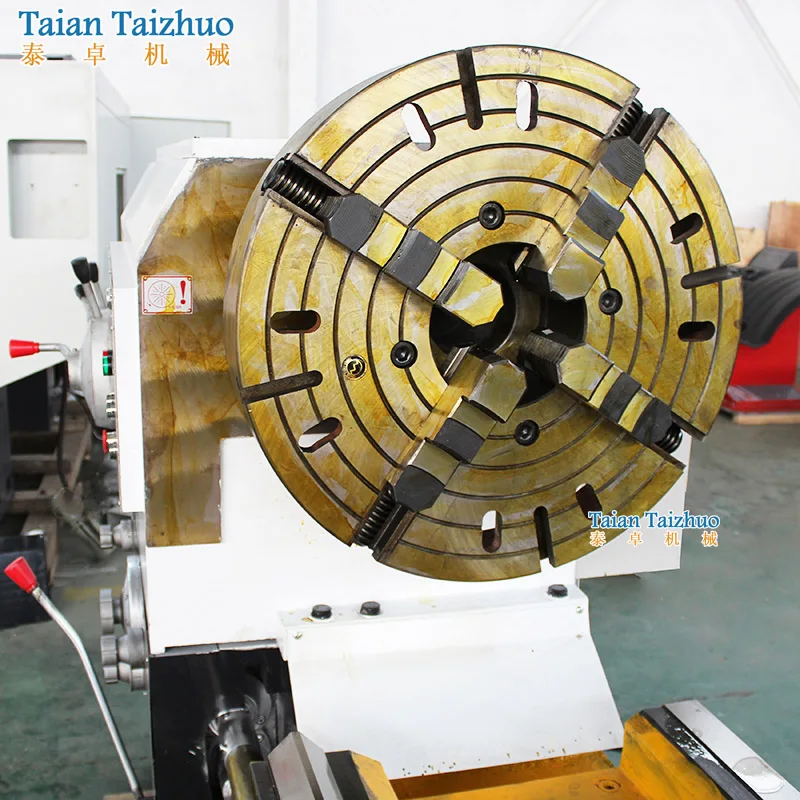

1. Four jaw manual chuck.
2. Four station tool post.
3. Manual Tailstock.
4. Tailstock movement device.
5. Cooling system.
6. Lubricating system.
7. Lighting system.
8. Center rest.
9. Follow-rest .

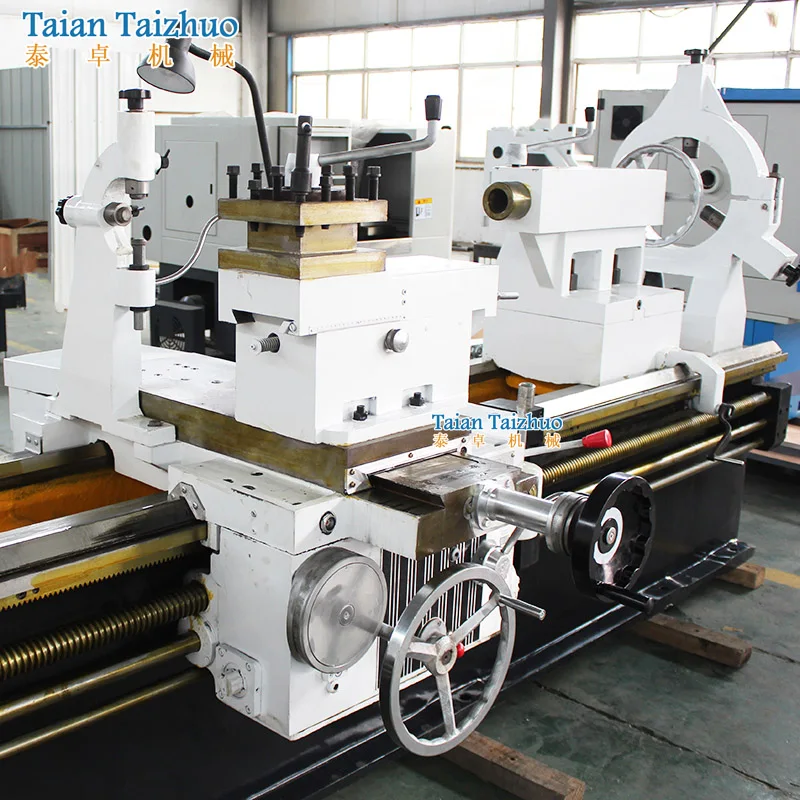

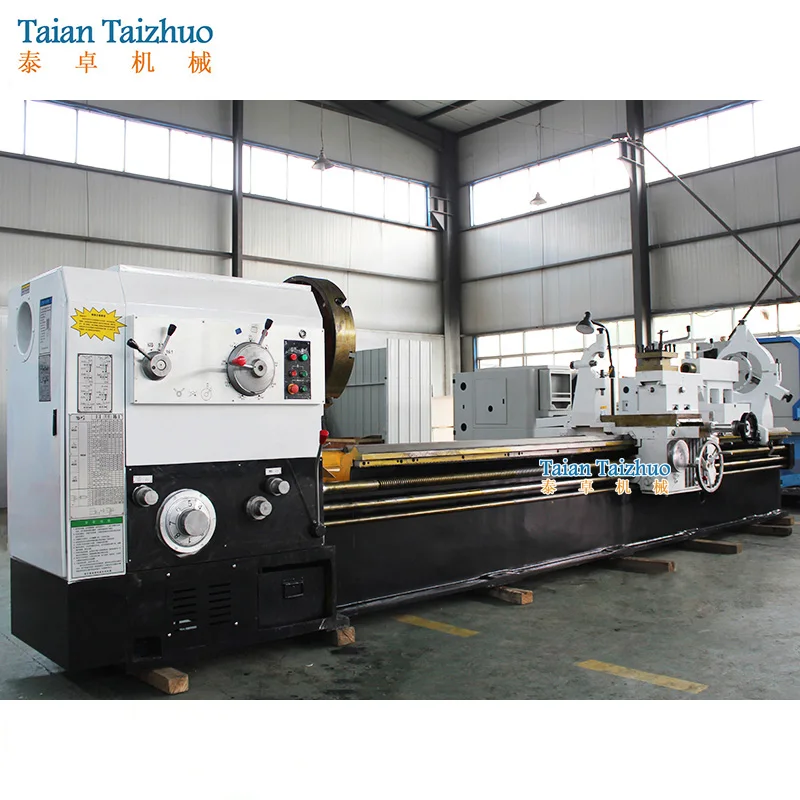

Detailed Images
Show More Models
Item | CW61100 | CW61125 | CW61125B | CW61160 | CW61200 |
Swing over bed | 1000mm | 1250mm | 1250mm | 1600mm | 2000mm |
Swing over carriage | 680mm | 800mm | 800mm | 1200mm | 1580mm |
Max. length of workpiece | 1500-15000mm | 1500-15000mm | 1500-15000mm | 1500-15000mm | 1500-15000mm |
Weight capacity | 2 tons | 2 tons | 6tons | 8 tons | 8tons |
Guide rail width | 600mm | 600mm | 755mm | 1100mm | 1100mm |
Main motor power | 11kw | 11kw | 22kw | 22kw | 22kw |
To Choose More Models
CNC Lathe Machine CK0640
CNC Lathe Machine CK6432
CNC Lathe Machine CK6150
Packing & Delivery
Packaging Details:
Standard export package, custom suffocating free.
Using iron base has good bearing capacity.
Standard export package, custom suffocating free.
Using iron base has good bearing capacity.
Our Company
Taian Taizhuo Machinery Manufacturing Co., Ltd. is a professional manufacturing enterprise engaged in the research, development, production, sale and service of CNC machines. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.
Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.
Customer Visiting
Certifications
CE , SGS, Alibaba High-quality Supplier and Made-In-China Gold Supplier.
Our Service
Pre-Sales Service
1. According to the workpiece drawing or size, Recommend machine model and configuration.
2. Sample processing support.
3. View our Factory.
4. Design new machines support.
5. OEM support.
After-Sales Service
1. Training how to instal the machine, training how to use the machine.
2. Engineers are available to service machinery overseas.
3. Provide tools and accessories.
4. Warranty is one year, we would offer the parts (quality problem) free of charge during this period.
Note: GSK, Servo driven, motor and transformer, warranty is 3 years.
2. Engineers are available to service machinery overseas.
3. Provide tools and accessories.
4. Warranty is one year, we would offer the parts (quality problem) free of charge during this period.
Note: GSK, Servo driven, motor and transformer, warranty is 3 years.
FAQ
Q1. How can I choose the most suitable machines?
A: Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Q2. What's the main products of your company?
A: We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.
Q3. Where is the factory located? How can I visit there?
A: Our factory is located in Tai'an City, Shandong Province, China. With very convenient transportation access, you can come by airplane or by high speed railway. And warmly welcome you to visit us.
Q4. What is the Trade Terms?
A: FOB, CFR and CIF all acceptable.
Q5. What's the Payment Terms ?
A: 30% T/T initial payment as deposit, 70% T/T balance payment before shipment.
Q6. What's the MOQ?
A: MOQ is 1 set.
Contact Us
If any interest about our cnc lathe machine, cnc milling machine or cnc machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
