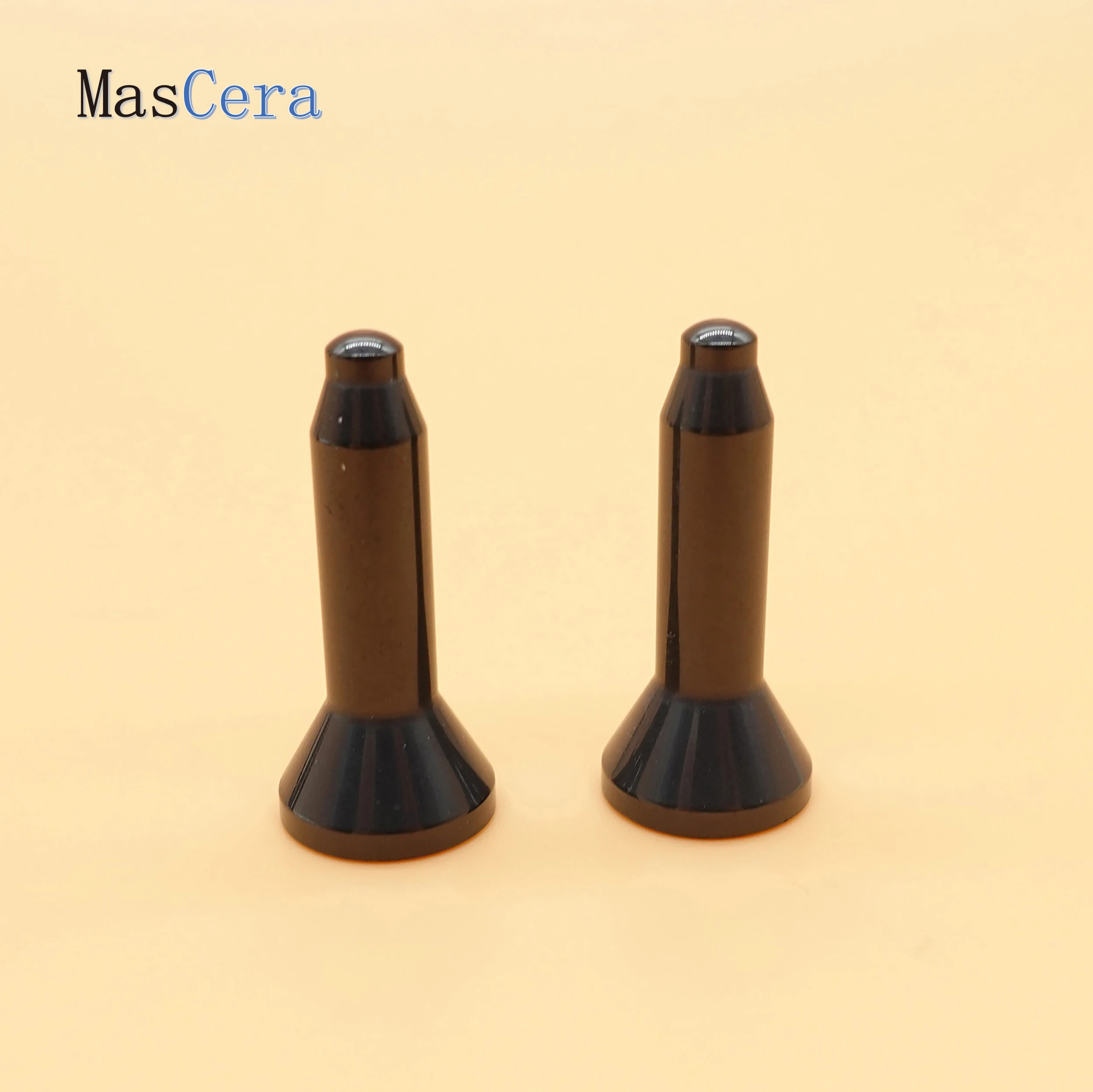

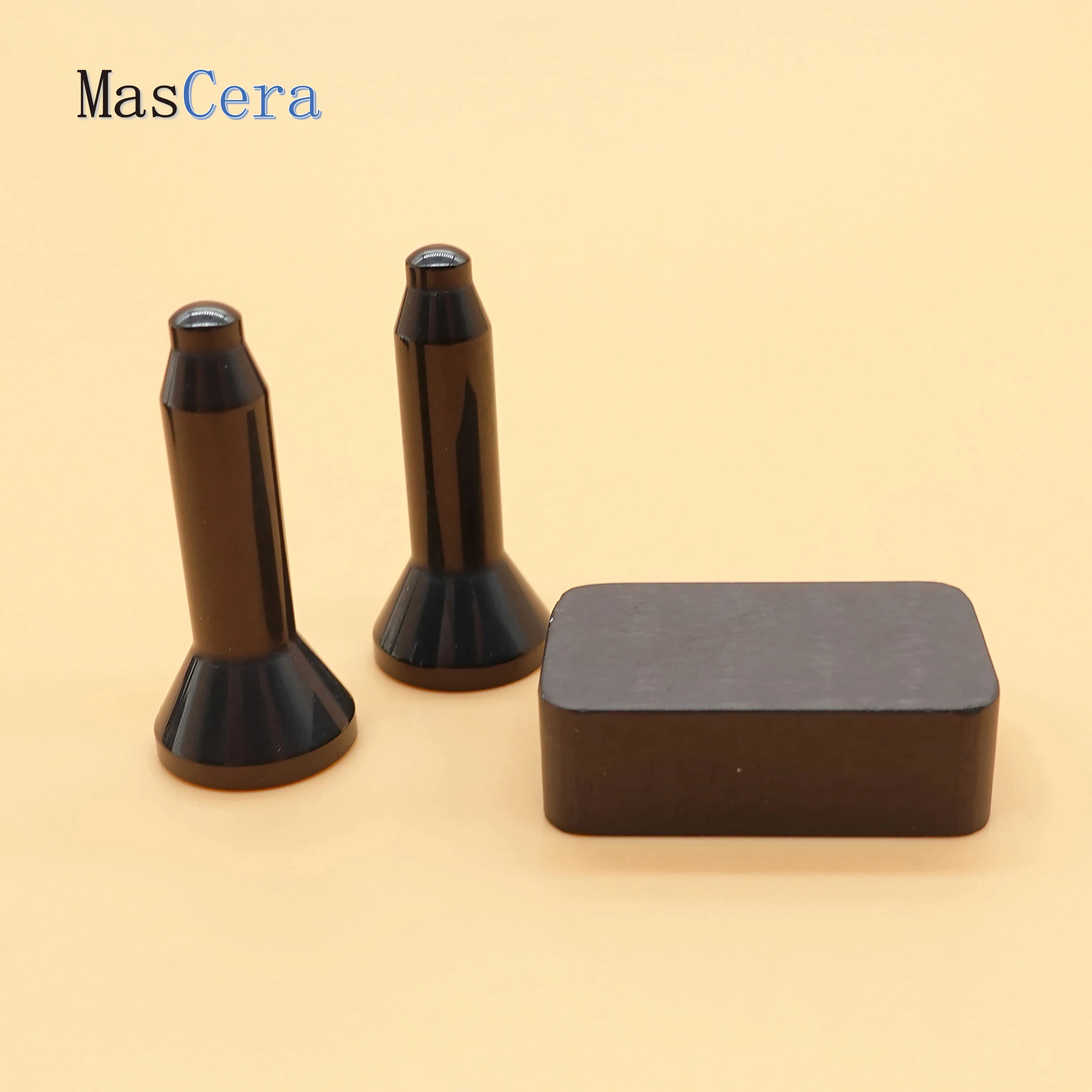

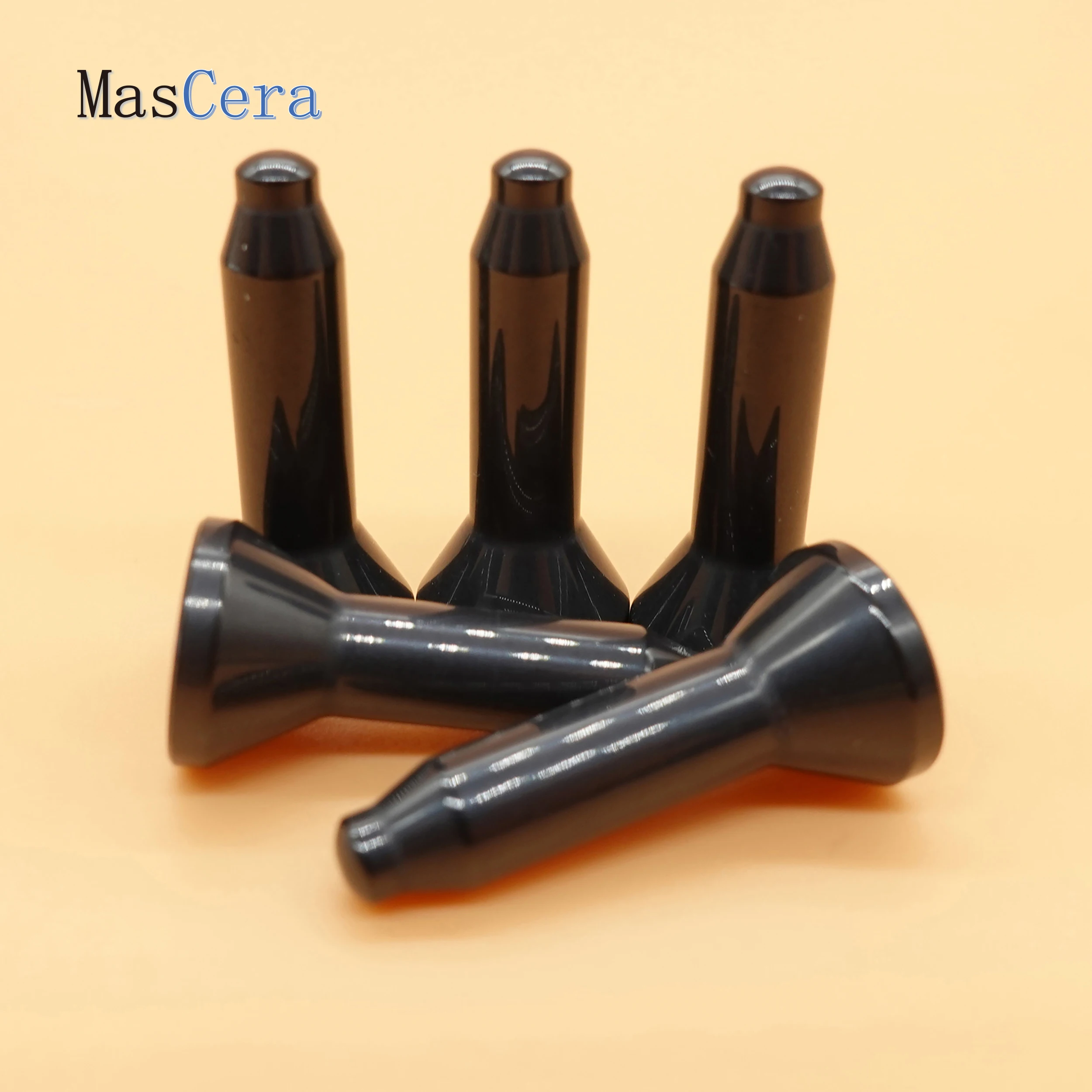

Изоляционный штифт Si3N4 для сварки по индивидуальному

Изоляционный штифт Si3N4 для сварки по индивидуальному

Категория: Ceramics >>>
Поставщик: Xiamen Mascera Technology Co. Ltd.

Цена:1,00 $ - 10,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Manufacturing capability

Tolerance for linear dimensions:	±0.002mm at best	Straightness:	0.02mm at best
Tolerance for angular dimensions:	±0°10' at best	Minimum hole diameter:	0.5mm
Surface roughness:	Ra0.05μm at best	Minimum internal thread:	M2
Concentricity:	0.02mm at best	Maximum external thread:	M20
Cylindricity:	0.02mm at best	Available thread type:	Metric, UNC/UNF, BSW
Flatness:	0.02mm at best	Available surface finish:	as fired, grinding, lapping, polishing, metallization, glazed
Parallelism:	0.02mm at best	Available surface finish:

PRODUCT DESCRIPTION

_02

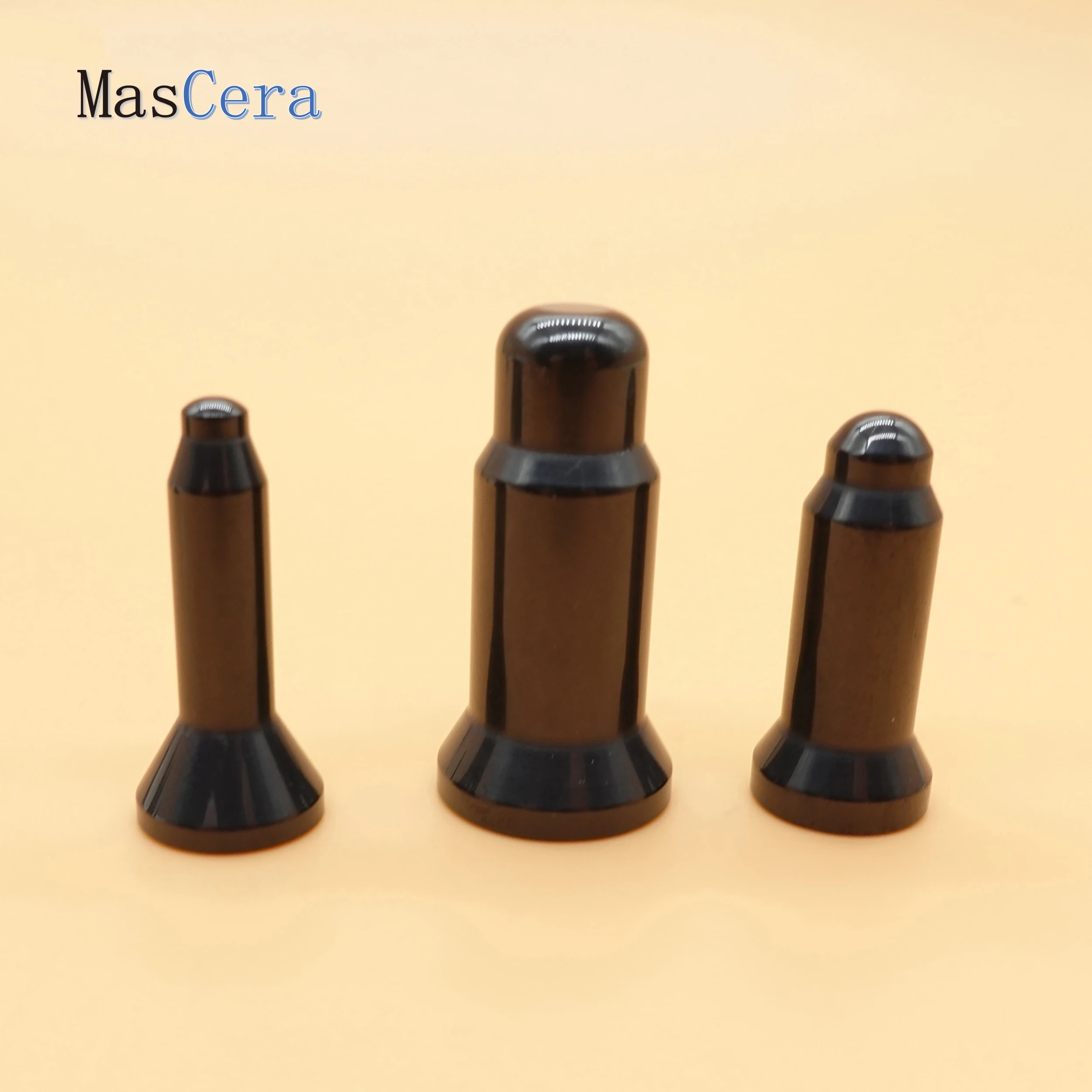

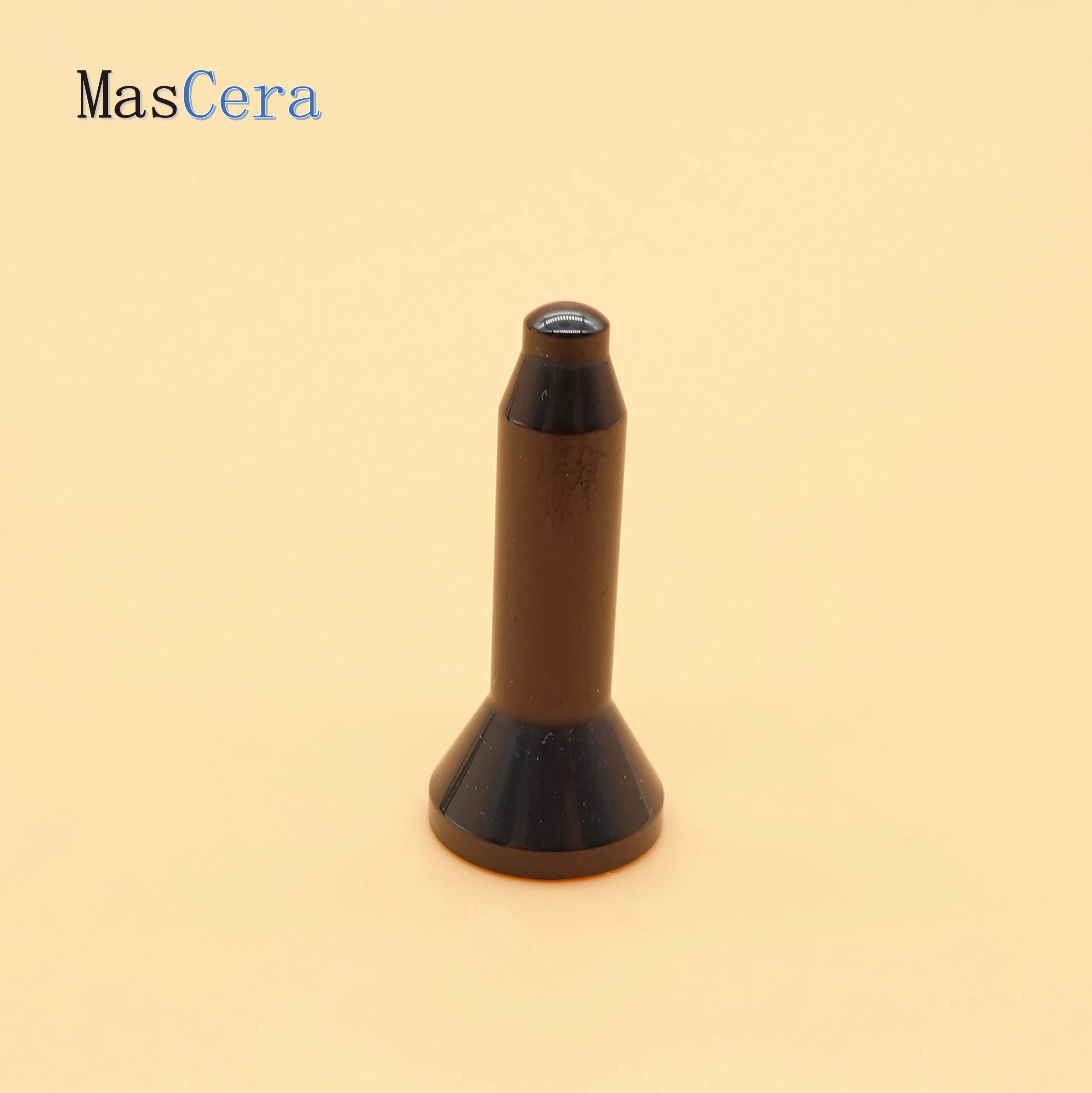

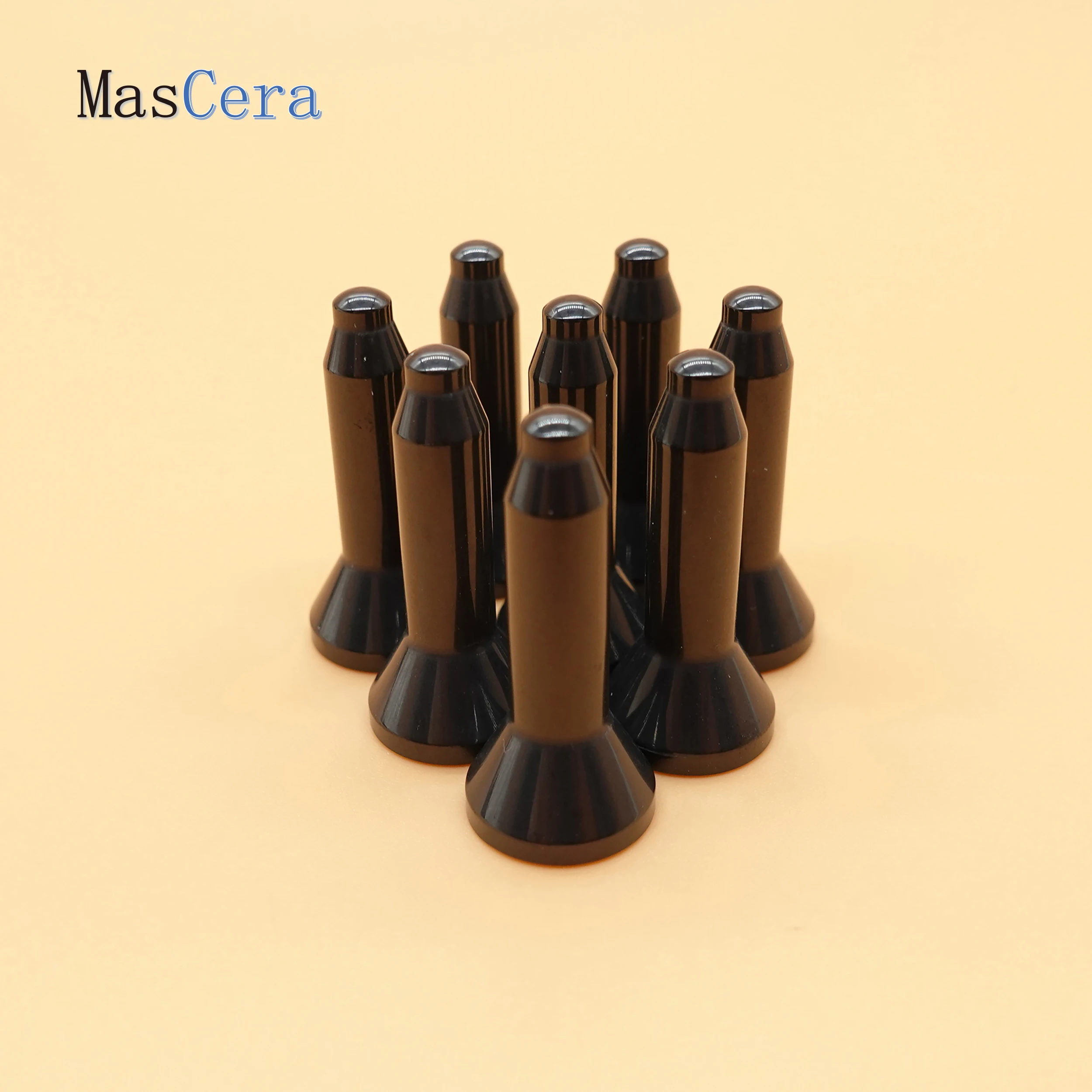

Product Name	Customized Manufacturing Insulation Si3N4 Guide Pin for welding
Material	Silicon Nitride
Shape	Ceramic Pin
Size	Customized according to customers' drawings
Color	Black
Usage	Ceramic location pins for projection welding

Silicon Nitride Ceramic (Si3N4) is one kind of technical ceramic materials which has good performance in room & high temperatrue, its mechanical strength can be kept up to 1200℃. Its hardness and wear resistance performance are at the first rate among all technical ceramic materials. Silicon nitride also has excellent resistance to heat shock and can withstand rapid temperature change. Furthermore, it has good chemical stability and resistance to oxidation. As a result, silicon nitride ceramic has the very good comprehensive properties and are widely applied in different applications.

We are able to produce Si3N4 ceramic parts in custom sizes and shapes, we have good capability to manufacture silicon nitride parts in high size accuracy and fine surface finish as per customers' request, welcome to contact us whenever you have demands.

silicon nitride ceramics.jpg

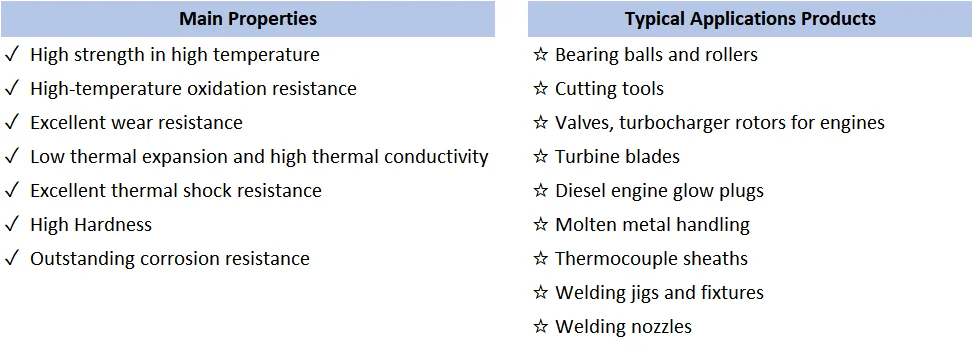

.png

Item	Unit	Technical parameters
Materail	--	Silicon Nitride
Color	--	Black
Density	g/cm³	≥3.20
Vickers Hardness	Mpa	1500
Modulus of Elasticity	Gpa	300
Fracture Toughness	Mpa.M^1/2	6.2
Flexural Strength (@R.T.)	Mpa	>720
Compressive Strength (@R.T.)	Mpa	2200
Thermal Conductivity (@R.T.)	W/Mk	15-20
Coefficient Of Thermal Expansion (20-1000℃)	10^-6/℃	3.0-3.2
Coefficient Of Thermal Expansion (20-1000℃)	10^-6/℃	3.0-3.2
Poisson Ratio	--	0.26
Max. Working Temperature	℃	1200
Volume Resistivity (@R.T.)	Ω.cm	>10¹⁴
Dielectric Constant (1MHz, @R.T.)	--	8.2
Dielectric Strength	kv/mm	16
