Лабораторная ПЭ гранулированная линия/3 5KGH PP гранулирующая машина

specifications

1

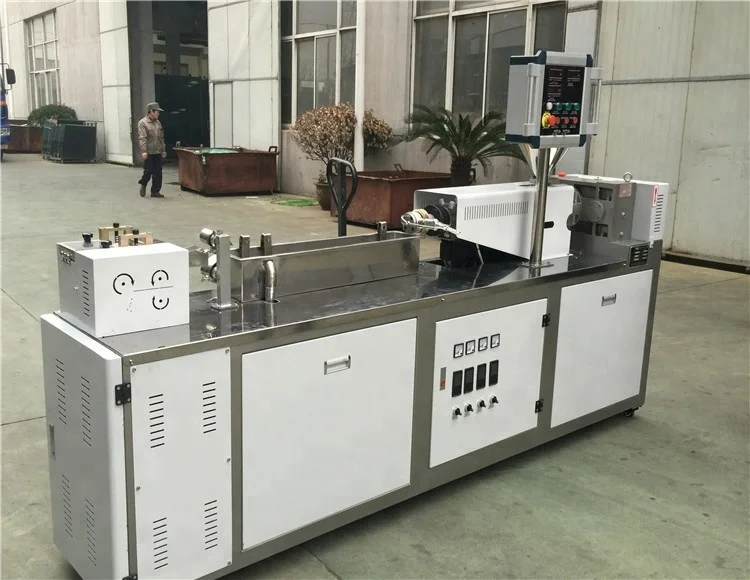

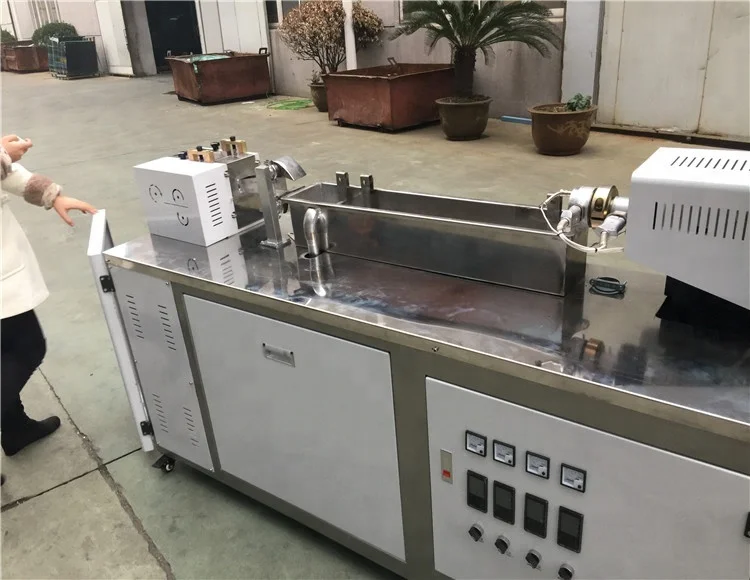

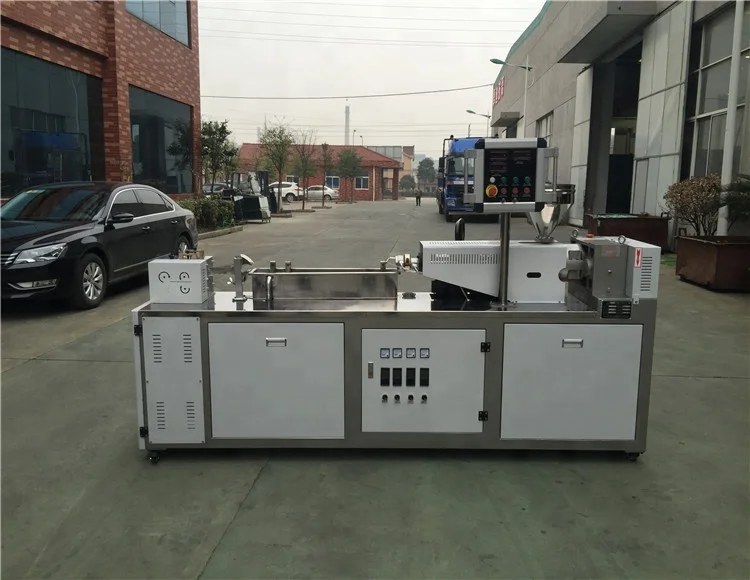

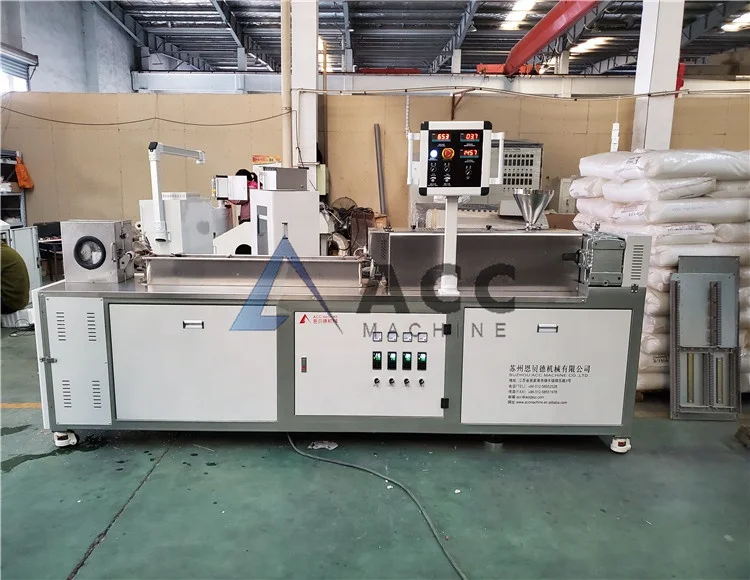

Twin-screw compounding extruder lab

performance from 2 to 10 kg per hour. Should mix different polymers in different forms - powder, granules. Touch screen. Displayed parameters: screw speed, temperature and pressure of the melt, and so.

The kit should include:

1.1

The drive unit and the control unit

Drive and control unit must be mounted in a single cabinet.
Derivation of the drive must be connected twin screw extruder unit.
the display on the computer: the temperature of the zones of maximum pressure, torque, speed, and so.

Specifications are as follows:
Power induction motor 2.2 kW;
Changing the speed of the motor should be performed by an electronic frequency converter 3 to 150 rev / min;
Maximum torque on the shaft at least 50 m (at max. 100 r / min);
The maximum temperature 450 C;
The number of heating zones of the extruder 2;
The number of heating zones of the head 2;
Type temperature controller to be digital;
Measuring the melt pressure 700 bar;
The temperature measurement made of low mass thermocouple type J
The total power 2.5 kW;
Power supply voltage 380 V, 50 Hz;
Accessories: Brushes / Tools;
The weight 100 kg;
The dimensions should be as follows: a width 520 mm; height is 520 mm; length of 520 mm.

1.2

Twin-screw laboratory extruder unit

Specifications are as follows:
The number of screws 2;
Screw diameter 18 mm;
The distance between the centers of the axes of the screws 16 mm;
The length of the screw: 18 D;
There must be a one-way rotation of the screw;
The maximum temperature 450 C.
The number of heating zones of the extruder 2;
The number of heating zones of the head 1;
Must be an annular ceramic heater heating system;
screw and barrel: Hardened steel;
It must be cooled feed zone;
There is a degassing zone;
Hopper 1.2 liters;
The hopper material is stainless steel.
