IBR Tr4 Tr5 машина для формовки листового листа крыши aluzinc машина для производства листового металла крыши для рынка Перу
1 301 230,80 ₽ - 1 626 538,50 ₽

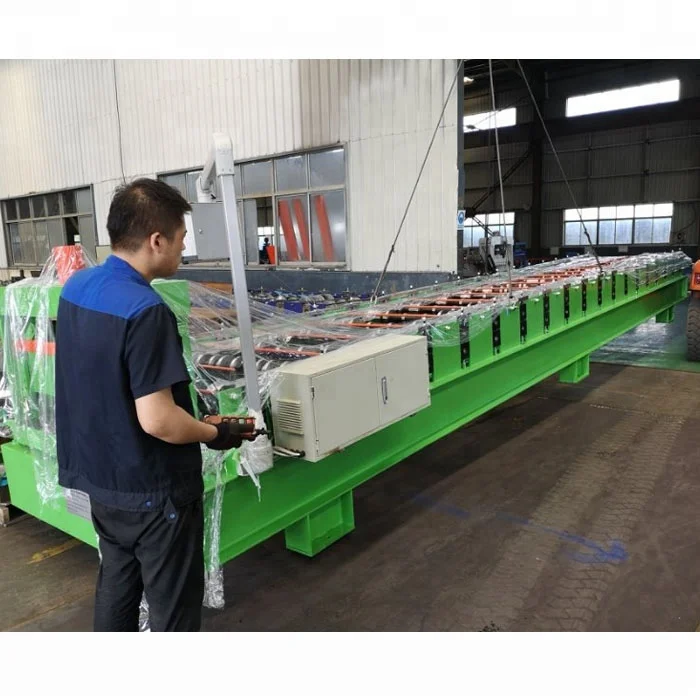

Строительный материал 0 3 0 8 мм PPGI трапециевидный металлический цинковый кровельный станок для кровли из листового
- Категория: Машины для производства плитки >>>
- Поставщик: Sussman Machinery (wuxi) Co. Ltd.
Сохранить в закладки 60788106989:
Описание и отзывы
Характеристики
Product Description
Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, PV-4, PV-6, 5V, corrugated panel, roof tile panel, step glazed tile, metal deck panel, standing seam panel, ridge cap, rain gutter, double layer/ two layer, K span panel and ridge cap machine. Its products are widely used in roof and wall system in workshop construction and housing construction.
Roof Zinc Machine can produce material thickness range 0.3-0.8mm or 0.12-0.4mm, material PPGI, galvalume steel and galvanized steel, also we can customized the machine according to your drawing.
This machine design is unit one, which means the control box and motor are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.
Different countries has different its own commonly used profiles and name. Here are some popular drawing profiles selected by our customers:
America Area:
1.ACANALADORA PARA LAMINA TR-90
2. ACANALADORA DE LAMINA R-72
3. CONFORMADORA PARA PLANCHA PV4/ PV6
4. CONFORMADORA PARA CHAPA R-101
5. CONFORMADORA PARA CALAMINA TR4
6. Acanaladora para lamina TR101
7. Perfil de telha Trapezio 25/1020
8.Acanalada de Onda
9. Acanalada 5-V
UK: Box profile roll forming machine
Africa: IBR 686 roll forming machine
828mm Tile roll forming machine
Roof Zinc Machine can produce material thickness range 0.3-0.8mm or 0.12-0.4mm, material PPGI, galvalume steel and galvanized steel, also we can customized the machine according to your drawing.
This machine design is unit one, which means the control box and motor are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.
Different countries has different its own commonly used profiles and name. Here are some popular drawing profiles selected by our customers:
America Area:
1.ACANALADORA PARA LAMINA TR-90
2. ACANALADORA DE LAMINA R-72
3. CONFORMADORA PARA PLANCHA PV4/ PV6
4. CONFORMADORA PARA CHAPA R-101
5. CONFORMADORA PARA CALAMINA TR4
6. Acanaladora para lamina TR101
7. Perfil de telha Trapezio 25/1020
8.Acanalada de Onda
9. Acanalada 5-V
UK: Box profile roll forming machine
Africa: IBR 686 roll forming machine
828mm Tile roll forming machine
Name | Items | Specifications |
Material of coil | Material Thickness | 0.3—0.8mm PPGI, Aluzinc, galvanized steel |
Un Coiler | 5 tons manual | |
Forming system | Rolling Speed | About 8-12m/min |
Roller Stations | About 20 stations | |
Roller material | 45# steel, coated with chrome | |
Maim Motor Power | 7.5kw | |
Hydraulic cutting Power | 4kw | |
Cutting system | Material Of Cutting | CR12Mov with quench treatment |
Hardness | HRC58-62 | |
Tolerance | +-1.5mm | |
Electrical control system | Electric Source | 380V, 50HZ,3 phase Also can satisfy customer’s require |
Control System | PLC with touch screen | |
Way Of Drive | 1.2 inch single chain | |
Color of the machine | Customized | |
Machine size | About 9500*1500*1200mm |

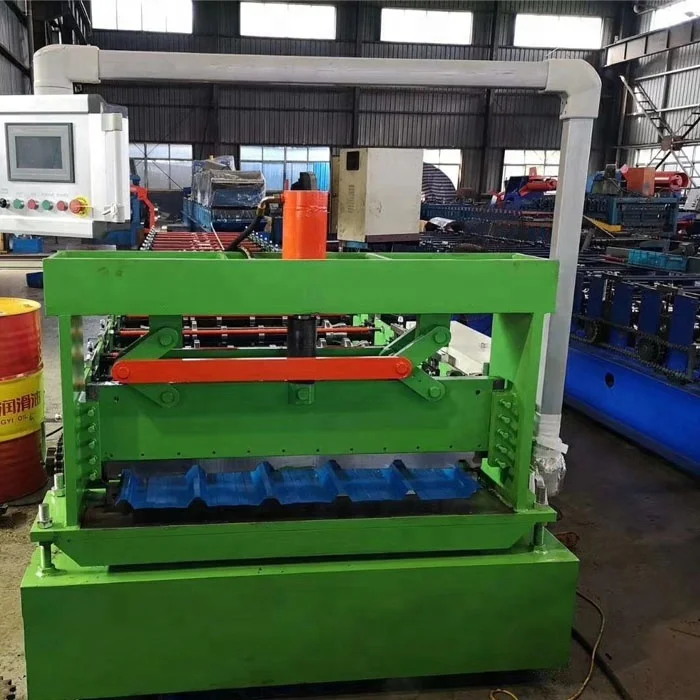

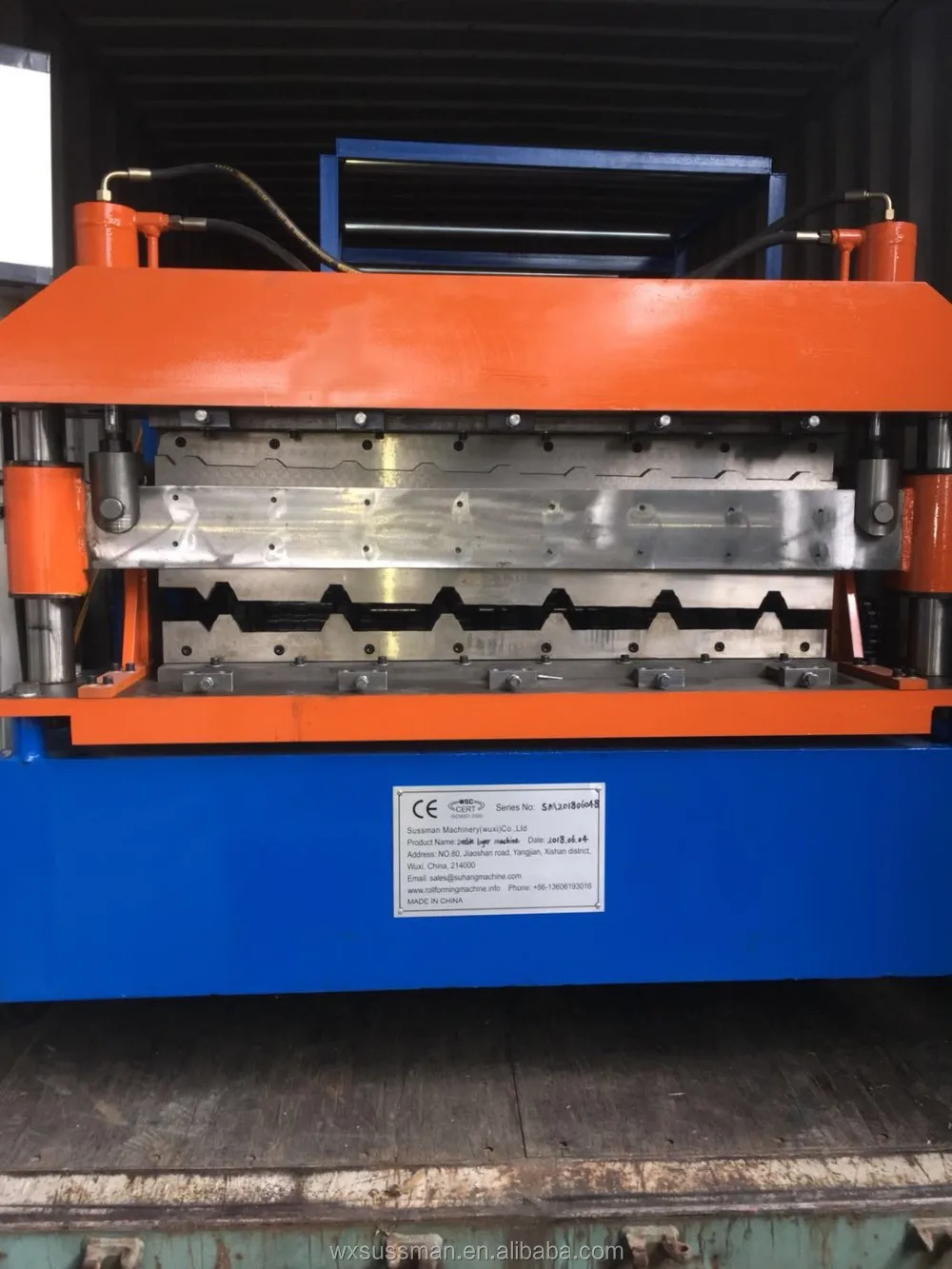

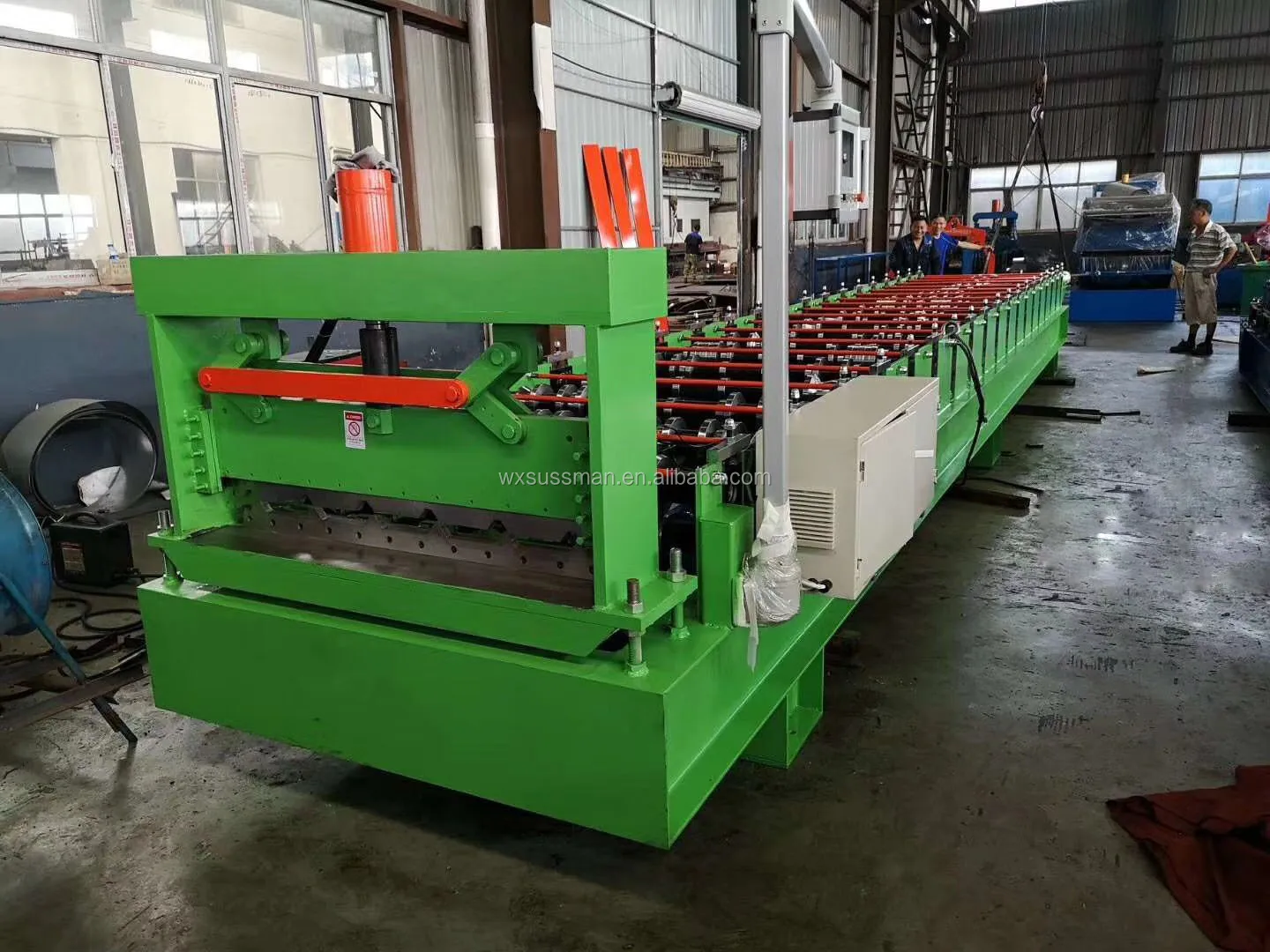

Detailed Images
Un-coiler: 5 tons passive
De-coiling Holder: about 1500mm×1500mm×1700mm
Insider diameter of the un-coiler: 460-520mm
Cutting way: Hydraulic cut.
Oil pump statio:1set.
Hydraulic power: 4kw hydraulic system.
Blade Material: CR12Mov with heat treatment HRC58-62.
Tolerance:\t+-1.5mm
Power supplier: 380V, 50 Hz, Three Phase (adjusted with the requestment)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.

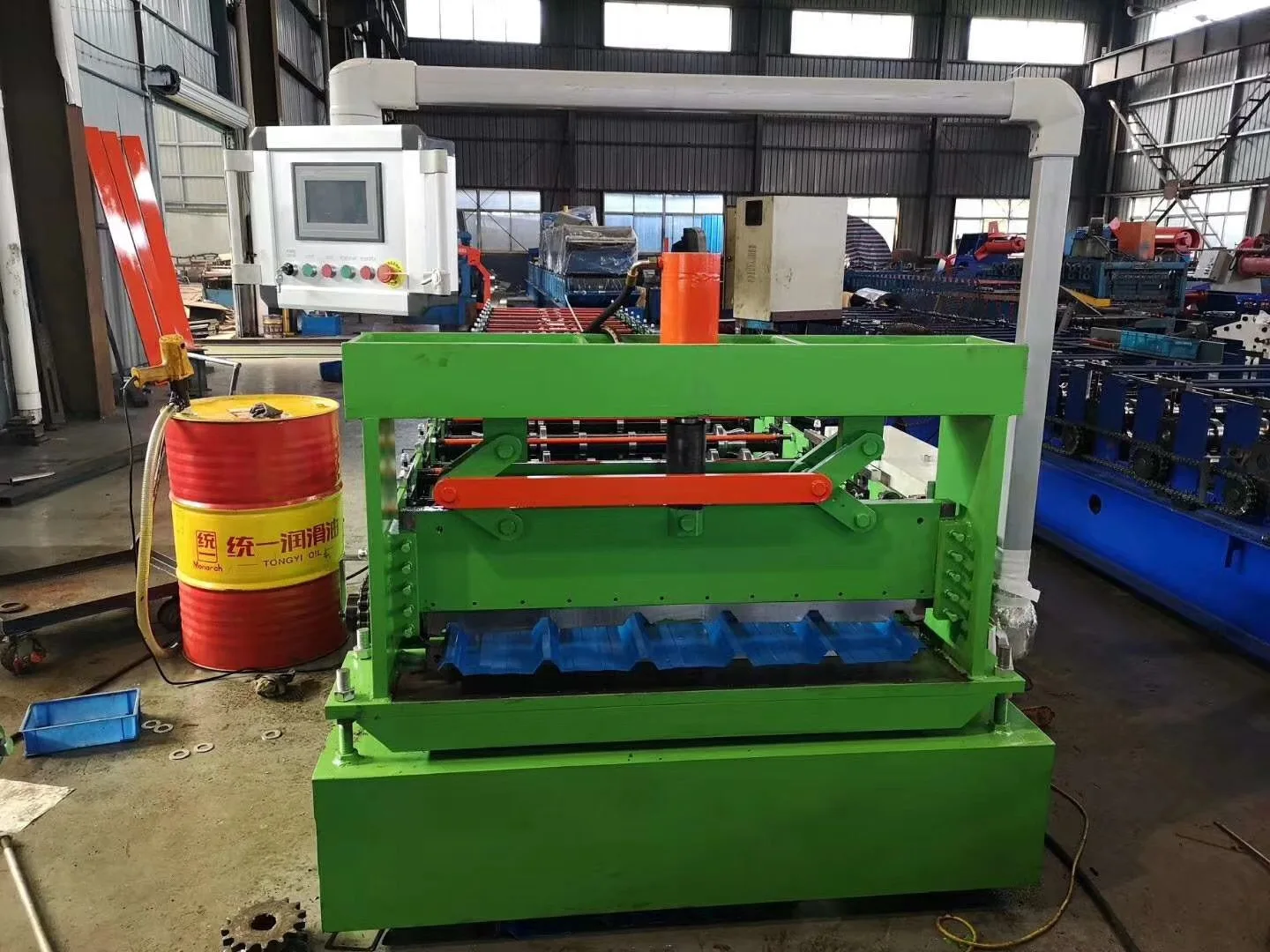

Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)
Size:4000*1350*1000mm

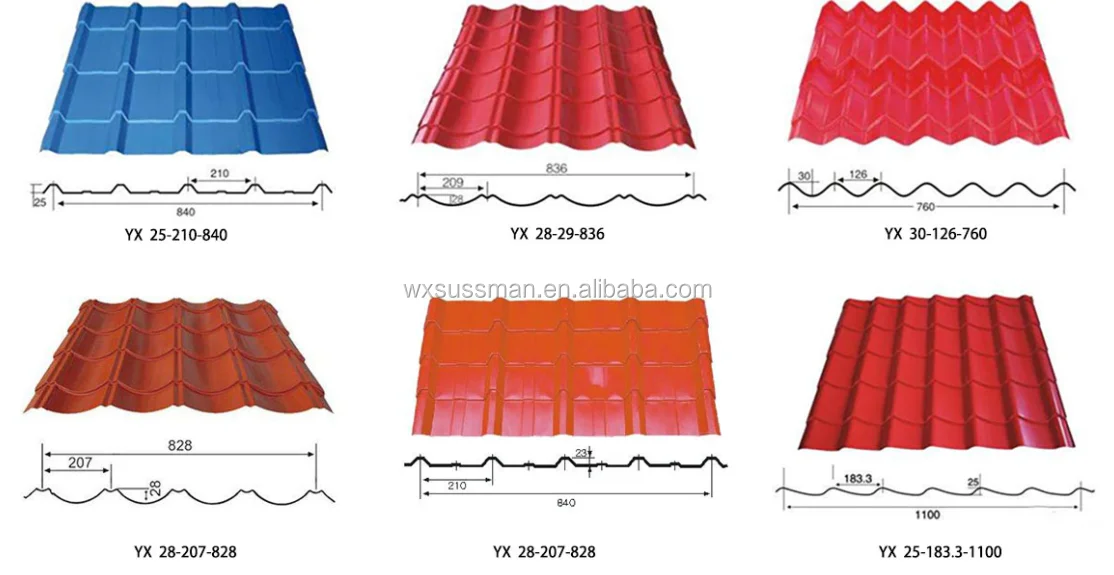

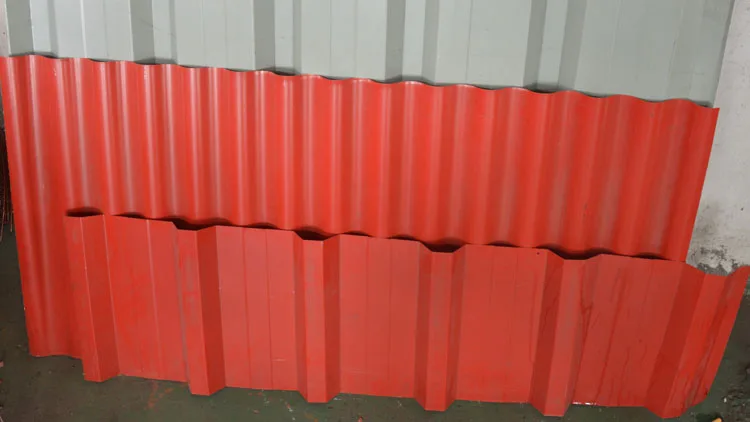

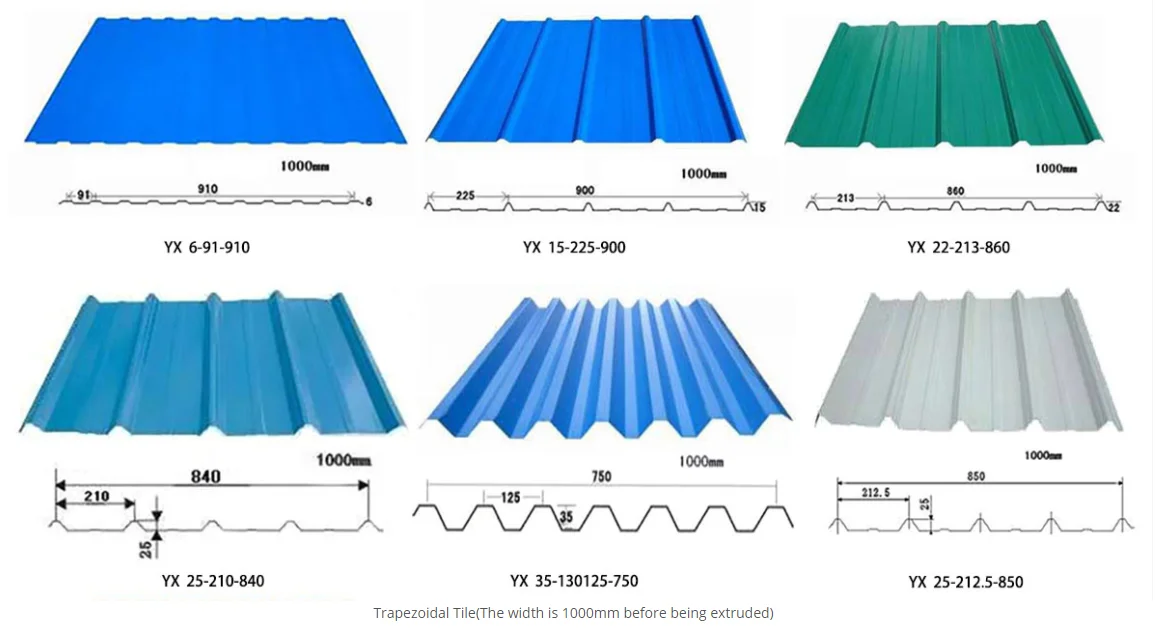

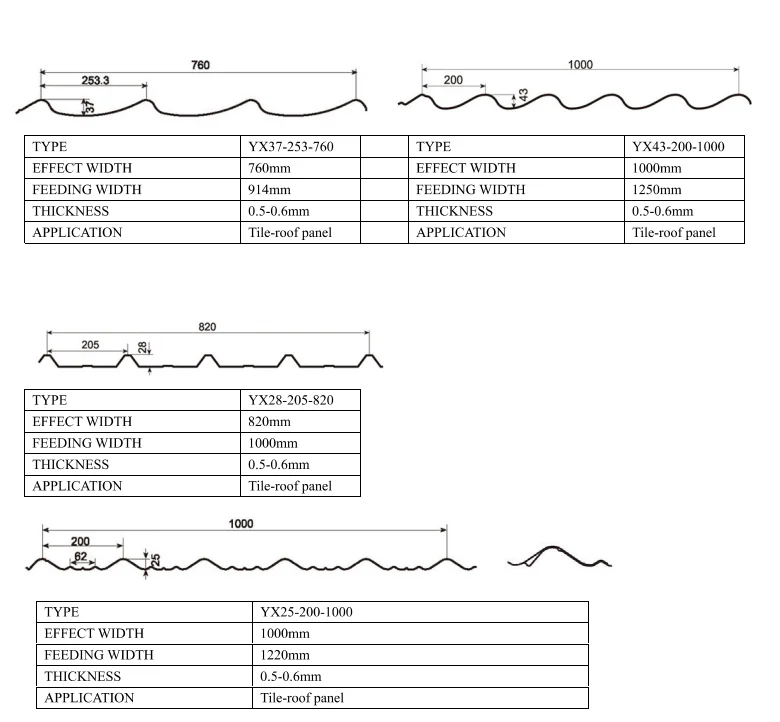

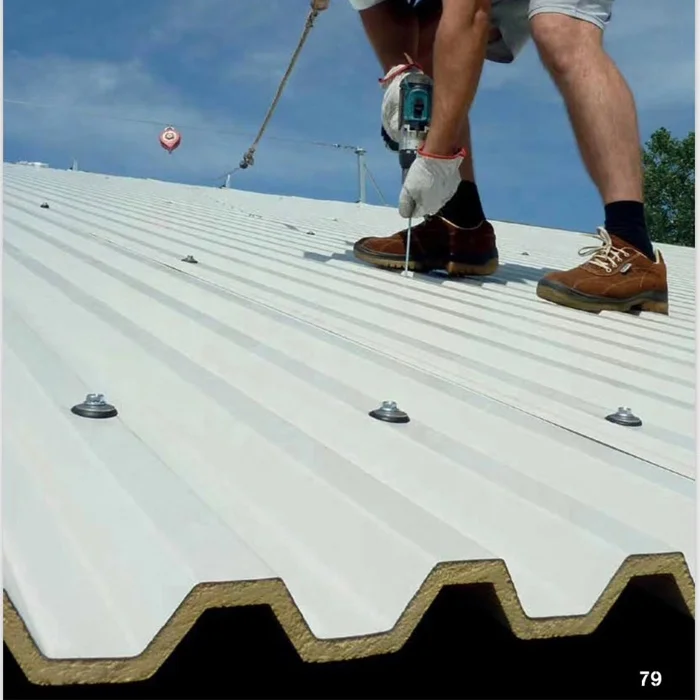

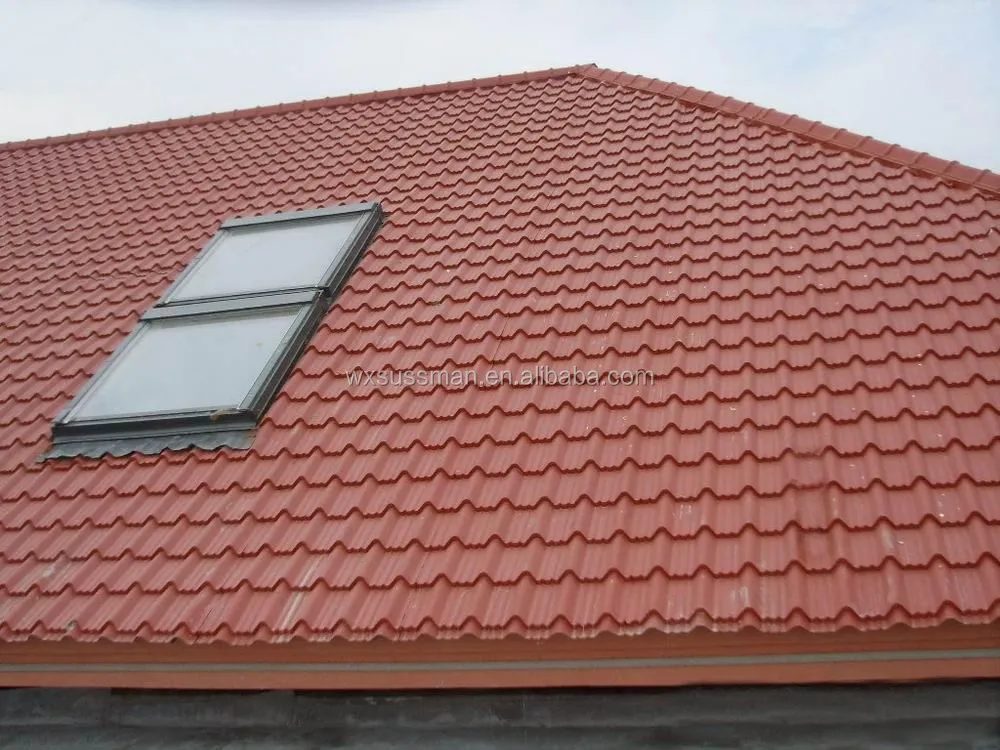

Profile we make
Maintance and the service of the machine
Daily maintenance with meticulous care plays an important part in extension the equipments’ operation time and the quality of rolling plank. Therefore, please do the following things in your daily
1.The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
2. Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
3. Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub
machine and lube in the roller surface and you need clean it when you use next time.
4. If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid
rain and damp, especially electrical controlling box
5. Cutting device should add lube to the places where need lube to the request
6. Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity
shortage
7. Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after drying.
1.The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
2. Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
3. Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub
machine and lube in the roller surface and you need clean it when you use next time.
4. If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid
rain and damp, especially electrical controlling box
5. Cutting device should add lube to the places where need lube to the request
6. Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity
shortage
7. Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after drying.

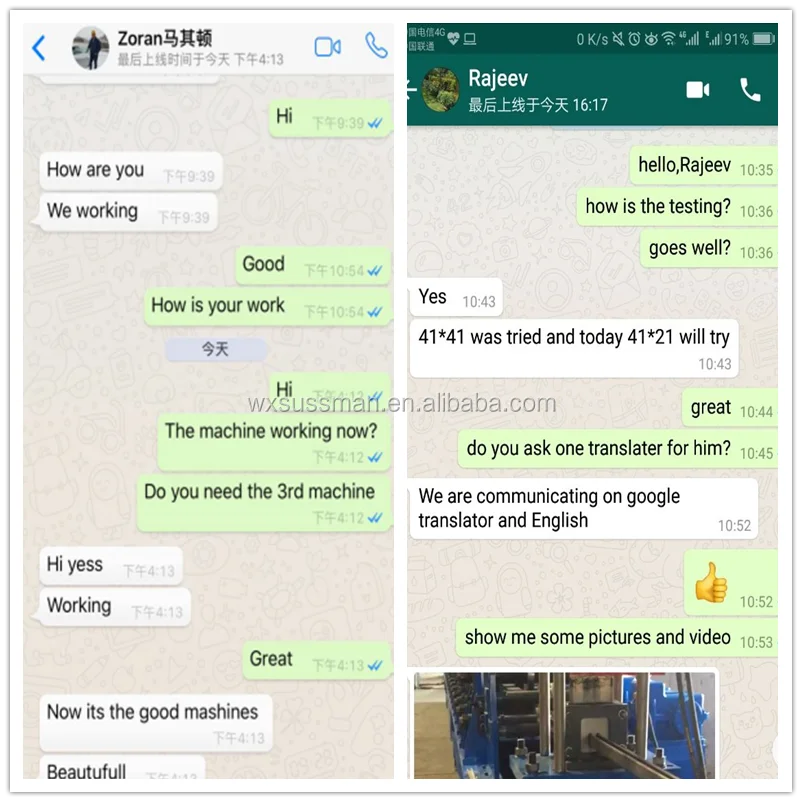

Customer's feedback

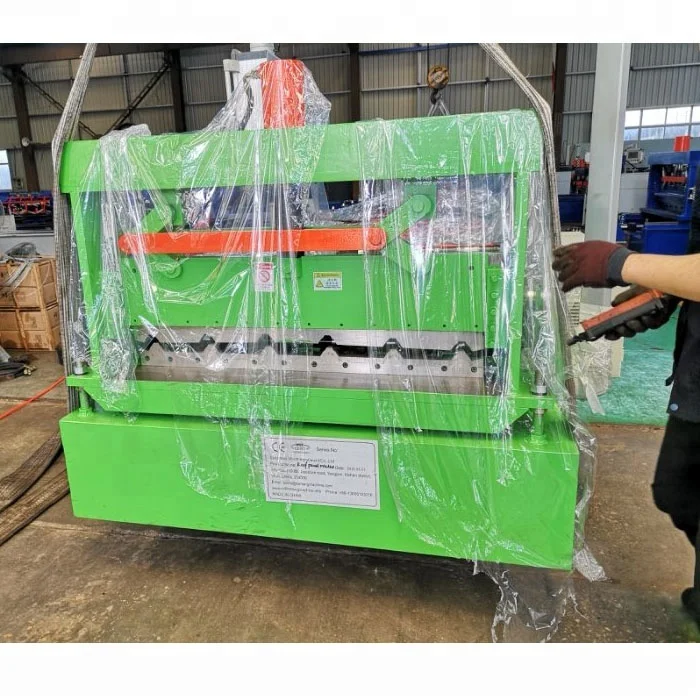

Packing & Delivery
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container
Our Company
Sussman Machinery(Wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it's always design and produce various type profile of roll forming machine.
The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand.
Company building area is over 5000 square meters, it has a highly efficient design, manufacturing, sales of high-quality team. The machine is covering in 30 provinces of China and world.
The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better.
The company sincerely cooperated with the steel, car, the city of road&bridge construction industry field. The roll forming machine can be designed according to customer's profiles.
Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.
The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand.
Company building area is over 5000 square meters, it has a highly efficient design, manufacturing, sales of high-quality team. The machine is covering in 30 provinces of China and world.
The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better.
The company sincerely cooperated with the steel, car, the city of road&bridge construction industry field. The roll forming machine can be designed according to customer's profiles.
Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.
Our customers
Sussman Machinery has exported its equipment and machines to more than 80 countries over the world, such as Russia, India, Australia, Malaysia, Nigeria, Romania, Rwanda,UNITED ARAB EMIRATES,Tanzania,Kenya,Philippines, Indonesia,South Africa,Mauritius,Mexico,etc. It has received excellent reputation. In the future, we are committed to better equipment and sales service and meeting customers' requirements when and where they need.
