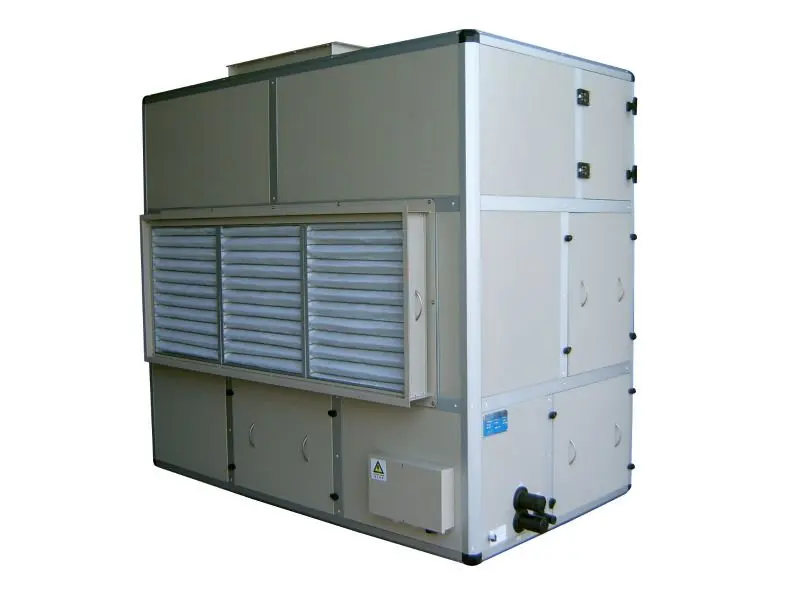

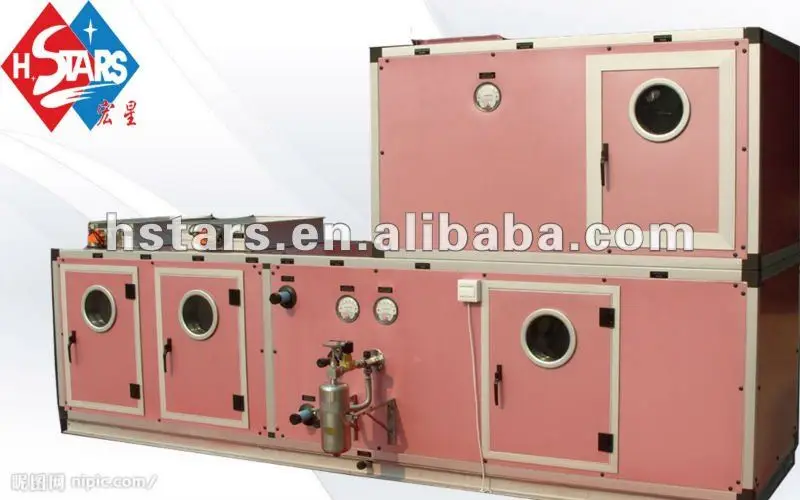

Farm mushroom air handling unit,Anti-corrosion type vertical air handling unit, dx type air handling unit ahu

Configuration illustrate

1) High strength alloyed Aluminum framework construction

2) Good looking and clean surface, light weight, excellent heat preservation  and low noise, high strength.

3) Cold Bridge Free Design.

4) Double 25mm and 50mm Skin Panel, outer plate is made of high quality steel sheet, while inner plate is made of zinc coated steel sheet. In the middle is high pressure foamed hard polyurethane as insulation.

1)  Filter sections of Aluminum pre-filter filter, medium filter, bag type filter HEAP filter are available upon application requirement;

1) Fans and motors are from leading manufacturer.

2) Forward, Backward inclined and Aero Foil Fans are available for specific fan application; Fan assembly framework with adjustable motor base for proper fan belt tension adjustment; Spring isolator for .

3) Fan Assembly Frame is special non defective type for protection of vigorous transportation.

4) VFD (OPTIONAL)

1) Three types heating (hot water , steam and electric)

1) High efficiency Aluminum fin copper chilled, Direct Expansion Coil, with drain pan, Hot water and electric step heating; Steam and Electrode type Humidifier are variable;

2) Using advance software selection to have coil performance.

1) Three types humidifying (electric , dry steam and spraying water)

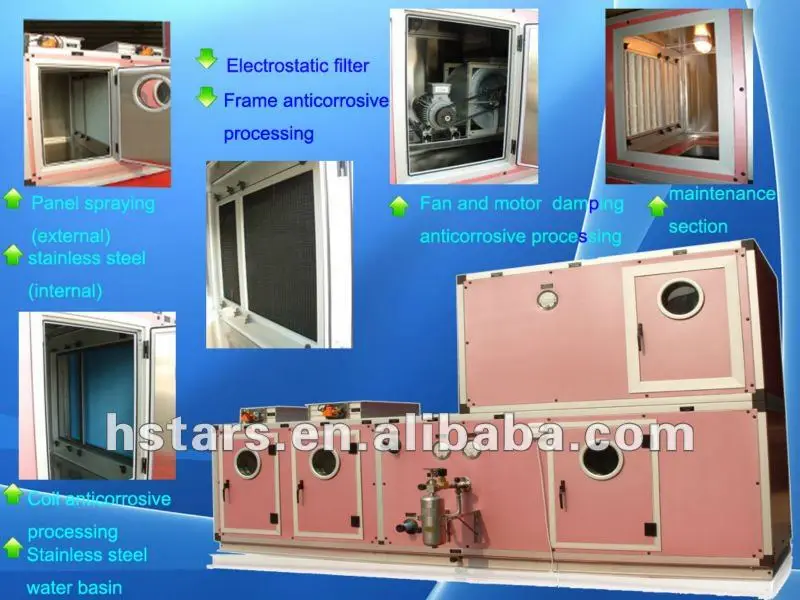

Features: Farm mushroom air handling unit,Anti-corrosion type vertical air handling unit, dx type air handling unit ahu

1. Air handling capacity scope: 3000 m3/h ---12000m3/h

    Cooling capacity scope: 15980Kcal/h---66102Kcal/h

2. Energy saving Heat Wheel Recovery section are available;

3. Low leakage air dampers for fresh air, return air and exhaust air adjustment;

4. BA control factory installed as option for saving installation time and labor cost;

5. HStars' Air Handling Unit strength is found in most industrial application upon special design and long time experience.

Configuration Type

 Controller

 Farm mushroom air handling unit,Anti-corrosion type vertical air handling unit, dx type air handling unit ahu
