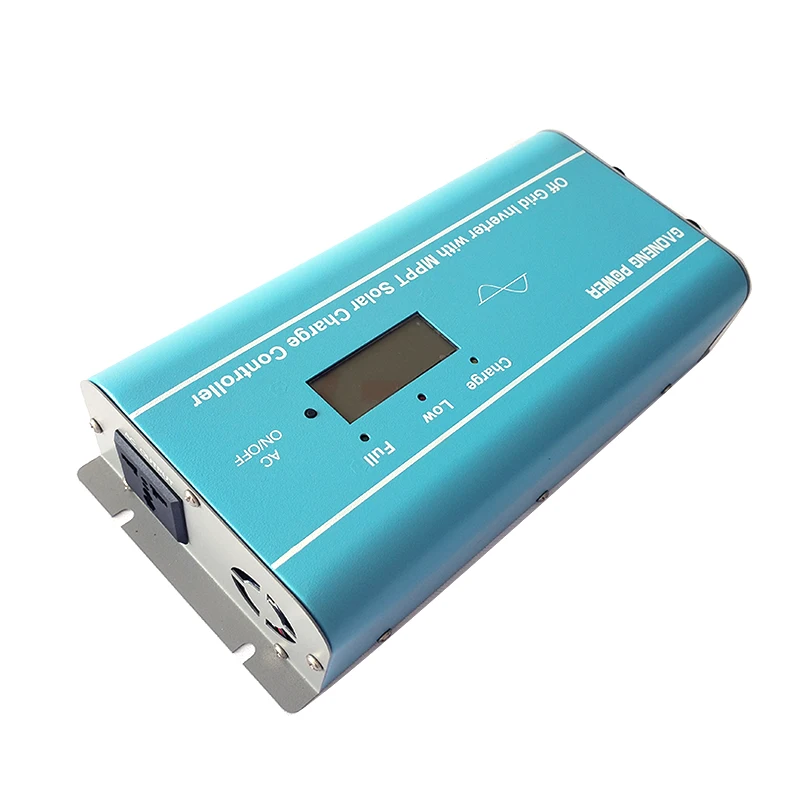

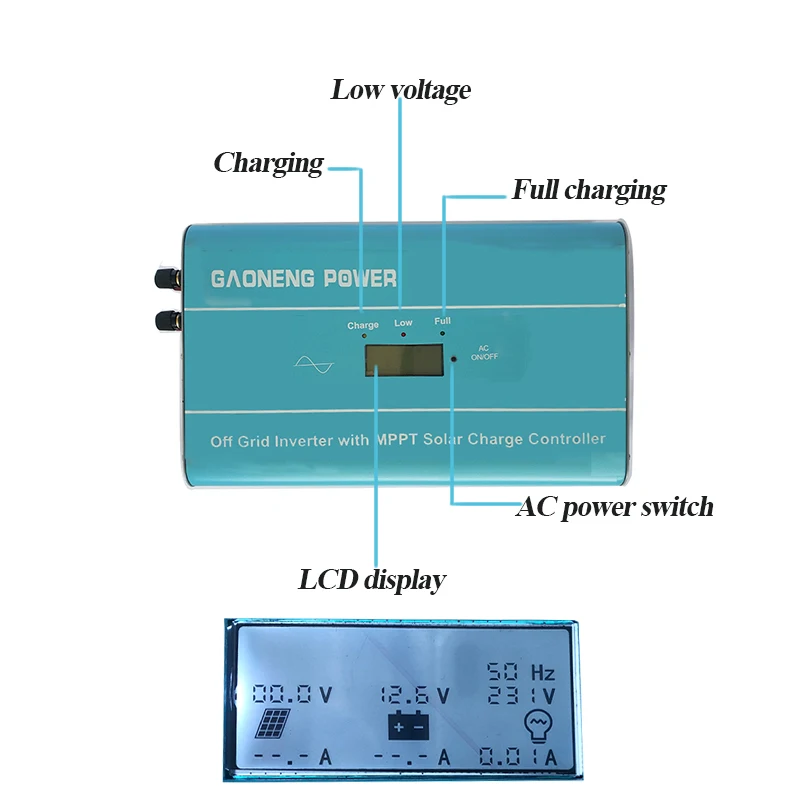

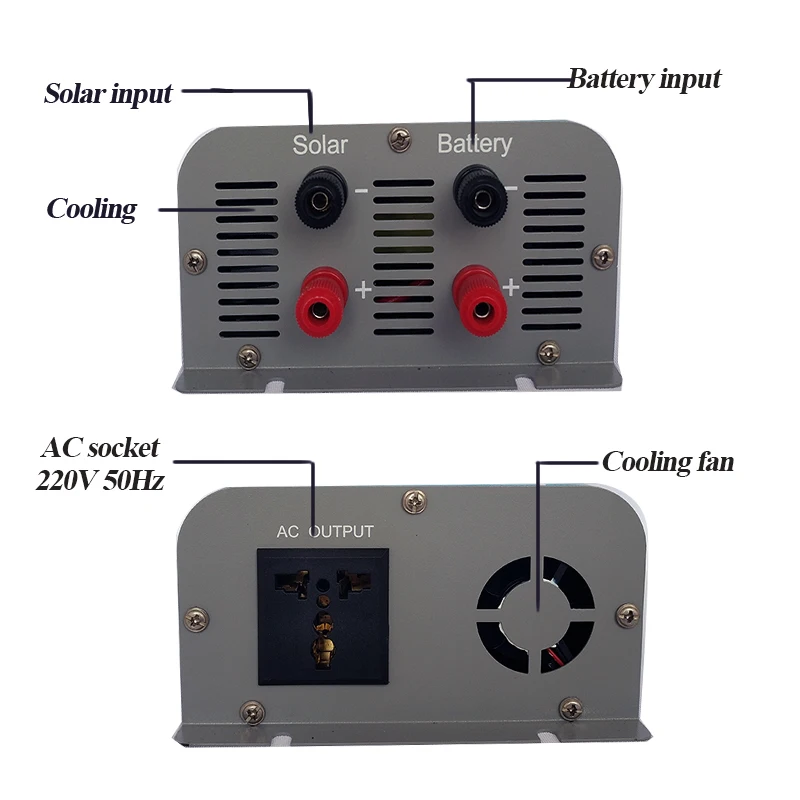

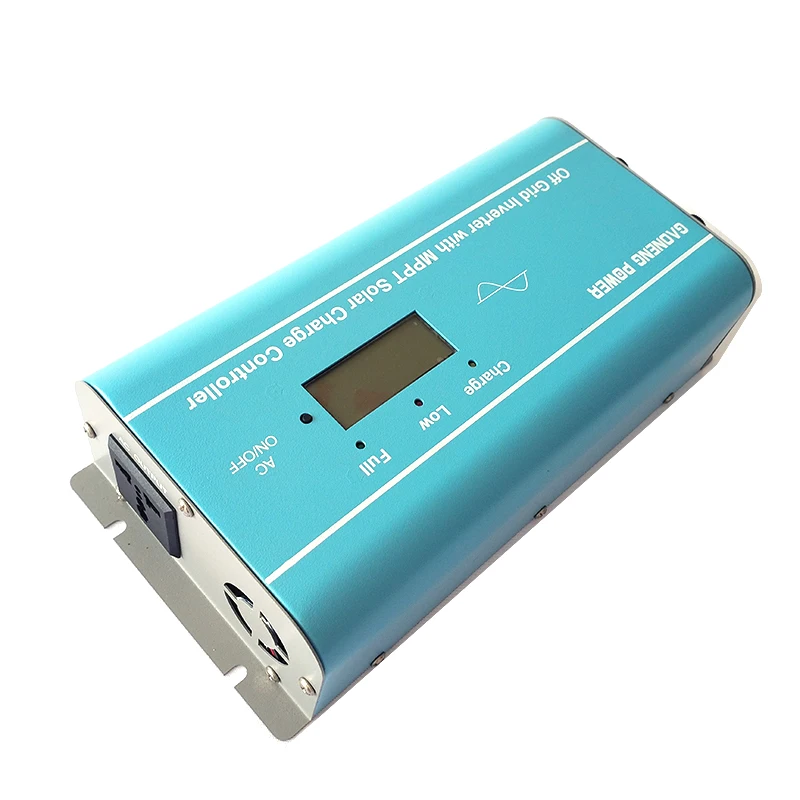

Product description

![]() | ![]() |

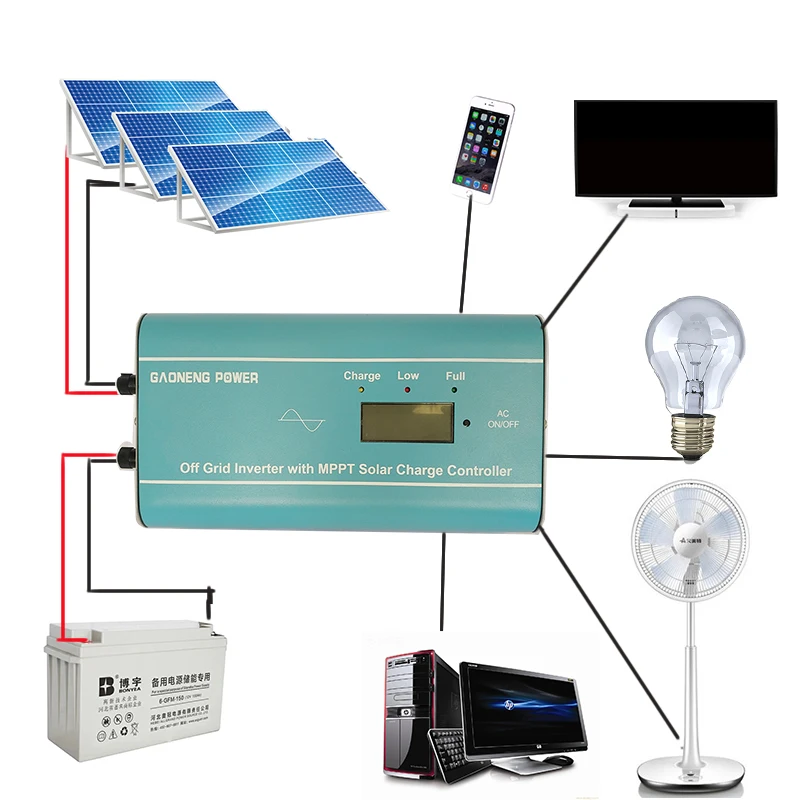

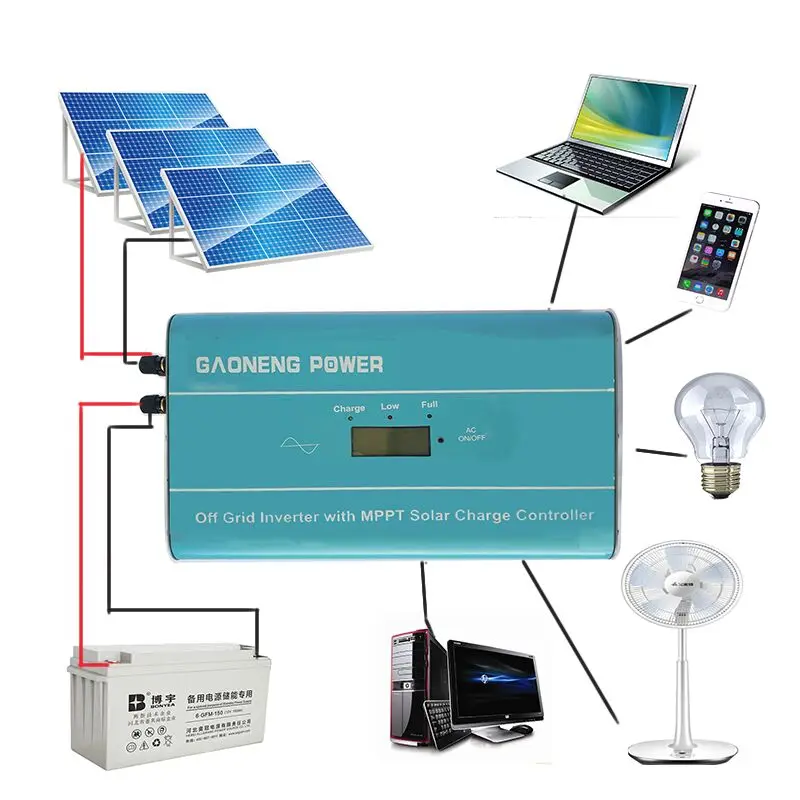

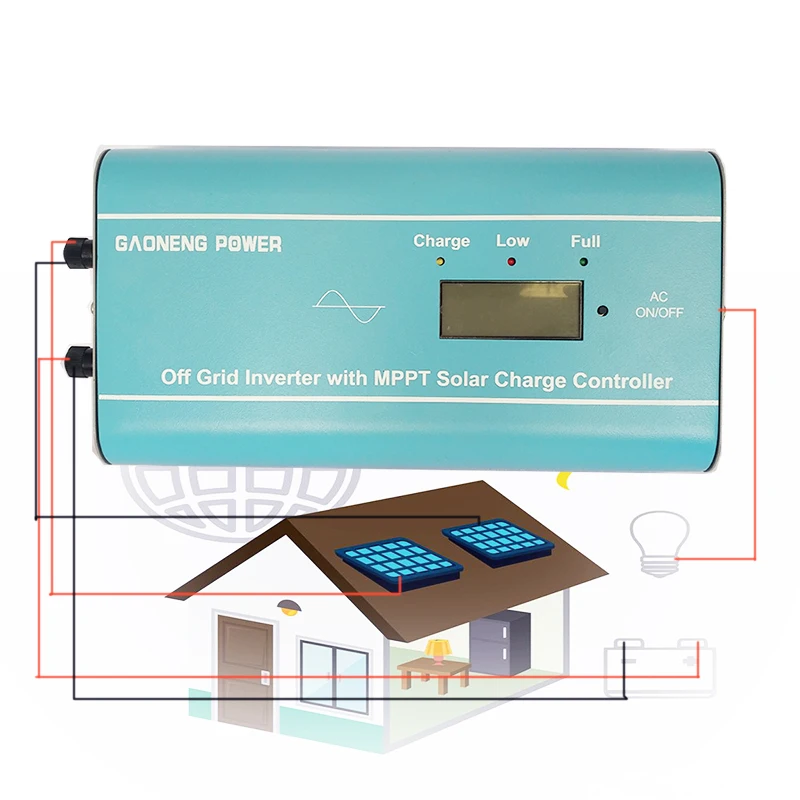

System Solutions

Technical parameters
Model | GNMB-12V-500W-S30A | GNMB-12V-600W-S40A |
PV input | ||
Rated voltage | 12V | 12V |
PV power | 500W(MAX) | 600W(MAX) |
Solar panel open voltage | <50V | <50V |
Suggest PV voltage | 18V | 18V |
charge starting panel voltage | >15V | >15V |
starting impact power | 1000VA | 1200VA |
Charge control | ||
charging model | MPPT | MPPT |
charging efficiency | >99% | >99% |
battery discharging protect voltage | 10.8V | 10.8V |
low voltage protection recovery voltage | 12.6V | 12.6V |
battery over voltage protection | 16.0V | 16.0V |
overvoltage protection recovery | 15.0V | 15.0V |
charging protection voltage | 14.4V | 14.4V |
Back to charging voltage | 13.2V | 13.2V |
Output | ||
load power(MAX) | 500W | 600W |
Over load power | 125% | 125% |
Output wave form | Sine wave | Sine wave |
Product efficiency | >85% | >85% |
AC output | 220V/230V/240V±3%(selecting match) | 220V/230V/240V±3%(selecting match) |
AC output frequency | 50Hz/60HZ | 50Hz/60HZ |
DC outputs | 12V 10A | 12V 10A |
USB output | 5V 3A | 5V 3A |
Optional function | ||
AC input range | AC120V-AC280V | AC120V-AC280V |
Switch to POWER GRID | <11.5V | <11.5V |
Switch to inverter | >14.0V | >14.0V |
General parameters | ||
Working temperature | Industrial grade -25℃to +55℃ | Industrial grade -25℃to +55℃ |
Working altitude | <3500M | <3500M |
Weight | 4.7kg | 5kg |
Size(L*W*H) | 376*213*85MM | 376*213*85MM |
Related Products

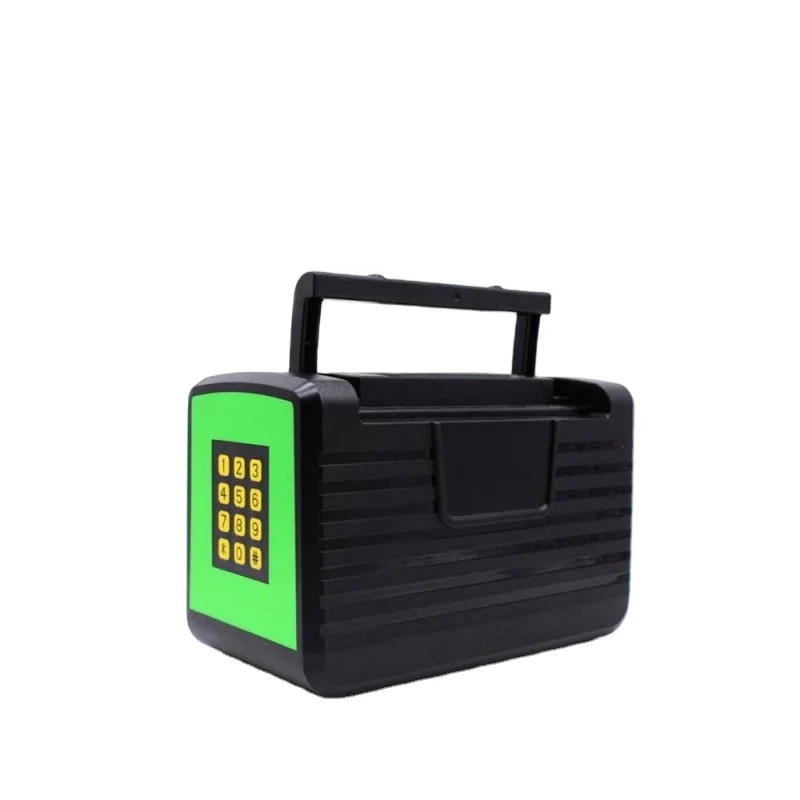

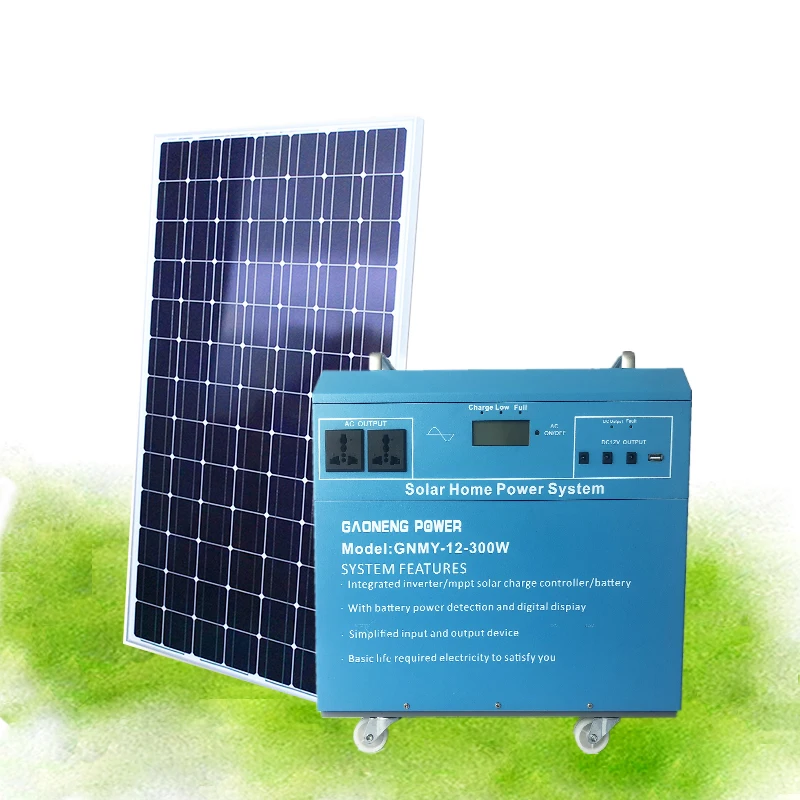

![]() | Portable solar system 300W with Battery
|
500W 1kW inverter with charger
| ![]() |

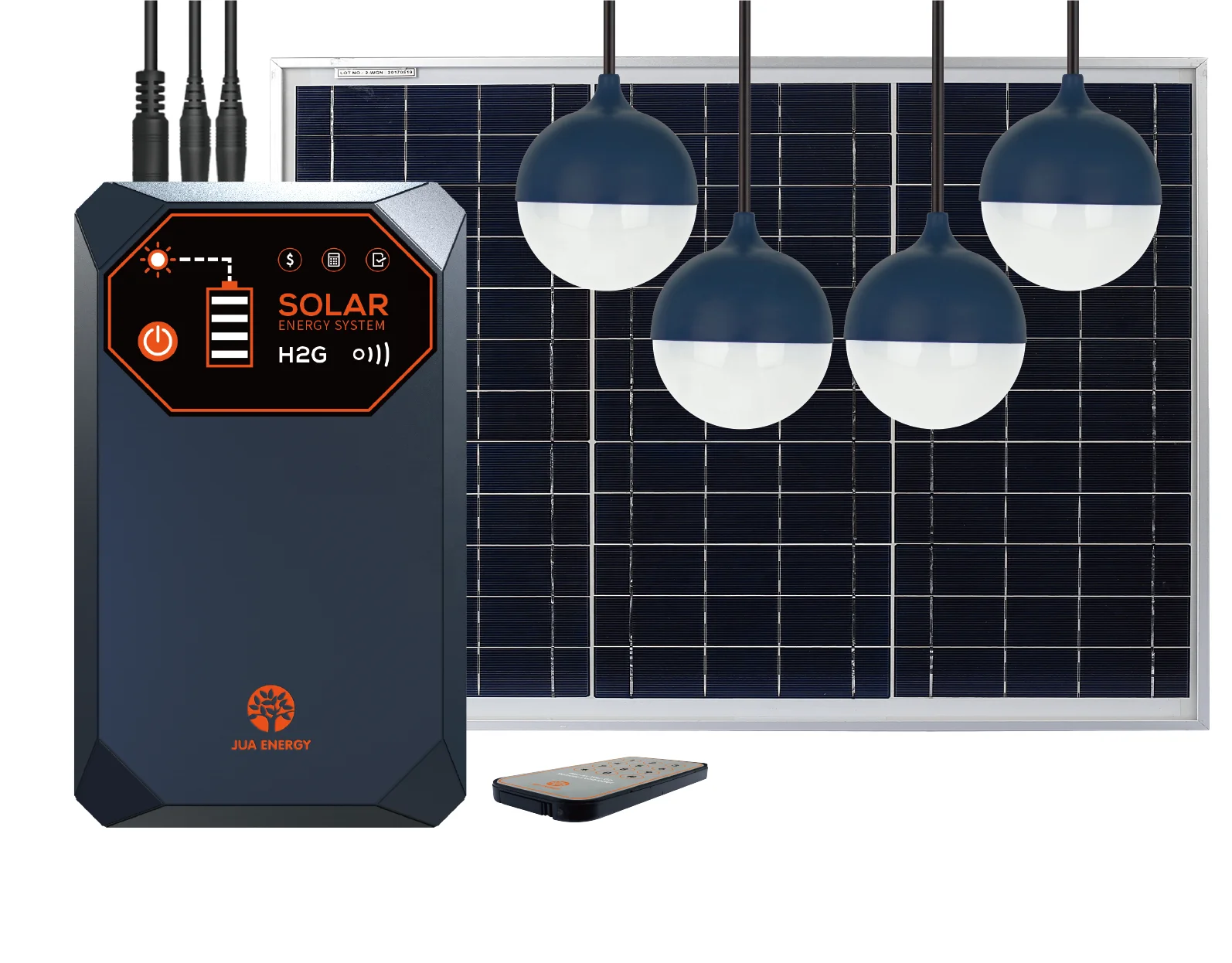

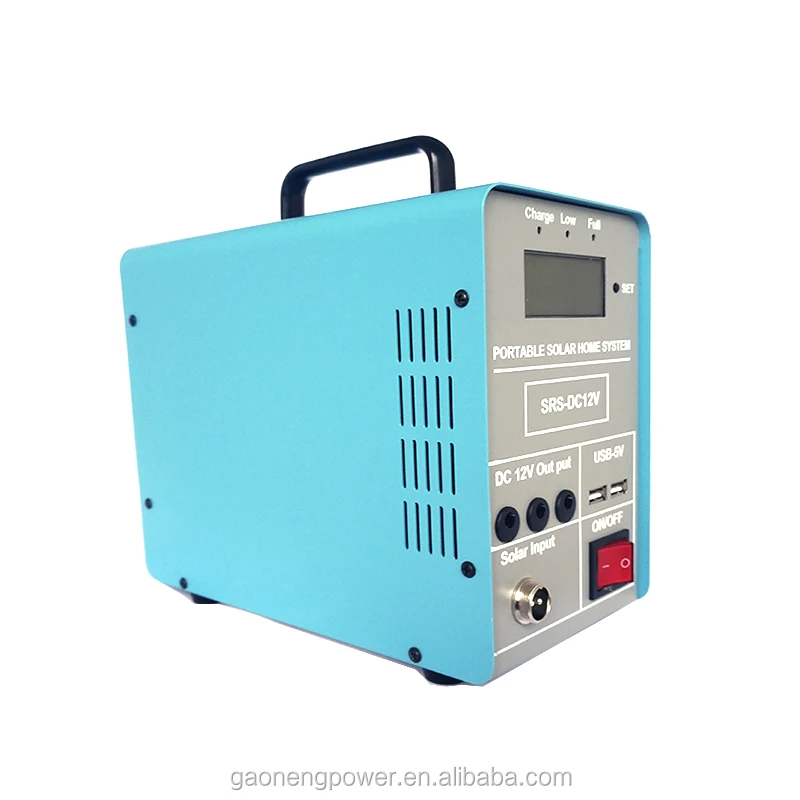

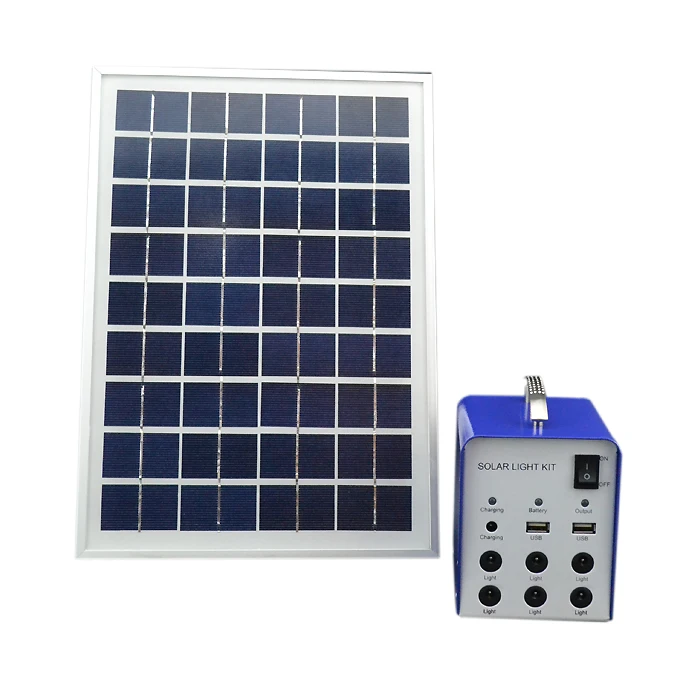

![]() | Portable solar system 50W with Battery
|
Company Profile
Packing & Shipping
FAQ
1.Are you factory? Can you OEM for my brand or project?
Yes, we are factory of solar controller and inverter. Independent engineer team always welcome your OEM request. You will just offer your system design or ideas, we will come solutions for you.
2.How many time you will need for custom made products?
For logo custom made: 15-20days;
For product custom made: 30-45 days;
3. How do I make payments?
We support West union, T/T, aliaba trade assurance, fully protect your quality services.
4. How can I install my inverter for solar system?
You can install according to our guide book, or contact our technical support team with video or telephone guides.
5. Why you are always expensive than other suppliers?
Firstly, for solar panel and battery, we choose our supplier strictly, so our price is not so cheap;
Secondly, we are always do honest business with quality products and decent price;
Thirdly, we can review more options for you with different prices for reference.
