Распродажа, электрический цифровой расходомер
28 053,43 ₽ - 37 764,23 ₽

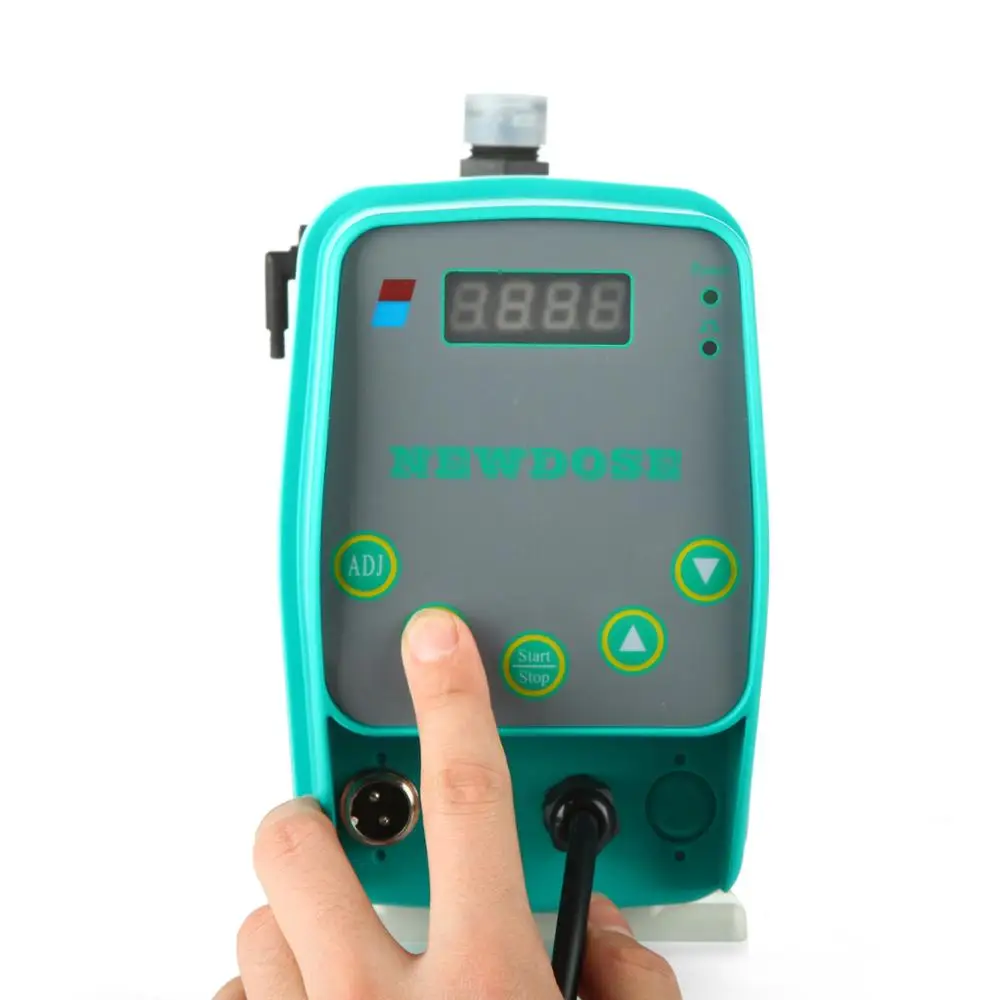

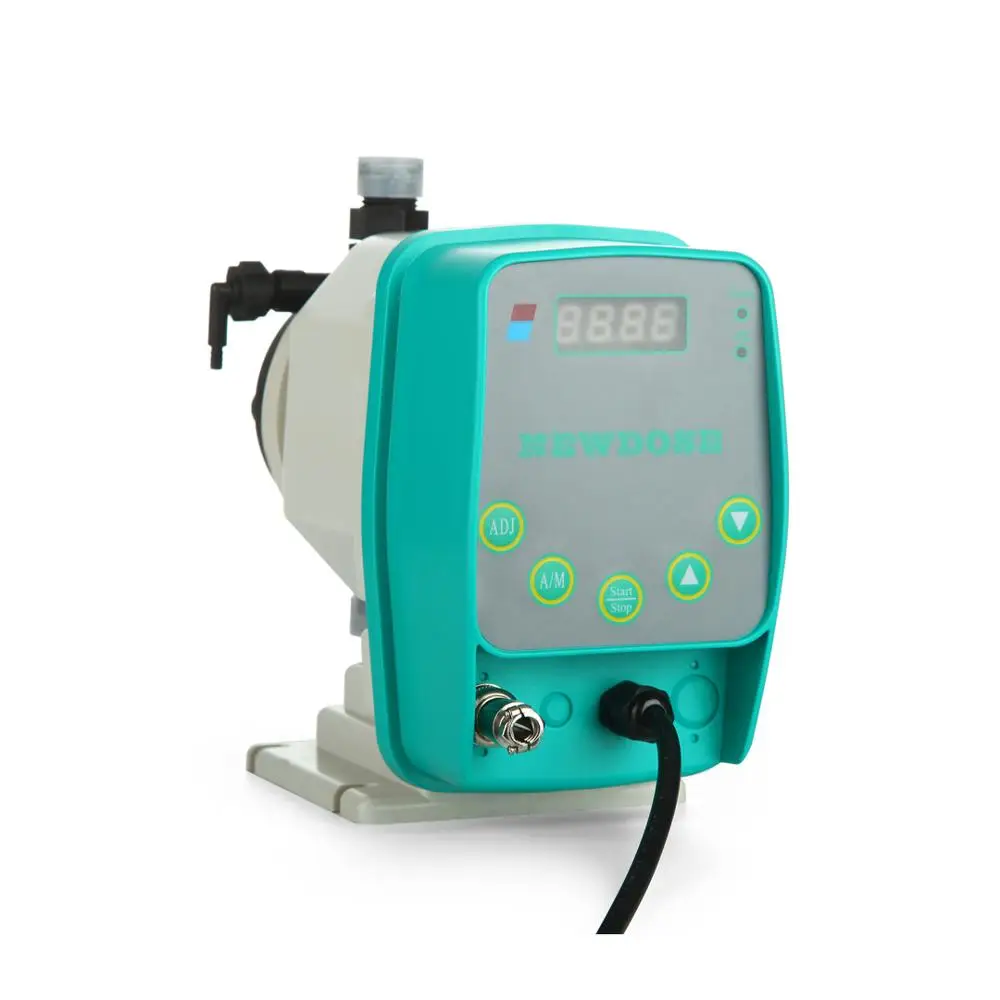

Дозирующий насос для контроля импульсного сигнала Newdose работает с расходомером
- Категория: >>>
- Поставщик: Ark Electric & Mechanical Co. Ltd.
Сохранить в закладки 60788839685:
Описание и отзывы
Характеристики

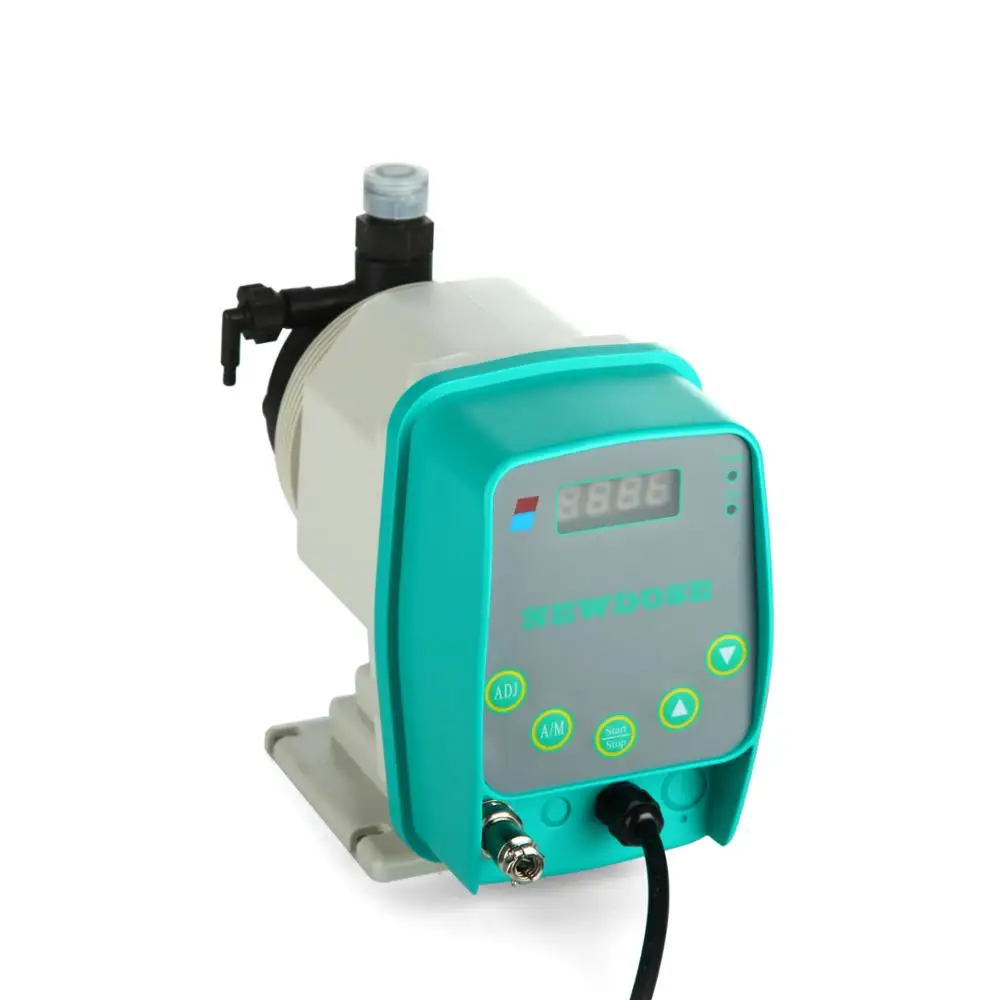

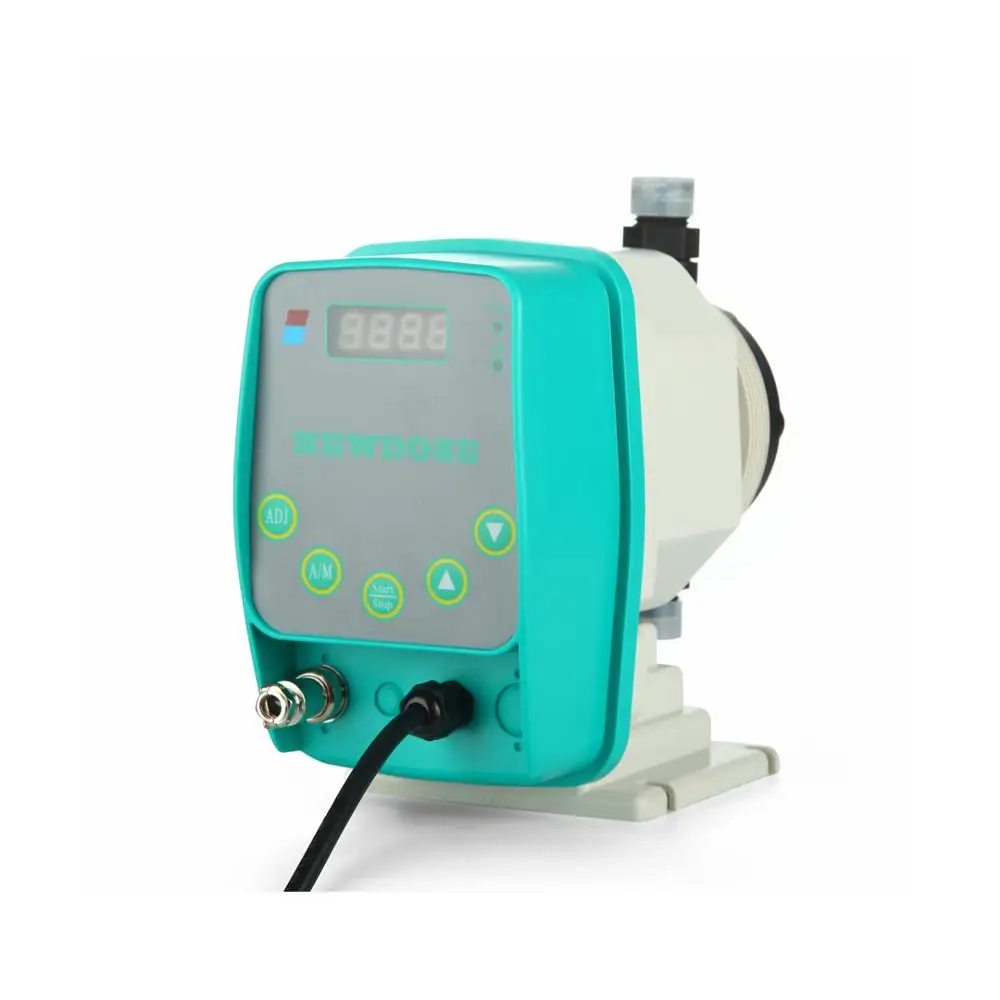

Product Description
Product Name | Newdose dosing pump |
Pump Type | DP Series |
Model | DP-02-07-LM |
Specification | 2 liter/ hour @ 7 Bar |
Power | 30W |
Diaphragm | PTFE |
Electricity | 220V 50Hz |
Weight | 3.2Kg |
DFD series models
Model -LM | Capacity L/h | Pressure bar | Working Frequency times/min | Power w |
DP-02-07-LM | 2 | 7 | 120 | 30 |
DP-03-07-LM | 3 | 7 | 120 | 30 |
DP-06-05-LM | 6 | 5 | 140 | 30 |
DP-09-03-LM | 9 | 3 | 160 | 30 |
Products & Detailed
Specifications
Functional Characteristics: Manual control, adjustment by Up and Down buttons
Remote automatic control mode: analogue signal, PULSE signal
Others: Equipped with a liquid level switch interface
Model：DP-02-07-LM-PPV-A

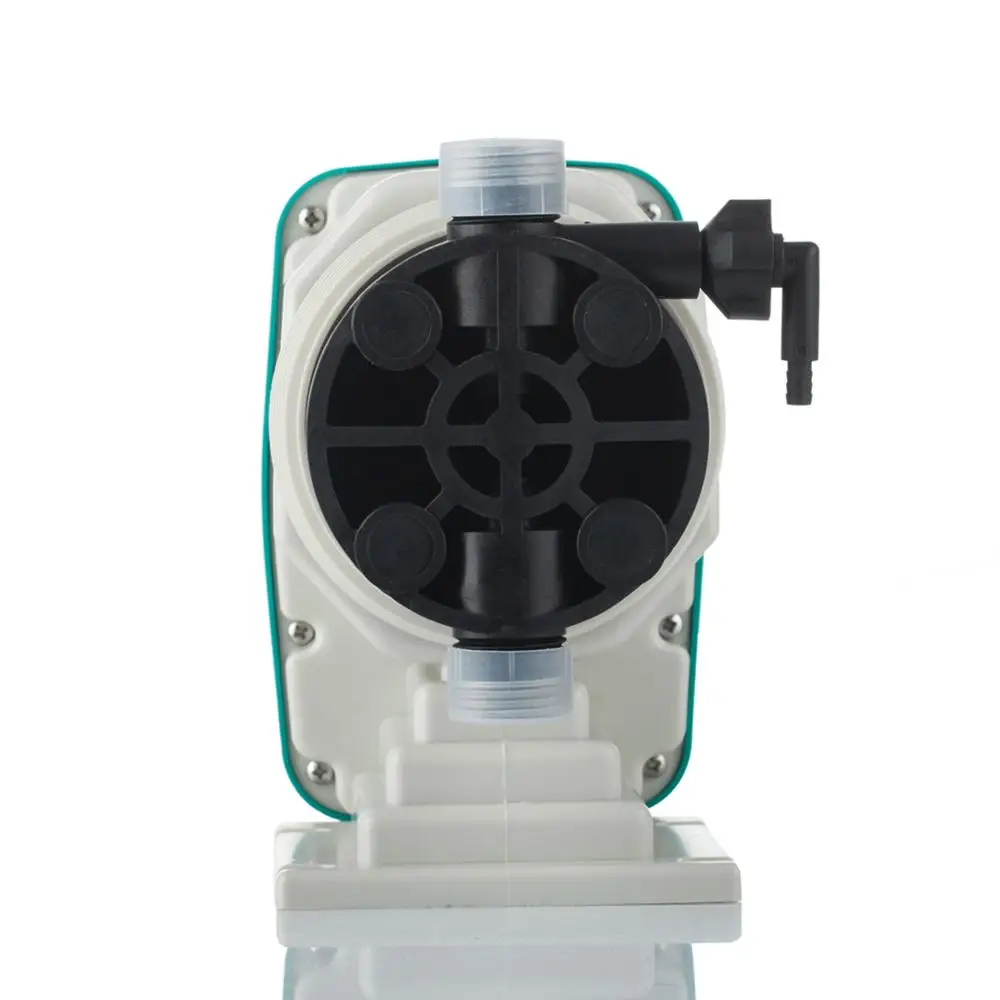

Pump Head：PP
Check Valves:PP
Valve balls: Ceramic
Seals: FPM
Flow rate：2 L/h
Max Pressure：7 Bar
Frequency：120 spm
Voltage：AC220V 50Hz
Power：30 W
Tube：4*6mm
HoseWeight：3.2Kgs
Pulse signal control
Functional Characteristics: Manual control, adjustment by Up and Down buttons
Remote automatic control mode: analogue signal, PULSE signal
Others: Equipped with a liquid level switch interface
Model：DP-02-07-LM-PPV-A
Pump Head：PP
Check Valves:PP
Valve balls: Ceramic
Seals: FPM
Flow rate：2 L/h
Max Pressure：7 Bar
Frequency：120 spm
Voltage：AC220V 50Hz
Power：30 W
Tube：4*6mm
HoseWeight：3.2Kgs
Pulse signal control
1.The impulse signals (square wave or dry contact signals) that any instruments directly sends out can be received.
2.DP pumps have both manual control and automatic control mode. In manual mode, stroke frequency of the pump can be adjusted by control buttons, no matter whether the pump is running or in stop state.
3.In automatic mode, two control modes can be set, named frequency division control and
frequency multiplication control.
4.In the frequency division mode, when the input impulse number is larger than maximum working frequency, the pump should be set as the frequency division mode. According to user’s set, the pump will identifie and receive the impulse signal, and then dose chemical liquids in proportion.
5.In the frequency multiplication mode, when the input impulse number is far less than maximum working frequency of the pump, the pump should be set as the frequency multiplication mode and the pump identify and receive the impulse signal, then dose liquids in proportion depending on user’s set. But when the received impulse interval is less than the interval time of the corresponding pump output, the signal received later will be stored (the pump could still work even though no signal received at this moment), the pump will not stop until it is consumed completely.
2.DP pumps have both manual control and automatic control mode. In manual mode, stroke frequency of the pump can be adjusted by control buttons, no matter whether the pump is running or in stop state.
3.In automatic mode, two control modes can be set, named frequency division control and
frequency multiplication control.
4.In the frequency division mode, when the input impulse number is larger than maximum working frequency, the pump should be set as the frequency division mode. According to user’s set, the pump will identifie and receive the impulse signal, and then dose chemical liquids in proportion.
5.In the frequency multiplication mode, when the input impulse number is far less than maximum working frequency of the pump, the pump should be set as the frequency multiplication mode and the pump identify and receive the impulse signal, then dose liquids in proportion depending on user’s set. But when the received impulse interval is less than the interval time of the corresponding pump output, the signal received later will be stored (the pump could still work even though no signal received at this moment), the pump will not stop until it is consumed completely.
Standard fittings
1.5m PE liquid outlet pipe 2m PVC liquid inlet pipe Sprave valve Filter botton valve
Size selection | Fitting name | ||||
4*6/mm | Liquid inlet pipe and liquid outlet pipe Three-piece connector Filter bottom valve | Sprave valve | / | ||
6*9/mm | / | External thread valve cover | |||
10*14/mm | Sprave valve | / | |||
Our Service
We offer the one year warranty.
As the pumps have experienced for a long-term operation, we are condfident of offering the best quality.
We also provide the easily damaged parts of pump in case of need.
Water Industry | Process&System | Clearing | Others |
Industrial Applications | chemistry industry | Kitchen | the chlorine dioxide generator |
Water Treatment | Petrochemical | Laundry | automatic dosing sytem |
Cooling Towers | Ceramic Industry | Surface Cleaning | the production processes of automobile hub |
Reverse Osmosis | Chemical Industry | Surface Laundry | ice machine and slice ice machine |
Electroplating | Food and Beverange | add antisludging agent | |
Swimmin Pools | Agriculture and cultivation | electroplate industry |
Our Company
Packing & Delivery
Packing Details :
1 pieces per case (26cm*15cm*26cm)
2 pieces per case (35cm*29cm*26cm)
4 pieces per case (65cm*28cm*28cm)
6 pieces per case (54cm*29cm*48cm)
We have 3 types of packing (paper skin): 1. one case with 1 pump: 255*145*260/mm 2. one case with 2 pumps: 350m*290m*260m 3. one case with 4 pumps: 650m*280m*280m 4. one case with 6 pumps: 540m*290m*480m
If the quality is very large, we'd better choose the fourth case. It's avaliable to delivery by air or by sea.
Delivery Details : 2-5 days
Solenoid pump packaging
Wooden case
Pallet and transportation
Our Certifications
Company Profile
ARK LTD is a professional manufacturer which produces NEWDOSE metering pumps, NEWDOSE mechanical pumps, NEWDOSE pneumatic pumps and agent YAMADA pneumatic pumps. We also provide Flow meter, pH meter, ORP meter, and other control instruments that connected metering pumps to achieve an online dosing control system. Over more than 10 years' development, the NEWDOSE products have uninterrupted growth with high efficient, sustainable and user-centric metering and water treatment and get an excellent reputation which service in such fields as waste water treatment, pure water process and water purification project, petrochemical industry, food and beverage, electrical power, metallurgy, pharmacy, paper making, printing and dyeing, bioengineering and environment detection.
Our pumps are the core products of a technology generated through Sino-American cooperation.
They are totally made in China but apply Italy technology.
Contact
Beijing Ark Electric & Mechanical Co., Ltd.
Add.: Room 212&214, No.4 Building, No.6 Yard, Kechuang 14th Street,Tongzhou District,
101111,Beijing,China.
Tel: +86 010 59879308-0
Fax: +86 010 59879308-611
Website: www.newdose.net
Похожие товары

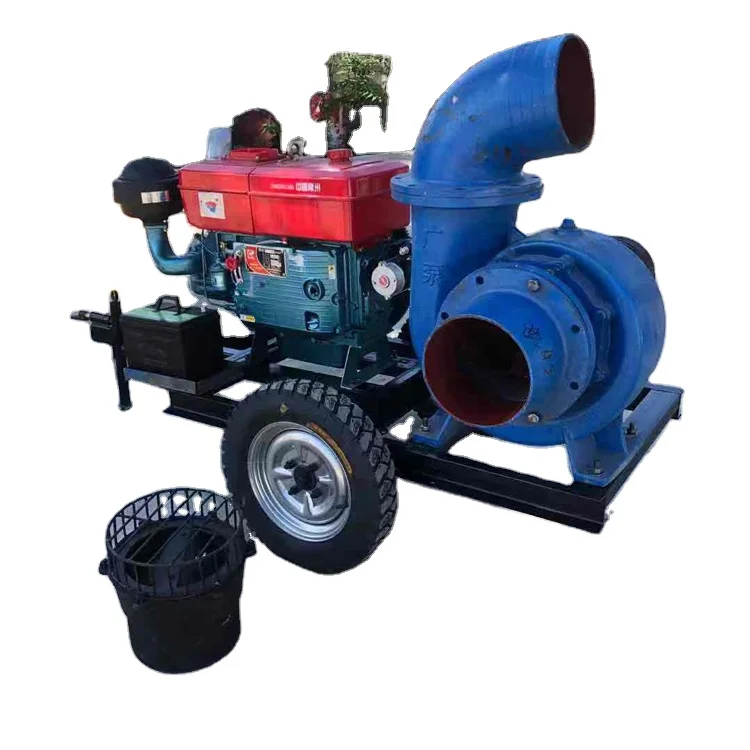

Высокий поток 6-дюймовый 8-дюймовый водяной насос дизельный оросительный насос
11 892,50 ₽ - 13 058,88 ₽
Электрический разряд всасывания высокий поток глубокая скважина 150 метров головка водяной насос

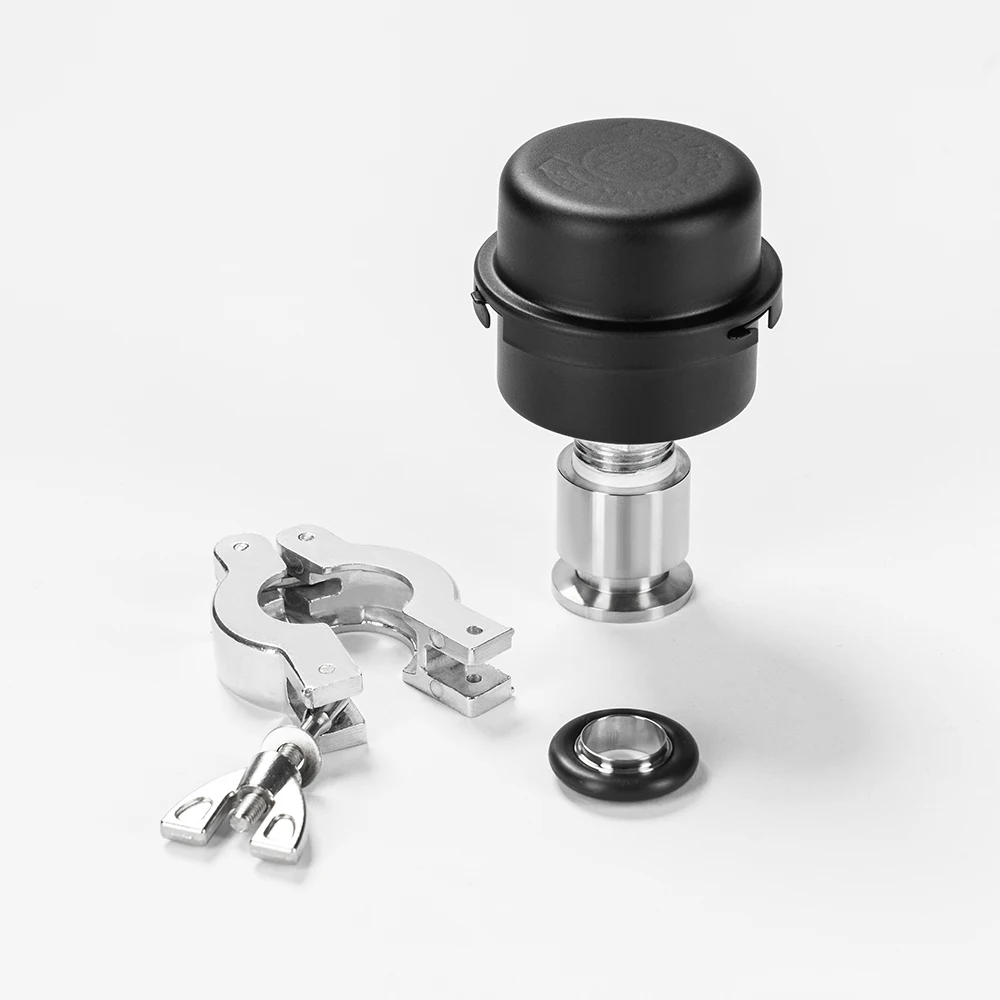

GEOWELL KF16 глушитель выхлопных газов GWS16 безмасляный вакуумный насос глушитель выхлопных газов
Центробежный насос высокого давления из чугуна для сельскохозяйственного орошения

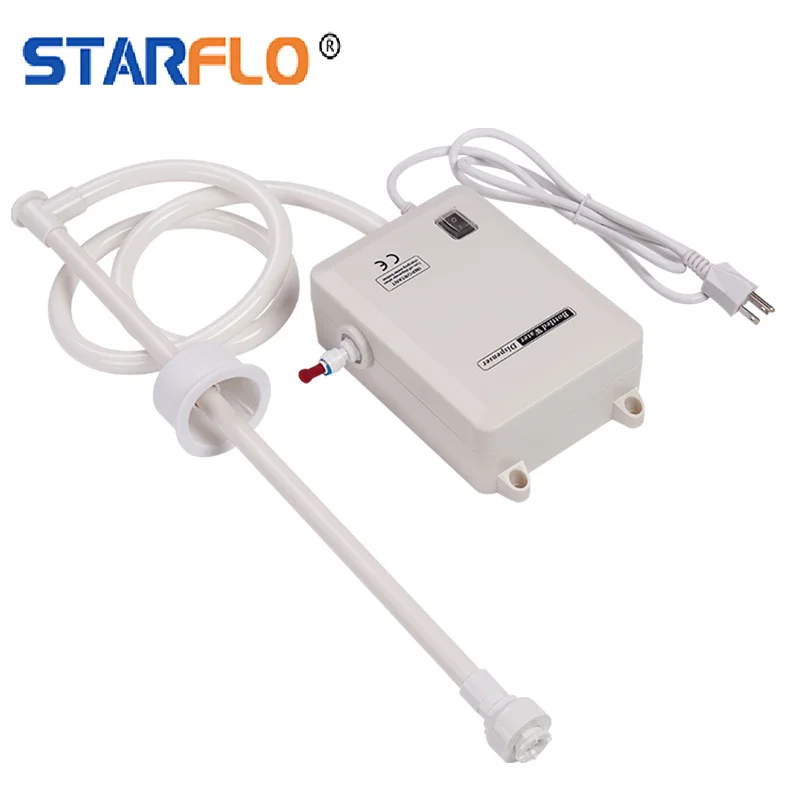

Электрический Автоматический Дозатор для напитков, портативный водяной насос
3 776,43 ₽ - 3 992,22 ₽

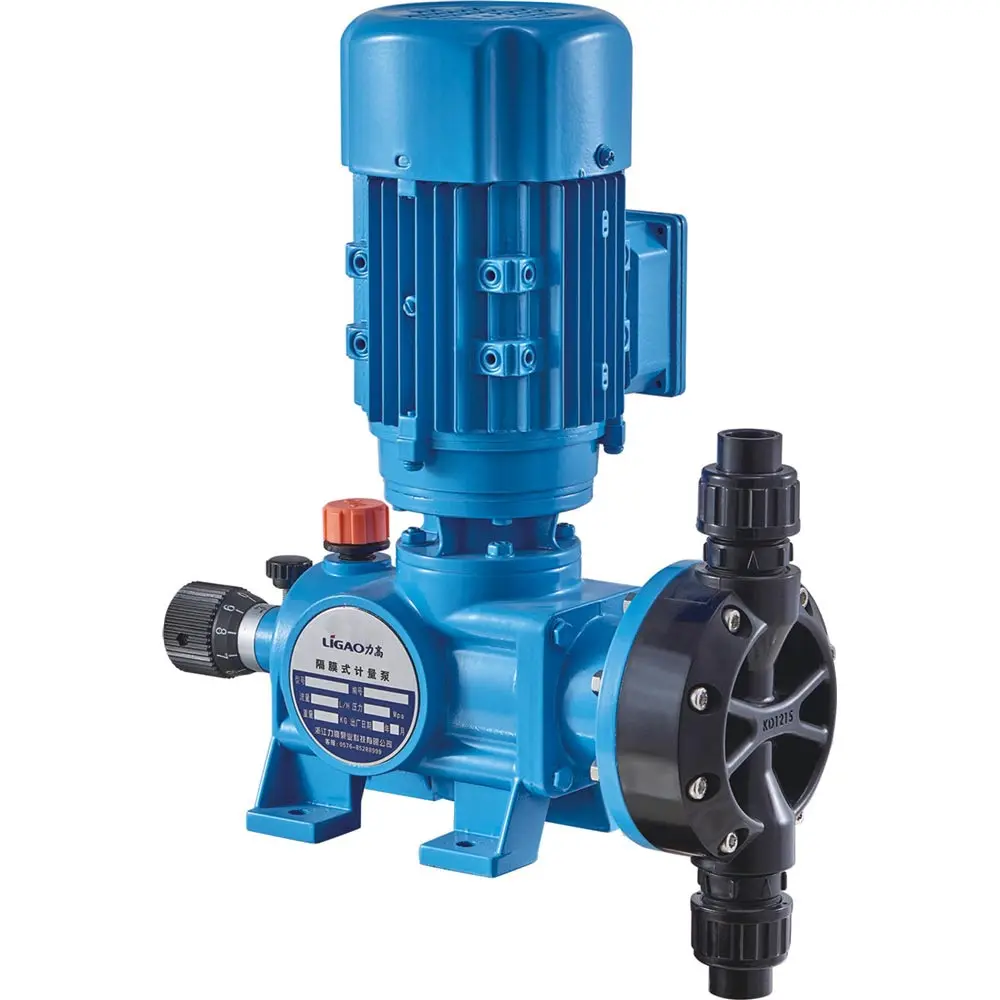

Мембранный дозирующий насос KD, Дозирующий поток до 180 литров/час при 8 бар, используется для обработки воды или химической промышленности

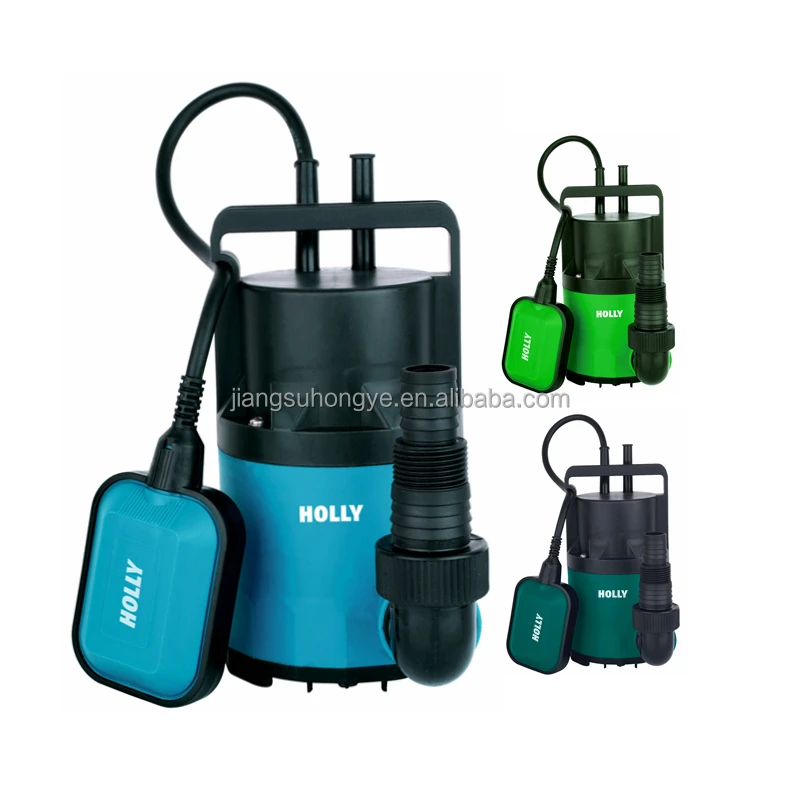

Новый 1/2HP 1750GPH отстойный насос с автоматическим поплавковым переключателем погружной водяной насос портативный чистый низкий уровень воды коммунальные отстойные насосы
