Аксессуары для корабля плавающий большой морской пневматический резиновый брызговик Иокогама
- Категория: Other Rubber Products >>>
- Поставщик: Qingdao Xincheng Rubber Products Co. Ltd.
Сохранить в закладки 60789385280:
Описание и отзывы
Характеристики

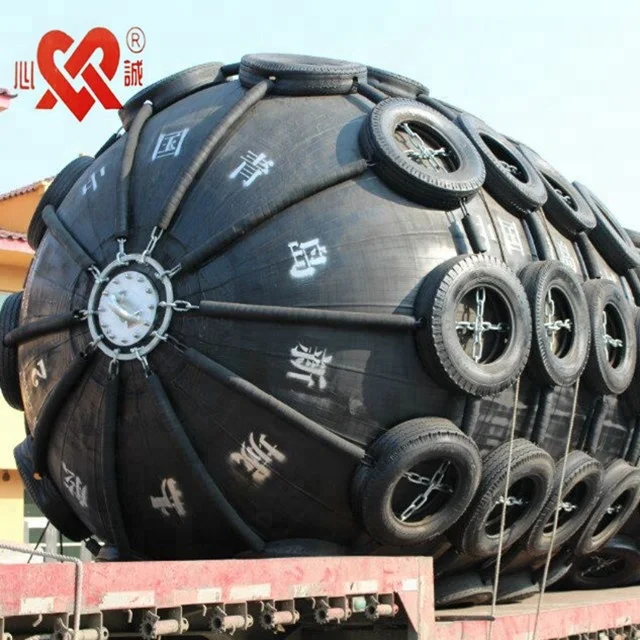

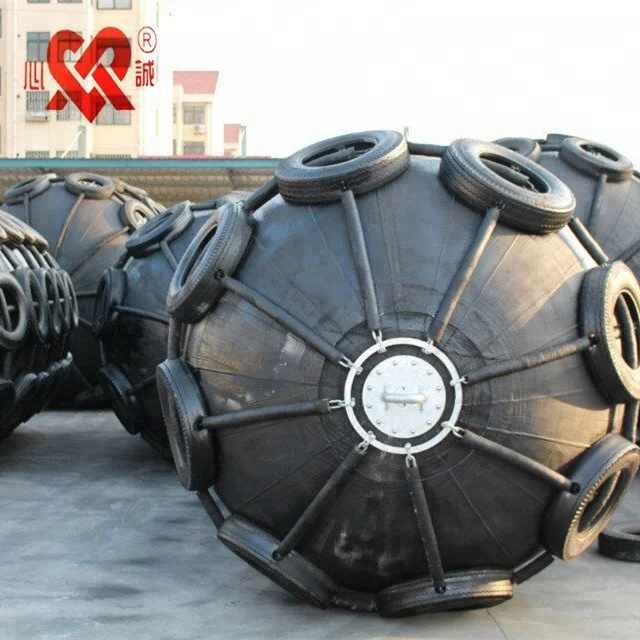

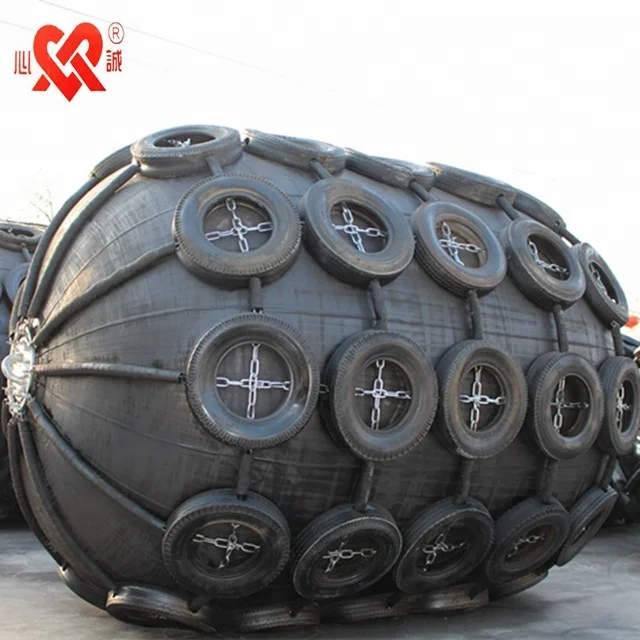

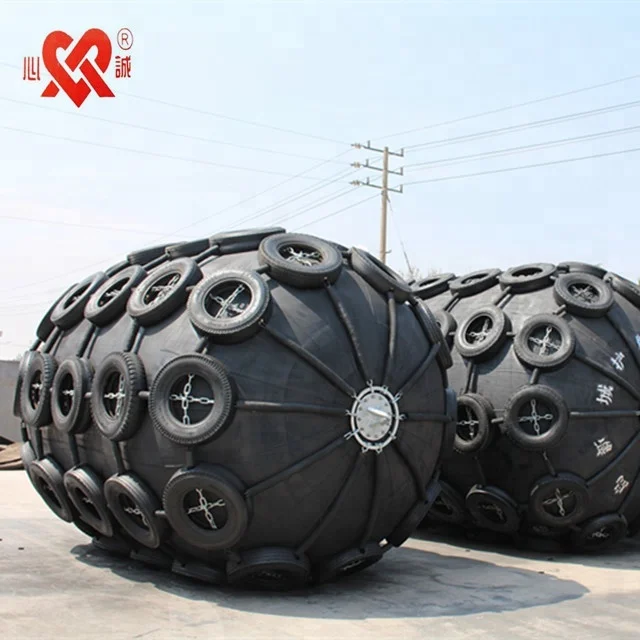

Pneumatic Rubber Fender
Pneumatic rubber fender is the advanced anti-collision device for marine application in the world.Pneumatic rubber fender also known as floating fender or yokohama type rubber fender, It is often installed on the terminal or ship,which aims to absorb or reduce the collision energy between ship to ship and ship to dock.This kind of product can protect the ship or dock from the damage of collision.With inner compressed air,it can float on the water and widely used as protecting medium equipment. Size : D0.5 m x L1.0 m ~ D 3.3 x L6.5m. “XINCHENG” Pneumatic rubber fenders are produced in strict accordance with the ISO17357-2002 and GB/T 2002-2002 international quality standard, our products have exported to all over the world.
 |  |  |
 |
a. Outer Rubber
Cover outside on the ball of rubber layer, which is used to protect skeleton material and inner rubber ball from damage of external force, the main features: high strength, wear resistance, ageing resistance and tear resistance.
b. Synthetic cord reinforced rubber layer
Reinforced cord rubber layer is composed of winding Synthetic cord layer, It is mainly used for maintain the internal air pressure, which has good elasticity, no deformation and high power etc.
c. Inner Rubber
On the ball inside the rubber layer, which is used to prevent air leakage and control the ball pressure.
d. End Flange
The metal parts at both ends of fender, which can be fitted with charging valve and safetyvalve.
3.The Specification of Fenders: of Fenders
Normal size Diameter x Length | Initial Internal pressure 0.05MPa | Initial Internal pressure 0.08MPa | ||||
Guaranteed Energy Absorption(GEA) | Reaction Force At GEA(RF) | Hull Pressure At GEA(PR) |
Guaranteed Energy Absorption(GEA) | Reaction Force At GEA(RF) | Hull Pressure At GEA(PR) | |
| mm x mm | KN/M | KN | Kpa | Kpa | Kpa | Kpa |
500x1000 | 6 | 64 | 132 | 8 | 83 | 174 |
600x1000 | 8 | 74 | 126 | 11 | 96 | 166 |
700x1500 | 17 | 137 | 135 | 24 | 178 | 178 |
1000x1500 | 32 | 182 | 122 | 44 | 235 | 161 |
1000x2000 | 45 | 257 | 132 | 63 | 335 | 174 |
1200x2000 | 63 | 297 | 126 | 86 | 386 | 166 |
1350x2500 | 102 | 427 | 130 | 140 | 554 | 170 |
1500x3000 | 153 | 579 | 132 | 211 | 751 | 175 |
1700x3000 | 191 | 639 | 128 | 263 | 830 | 168 |
2000x3500 | 308 | 875 | 128 | 424 | 1138 | 168 |
2500x4000 | 663 | 1381 | 137 | 925 | 1815 | 180 |
2500x5500 | 943 | 2019 | 148 | 1317 | 2653 | 195 |
3000x5000 | 965 | 1815 | 148 | 1341 | 2359 | 198 |
3300x4500 | 1175 | 1884 | 130 | 1640 | 2476 | 171 |
3300x6500 | 1814 | 3015 | 146 | 2532 | 3961 | 191 |
NOTE:1.REACTION FORCE AND ENERGY ABSORPTION TOLERANCE IS ±10% 2.WEIGHT TOLERANCE IS ±10% 3.SPECIAL SIZE CAN BE PRODUCED FOLLOW CUSTOMER'S NEEDS | ||||||
Qingdao Xincheng Rubber Products Co., Ltd, as a Professional manufacturing Company, which was founded in 1986. The Company is a production, scientific research and design, product development, technical services for the integrated enterprise.
The Company is mainly produce pneumatic rubber fenders , marine rubber airbags , foam filled fenders and other rubber fenders etc, which as the leading enterprise has passed the certification of CCS , ISO9001:2008, SGS, BV etc.
Since the 2000, the Company has accumulated a lot of production experience in the field of marine rubber airbags and fenders, which has bring together a large number of professional design and production technical personnel. The Company always adhere to improve product quality and customer service. In 2011,China top 10 rubber products production
enterprise" and "China rubber seal products production top ten best-selling famous brand"; In 2015,Company won the China shipbuilding industry group outstanding product suppliers. For now, our products have exported to all over the world, such as Southeast Asia, Middle East, South America and EU countries etc.
 |  |  | ||
| Raw Material | Rubber Mixing | Manufacture |
 |  |  | ||
| Whole Interwine Technology | Vulcanization | Spray Coating |
 |  |  |  | |||
| Ready Product | Ready Product | Assemble | Finished |
Похожие товары

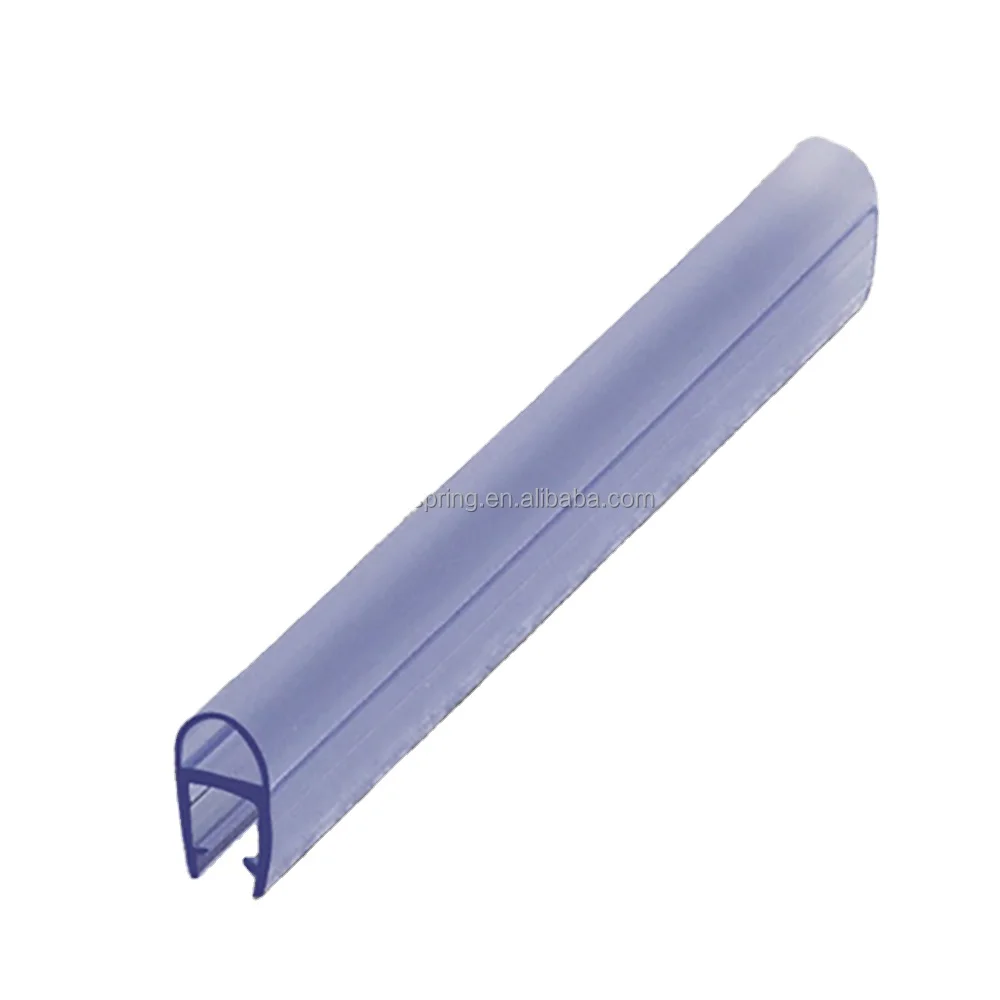

Оптовая продажа, водонепроницаемая резиновая уплотнительная лента для стеклянной двери душевой кабины

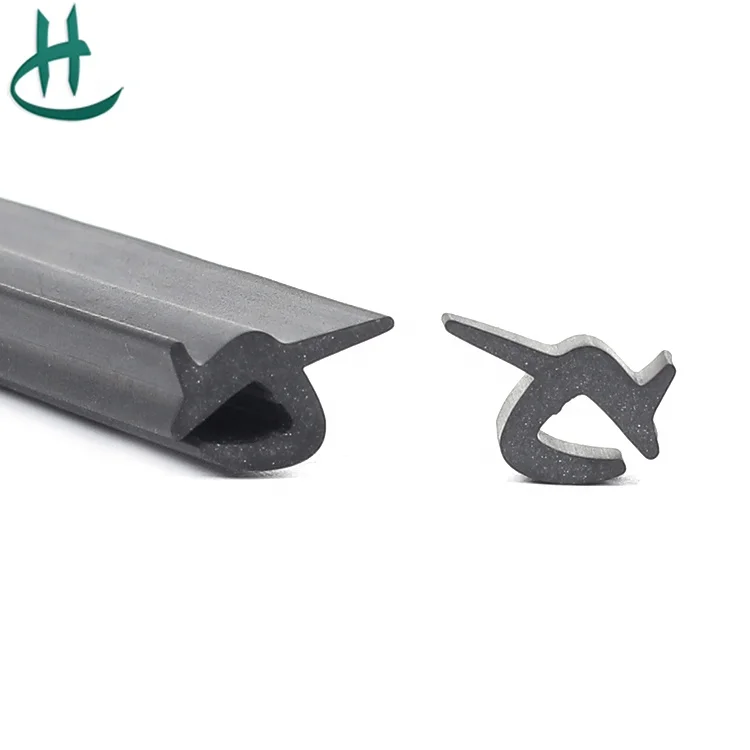

Высококачественные резиновые уплотнительные ленты Epdm для лобового стекла

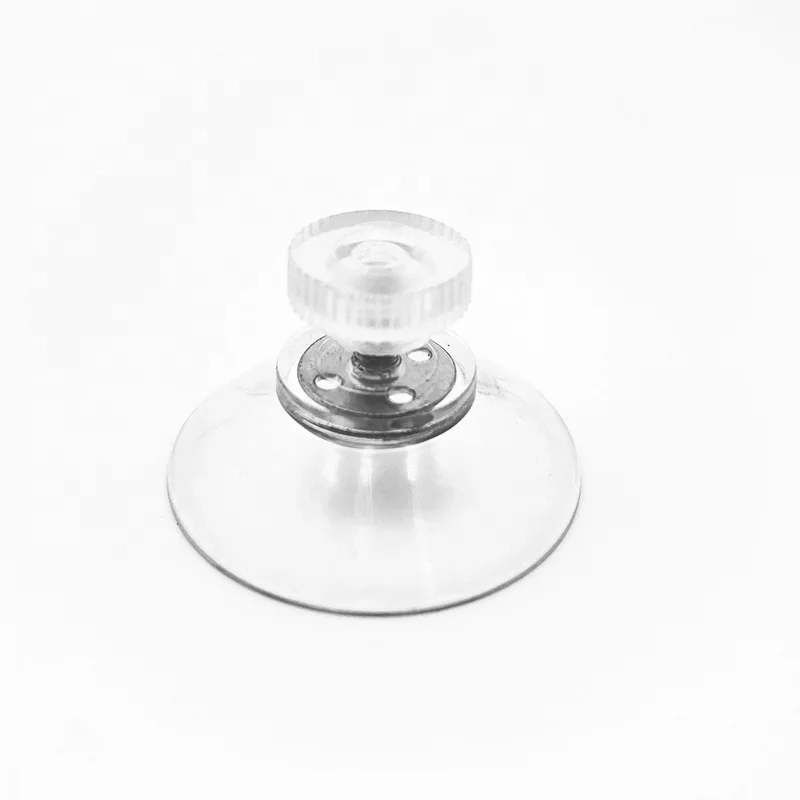

Вакуумные водонепроницаемые вакуумные чашки 45 мм из прозрачного пластика и ПВХ с зажимами для бульдога и присосками для файлов

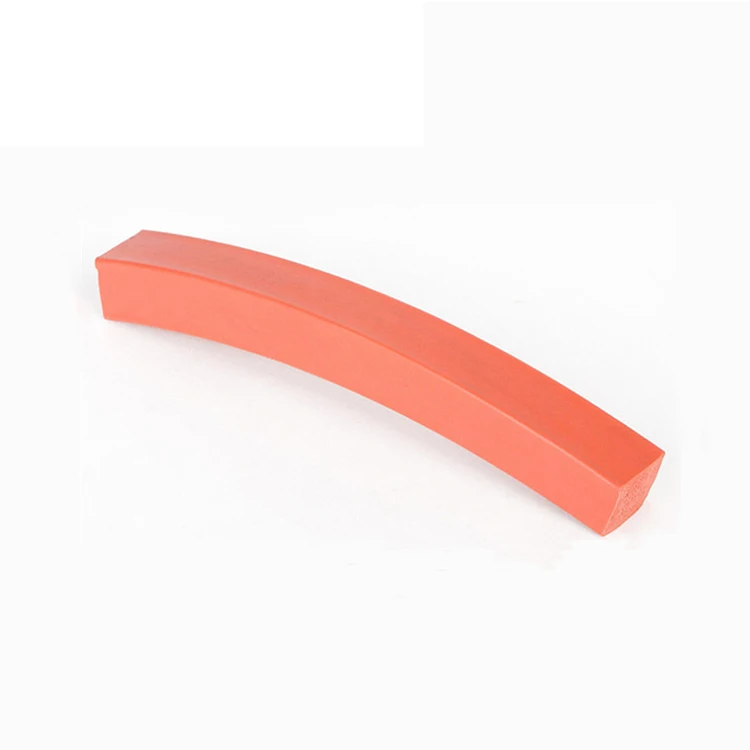

Привлекательная цена, уплотнительная лента нового типа из силиконовой резины

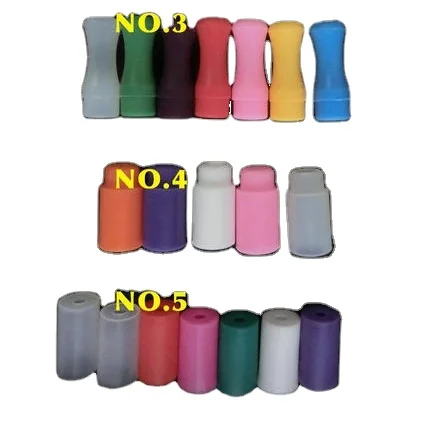

Настраиваемый мундштук для электронных сигарет одноразовый силиконовый мундштук 510 810 дрип-тип

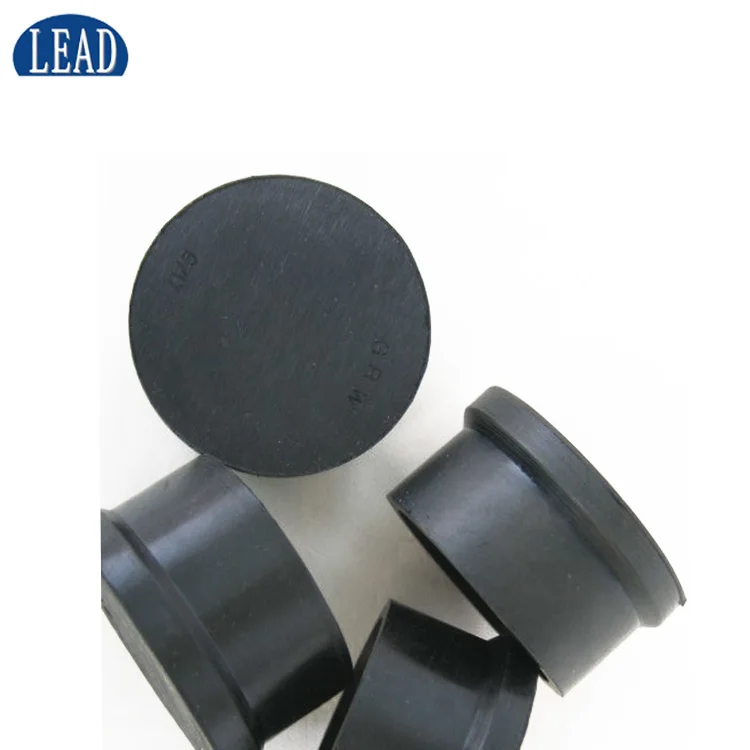

Различные виды резиновой пробки на заказ/Резина черного цвета

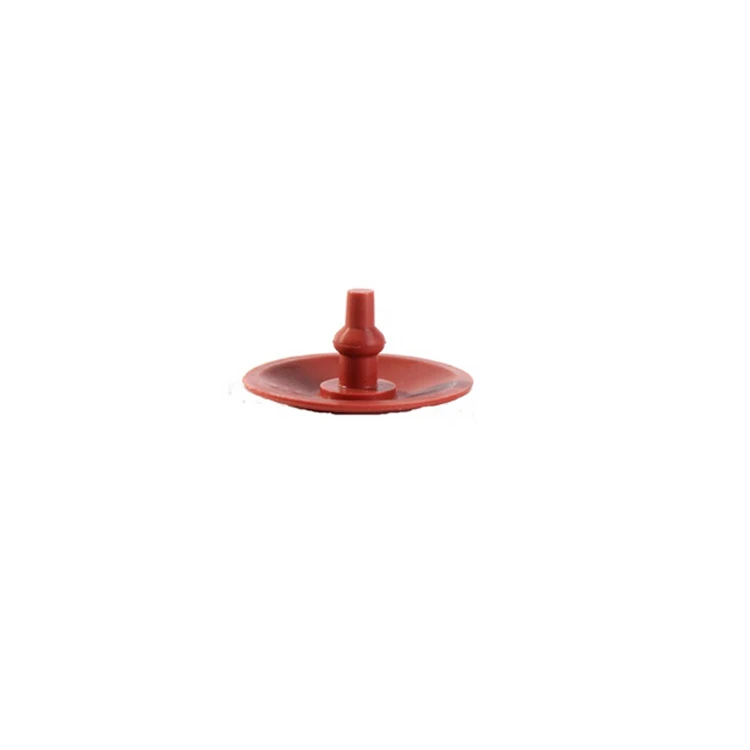

Резиновый силиконовый зонт, односторонний обратный клапан
