WELCOME

Product Description:

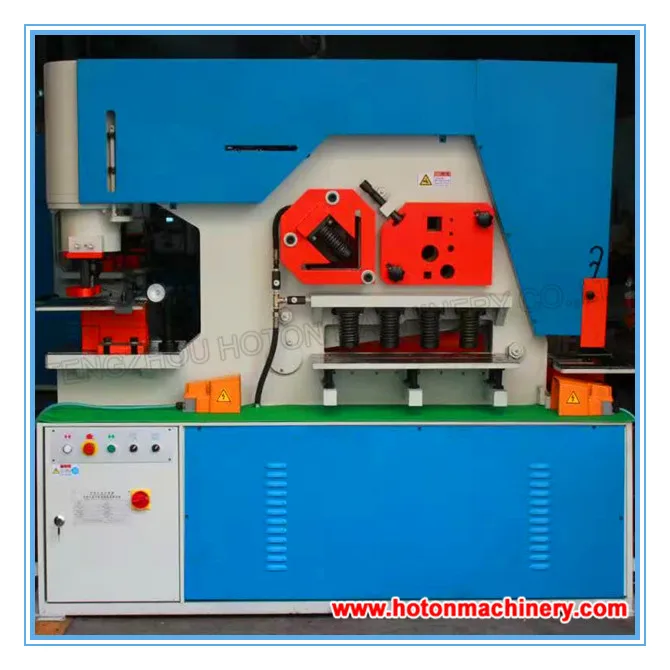

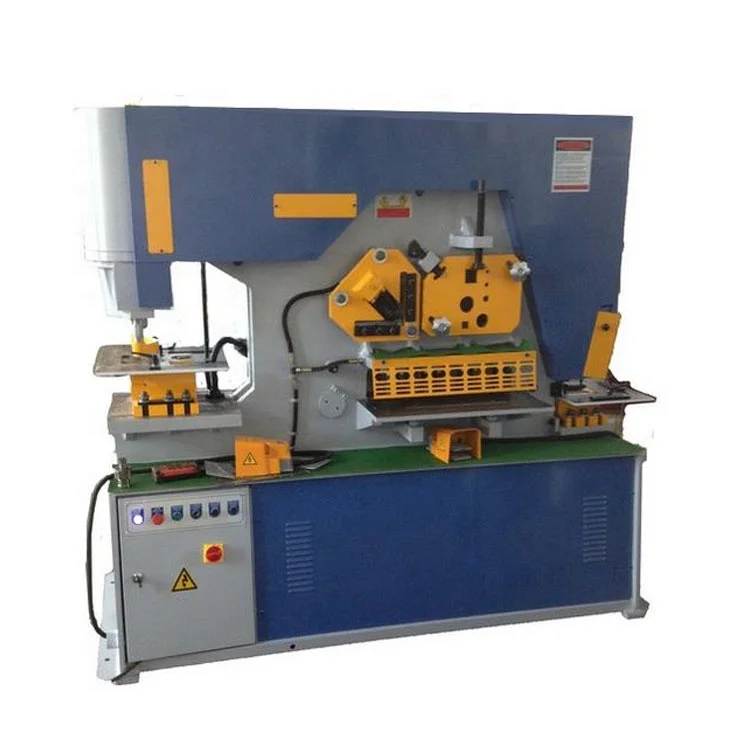

Double cylinders hydraulic punch & shear machine

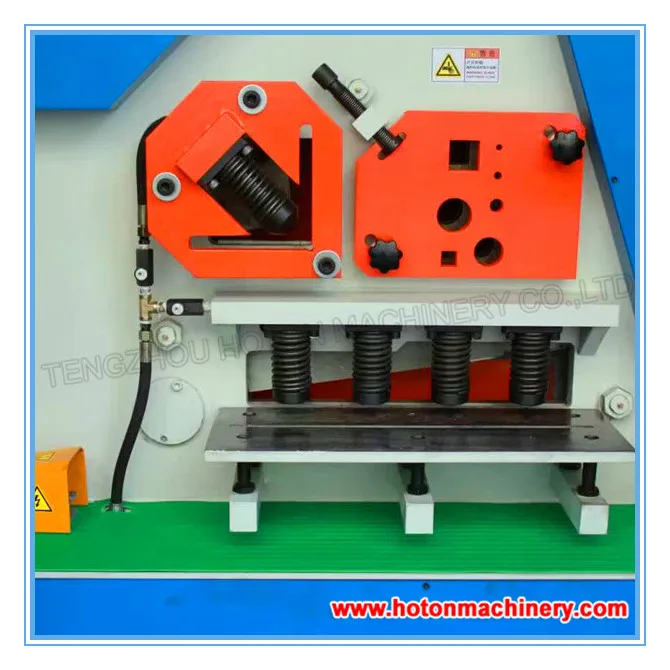

Five independent stations for punch, shear, notching, section cut
Large punch table with multi-purpose bolster
Removable table block for overhang channel / joist flange punching applications
Universal die bolster, easy change punch holder fitted, punch adapters supplied

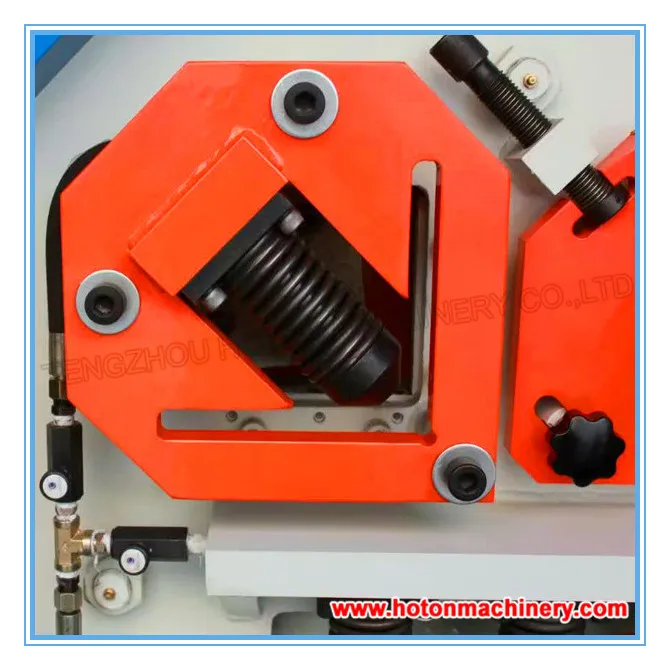

Angle, round & square solid monoblock crop station
Rear notching station, Low power inching and adjustable stroke at punch station
Centralized pressure lubrication system
Electric panel with overload protection elements and integrated controls
Safety movable foot pedal

\t
Model
\t
Q35Y-20
\t
Punching Pressure (T)
\t
90
\t
Max. cutting thickness of sheet plates (mm)
\t
20
\t
Material strength (N/mm²)
\t
≤450
\t
Angle of Shear (°)
\t
\t
Flat bar shearing (T*W)(mm)
\t
20*330   10*480
\t
Max. length of cylinder stroke (mm)
\t
80
\t
Trips frequency (times/min)
\t
12-20
\t
Depth of throat (mm)
\t
355
\t
Max. punching diameter (mm)
\t
30
\t
Motor power (KW)
\t
7.5
\t
Overall dimensions (L*W*H)(mm)
\t
1950*900*1950
\t
Weight(kg)
\t
2400
About US
Other

Q1: Are you trading company or manufacturer ?
A: We are factory.

Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity  more than.

Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.  Airline and sea shipping also optional.

Q5. What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment. If you have another question, pls feel free to contact us as below.
