Холодильная камера морозильная для рыбы

Категория: Холодильная камера >>>
Поставщик: OnlyKem (Jinan) Technology Co. Ltd.

Цена:3 500,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Cold Storage Project, Cold Room Freezer for Fish

Fish cold room

Looking for a high-quality fresh fish cold storage room? Our temperature controlled solutions are designed to keep fish as fresh and delicious as when first caught.

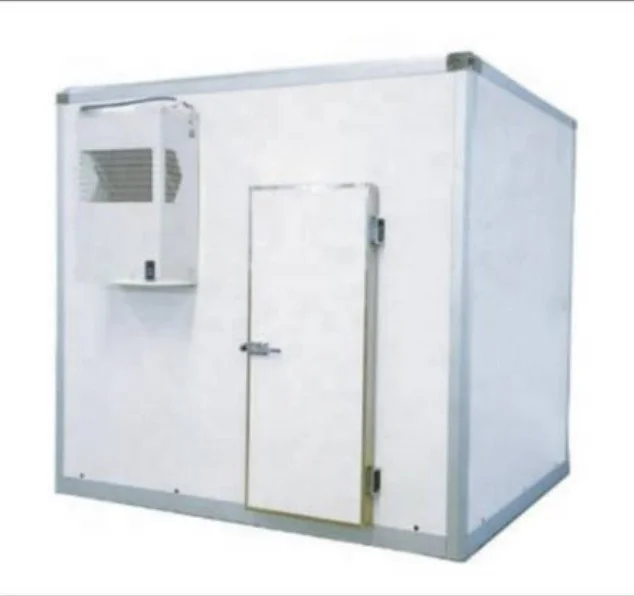

Mini size fish cold room	Frozen fish in fish cold room

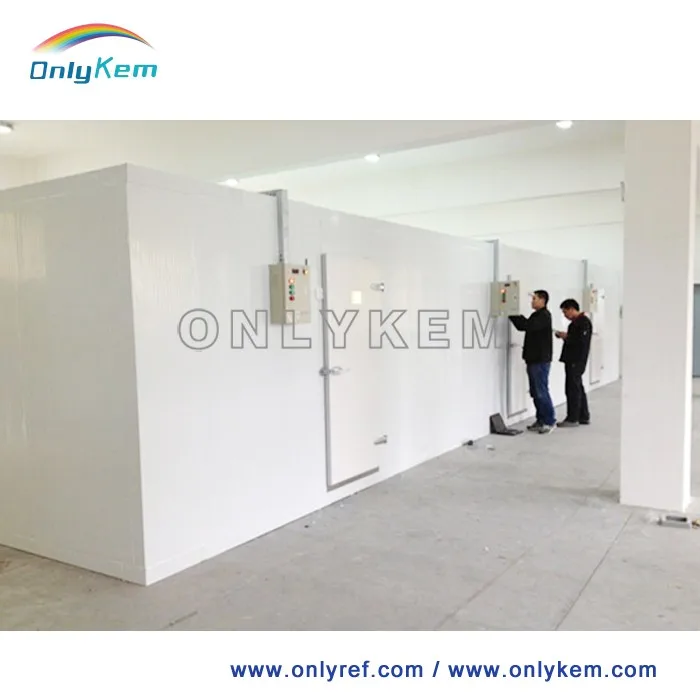

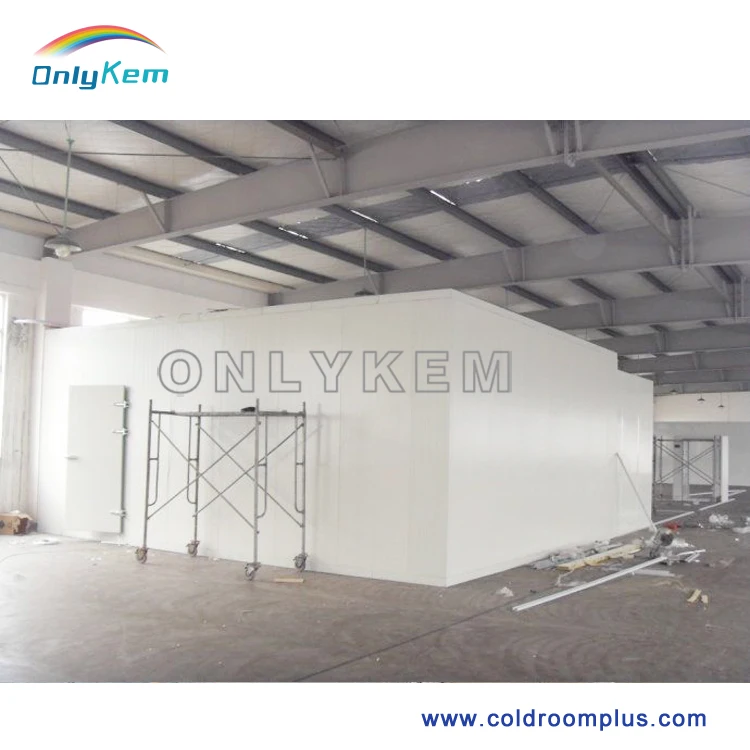

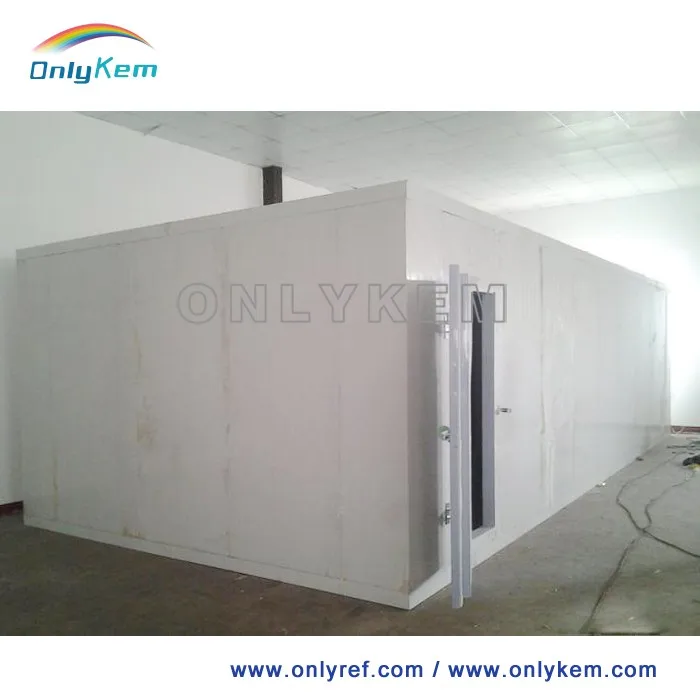

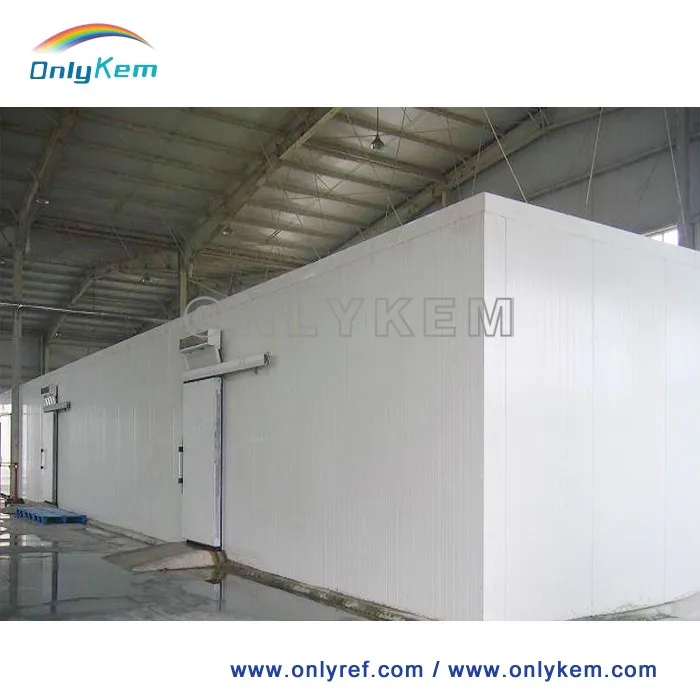

Indoor of fish cold room	Fish cold rom project

√ Best insulation panels to save the operation cost!

√ Remain your fish in a good condition for long-term!

√ Anti-rust surface material to be used for many years!

√ Drop from the room temperature to -35°C in a few hours!

√ Design suitable solution according to your fish storage requirement!

Part of cold room

	←Click on the picture to get more details Cold room insulation panel Use 100% polyurethane insulation panel, density about 38~42kg/m3, with gasket, with flame retardant, fire-resistant panel thickness: for -18~-25 degree we suggest use 120~150mm, standard width of panel is 960mm.

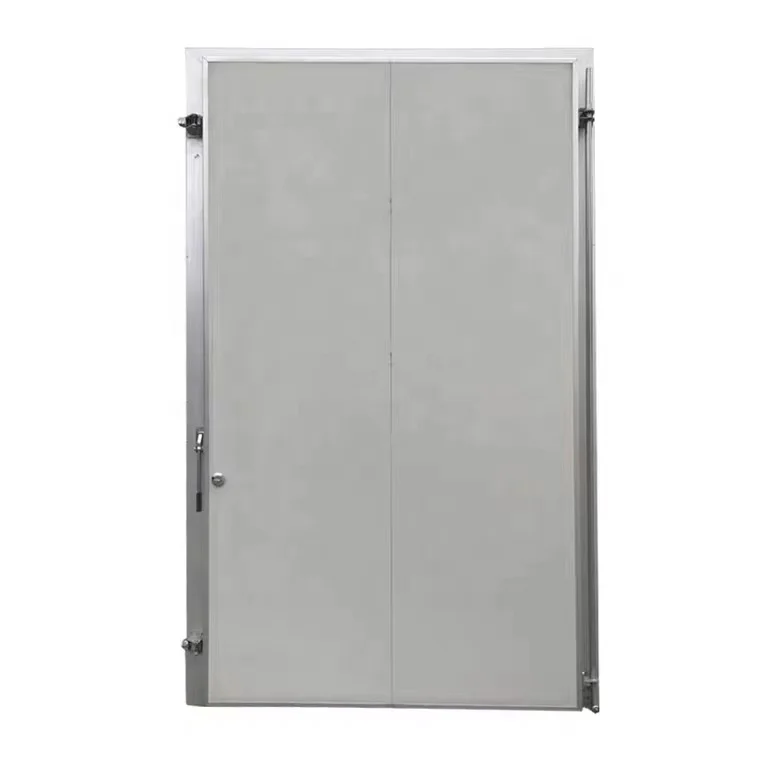

Click on the picture to get more details → Cold room doors Swing door and sliding door for choice Durable hardware and attractive hinges Safety release handles Door heater wire Aluminum or stainless steel railings Better airtight performance Custom-made and lightweight
	←Click on the picture to get more details Condensing unit Our condensing units are designed for maximum work efficiency with low noise. Interoperability of the system is provided with during process of maintenance and service times. Condensing unit is complete solution with air-cooled condenser in the refrigeration applications. Compressors are supplies with different original brand depending on your request.

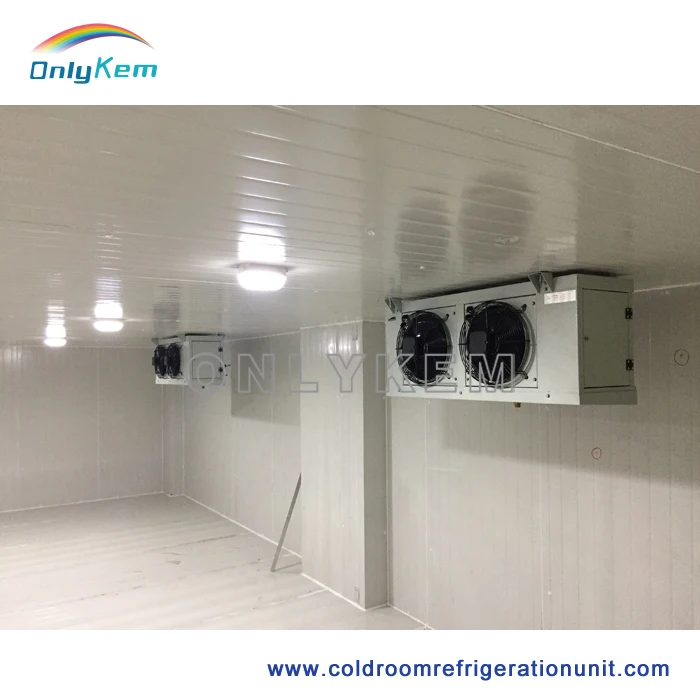

Click on the picture to get more details → Unit Cooler Stainless steel body or PPGI and excellent corrosion resistance Inner grooved copper tubes for supperior heat transfer In-built defrost heaters for different temperature units External rotor fans with low noise Different kinds of diameter with cooper tube

Parameters

Item	Cold Storage Room
Brand Name	OnlyKem
Cold storage Room Size	m (L) * m (W) * m(H) (We can produce according to your requirements.)
Cold storage room temperature range	+5 ~ -5°C (This temperature range is for keeping Vegetable, Fruit, Egg, Soft Drink ,beer etc.)
	-10 ~ -25°C (This temperature range is for keeping Meat, Seafood, Ice Cream ,frozen Vegetable etc.)
	-30 ~ -45℃(This temperature range is for blast freeze, like fresh fish and meat, kitchen etc.)
Pu panel of mini Cold storage	Insulation Material: 50mm,75mm,100mm, 150 mm ,200mm thickness polyurethane
	Panel Protective Material: painted galvanized steel, stainless steel
Type of Cold Room Door for mini cold storage	Hinged door or Sliding door or Swing door
Cold storage room cooling System: Compressor	Copeland compressor (American Brand)
Cold storage room cooling System: Compressor	Bitzer compressor (Germany Brand)
Cold storage room Cooling System: Evaporator	Air Cooled unit cooler
Accessories for cold storage room system	Light, Glue, expansion valve and other accessories for cold storage room system
Packaging for mini cold storage	plywood box with pallet package for mini cold storage
Payment Term for mini cold storage	T/T,Western Union, L/C
Delivery Time for mini cold storage	10~15 days after receiving the deposit
Shipment	By Sea
Warranty Time for mini cold storage	1 year
Customer Service for mini cold storage	technical support and accessories supply.

Want to know

1. Q: What kinds of compressor can you offer about fish cold room?

A: Original new Bitzer , Copeland etc.

2. Q: What is your fish cold room size?

A: Our cold room dimension can be customized according to your requirements , kindly tell us your requirements ,or tell us the total amount , our designer will design it for you.

3. Q: What is your delivery time of fish cold room?

A: Our delivery time is around 7~25 work days.

4. Q: How long is the warranty period of fish cold room?

A: Our warranty is 1 year . But if you have any problems even more than 1 year , please kindly let us know , we will try our best to solve the problems for you. We have exported our products to many countries , we are confidence of our product.
