Ingersoll Rand MSG® TURBO-AIR® INTEGRALLY GEARED CENTRIFUGAL COMPRESSORS

model:

MSG TURBO-AIR 2000 – 93 to 260 kW (125 to 350 hp) and 14.3 to 48.1 m3/min (505 to 1700 CFM)

MSG TURBO-AIR COOLED 2000 – 93 to 260 kW (125 to 350 hp) and 15.6 to 48.1 m3/min (550 to 1700 CFM)

MSG TURBO-AIR 2040 – 373 to 600 kW (500 to 800 hp) and 42 to 51 m3/min (1500 to 1800 CFM), up to 42 barg (610 psig)

MSG TURBO-AIR 3000 – 300 to 600 kW (400 to 800 hp) and 57 to 113 m3/min (2000 to 4000 CFM)

MSG TURBO-AIR 6000 – 600 to 1305 kW (800 to 1750 hp) and 113 to 227 m3/min (4000 to 8000 CFM)

MSG TURBO-AIR 6040 – Up to 1700 kW (2250 hp) and 127 to 167 m3/min (4500 to 6000 CFM), up to 42 barg (610 psig)

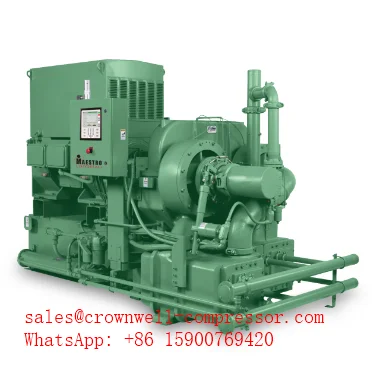

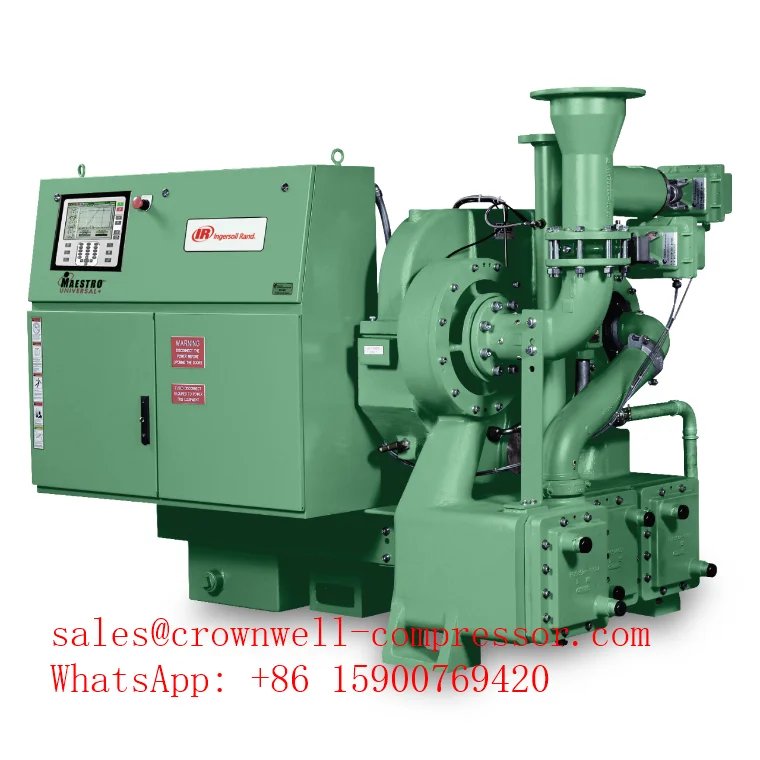

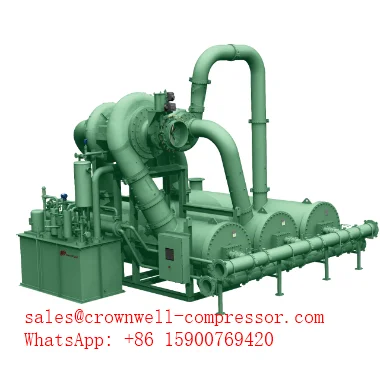

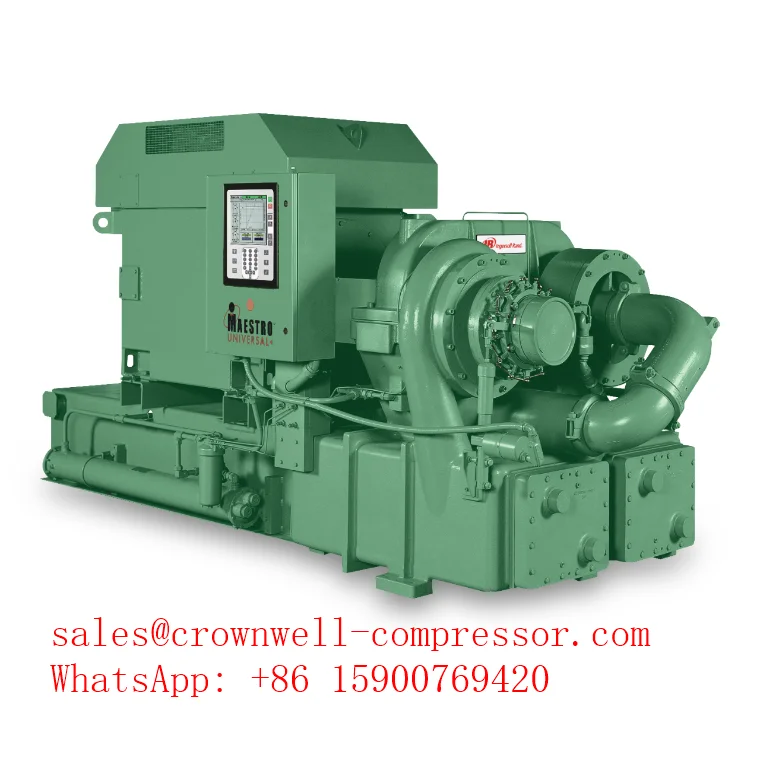

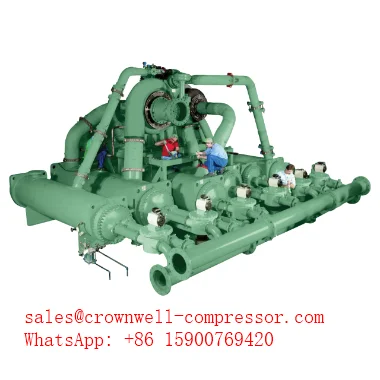

MSG TURBO-AIR 11000 Centrifugal Air & Gas Compressor- up to 2670 kW(3700hp) and 232 to 417 m3/min(8200 to 14750 CFM),up to 19 barg(275 psig)

MSG TURBO-AIR 20000 Centrifugal Air & Gas Compressor- up to 4100 kW(5500hp) and 515 to 700 m3/min(18200 to 24750 CFM),up to 80 barg(1160 psig)

MSG TURBO-AIR NX 8000 – 750 to 1700 kW (1000 to 2250 hp) and 135 to 305 m3/min (4850 to 10,800 CFM)

MSG TURBO-AIR NX 12000 – 1120 to 2237 kW (1500 to 3000 hp) and 212 to 430 m3/min (7500 to 15,200 CFM)

TURBO DRYPAK – 112 to 600 kW (150 to 800 hp) and 15.6 to 113 m3/min (550 to 4000 CFM)

TWINTURBO – 93 to 3355 kW (125 to 4500 hp) and 30 to 425 m3/min (1065 to 15,000 CFM)

MSG® TURBO-AIR® INTEGRALLY GEARED CENTRIFUGAL COMPRESSORS

MSG TURBO-AIR compressors offer outstanding design flexibility. MSG compressors are application engineered with numerous available configurations:

• Flows from 70 to 3800 m3/min (2500 to 135,000 CFM)
• Input capacity to over 18,650 kW (25,000 hp)
• Discharge pressures to 100 barg (1450 psig)

FEATURES

Oil-Free Air and Gas

• Prevents system contamination
• Reduces the potential for compressed air pipeline fires caused by oil carryover
• No costly waste disposal associated with oil-laden condensate
• Eliminates the expense and maintenance of oil separation filters at the discharge

High Reliability

• MSG centrifugal compressors are designed to be extremely
  MSG centrifugal compressors provide better overall operating efficiency than positive displacement or other centrifugal compressors.

• Excellent efficiencies at full load, part load and no load
• Low maintenance cost
• Increased uptime from high-reliability design (limits the need for multiple unit installations for basic reliability reasons)
• No sliding or rubbing parts in the compression process that can cause wear and thereby efficiency loss

Easy Operation/Maintenance

• State-of-the-art MAESTRO control systems
• Fully automated operation for any process conditions
• Machine self-diagnostics
• Compression elements do not wear or require periodic replacement
• Accessible horizontally split gearbox for quick inspection
• Removable intercooler and aftercooler bundles for easy cleaning

Simple Installation

• Compressor, lubrication system, intercoolers, shaft coupling, coupling guard, interconnecting piping, etc. on a common base
• Easy installation with no special foundation requirements
• Easy component accessibility
• Site connection point flexibility
• Reduced floor space required
• Dynamic compression process is pulsation-free, so installation of additional dampening equipment is not required.

APPLICATIONS

Engineered Air Applications

• Industrial gases
• Instrument air
• American Petroleum Institute (API) standards
• Soot blowers
• Large plant air
• Power industry related

Gas Compressor Applications

• Fuel gas boosting
• Natural gas gathering
• Hydrocarbon refrigeration gas
• Carbon monoxide
• CO2 (wet or dry)
• SynGas
• Low molecular weight recycle gas
• High-pressure nitrogen
• Landfill gas
