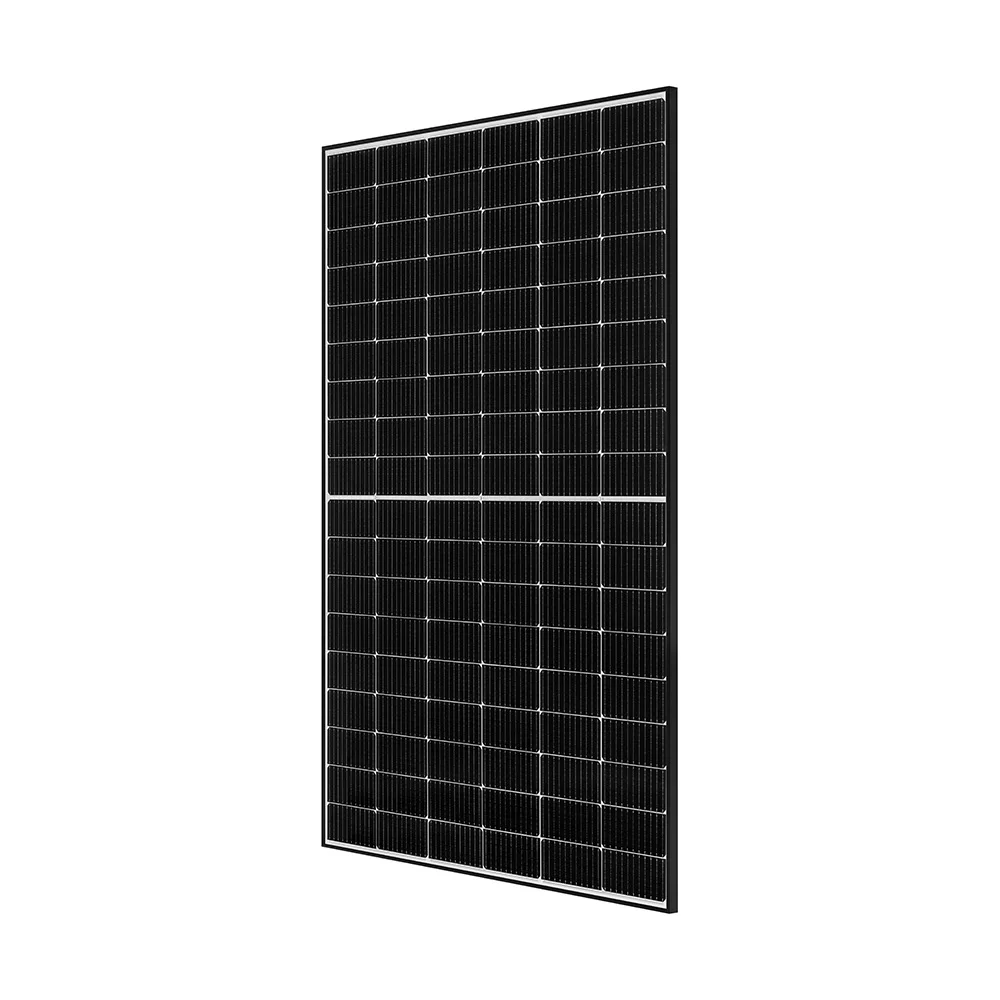

Полностью черная солнечная панель Pv 400 Вт, 440 Вт, 450 Вт, 460 Вт, Перк, моно, полностью черный панно
12,63-16,08 ₽

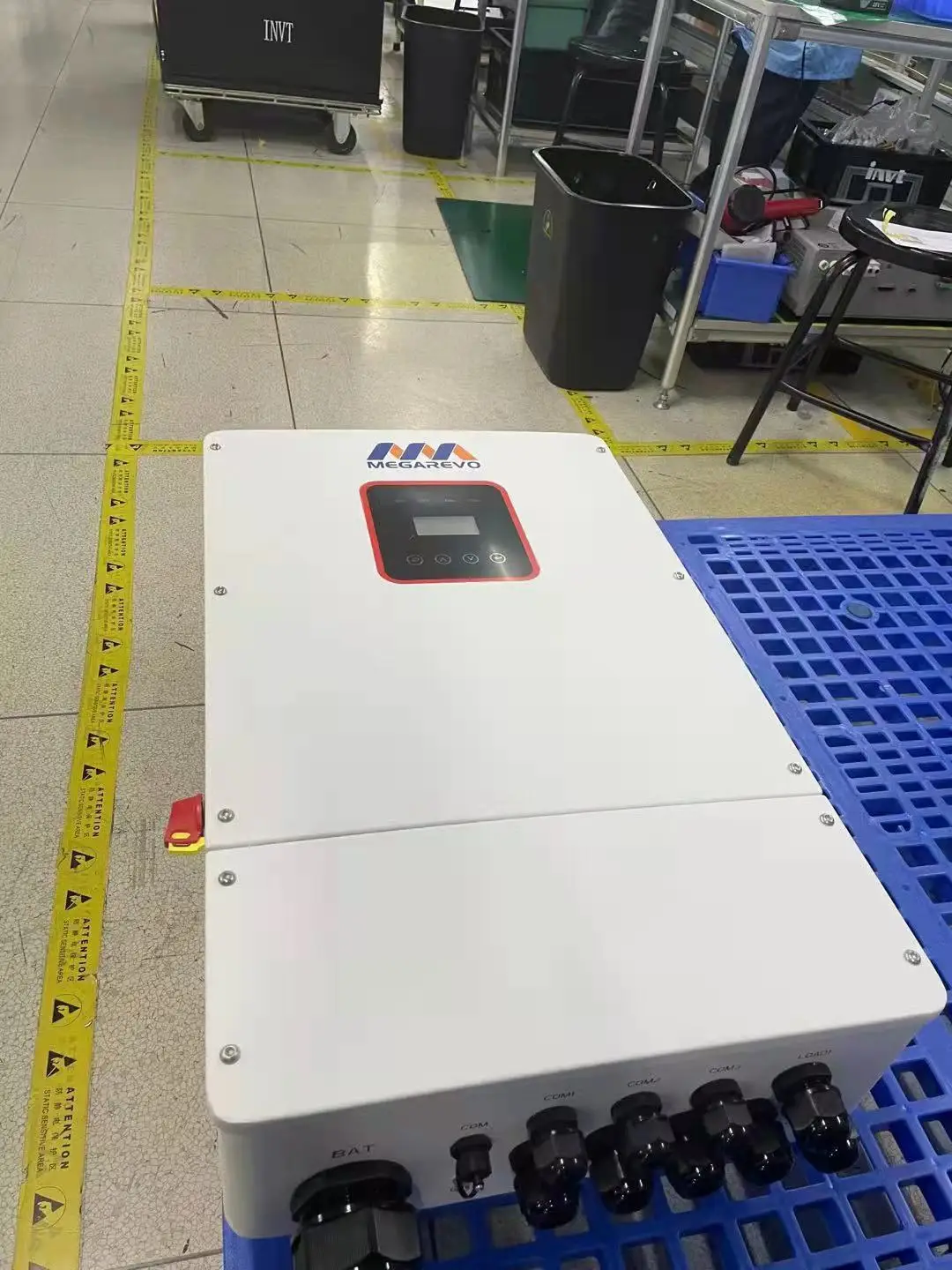

Распродажа солнечный инвертор с разделенной фазой GKA 8 кВт для Южной Северной и Центральной Америки американская версия
- Категория: Solar Energy Products >>>
- Поставщик: Nantong Gamko New Energy Co. Ltd.Nantong Ltd.
Сохранить в закладки 60793627556:
Описание и отзывы
Характеристики
Products Description
PRODUCT CHARACTERISTICS
* Model includes 7.6kw -11.4KW with integrated appearance design
* Wide battery input range compatible with various lithium batteries and lead acid
* Stylish appearance, convenient wiring
* Low noise IP65 design, natural cooling, external fan-free design, improve the whole machine life
* Battery reverse connection protection, charging and discharging are controlled by intelligent software to improve battery life.
* Input and output lightning protection, PV arc detection
* Discharge to full power when battery is full and disconnect charger automatically
* Off grid full power output, transient 1.5 times overload, soft start mode, air conditioner, water pump and other loads included
* Insulation detection, leakage battery, ground fault detection, island protection to prevent electric shock
* Maximum efficiency up to 98.2%
* 4 independent MPPT designs, making the most of light energy in various directions
* Distributed Virtual Power Plant Management Node
* Remote monitoring of computers and mobile phones
* Villa 、 Communication base station 、 Nomadic area 、 Farm 、 Household 、 Backup power
* Wide battery input range compatible with various lithium batteries and lead acid
* Stylish appearance, convenient wiring
* Low noise IP65 design, natural cooling, external fan-free design, improve the whole machine life
* Battery reverse connection protection, charging and discharging are controlled by intelligent software to improve battery life.
* Input and output lightning protection, PV arc detection
* Discharge to full power when battery is full and disconnect charger automatically
* Off grid full power output, transient 1.5 times overload, soft start mode, air conditioner, water pump and other loads included
* Insulation detection, leakage battery, ground fault detection, island protection to prevent electric shock
* Maximum efficiency up to 98.2%
* 4 independent MPPT designs, making the most of light energy in various directions
* Distributed Virtual Power Plant Management Node
* Remote monitoring of computers and mobile phones
* Villa 、 Communication base station 、 Nomadic area 、 Farm 、 Household 、 Backup power
Model | R7K6H1NA | R9KH1NA | R10KH1NA | R11K4H1NA | |||
PV input | |||||||
PV input power | 10kW | 11.7kw | 13kw | 14.82KW | |||
MPPT number | 4 | ||||||
PV voltage range | 150-500V | ||||||
PV input voltage | 500V | ||||||
Each MPPT input current | 13A | 13A | 14A | 14A | |||
AC output (grid) | |||||||
Rated AC output | 120 / 240V 7.6KW | 120 / 240V 9KW | 120 / 240V 10KW | 120 / 240V 11.4W | |||
AC output voltage | 110-120 / 220-240V split phase, 1Ø, 230 1 phase | ||||||
AC output frequency | 50 / 60Hz (45 ~ 54.9Hz / 55 ~ 65Hz) | ||||||
Max output current | 32A RMS | 37.5A | 41.7A | 47.5A | |||
AC reverse charging | Yes | ||||||
Power factor | 0.8 the best ... 0.8 Lagging | ||||||
THDI | <2% | ||||||
Backup AC output | |||||||
Rated backup output power | 7.6 W | 9KW | 10KW | 11.4KW | |||
Maximum backup output power | 9.5kVA 60S / 11.4KVA 1S | 11.25kVA 60S / 13.5KVA 1S | 12.5kVA 60S / 15KVA 1S | 14.25kVA 60S / 17.1KVA 1S | |||
Backup AC output voltage | 110-120 / 220-240 split phase, 1Ø, 230 1 phase | ||||||
AC frequency | 50 / 60Hz | ||||||
Output THDI | <2% | ||||||
battery | |||||||
Max charge and discharge current | 80A / 80A | 62.5A / 62.5A | 69.5A / 69.5A | 79A / 79A | |||
Battery voltage range | 96V to 336V | 150V to 336V | 150V to 336V | 150V to 336V | |||
Battery capacity range | 6.6 ~ 66kWh | ||||||
Battery type | Lithium / lead acid | ||||||
efficiency | |||||||
Maximum efficiency | ≥98.2% | ||||||
CEC efficiency | ≥97.2% | ||||||
protect | |||||||
Perfect protection | Ground protection; Full arc protection; Island protection; DC disconnection detection; Battery reverse protection; Battery charge and discharge protection; Insulation test; GFCI; DC & AC anti thunder; Overvoltage and undervoltage protection; AC & DC overcurrent protection; AC short circuit current protection; Overheat protection | ||||||
General data | |||||||
AC and backup output conduit size | 25.4mm | ||||||
PV input conduit size | 25.4mm | ||||||
Battery input conduit size | 34.5mm | ||||||
Operating temperature range | -25 to + 60 ° C | ||||||
Environmental humidity | 0-95% | ||||||
Altitude | 0 ~ 4000M (Reduction over 2000m) | ||||||
IP rating | IP65 | ||||||
weight | 30kg | ||||||
Dimension (W x H x D) | 530x660 x 200mm | ||||||
Cooling | Natural cooling | ||||||
Noise emission (dB) | <25dB | <29dB | <29dB | <29dB | |||
display | LCD | ||||||
Communication | Modbus, RS485, WiFi, 4G | ||||||
Self consumption at night | <2.5W (<5W when using battery) | ||||||
No transformer | Yes | ||||||
safety | UL1741SA all options, UL1699B, CSA 22.2 | ||||||
EMC | FCC Part 15 ClassB | ||||||
Company Profile
Production Process
FAQ
GAMKO ENERGY FAQ
Q: We like to buy your panels, cause the price is good, but the price is not most
important, I don’t like to buy the trash, how do I know your solar panel have a
good quality, everybody say they are A grade panels, how I can trust you?
A: the first, we make new panels not stock panel, we will providing the flash test report as below:
Series number, Power rates , voltage, current at this flash test report for individual solar panel,
The stock panel have no any database. You don’t know if they are defective or broken panels.
But its not enough.
Please ask Gamko provide the flash test photo and EL photo for each panel. The flash test photo
and EL test photo as below:
The stock panel have no any database. You don’t know if they are defective or broken panels.
But its not enough.
Please ask Gamko provide the flash test photo and EL photo for each panel. The flash test photo
and EL test photo as below:
As a manufacturer, we are obliged to provide those report.
These report can provide after produce, before you make the rest payment.
These report can provide after produce, before you make the rest payment.
Q: I am also worry about my payment safe, How can you guarantee me 100%
payment security?
A: Not only the buyer worry about the payment safe, the supplier also worry about that.
We were use 30% advanced as deposit, rest against BL copy, some of our customer pick up the
cargo with BL copy(So many country can do this way now) Some of our customer refuse to
make the rest payment cause they can waiting until customs auction. (The consignee has title to
the goods and the goods cannot be transshipped or returned without consignee's consent).
So if you do worry about the payment safety so either I, lets do “Alibaba Trade Assurance
Payment” for both safety.
The Trade Assurance service as below:
1, Payment protection
Trade Assurance will cover all payments made during the ordering process up to 30 days after
you receive the goods.
2, Product‐quality protection
Your order will be covered in the event that the product(s) do not match the details outlined in
your contract with the supplier*.
3.Shipping protection
Your order will be shipped on time according to the details of your contract with the supplier. In
the event of a delay, you will be eligible for a refund.
4.Protection period
Your order will be protected up to 30 days after you receive the goods.
Link: https://tradeassurance.alibaba.com/
Of cause we also take TT 30% advanced and rest before delivery, letter of credit.(LC at sights)
Q: How do you comply with your warranty terms if the solar products broken or
defective?
A: It's a hard question to answer. After all, we are not a big company like Trina or Jinko , so we
buy the quality insurance, After 10th October 2018, you buy the panels from GAMKO, bar code
number from GK20181010 ‐ GK20191010 , if there is any problem, in the case of my company
does not undertake, can take a loss by insurance company, however, we believe our quality, and I
believe if any quality problem, you can get the refund from our company directly. The warranty
with Stamp come with the cargoes.
The insurance as below:
We were use 30% advanced as deposit, rest against BL copy, some of our customer pick up the
cargo with BL copy(So many country can do this way now) Some of our customer refuse to
make the rest payment cause they can waiting until customs auction. (The consignee has title to
the goods and the goods cannot be transshipped or returned without consignee's consent).
So if you do worry about the payment safety so either I, lets do “Alibaba Trade Assurance
Payment” for both safety.
The Trade Assurance service as below:
1, Payment protection
Trade Assurance will cover all payments made during the ordering process up to 30 days after
you receive the goods.
2, Product‐quality protection
Your order will be covered in the event that the product(s) do not match the details outlined in
your contract with the supplier*.
3.Shipping protection
Your order will be shipped on time according to the details of your contract with the supplier. In
the event of a delay, you will be eligible for a refund.
4.Protection period
Your order will be protected up to 30 days after you receive the goods.
Link: https://tradeassurance.alibaba.com/
Of cause we also take TT 30% advanced and rest before delivery, letter of credit.(LC at sights)
Q: How do you comply with your warranty terms if the solar products broken or
defective?
A: It's a hard question to answer. After all, we are not a big company like Trina or Jinko , so we
buy the quality insurance, After 10th October 2018, you buy the panels from GAMKO, bar code
number from GK20181010 ‐ GK20191010 , if there is any problem, in the case of my company
does not undertake, can take a loss by insurance company, however, we believe our quality, and I
believe if any quality problem, you can get the refund from our company directly. The warranty
with Stamp come with the cargoes.
The insurance as below:
If any more question, Contact us!
Packing&Shipping
Похожие товары

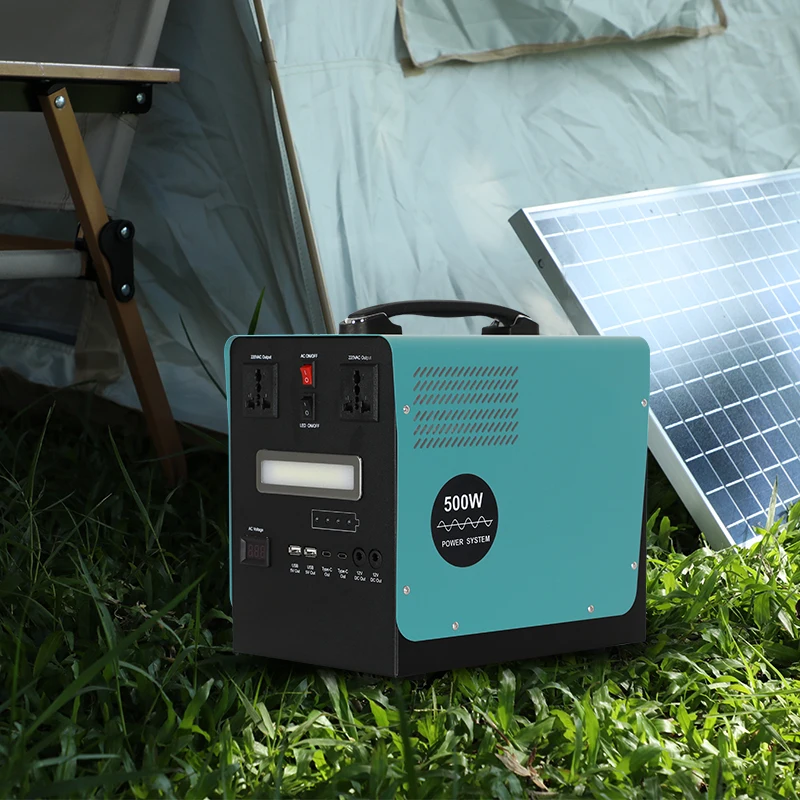

Solarthon House солнечный генератор 500 ватт система домашнего освещения Вт инвертор портативная электростанция

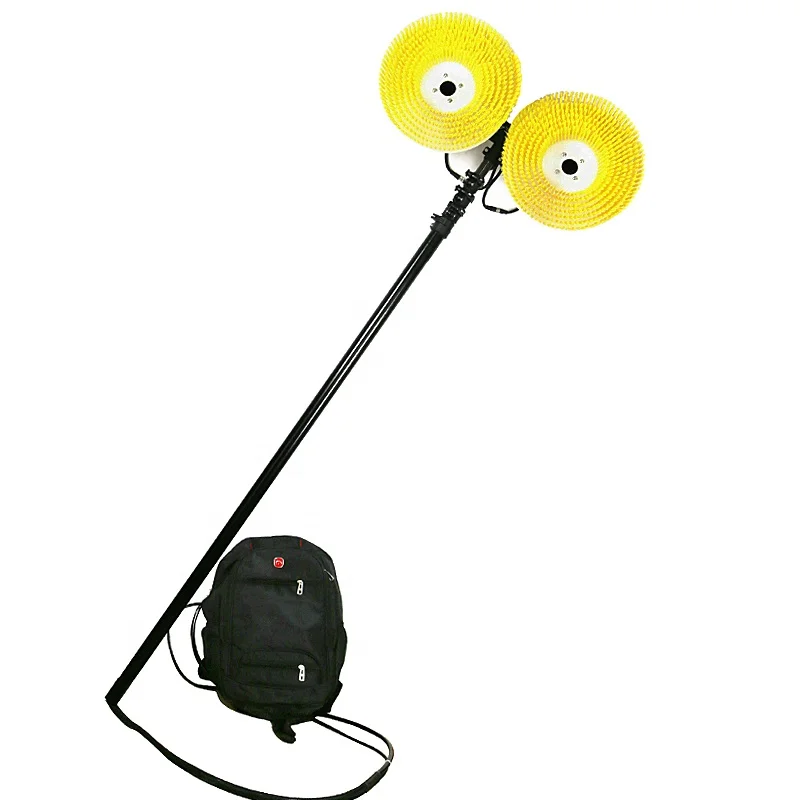

Лучший двойной источник питания, инструмент для очистки солнечной панели, вращающаяся щетка, машина для очистки солнечной панели
45 919,84-57 399,80 ₽

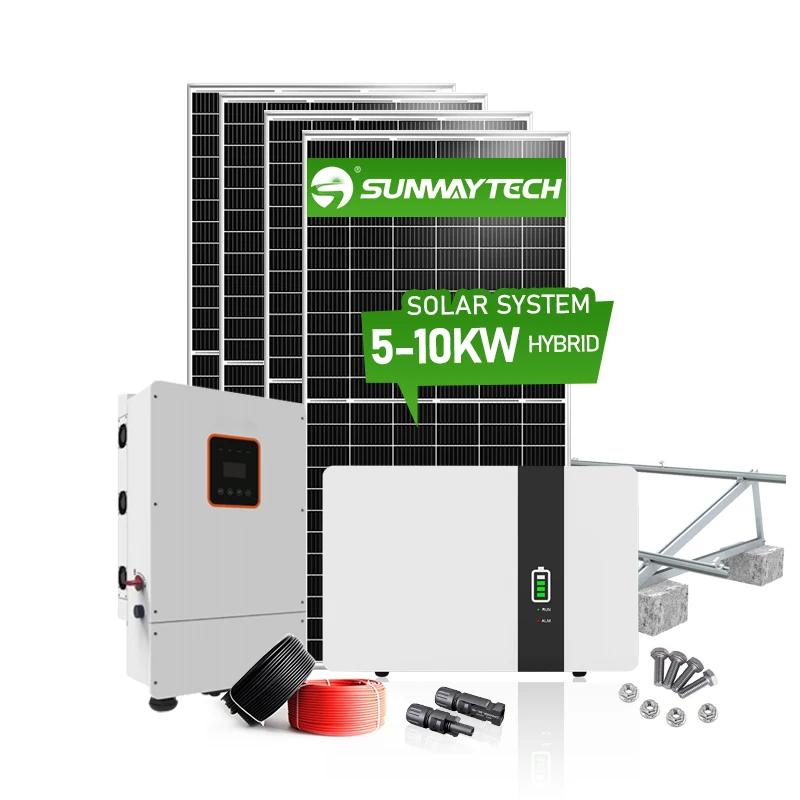

Полная гибридная система солнечных панелей 8 кВт 10 кВт 12 кВт солнечная энергетическая система для дома
