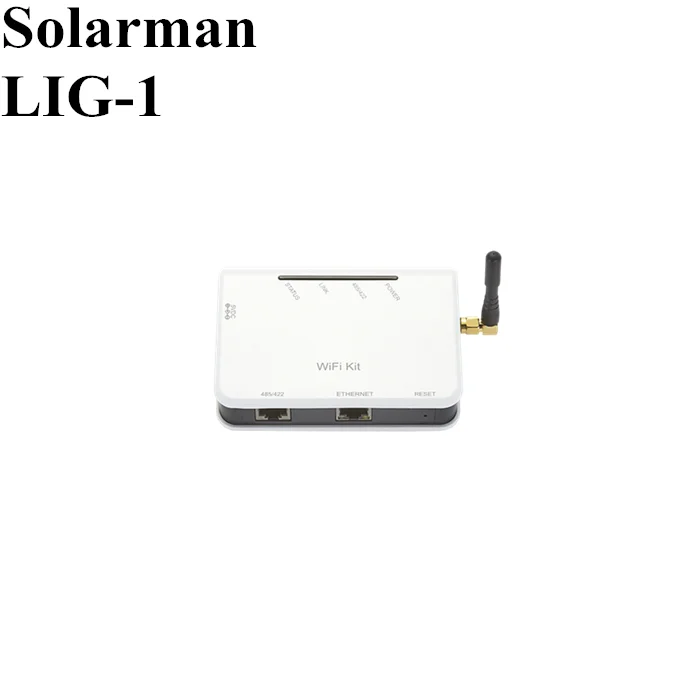

Solarman LIG Inverter Data Logger
Product Description
By collecting information from inverters including status and performance, SolarMAN external data loggers make the long-term monitoring of PV systems feasible and efficient.
By connecting with single or multiple inverters through RS485/422/232 interface, the data logger can collect information of PV systems from inverters. In addition, SolarMAN Portal can provide powerful data support for users. Data collected by the data logger can be transmitted to the monitoring portal via Ethernet, WiFi, GPRS and Zigbee, etc. Both real-time and historical data can be displayed with transparent graphs. Customized alerts can notify users of any malfunction or defect immediately via SMS and emails.
SolarMAN GPRS Kit is suitable for standalone plants or buildings where no network connection is available. A GPRS module is integrated in the data logger, and with a valid SIM card, the data logger can transmit data via mobile network. As the strategic partner of China Mobile, SolarMAN can provide users of GPRS data logger with the most cost-effective global roaming SIM cards which support GPRS data roaming in almost all countries around the world. We will provide the most favorable tariff and the best package for users to ensure the long-term and stable data acquisition from data loggers, therefore ensuring continuous monitoring of PV systems.
Features
- Compatible with most inverters on the market
- Can be connected to up to 64 inverters
- Devices such as combiner box, electric meter and weather station, etc. can be connected
- Two communication methods available, including Ethernet and WiFi
- Data storage of over 25 years
- Check real-time data of data logger and inverter via embedded Web Server
- Dual mode of local monitoring and remote monitoring
Specifications
Technical Parameters
Inverter Kit
Model Number |
| LIG-1 | LIC-1 | LI3W-1 |
| Max. number of inverters | Basic Edition: 1 Advanced Edition: 1-4 Professional Edition: 1-10 *Inverters with 232 interface can only work with basic edition. | Basic Edition: 1 Advanced Edition: 1-4 Professional Edition: 1-10 *Inverters with 232 interface can only work with basic edition. | Basic Edition: 1 Advanced Edition: 1-4 Professional Edition: 1-10 *Inverters with 232 interface can only work with basic edition. |
| Inverter communication | 1 channel 422/485/232(optional) | One channel 422/485/232(optional) | One channel 422/485/232(optional) |
| Remote communication interface | GSM | CDMA | WCDMA |
General | Communication rate | 1 200-57600 bps Adjustable | 1 200-57600 bps Adjustable | 1 200-57600 bps Adjustable |
Frequency | 850/900/1800/1900MHz | 800MHz | 850/900/1800/1900/2100MHz | |
| Wireless communication distance | - | - | - |
Wireless transmit power | Max(2W)/Min(1W) | Max(2W)Min(0.5W) | Max(2W)/Min(1W) | |
| Data-collection interval | 5 minutes default /1-15 minutes optional | 5 minutes default /1-15 minutes optional | 5 minutes default /1-15 minutes optional |
| Preferences setting | Web Server/Serial AT instruction | Web Server/Serial AT instruction | |
| Data access | (485 / 422) /Remote server | (485 / 422) /Remote server | (485 / 422) /Remote server |
| Status display | 4 LEDs | 4 LEDs | 4 LEDs |
| Data storage | Default 2M Flash (512K-16M) BYTE FLASH Optional | Default 2M Flash (512K-16M) BYTE FLASH optional | Default 2M Flash (512K-16M) BYTE FLASH Optional |
| Input voltage | DC5.0V (+/-5%) | DC5.0V (+/-5%) | DC5.0V (+/-5%) |
Electrical | Static power consumption | <2W | <2W | <2W |
| Max. instantaneous power consumption | 3W | 3W | 3W |
| Operating temperature | -25°C -+65°C | -25°C-+65°C | -25°C-+65°C |
| Operating humidity | 10%-90% | 10%-90% | 10%-90% |
Operating Environment
| Storage temperature | -25°C-+65°C | -25°C-+65°C | -25°C-+65°C |
| Storage humidity | <40% | <40% | <40% |
| Protection class | IP21 | IP21 | IP21 |
Phycial | Dimensions (L x W x H) | 110mmx80mmx24mnn | 110mmx80mmx24mnn | 110mmx80mmx24mm |
| Installation method | Wall-mounted | Wall-mounted | Wall-mounted |
SolarMAN Monitoring System
Product Picture
More Information
Shanghai Harmuber Technology Development Co., Ltd.
About us
We are one of the largest optical communication device sales agents in China. Our direct manufactory companies are Huawei, Cisco, Dell, HP, ZTE, Juniper, Emerson, Avocent, RFS, Fortinet and Yealink, Yeastar, Grandstream, Polycom, Newrock, Dinstar, Flyingvoice, Zycoo, Fanvil, OpenVox, Avaya. we are a fast growing High-Tech enterprise with Quality Customer Service, Excellent Reputation, Strong technical Support. All the products we sell are 100% authentic with original package.
Our Mission
1.Lowest Price with High Quality.
2.Fast Delivery with Low Cost and Security.
3.Professional Technical Support.
4.Advanced Customer Service
Return Policy
1. We consider our customer as first priority, we are aiming
For 100% satisfied customer service.
2. We exam and test the function of every product before packaging.
3. We support technical repair if there’s quality issue within warranty.
4.Please make every order considerably.
Warranty
All the products come with ONE year warranty
Payment Service
We accept TT, Bank Transfer, Paypal, Trade assurance.
Shipping Service
TNT, EMS, UPS, FedEx, DHL and China post
Contact us
Please feel free to contact us if you have any questions.
Contact Information
Best Price and Service
Contact Jasmine Now for More Details
Skype:jasmine_harmuber
Wechat:jasmine_harmuber
Похожие товары
Профессиональные Пластиковые Свистки для выживания на открытом воздухе с логотипом под
0,19 $ - 0,48 $
Крутящаяся Квантовая бутылка для питьевой воды с низкой частотой и молекулярным резонансом, 500 мл, для улучшения желудочно-кишечных заболеваний
79,00 $ - 249,00 $
Лидер продаж, Sprite Pepsi 330 мл из Польши и Дании

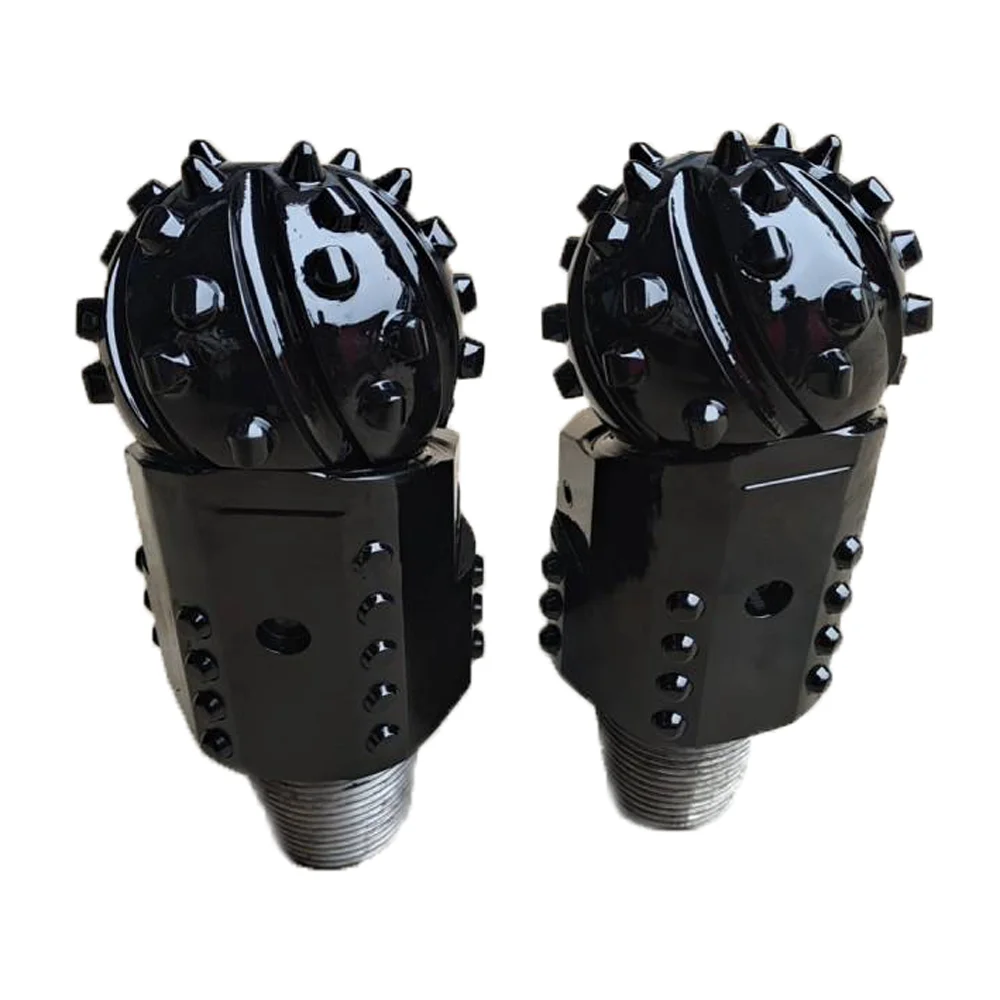

API одиночное сверло, герметичные роликовые подшипники для воды/газа/нефти
363,00 $

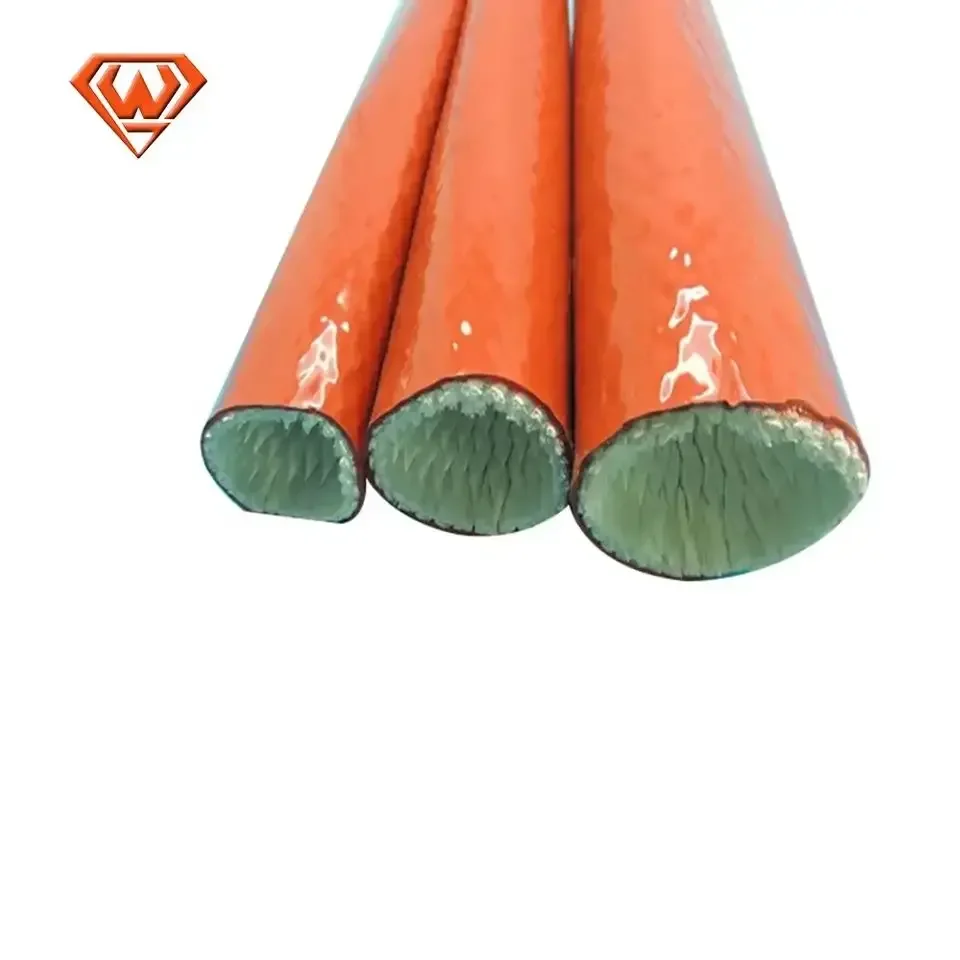

Электрический изоляционный материал силиконовый каучук белый Стекловолоконный рукав
0,15 $ - 3,00 $

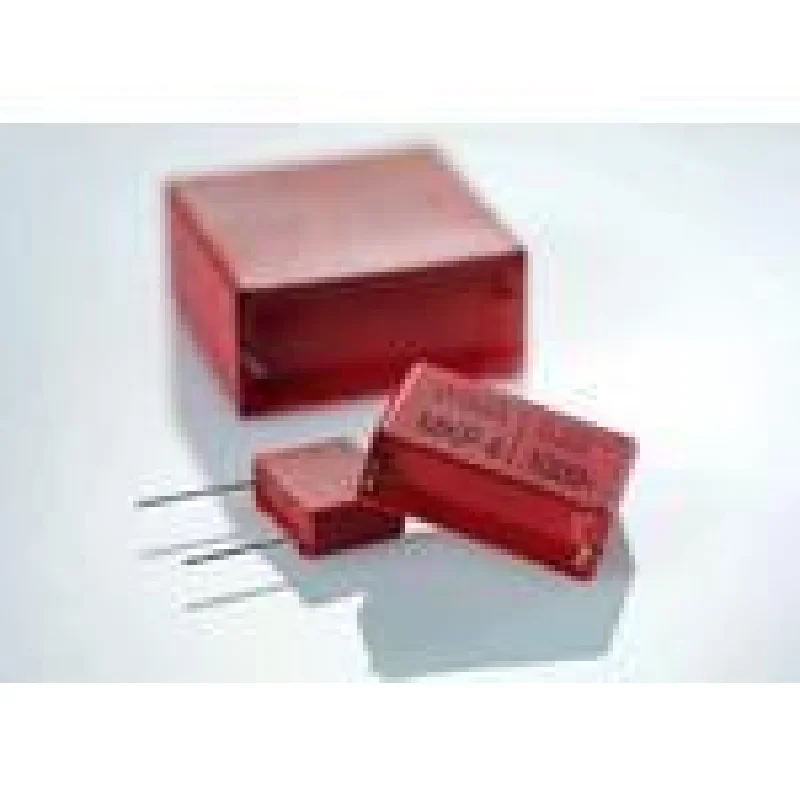

MKP1T023305B00JH integrated circuits capacitor module resistors modules diode transistors sensor
