Алюминиевая композитная панель строительный материал ACP сэндвич панель стальная Композитная Панель
- Категория: >>>
- Поставщик: Linyi Xingda Aluminum&Plastic Decoration Material Co. Ltd.Linyi Ltd.
Сохранить в закладки 60795376970:
Описание и отзывы
Характеристики

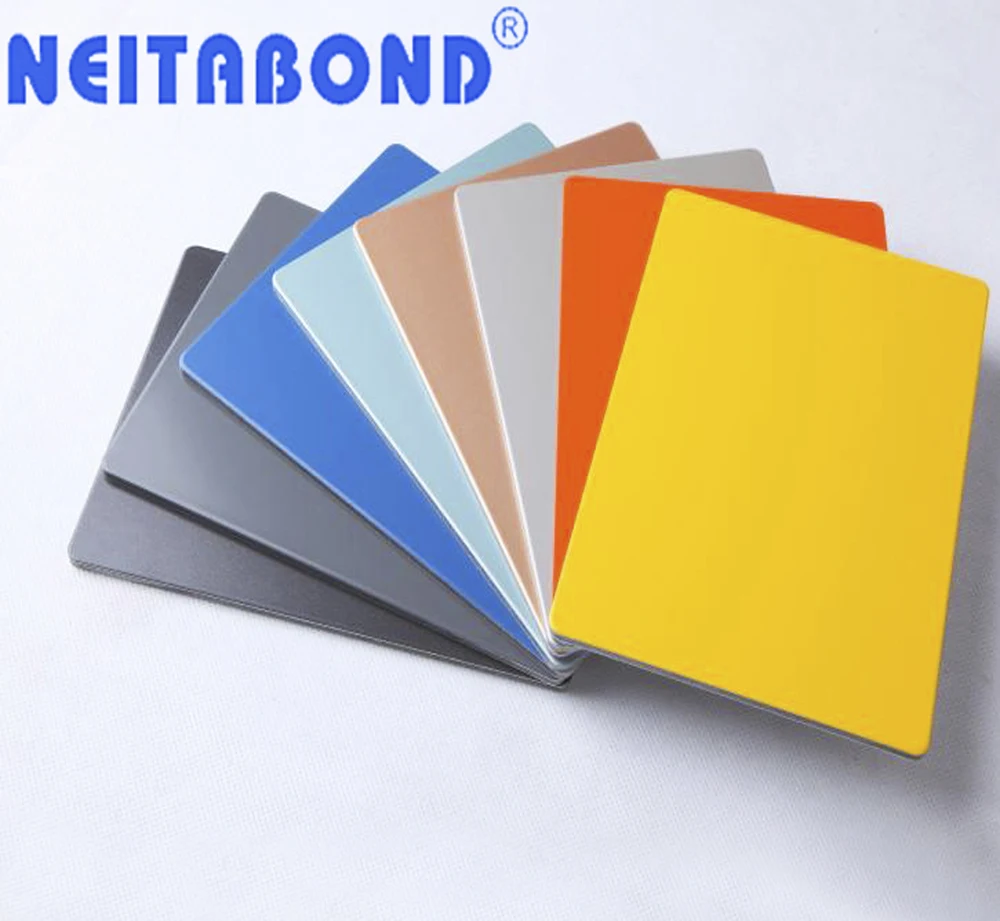

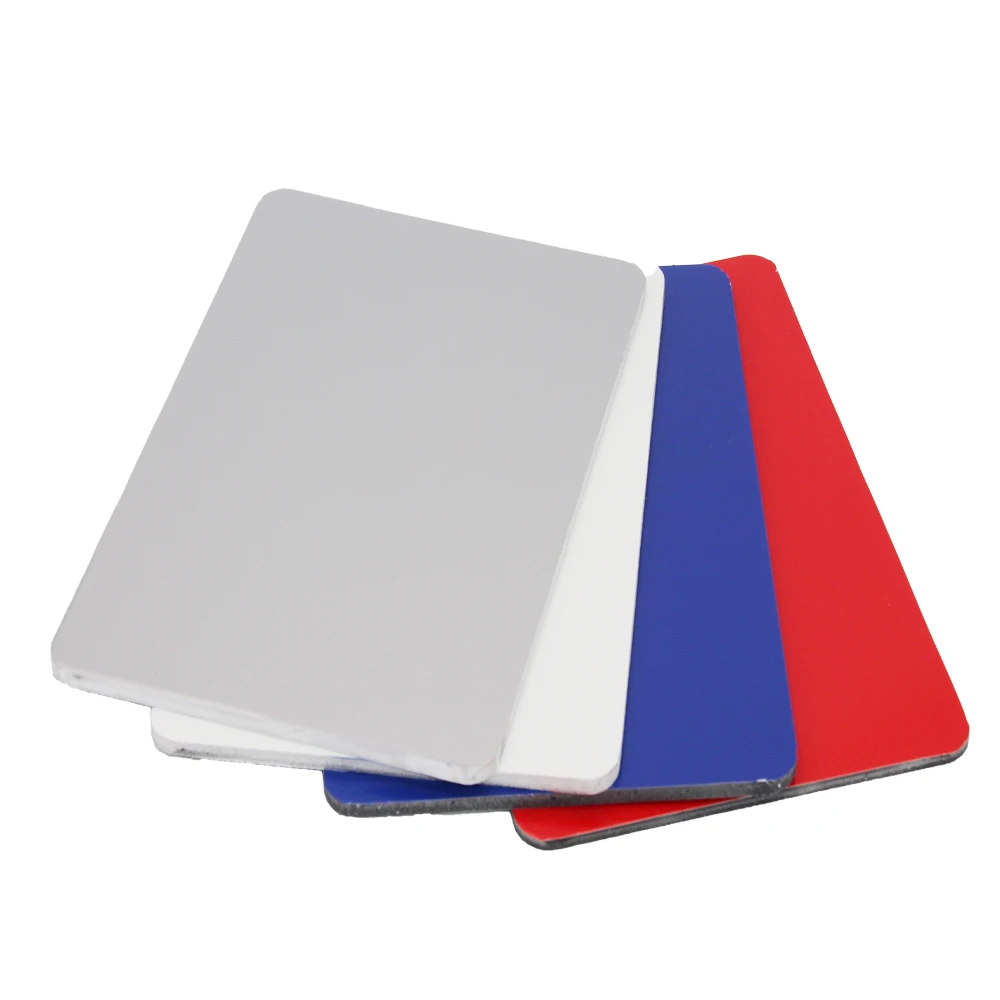

Product Description
Insulation ACP
| Brand Name | NEITABOND Quality Alucobond Fireproof ACP |
| Panel size | 1) Standard size :1220mmx2440mmx3mm/4mm Non-standard size: 1250x3200mm, 1550x5800mm,1500*3050mm 2) Accepted thickness:2-4mm(standard) 5mm 6mm(new and special) 3) Accepted Length: According to buyer's requirements (Max:6000mm) 4) Skin aluminium thickness: 0.08-0.5mm |
| Materials | 1) Front: AA1100 aluminium skin coated with PVDF or PE. 2) Core: nontoxic low density polyethylene(LDPE)/plastic fireproof materials(B1 OR A2). 3) Back: AA1100 aluminium skin coated with PE primer. |
| Characteristics | 1)Light weight, the intensity is high, easy to maintain, cut, bend, arch and install. The panel average weight is 3.5 - 5.5 kg/sqm. 2)Extremely good for the weathering resistance, acidity, alkaline resistance, thermal insulation, acoustic insulation and damping. 3)The surface is smooth and flat and easy to maintain., 4)The aluminium surface is tough, the core PE panel is flexible, therefore the panel has high impact resistance. |
| Application | 1)Constructional exterior curtain walls; 2)Decorative renovation for storey-added old buildings; 3) Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies; 4)Advertisement board, display platforms and signboards; |

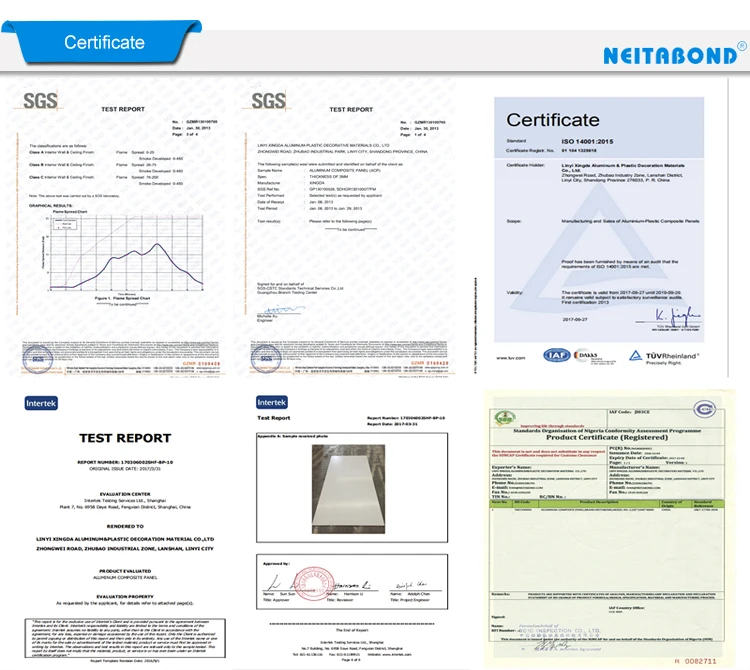

| Certification | According to GB/17448-1999 standard and have passed ISO9001, ISO14001, SGS, CE, BV INTERTEK etc. |
more products
Company Information
NEITABOND® is a famous Chinese ACP brand that belong to Linyi Xingda Aluminum&Plastic Decoration Materials Co., Ltd. It owns seven world-level advanced production lines and 200 employees which assure annual production capacity of 9,000,000 square meters.
NEITABOND® has been exporting for more than 17 years and exported to more than 60 countries.
1)Complete Product Series with competitive price
2)Prompt lead time:10-15 working days after deposite.31500sq.m per day with 7 high speed production lines
3)Complete inspection system
4)Official Cettificates:ISO by TUV,BV,ASTM E84
5)Complete After-sales service system
6)Direct factory,17 years experience:Neitabond,since 2003
7)Free OEM Service
| Description | Test standard | Polyester |
| Thickness of coating | Polyester paint>=16um | 16um to 18um |
| Coating flexibility (T-bend) | Polyester paint≥3T | 3T |
| Color different | ΔE<=2.0(follow color sample) | ΔE<=2.0 |
| Pencil hardness | >=HB | >=2H |
| Chemical resistance | 2%HCI or 2% NaOH test in 24 hours -No change | No change |
| Coating adhesion | >=1grade for 10*10mm2 gridding test | 1grade |
| Resist solvent | 100times with Dimethy benzene without change | No change |
| Boiling water resistance | 2 hours without change | No change |
| Peeling strength/stripping strength | Average >=5N/mm of 180oc peel off for panel with 0.21mm alu.skin | 5N/mm |
| Impact test for paint | 20KG.cm impact-paint no split for panel | No split |
| Abrasion resistance (L/Mil) | NIL | NIL |
| Temperature resistance | -40ºC to +80ºC temperature without change of color difference and paint peel off,peeling strength average dropprate <=10% | Change of glossy only,no paint Peel off |
| Coefficient of linear Thermal Expansion | 100ºC temperature difference | 2.4mm/m |
| Detergent resistance (3%) | ASTM D2248 | No change |
| Humidity Resistance (3000hrs,100%RH,100°F) | ASTM D2247 | No change |
| Salt spray resistance (3000hrs,5% salt) | ASTM B117 | No change |
| Resistance to Staining | 600h radiate in 800W/M2 in humidity condition,glossiness deviation less grade 2,color difference <=4.0 | No change |
Packaging & Shipping
FAQ
♦ Why choose us--Linyi Xingda Neitabond?
High Quality
As one of main supplier of ACP, control the material from each small part and provide a high-quality products to our client.
♦ What material of our Aluminium Composite Panel?
Aluminium Composite Panels are made by two sheets of decorative aluminium Coil and a PE core ,the stricture is like sandwich .
♦ If the color can be customized?
The color can be customized, the MOQ is 1000sqm
♦ when we can ship goods after place an order?
Delivery time is about 7-15 days as per order qty.
♦ How we can received a sample and what is our sample policy?
We can provide free sample to testing or evaluating. The shipping charges by courier should be bear by customer.But this shipping cost can be deducted from official order.
♦ What is our payment Term?
30%T/T deposite in advance,the balance paid against copy of shipping documents is our standard payment term.L/C at sight i
