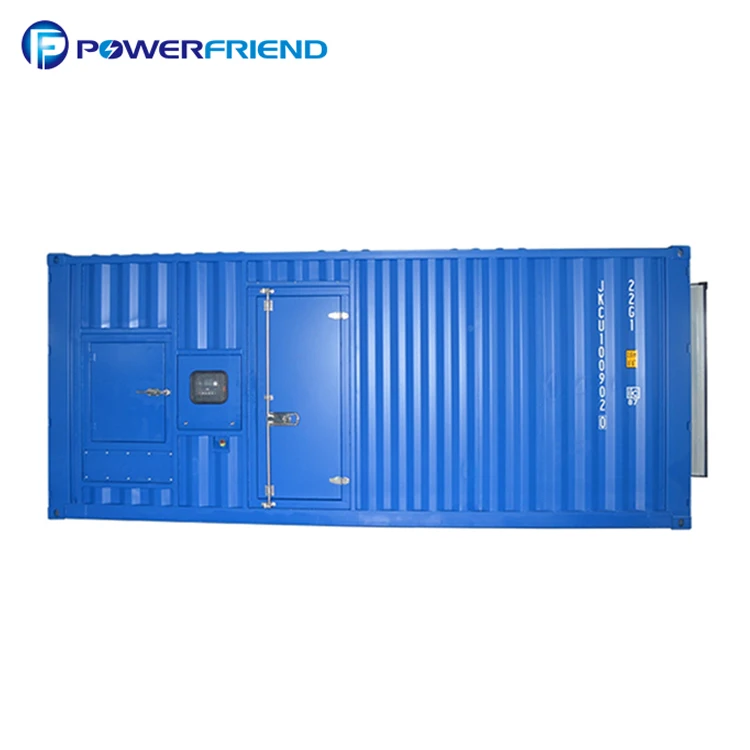

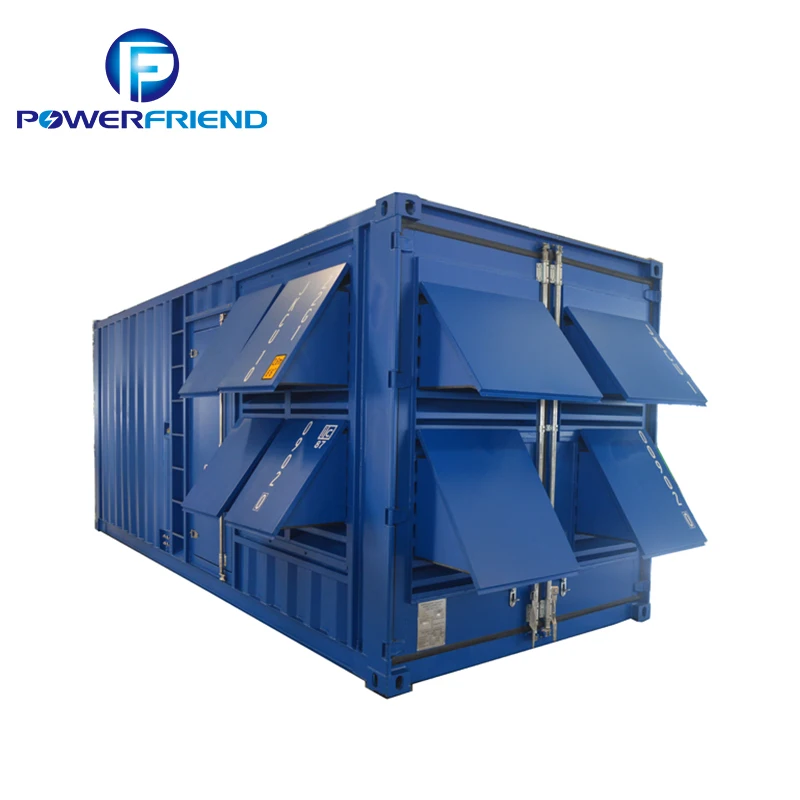

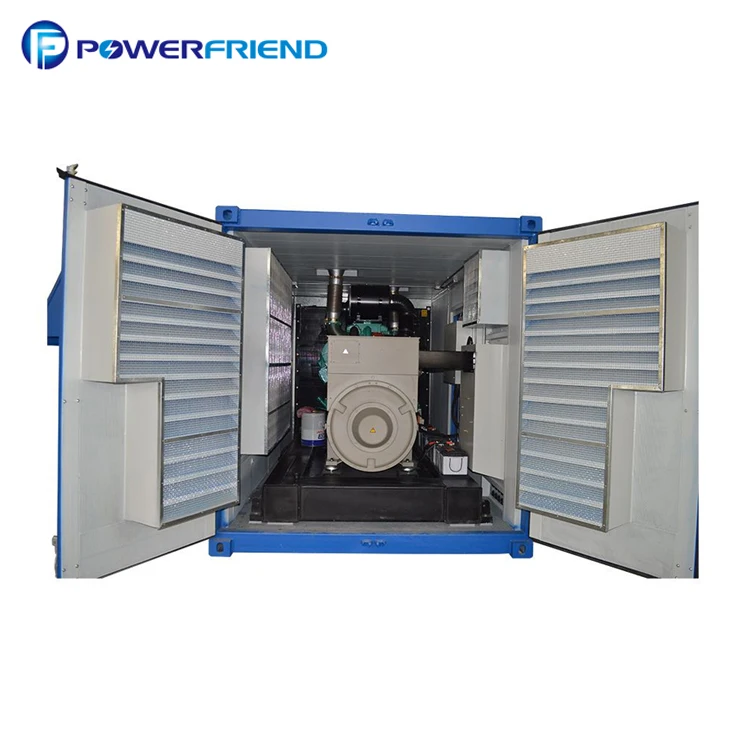

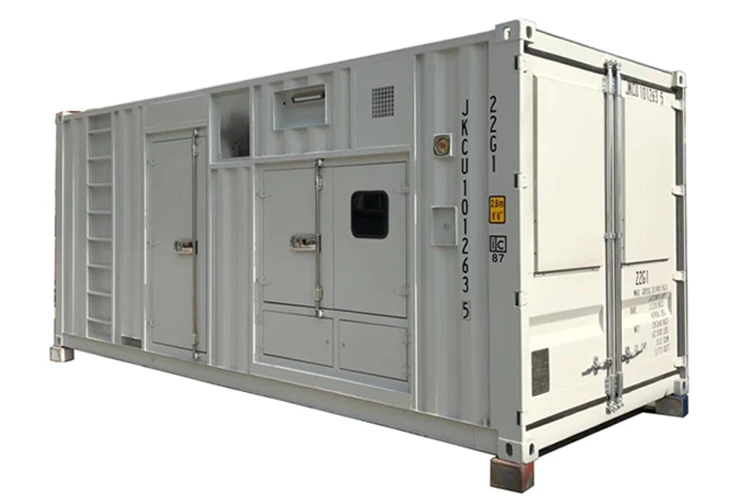

1000 kw 1250 kva 50/60HZ three phase power container diesel generator set
| 20FT Container 1000 KW Technical Specification | |
| Genset Model | PF-SME1375 |
| Rated Power | 1000KW/1250KVA |
| Standby Power | 1100KW/1375KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 220/380V |
| Frequency | 50 HZ |
| Rated Current | 1899A |

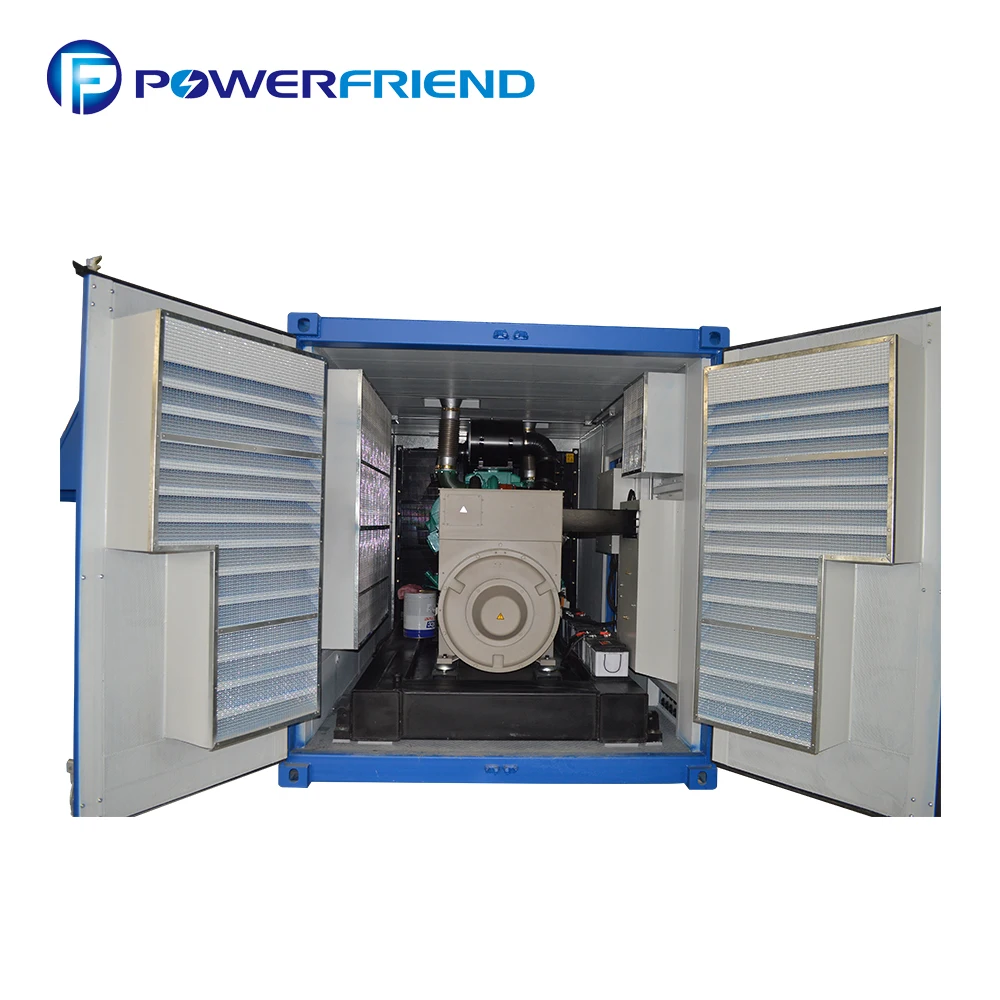

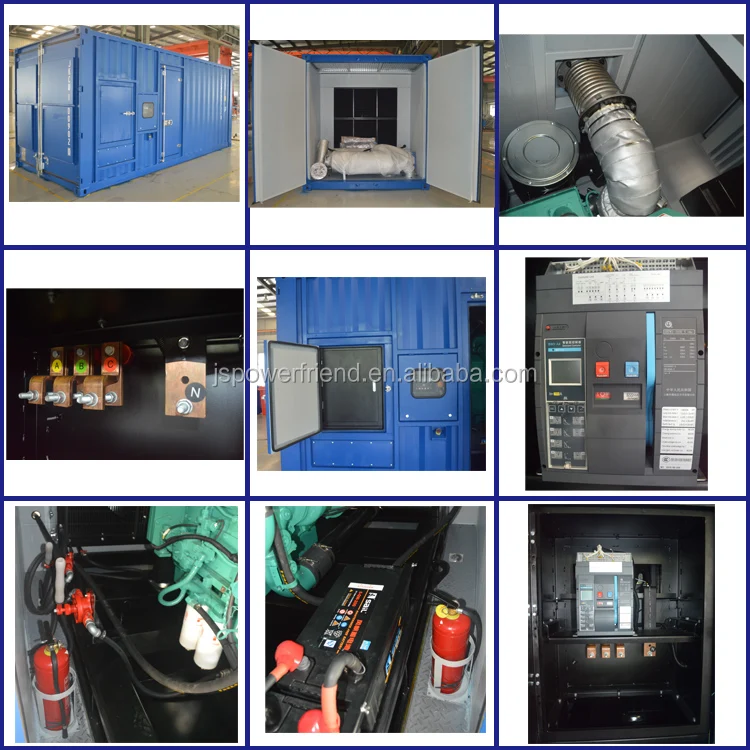

| Genset Structure | 20FT Container |
| Dimension | 6050×2435×2585mm |
| Net Weight | 13000KG |
| Noise level | 85dB at 7 meters |
| Engine Model | SME / S12R-PTA-C |
| Engine Features | 12-cylinder,4 stroke,water cooled ,Turbo |
| Rated power with fan | 1080KW |
| Standby power with fan | 1190KW |
| Bore * Stroke | 170mm × 180mm |
| Displacement | 49.03L |
| Rated speed | 1500r/min |
| Fuel Consumption L/H | 266L/H |
| Compression Ratio | 14.0:1 |
| Exhaust Air pipe diameter | 321mm |
| Exhaust Gas flow | 256 m³/min |
| Maximum allowable exhaust back pressure | 5.9 kPa |
| Power supply | 24 V |
| Governor type | ELECTRIC |
| Exhaust temperature | 520℃ |
| Intake Air flow | 97 m³/min |
| Maximum intake Air Restriction | 5.6 kPa |
| Intake Air pipe diameter | 152mm |
| Oil total | 180L |
| Maximumim oil temperature | 110℃ |
| Coolant Capactiy(Include water tank) | 391L |
| Standard Thermostat Range | 71~85℃ |
| Top temperature of Radator | 98℃ |
| Environmental thermal loss power | 85.5KW |
| The coolant thermal loss power | 712.8KW |
| Exhaust thermal loss power | 833.1KW |
| Approx weight | 5350KG |
| Alternator Model | STAMFORD /PI734A |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |

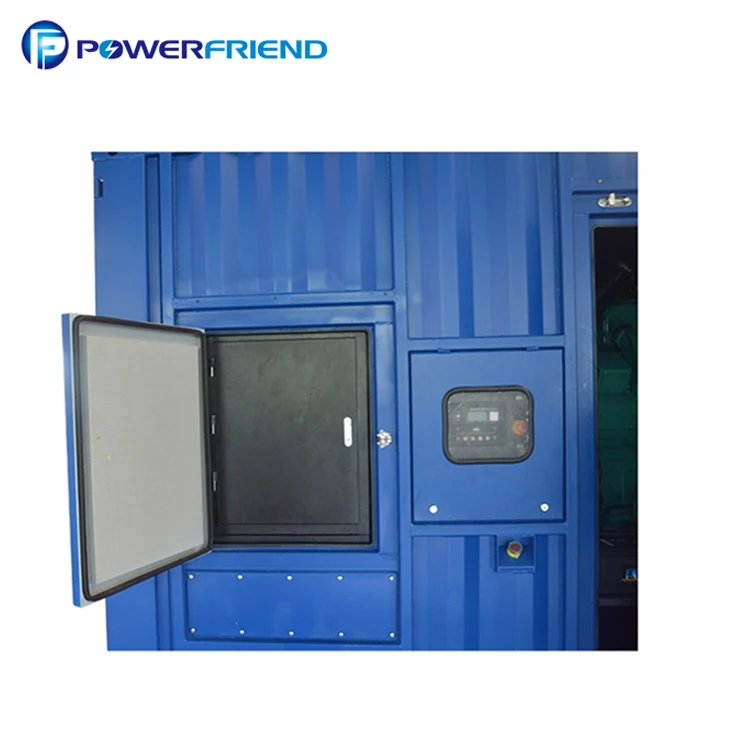

| Controler Panel | Smartgen 6110 |


| About Our Company | |
|---|---|
JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.
Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients. We supply Generator Sets from 2kva to 3000kva.
Our Goal: Satisfying customers by our good quality and strict business management; Increasing the occupancy of the market and competitive strength; further expanding the global market.
We are your faithful power friend!
| |
| Trade shows |
Our company has participated in several exhibitions, such as Canton Fair(Guangzhou) and many foreign trade shows.

| FAQ |
Q1: What is your warranty period?
A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
Q2: Does your generator have global warranty?
A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.
Q3: What is your payment terms?
A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
Q4: What is your delivery time?
A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
Q5: Can the generators be customized?
A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
Q6: Can you use our logo?
A6: Yes. For mass orders, we can use customer's logo instead of ours.
