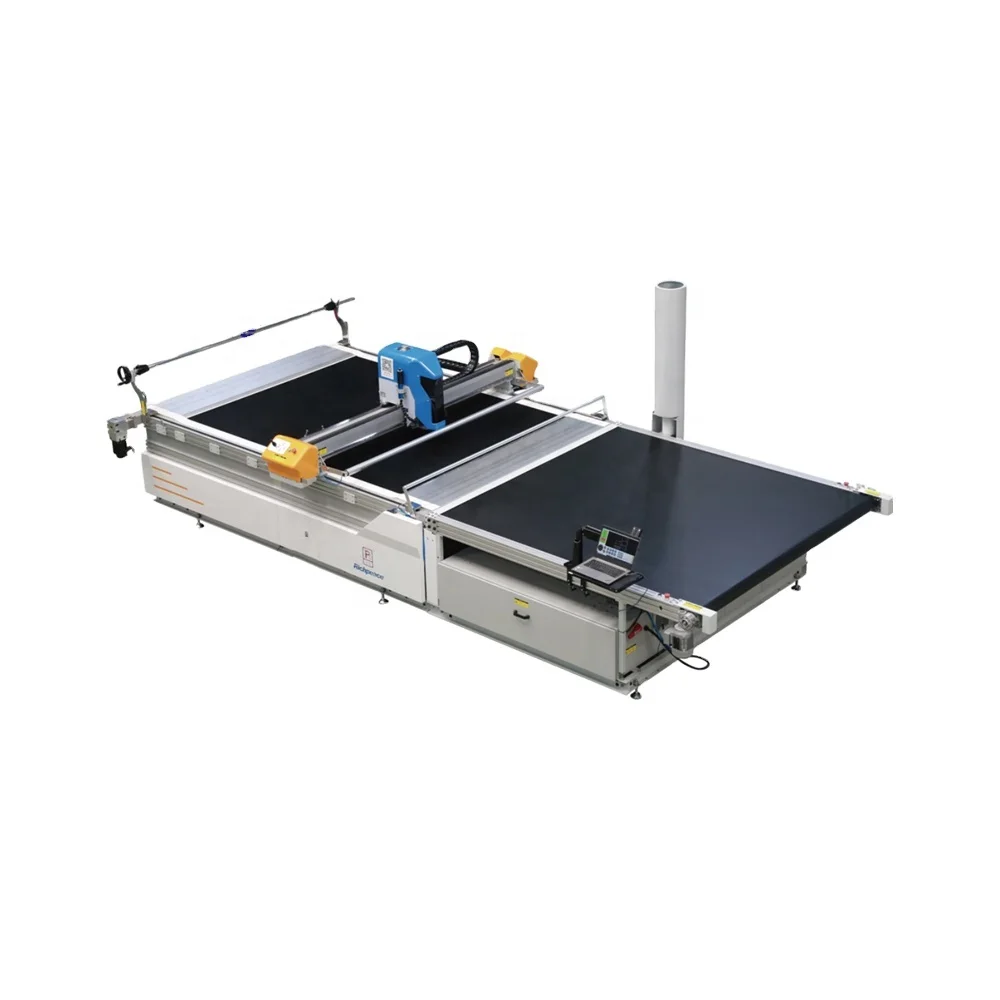

Высококачественная Автоматическая многослойная режущая машина Richpeace 9 см для текстильной одежды и
4 408 336,00 ₽
Сканирование на Fly лазерный резак для сублимационной одежды с конвейером и автоподачей
- Категория: >>>
- Поставщик: Wuhan Golden Laser Co. Ltd.
Сохранить в закладки 60797039836:
Описание и отзывы
Характеристики
NOTE: Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.;-)
Product Description
Apparel Fabric Laser Cutter
__
CJGV-1601030LD is ideal for cutting digital printing sublimation textile fabrics of all shapes and sizes. Cameras scan the fabric, detect and recognize printed contour, or pick up on printed registration marks and cut the chosen designs with speed and accuracy. The conveyor and the auto-feeder are used to guarantee cutting continuously, which aims to save time and increase productivity.
Now it's time for you to consider using a laser solution and giving your company an edge over the competition.

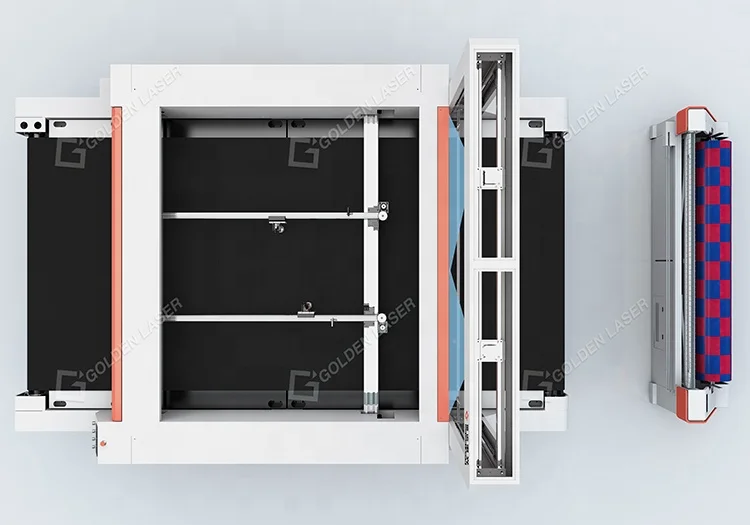

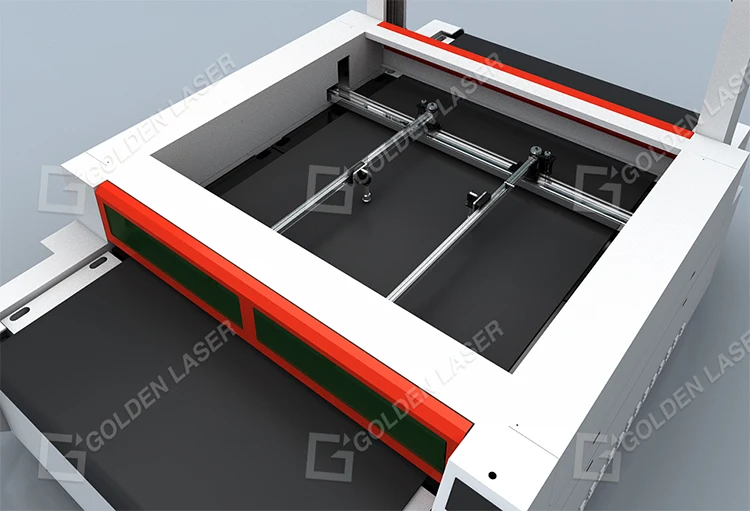

Machine Pics
__
Specification
CJGV-160130LD Technical Parameters | ||
Working Area | 1600mm×1300mm (63″×51″) | |
Camera Scanning Area | 1600mm×800mm (63″×31.4″) | |
Working Table | Conveyor working table | |
Laser Type | CO2 glass laser / CO2 RF metal laser | |
Laser Power | 150W x 2 / 300W x 2 | |
Cutting speed | 0-800 mm/s | |
Positioning Accuracy | ±0.1mm | |
Motion System | Servo motor | |
Cooling System | Constant temperature water chiller | |
Exhaust System | 1.1KW exhaust fan × 2, 550W exhaust fan × 1 | |
Power Supply | AC220V±5% 50Hz / 60Hz, Single phase | |
Power Consumption | 9KW | |
Software | GoldenCAD Scanning Software Package | |
Space Occupation | 4316mm (L)×3239mm (W)×2046mm (H) (170”×127”×80” ) | |
Options | Auto feeder, red dot pointer | |
Features
__
◊ Continuous “on the fly” scanning
◊ Independent dual laser head
◊ No original file required
◊ Vacuum conveyor
◊ 30%~50% Faster than competition
Benefits
__
◊ Continuous “on the fly” scanning
◊ Independent dual laser head
◊ No original file required
◊ Vacuum conveyor
◊ 30%~50% Faster than competition
Benefits
__
◈ Independent dual laser heads cut their respective allocated areas simultaneously, high processing efficiency.
◈ A conveyor bed and auto-feeder is used to keep cutting continuous, saving time and increasing production speed.
◈ Extension table is conducive to pick up the cut pieces.
◈ Independent dual laser heads cut their respective allocated areas simultaneously, high processing efficiency.
◈ A conveyor bed and auto-feeder is used to keep cutting continuous, saving time and increasing production speed.
◈ Extension table is conducive to pick up the cut pieces.
Work Flow
While the sublimated fabric roll is being fed on the conveyor table, the vision system performs a fast scan on the fly and automatically creates a vector file. It allows an optimum use of printed fabrics due to the vision scanning technology that scans the entire bed within 5 seconds before starting the cutting process.
Alternatively, the registration marks can be accurately read by the camera, allowing intelligent algorithm to compensate for any distortions or stretches that may occur in unstable rolls of textile.
WORK MODE 1 → Scan on the Fly
Alternatively, the registration marks can be accurately read by the camera, allowing intelligent algorithm to compensate for any distortions or stretches that may occur in unstable rolls of textile.
WORK MODE 1 → Scan on the Fly
__
Step 01
__
__
Loading the dye-sublimated roll fabrics to the conveyor working table of laser cutter with auto-feeder.
Step 02
__
__
HD Cameras scan the fabrics, detect and recognize the printed contour, and send the information to laser cutter.
Step 03
__
__
Set the cutting parameters. Press "start" button on laser cutter. Then the laser cutting machine will do cutting automatically.
Step 04
__
__
Laser cutting and repeat the entire process.
Printing requirement - The printed outline and materials background have big color difference, distance not less than 5mm between the contours. Only the outer contour can be cut, the inside nested graphics cannot be cut.
WORK MODE 2 → SCAN PRINT MARKS
WORK MODE 2 → SCAN PRINT MARKS
__

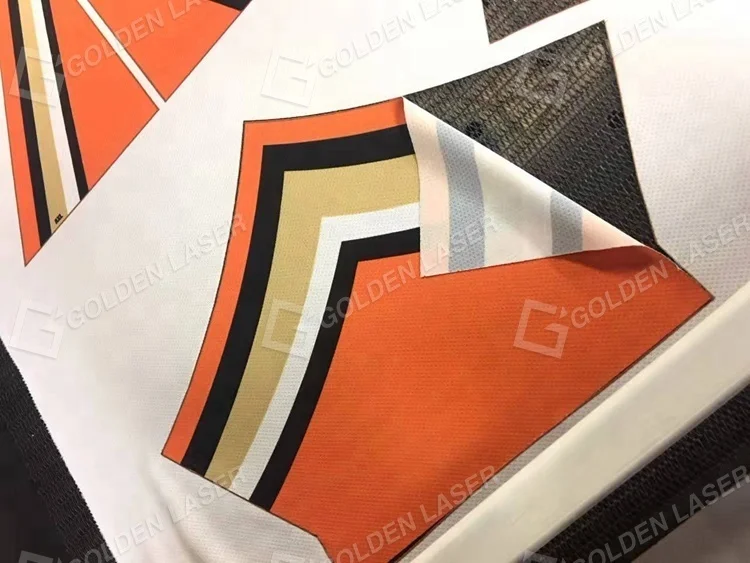

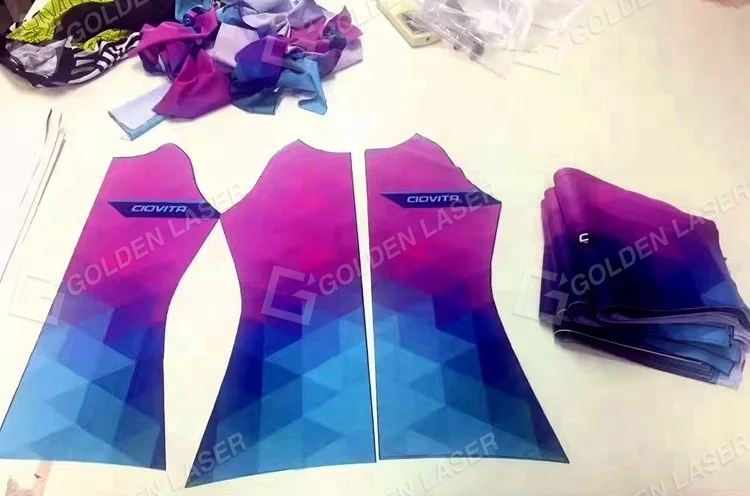

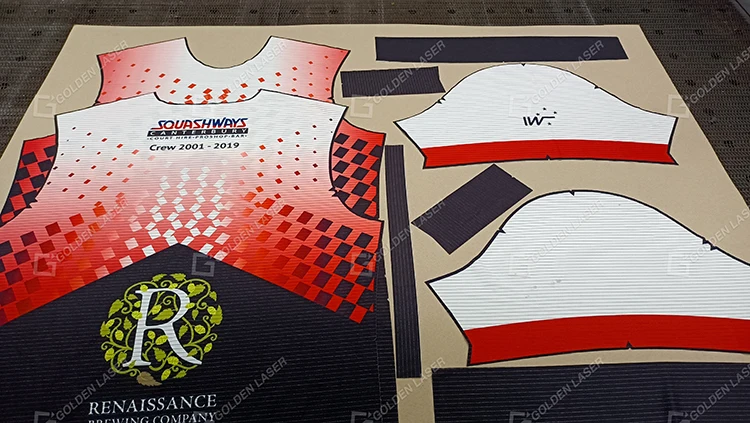

Sublimation Fabrics Laser Cutting Sample - Before Laser Cutting VS. After Laser Cutting
Before
After
Goldenlaser's Vision Scanning Laser System solved the problem of position deviation, rotation angle, and elastic stretching during the sportswear cutting process.
Requirements - Need 1:1 original printed graphics file. Graphics format: *.jpg, *.bmp, or *.png
Requirements - Need 1:1 original printed graphics file. Graphics format: *.jpg, *.bmp, or *.png
Applications
* Sportswear Jerseys (basketball jersey, football jersey, baseball jersey, ice hockey jersey)
* Cycling apparel
* Active wear, leggings, yoga wear, dance wear
* Swimwear, bikinis * For soft materials easy to distort, curl, extended
* For complicated pattern, nesting pattern inside the outline and high precision cutting requirement
* Cycling apparel
* Active wear, leggings, yoga wear, dance wear
* Swimwear, bikinis * For soft materials easy to distort, curl, extended
* For complicated pattern, nesting pattern inside the outline and high precision cutting requirement
Packing & Delivery
Company Profile
GOLDEN LASER, China's first GEM listed company (stock code: 300220)! Accumulated 20 years of experience in laser equipment manufacturing and exporting. Providing the best cost-effective laser solutions!
► Laser innovative application service platform
► Leading laser solution provider
► 20 years experience in laser industry
► Laser-World of Photonics Exhibitor since 2005
► Strict quality control and exclusive after-sales service team
► Providing customized laser machines for users and distributors globally
Golden Laser - Golden Service
• Installation Service
Installation Services are available with all GOLDEN LASER machines. We dispatch technician to customer's factory for installation and preoperation of machines.
• Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
• Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. Machine warranty is 1 year. We offer flexible extended warranties if needed.
► Laser innovative application service platform
► Leading laser solution provider
► 20 years experience in laser industry
► Laser-World of Photonics Exhibitor since 2005
► Strict quality control and exclusive after-sales service team
► Providing customized laser machines for users and distributors globally
Golden Laser - Golden Service
• Installation Service
Installation Services are available with all GOLDEN LASER machines. We dispatch technician to customer's factory for installation and preoperation of machines.
• Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
• Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. Machine warranty is 1 year. We offer flexible extended warranties if needed.
FAQ
Q1. How does a laser work?
A1. LASER stands for ‘Light Amplification by Stimulated Emission of Radiation’. In the resonator of a laser source – in material processing, these are often CO2 lasers – a special kind of light beam is generated by the action of
electric energy. With closed CO2 gas mix laser beam sources, the laser is maintenance-free and uses no laser gas - similar to a fluorescent tube.
Q2. Which advantages do laser systems have compared to conventional processing methods?
A2. Every day, more application possibilities arise for the use of laser technology in the textile market. Our laser systems for cutting, engraving and marking are meanwhile being used efficiently across all sectors of industry, both for short runs and for industrial mass production runs.
Q3. How does non-contact cutting affect cutting results?
A3. There is more to non-contact machining than meets the eye. In contrast to mechanical processing, there is no physical contact with the material being processed at any time during laser cutting. While knifes, routing machines or punches cause stress to the material, which can lead to undesirable consequences such as damage, laser cutting offers many advantages thanks to this extraordinary property.
NOTE: Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.
electric energy. With closed CO2 gas mix laser beam sources, the laser is maintenance-free and uses no laser gas - similar to a fluorescent tube.
Q2. Which advantages do laser systems have compared to conventional processing methods?
A2. Every day, more application possibilities arise for the use of laser technology in the textile market. Our laser systems for cutting, engraving and marking are meanwhile being used efficiently across all sectors of industry, both for short runs and for industrial mass production runs.
Q3. How does non-contact cutting affect cutting results?
A3. There is more to non-contact machining than meets the eye. In contrast to mechanical processing, there is no physical contact with the material being processed at any time during laser cutting. While knifes, routing machines or punches cause stress to the material, which can lead to undesirable consequences such as damage, laser cutting offers many advantages thanks to this extraordinary property.
NOTE: Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.
Contact
Please contact GoldenLaser for more information. Your response of following questions will help us recommend the most suitable machine.
1. What is your main processing requirement? Laser cutting or laser engraving (laser marking) or laser perforating or ...?
1. What is your main processing requirement? Laser cutting or laser engraving (laser marking) or laser perforating or ...?
2. What material do you need to laser process?
3. What is the size and thickness of the material?
4. What is your application industry? / What is your final product?
5. Your company name, website, Email, Tel (WA...)?
4. What is your application industry? / What is your final product?
5. Your company name, website, Email, Tel (WA...)?
Похожие товары

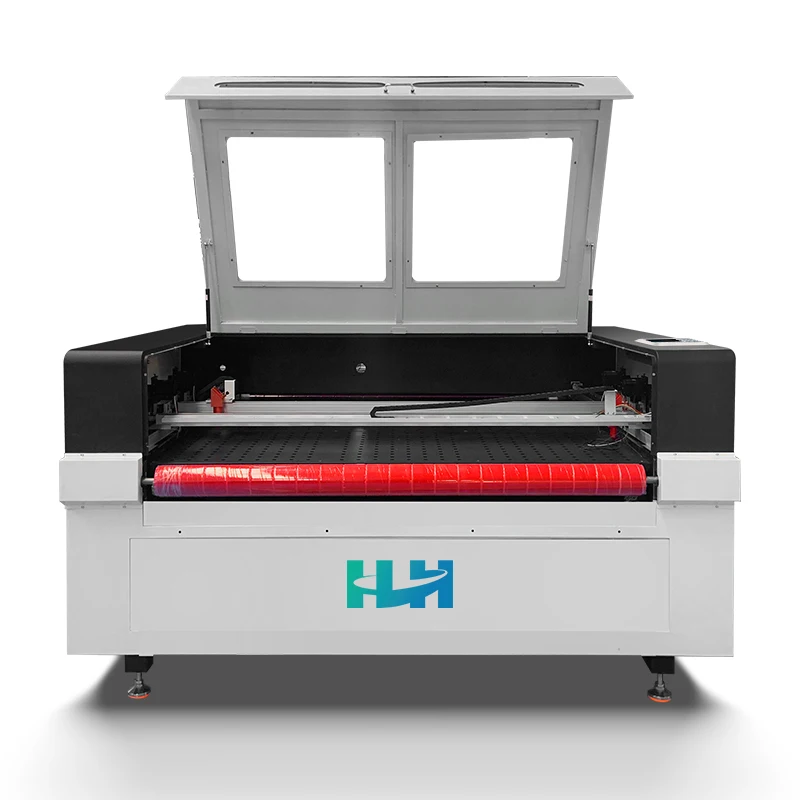

Цена по прейскуранту завода-изготовителя гравировальный станок для лазерной резки дереву 1610 1390 co2 лазерная резка цена

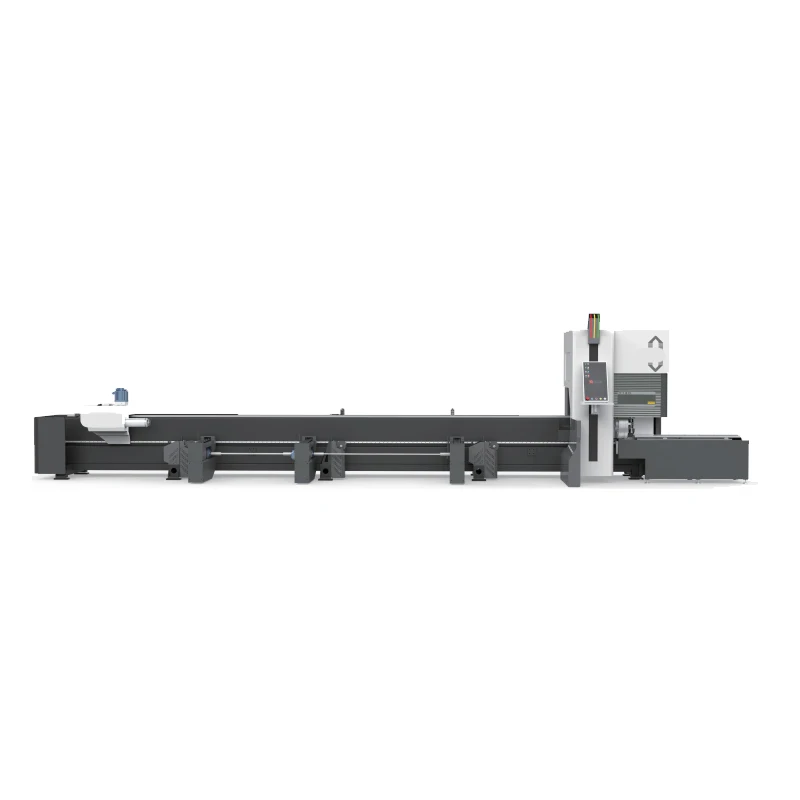

H Профиль луча и трубы лазерная резка 12 м 450 мм трехпаточная трубка Волоконно-Лазерная машина
10 800 423,20 ₽ - 13 225 008,00 ₽

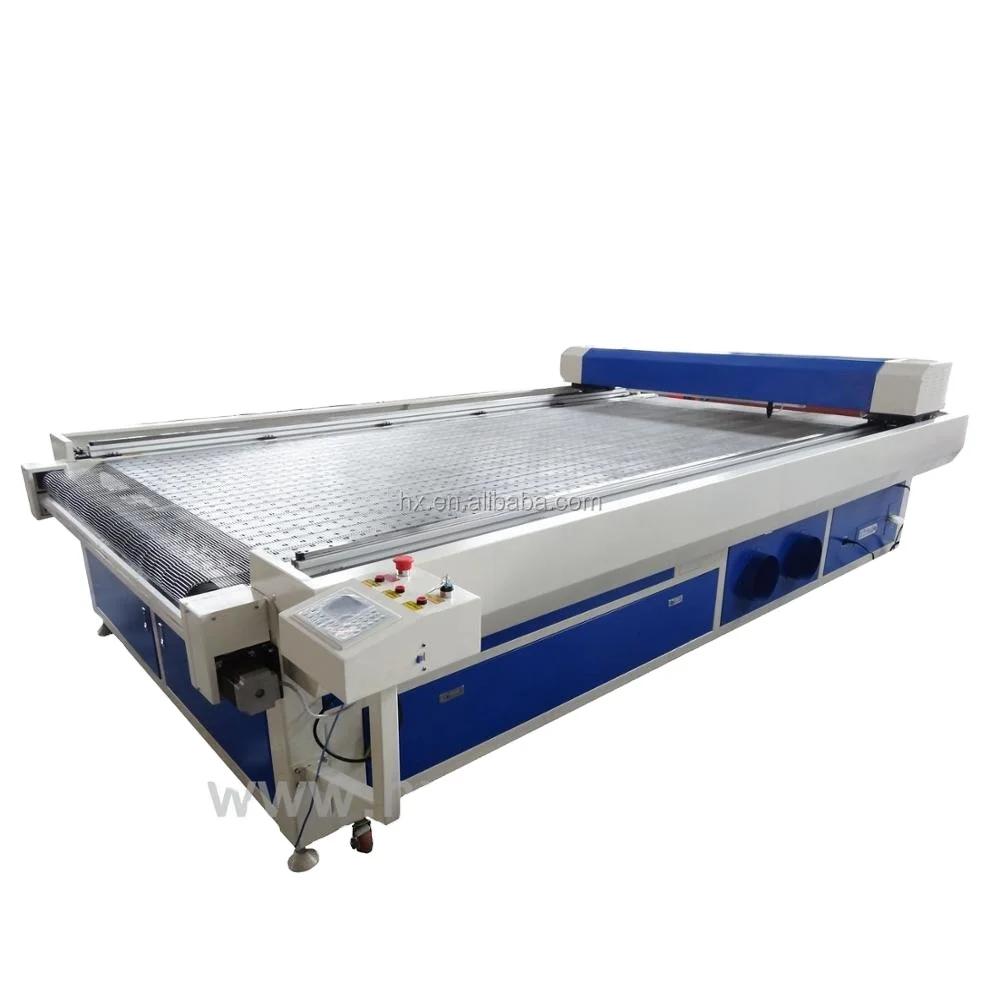

Автоматическая система подачи ткани текстиля машина для лазерной резки
1 212 292,40 ₽

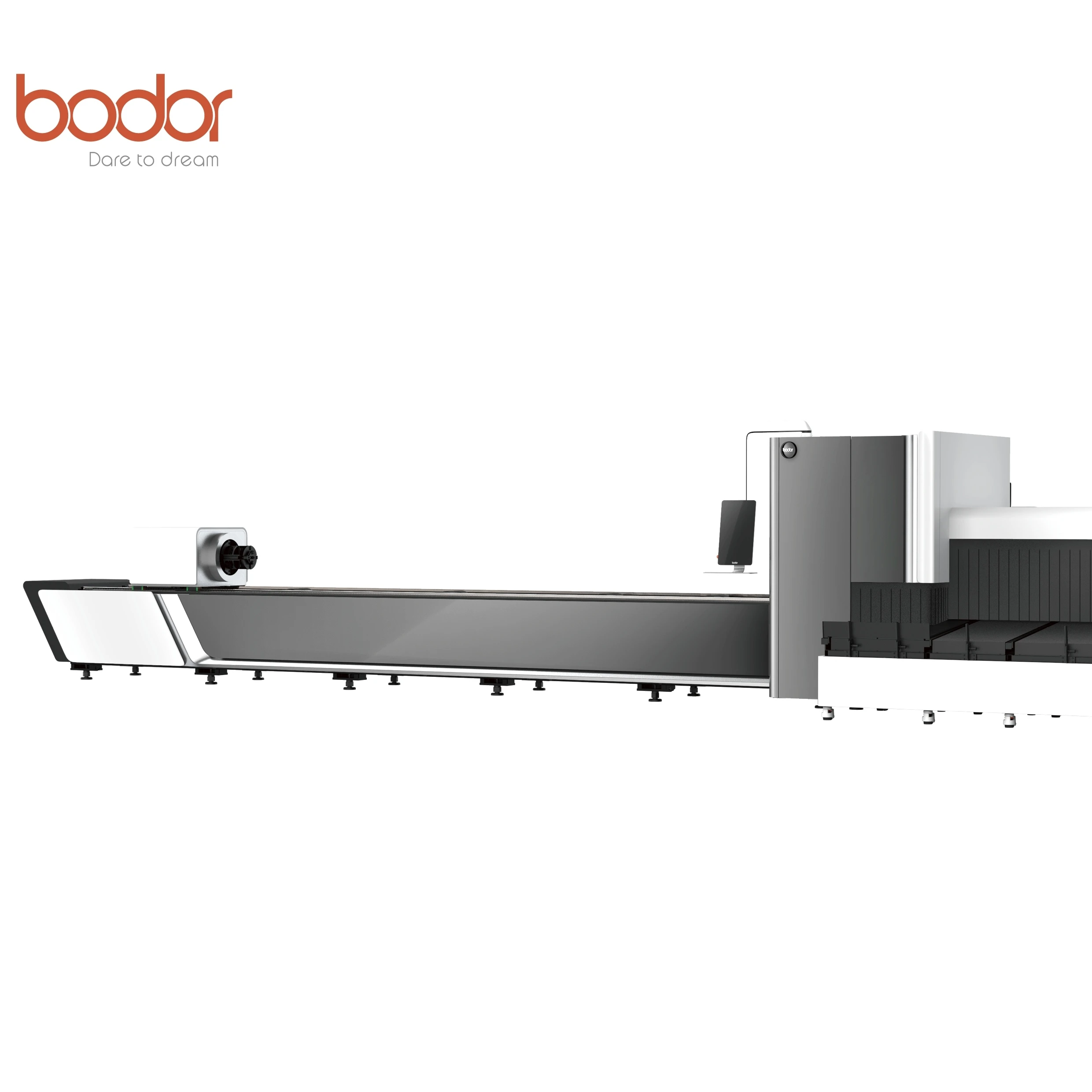

Высокопроизводительная полностью автоматическая машина для лазерной резки труб Bodor серии T нержавеющей стали углеродистой алюминия латуни
17 908 865,00 ₽

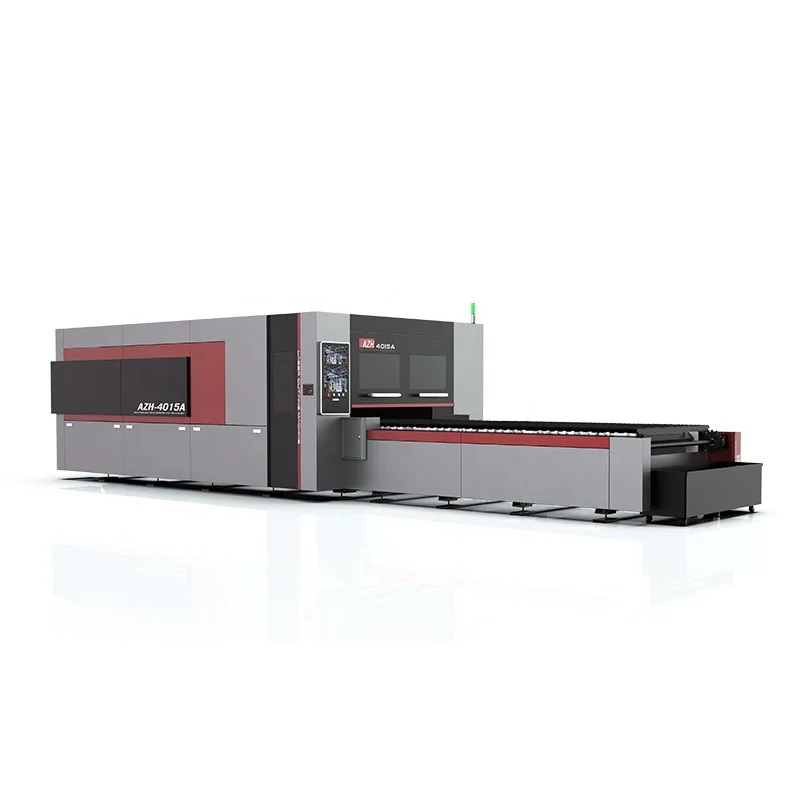

AZH закрытый 3015/4015/6015/6020 катушечный волоконно-лазерный режущий станок с конвейерной режущей платформой и аппаратом для декодирования
