ELP Бесплатная драйвер USB3.0 веб камеры 1080P 50fps IMX291 Цвет CMOS с разрешением Full HD модуль usb камеры для Windows Linux Android
- Категория: >>>
- Поставщик: Shenzhen Ailipu Technology Co. Ltd
Сохранить в закладки 60798291243:
Описание и отзывы
Характеристики
SHENZHEN AILIPU TECHNOLOGY CO., LTD

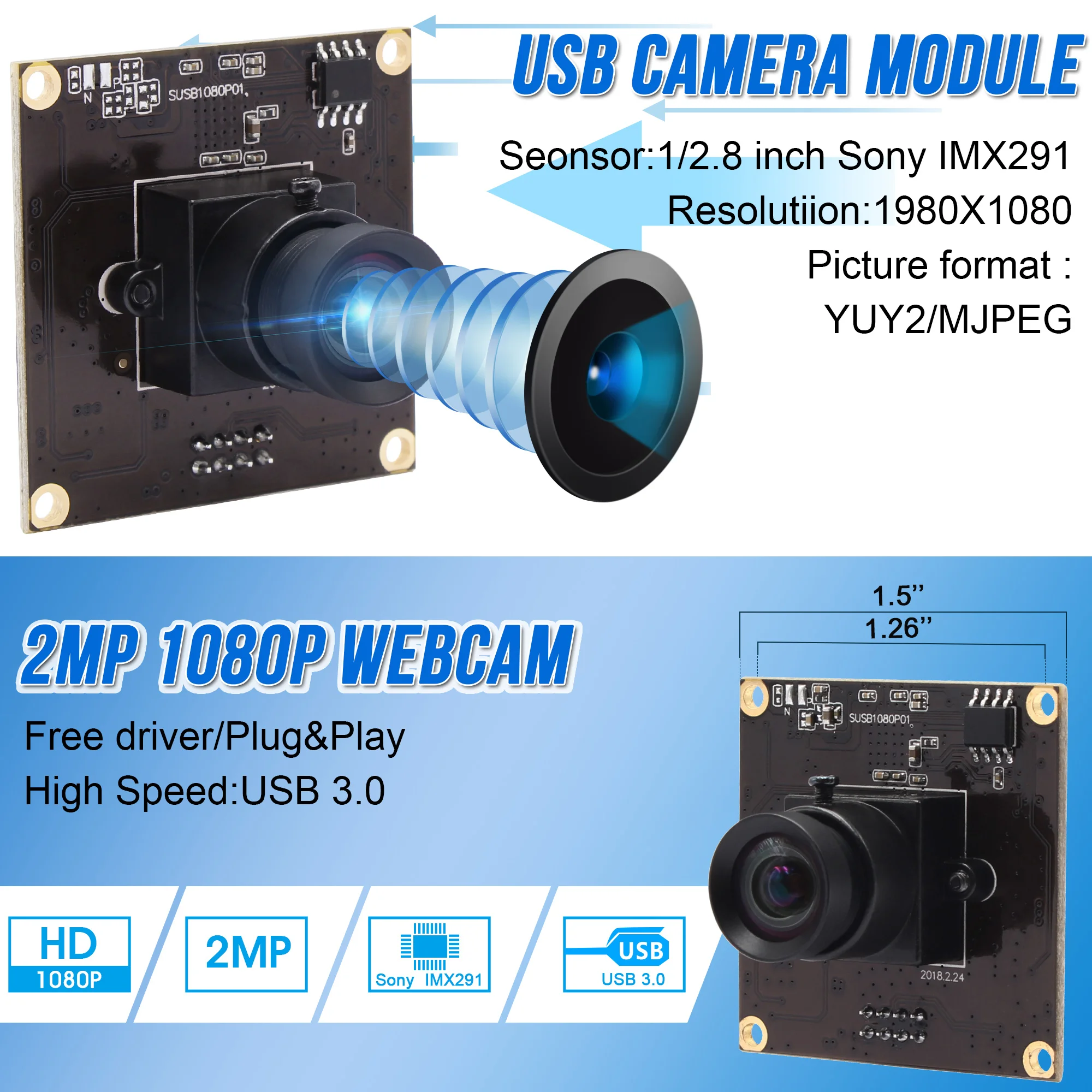

USB Camera Module, Model: ELP-SUSB1080P01-LC1100
High Speed USB3.0 USB Camera 2MP USB Camera Module with Sony IMX291 Image Sensor, Full HD 1080P Webcam with 100 Degree No Distortion Lens for Android Windows Linux,Plug&Play Security Webcam
Products Description
Features of this USB Camera
*1080P USB 3.0 Camera Module with no distortion lens
*2MP Full HD Webcam ,max resolution 1920x1080P
*No Distortion lens, the image without any fisheye .
*With 1/2.8 SONY IMX291 Color CMOS Sensor for high quality image

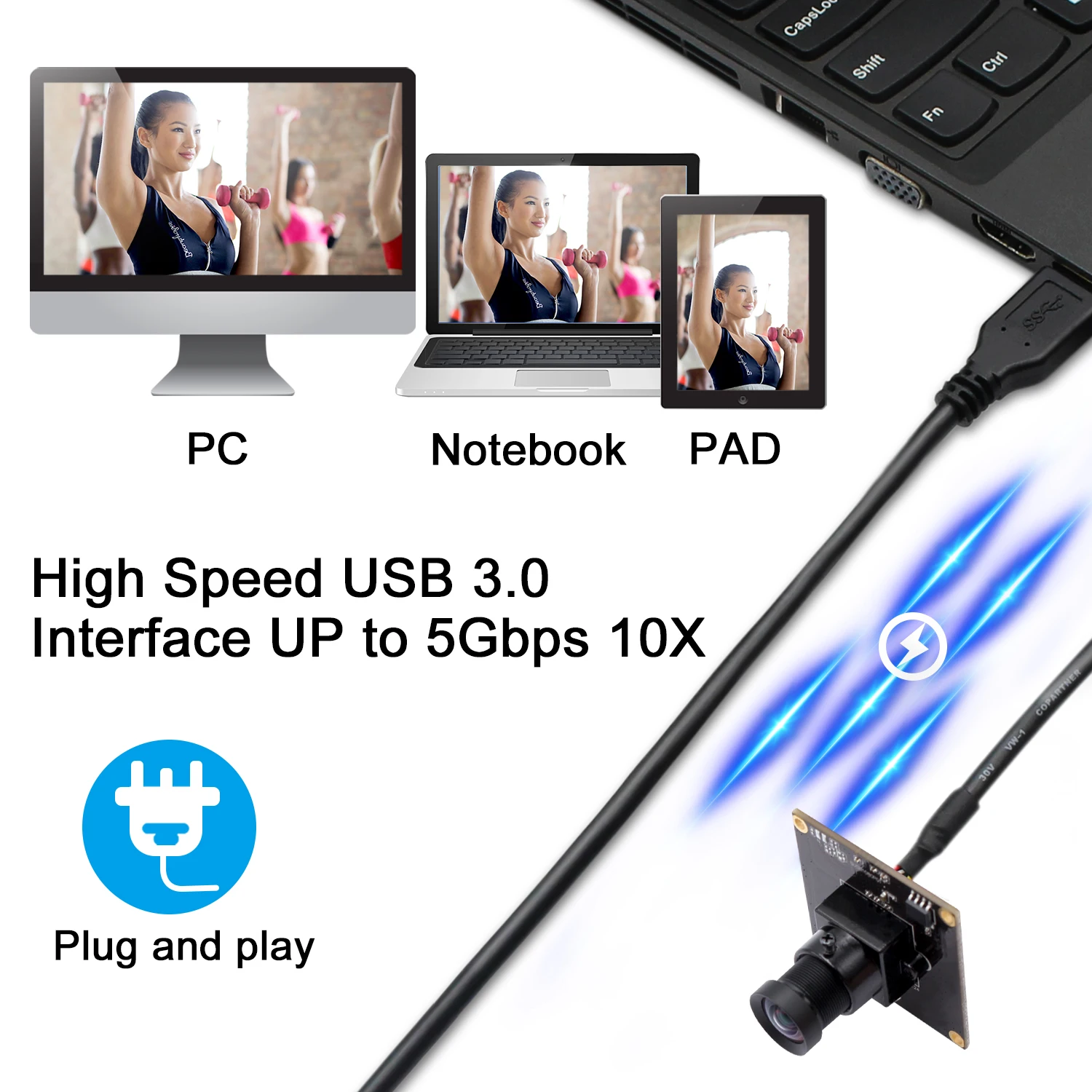

*High speed USB 3.0 interface for high resolution PC camera interface.
*Super small outline 38*38mm and thin profile for embedded applications.
*High frame rate– deliver 50 fps in 1920X1080 resolution.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
*With 1/2.8 SONY IMX291 Color CMOS Sensor for high quality image
*High speed USB 3.0 interface for high resolution PC camera interface.
*Super small outline 38*38mm and thin profile for embedded applications.
*High frame rate– deliver 50 fps in 1920X1080 resolution.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specification of The USB Camera
Model | ELP-SUSB1080P01-LC1100 (USB3.0 Camera with No Distortion Lens) |
Sensor | With Sony IMX291 |
Lens Size | 1/2.8 inch |
Pixel Size | 2.9µm X 2.9µm |
Max. Resolution | 1920(H)X1080(V) |
Compression format | MJPEG / YUV2(YUYV) |

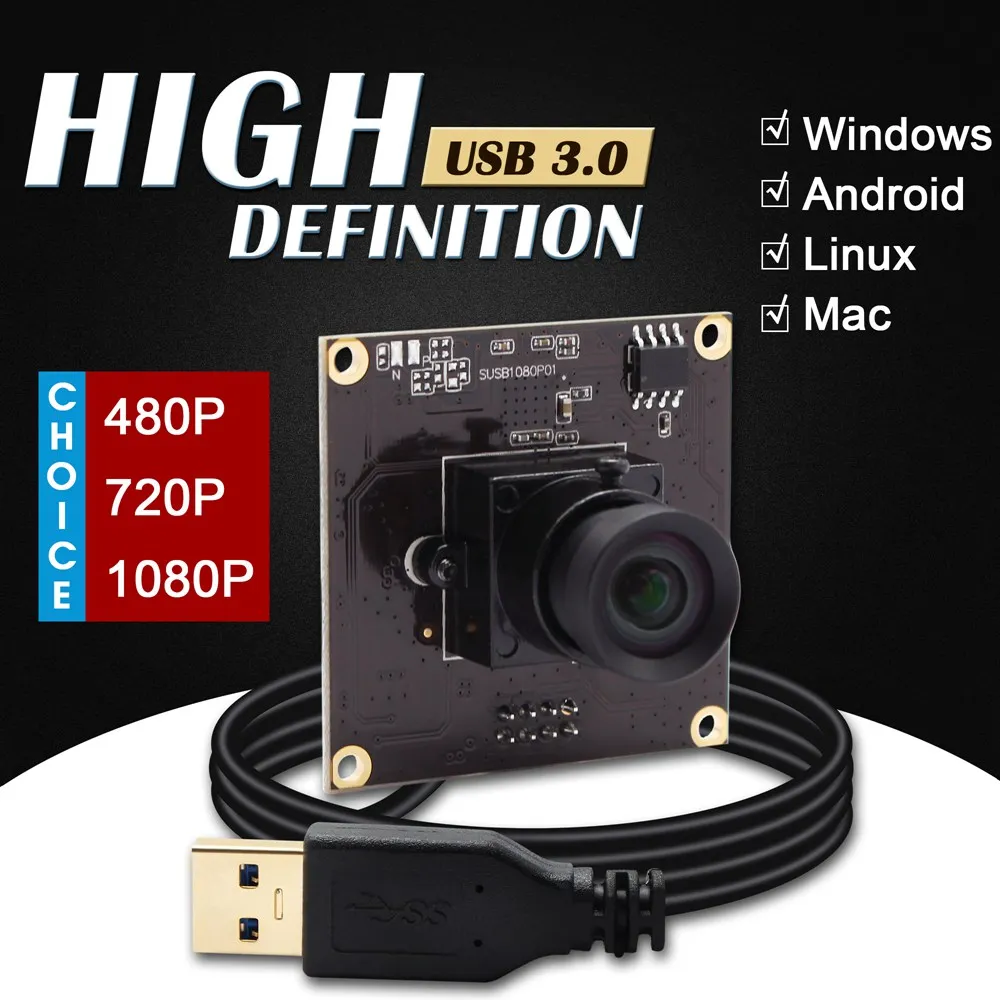

Resolution & frame | 1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps 1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps 640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps |
S/N Ratio | 40dB |
Dynamic Range | 65dB |
Sensitivity | 1900mV/lux-sec@550nm |
Mini illumination | 0. 01lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB3.0 High Speed |
Free Drive Protocol | USB Video Class(UVC) |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure |
Lens Parameter | 100degree no distortion lens |
Power supply | USB BUS POWER |
Operating Voltage | DC5V |
Working current | 170mA~210mA |
Working temperature | 0~70℃ |
Board size /Weight | 38*38mm |
Cable | Standard 1M |
Operating system request | Win8 or above Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Details Images
ELP 1080P Full HD Webcam 0.01Lux Low Light USB Camera High Speed 50fps USB Camera Sony IMX291 Camera Module

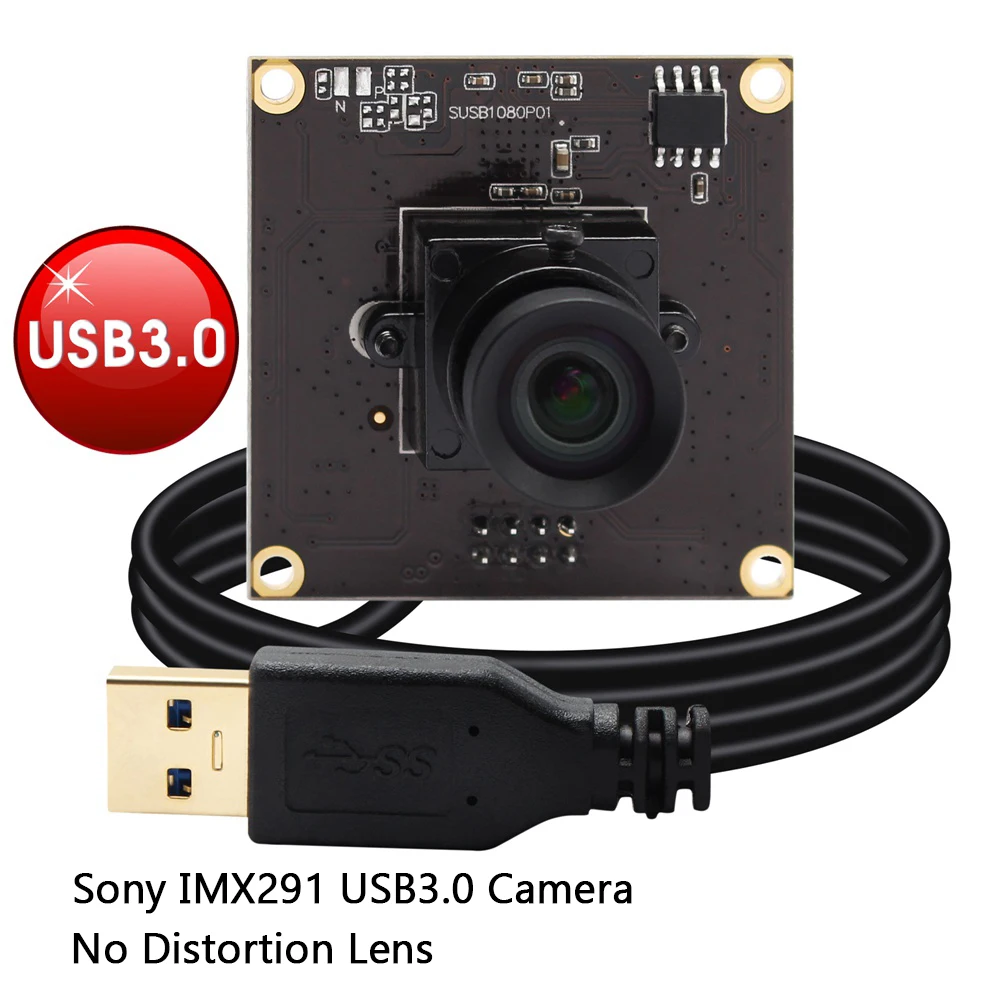

USB 3.0 Camera 2MP 1080P 50fps Webcam With 8pin USB3.0 Cable , Standard No Distortion lens
* Camera Resolution 2MP Effective Pixels:1920(H)X1080(V)
* Camera Resolution 2MP Effective Pixels:1920(H)X1080(V)
* High Speed USB3.0 Connector
* 1/2.8 inch Sony IMX291 Image Sensor
* Compression format:MJPEG / YUV2 (YUYV)
* Performance:
1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps
1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps
640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps
* 1/2.8 inch Sony IMX291 Image Sensor
* Compression format:MJPEG / YUV2 (YUYV)
* Performance:
1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps
1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps
640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps

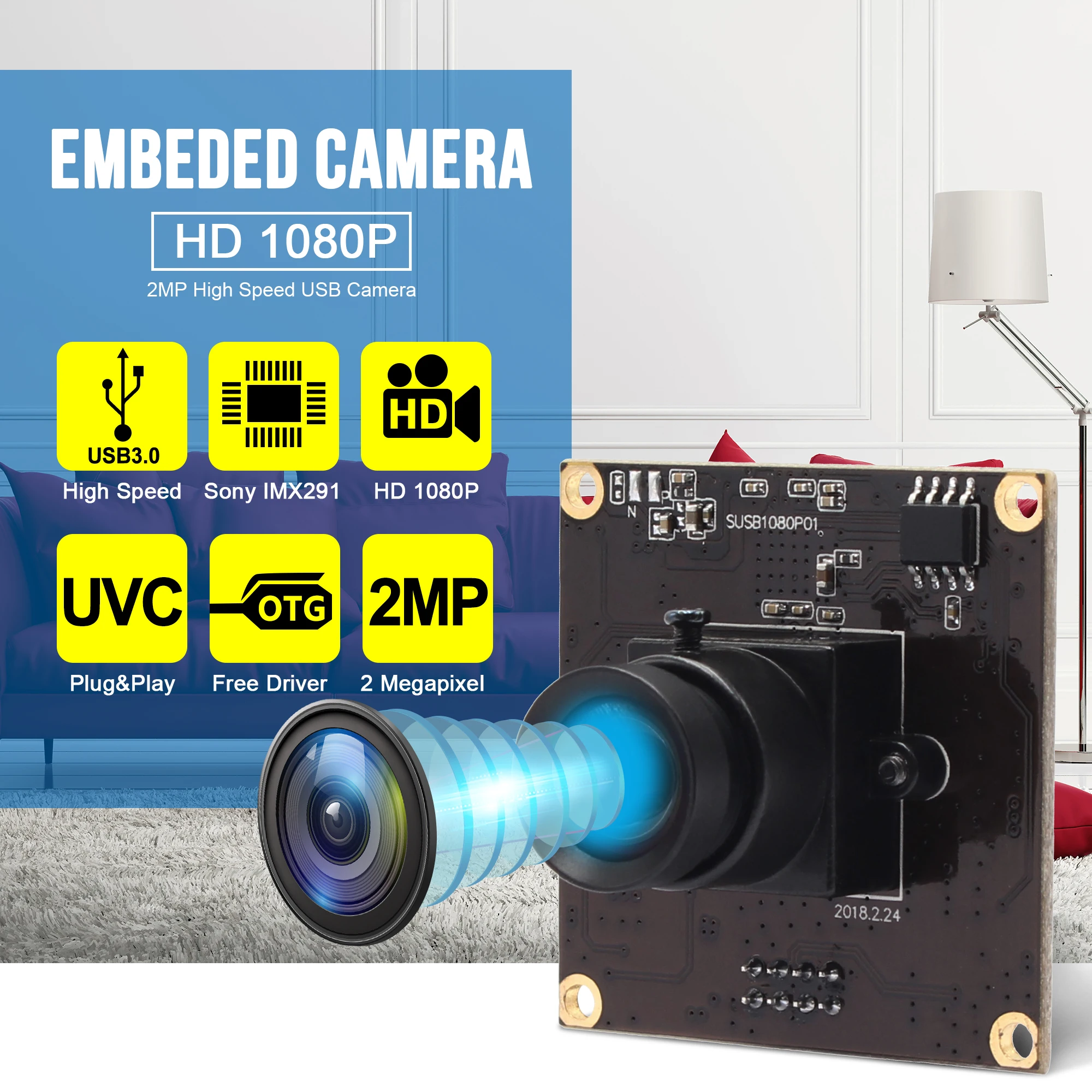

Sony IMX291 Camera No Distortion Webcam 1080P HD Free Driver UVC Webcam USB 3.0

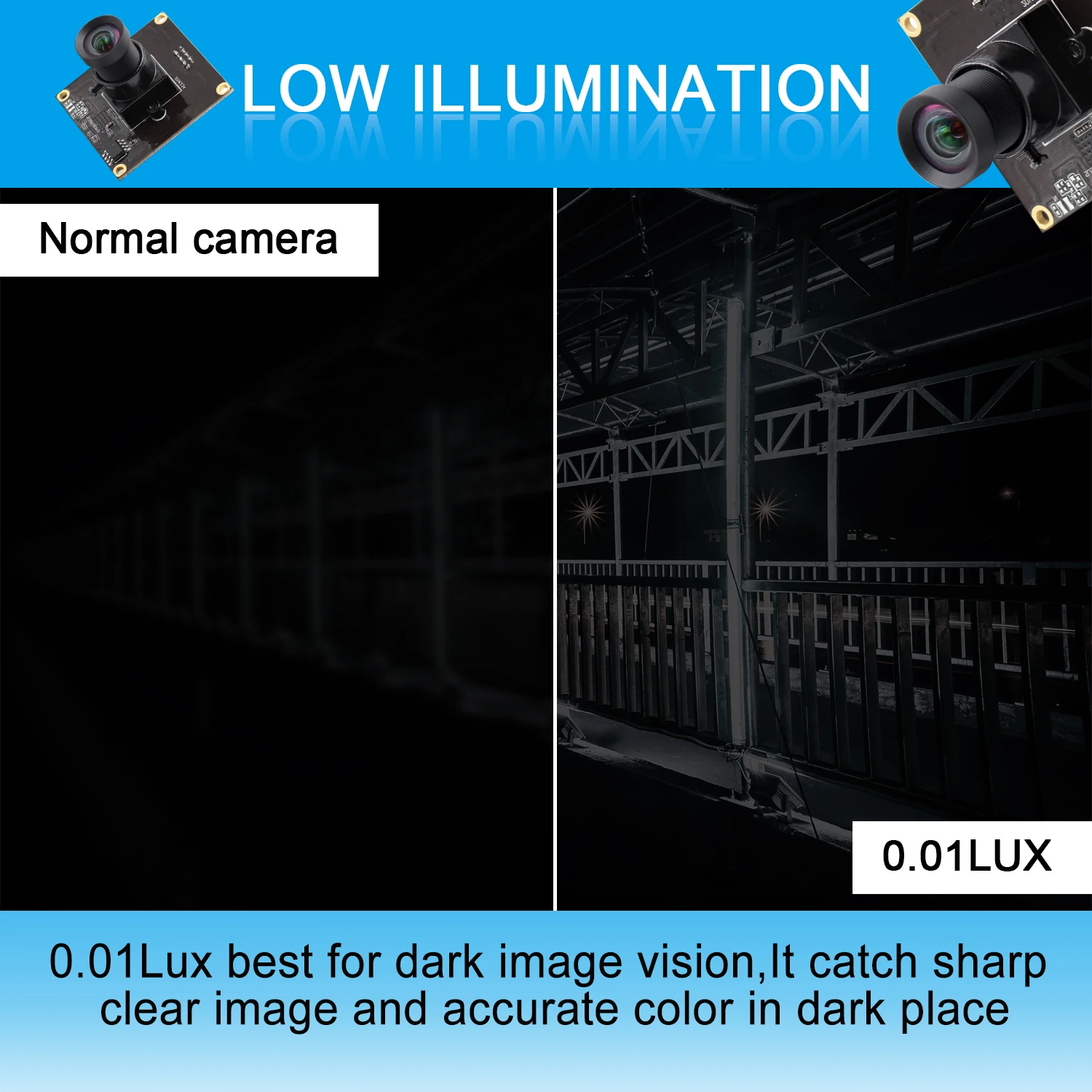

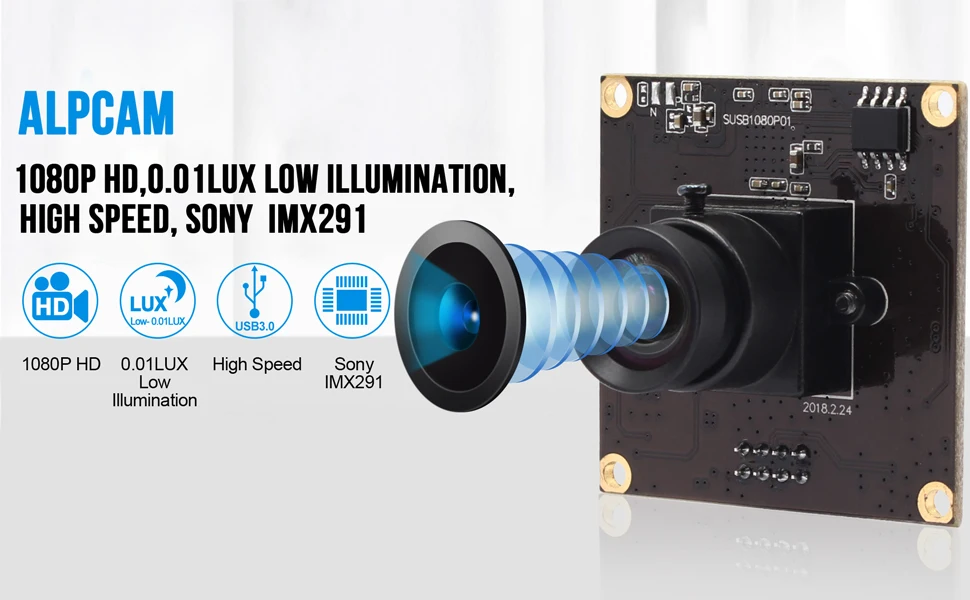

Full HD 1080P Mini Webcam with Sony IMX291 Image Sensor,High Speed 50fps USB3.0 Web Camera 0.01LUX
Low Illumination Camera Board with No Distortion Lens
Low Illumination Camera Board with No Distortion Lens
Sony IMX291 Color image sensor
The 2MP 1080P webcam with 1/2.8" SONY IMX291 image sensor give you a high definition Image and video, offering a crystal clear image quality for video call,conference,etc.
USB Camera Module

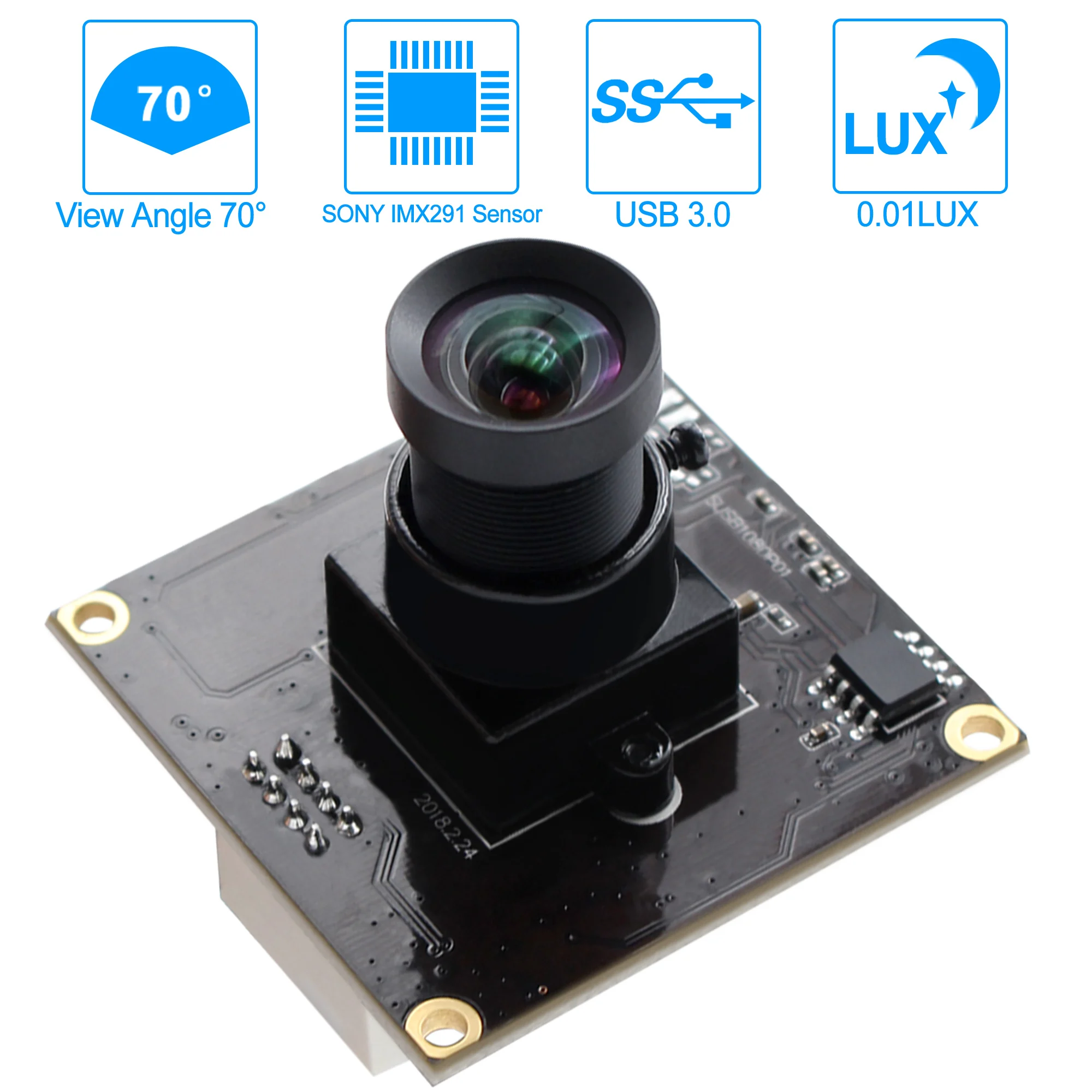

L100 No Distortion Webcam Horizontal FOV about 70 degree
With the wide 100° view angle, this 1080P webcam can show things wider .No Distortion Lens gives the image without any fisheye .
Plug&Play, free driver USB Camera , Simple installation .
Support OTG , can be connected to Android phone or Tablet .
Fixed Focus USB3.0 Camera equipped with No Distortion 100 degree lens .

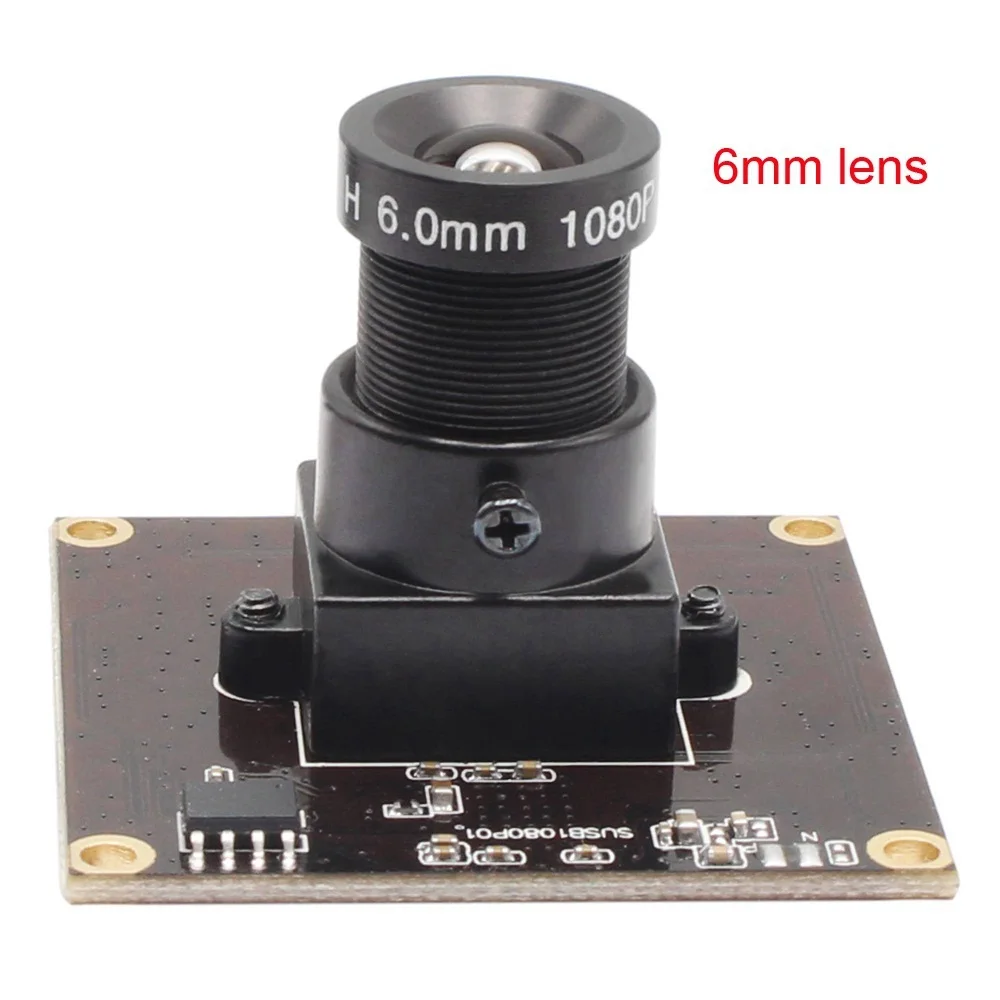

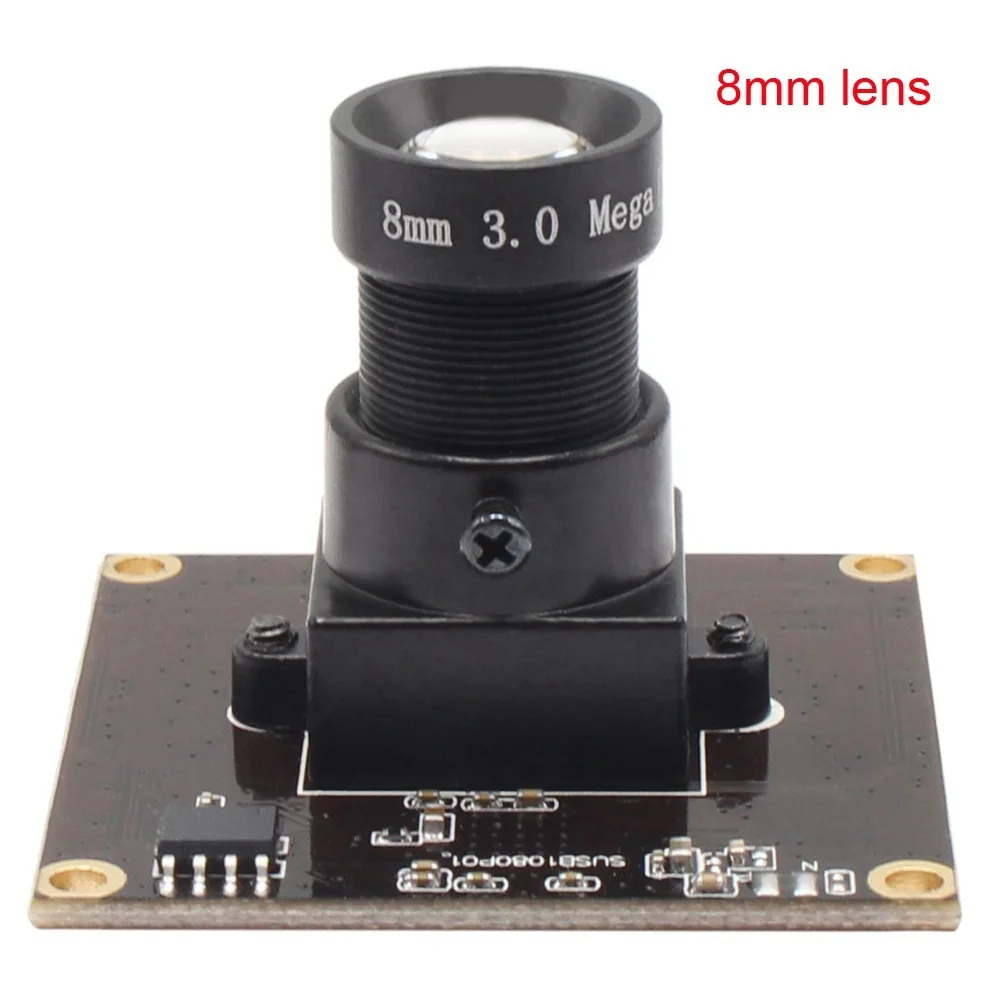

Other M12 Mount lens also available in the USB3.0 Webcam HD .

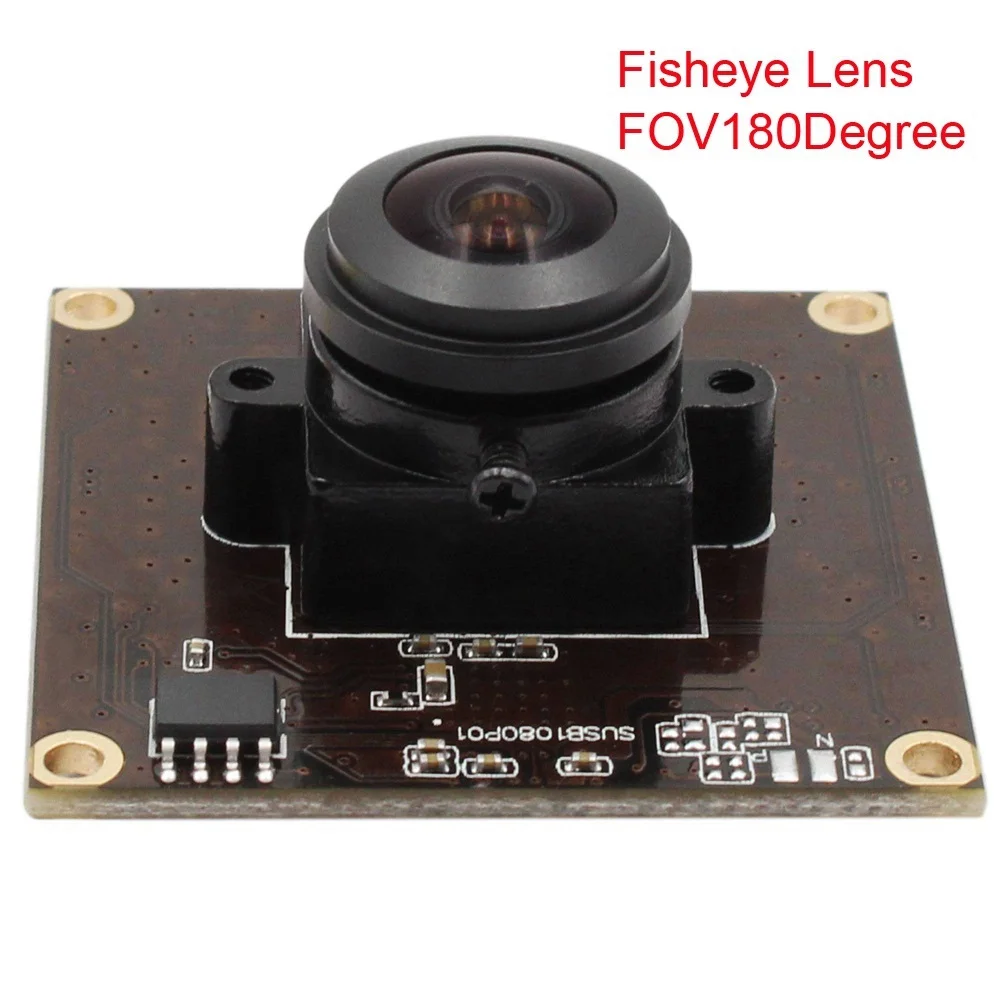

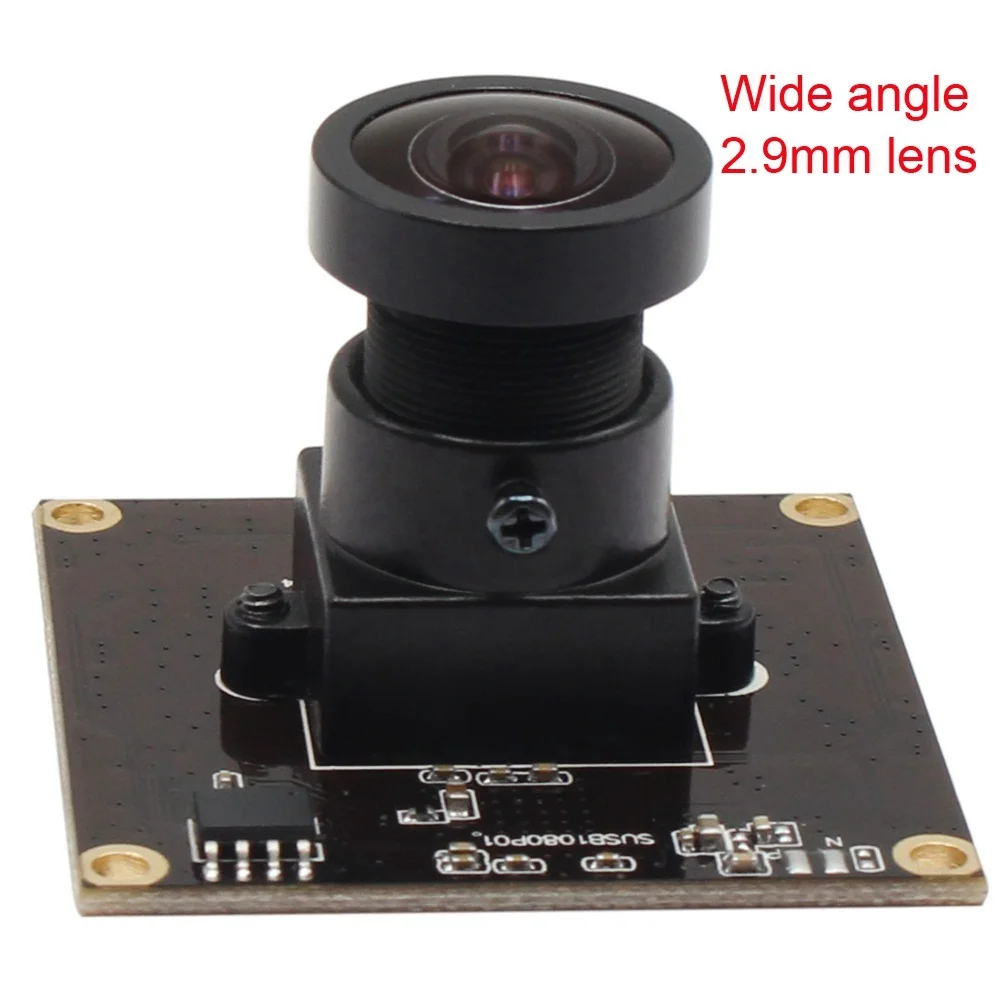

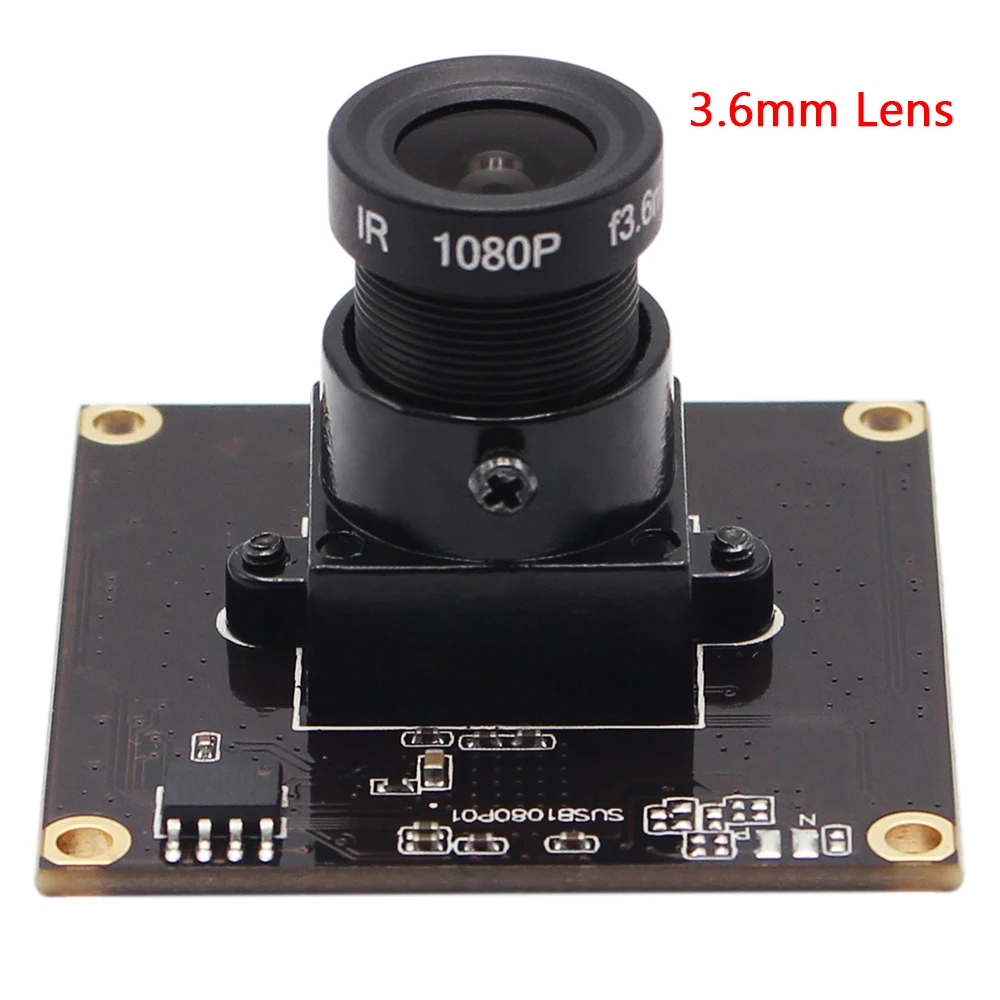

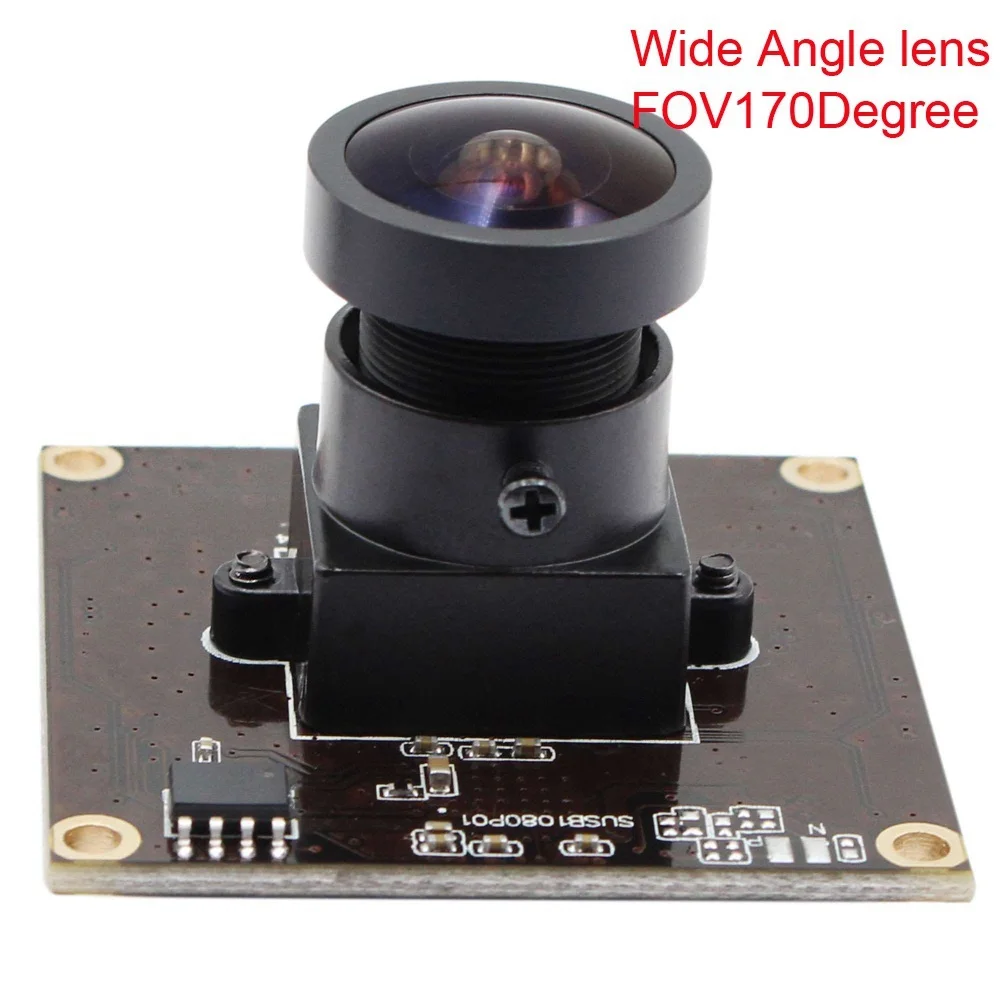

Such as the 3.6mm ,6mm ,8mm , wide angle 2.9mm , fisheye lens FOV170 , FOV180 Degree
Widely Appication
USB Camera Module work with all kinds of machine vision device
1. Barcode scanning camera ,
2. 3D scanner
3.ATM,Kiosk,POS,
3.ATM,Kiosk,POS,
4.Robot Camera
5. advertising cameras
6. Electronic microscope
7. Automatic vending machine
8. Automated image acquisition system
5. advertising cameras
6. Electronic microscope
7. Automatic vending machine
8. Automated image acquisition system
10: Medical diagnostic image acquisition
11: fingerprints, palm prints image acquisition
12:video door phone
13:HD surveillance
11: fingerprints, palm prints image acquisition
12:video door phone
13:HD surveillance
USB camera Compatible various condtion

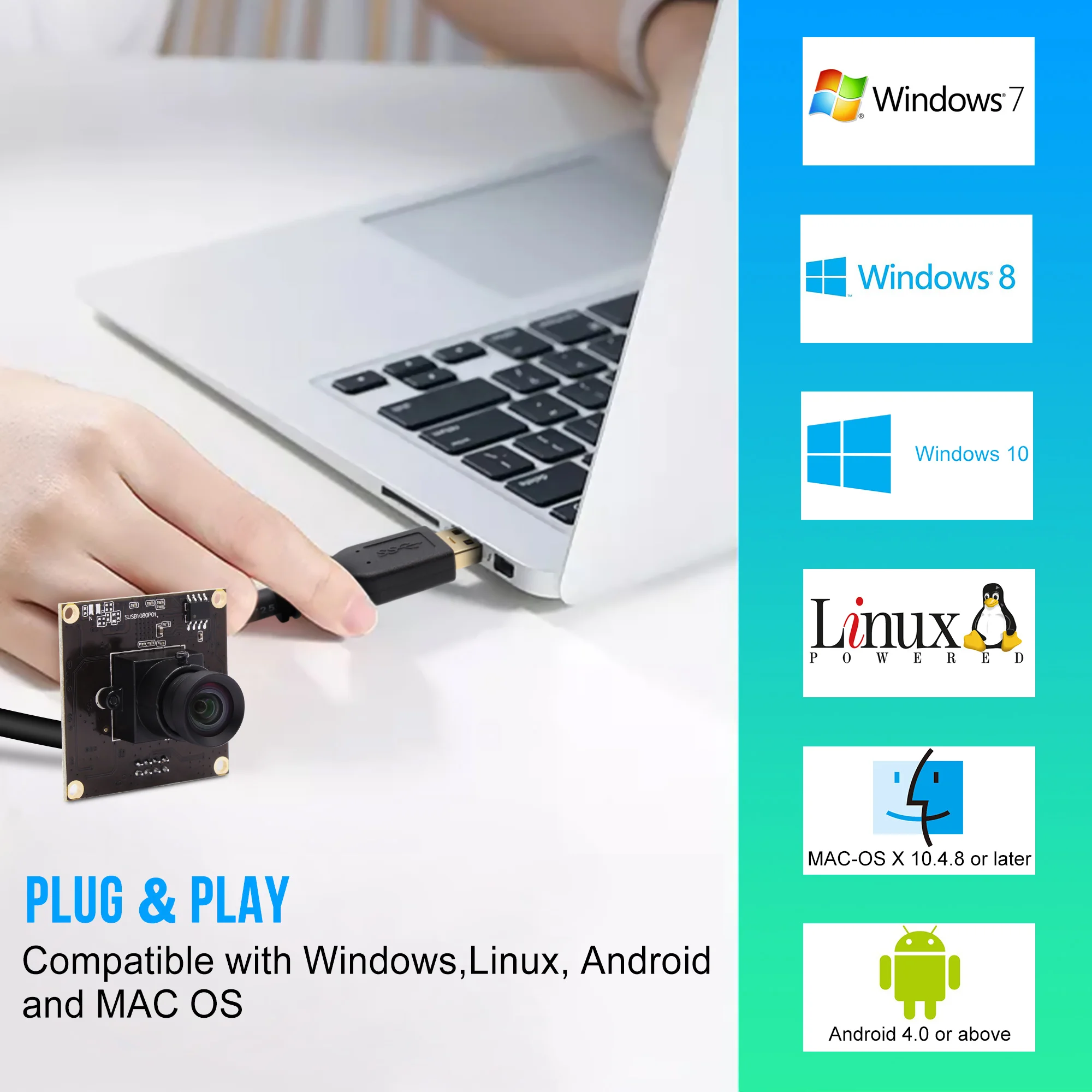

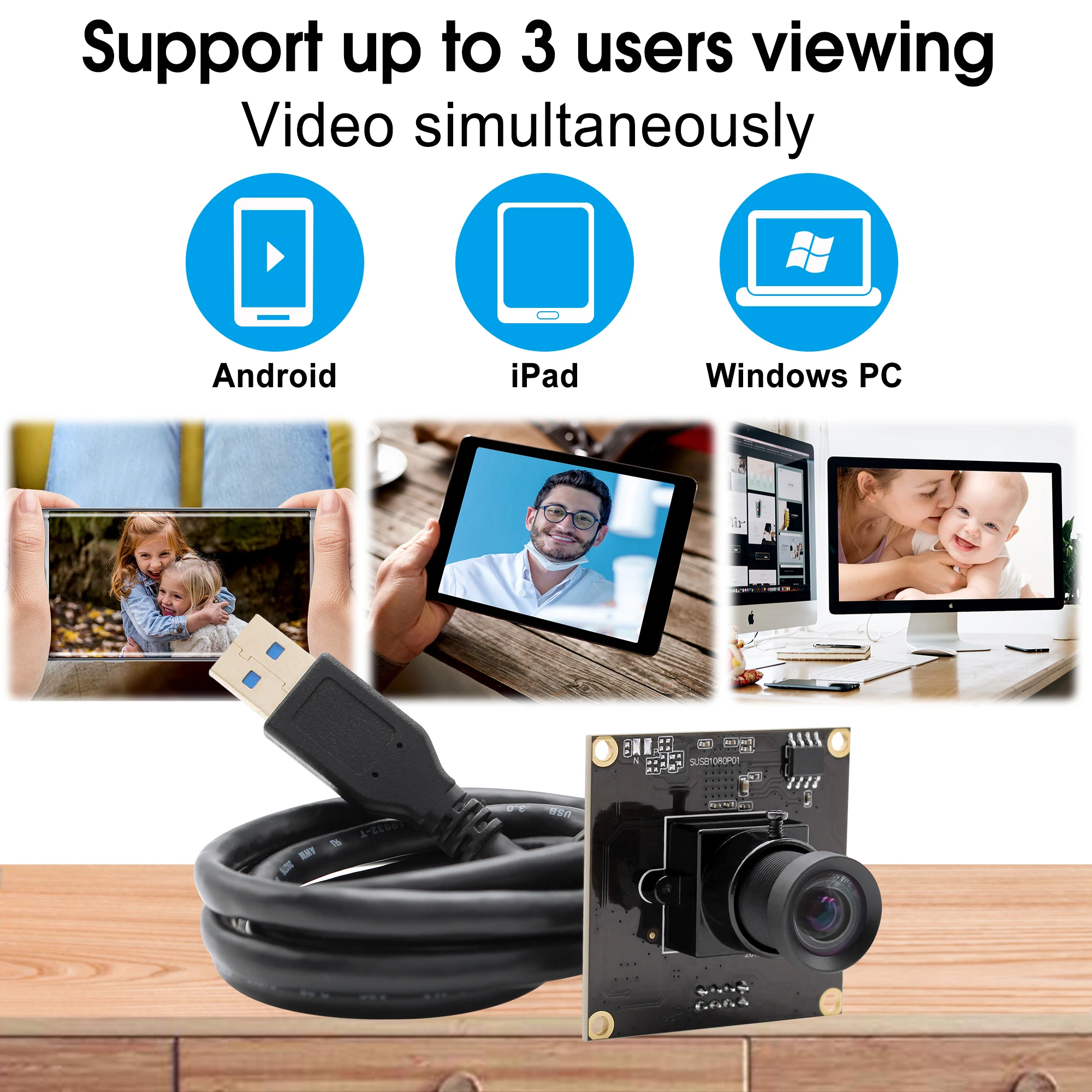

* Support all kinds of Android,Linux Windows,Mac OS system,can also work with smart phone by OTG cable.
* The camera work in Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
* The camera work in Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
How to use
ELP USB Camera with UVC, free driver to work in variouds operation system, such as Windows, Linux ,Android and Mac . Most cameras also support OTG Function, can connect to Android mobile via OTG Cable .
Steps to run this camera :
1-Look up the USB Port in your device
2-Plug our camera USB Cable to your USB port
3-Open your video software , and select the USB Cable as video out put
Recommend video software
Windows : Amcap ,e-CAMView ， Blue iris , Contacam , Yawcam, iSpy ,Webcam Viewer, IP Camera viewer
Linux :Motion Eye OS, V4L2
Android : USB Camera ,Camera Fi
Mac : Facetime, Quick time . Webcam Viewer, Webcam Settings，NCH Software
Company Profile
Shenzhen Ailipu Technology Co., Ltd
Has its own brand ELP , Ailipu now owns its own designing team ,Production Team , and also professional sales team .
ELP is specialize in manufacturing USB Cameras for more than 15 years .Our USB Cameras include 0.3MP ,1MP, 1.3MP, 2MP, 3MP ,5MP, 8MP ,13MP and 4K Resolution .
OEM and ODM service also supported .
We believe details and quality is essential to survival of the enterprise-resistant. We look forward to cooperation with your esteemed company and achieve win-win together .
We believe details and quality is essential to survival of the enterprise-resistant. We look forward to cooperation with your esteemed company and achieve win-win together .
FAQ
*Are you manufacturer?
Yes, we have been designing and manufacturing the USB Cameras with over 15 years experiences .
Yes, we have been designing and manufacturing the USB Cameras with over 15 years experiences .
*Can you OEM camera module?
Yes,OEM Service is available . We can customize camera modules according to customer's different requirement.
*What's your usb cameras' production cycle?
We don't have any plan to stop production with any cameras .We will keep supplying the USB Cameras as long as our customers need it.
Yes,OEM Service is available . We can customize camera modules according to customer's different requirement.
*What's your usb cameras' production cycle?
We don't have any plan to stop production with any cameras .We will keep supplying the USB Cameras as long as our customers need it.
*What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
*What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
Our USB cameras support Android, Windows and Linux System
*Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
*Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
*Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
Yes, We can offer Linux, Windows, Android SDK.
