Портативный монитор ЭКГ Holter медицинская машина расходные материалы 12 каналов свинцовый кабель TLC5000 от toloswire

Сохранить в закладки 60800314322:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Product Description



Appliance:

1,Home appliance;

2,Headlamp

3,Industrial machine

4,Electro thermal products

5,Multimedia and network

6,Automosile&ships

7,Medical Equipments

8,Office facilities

9,Electrical equipments



1.Specifications

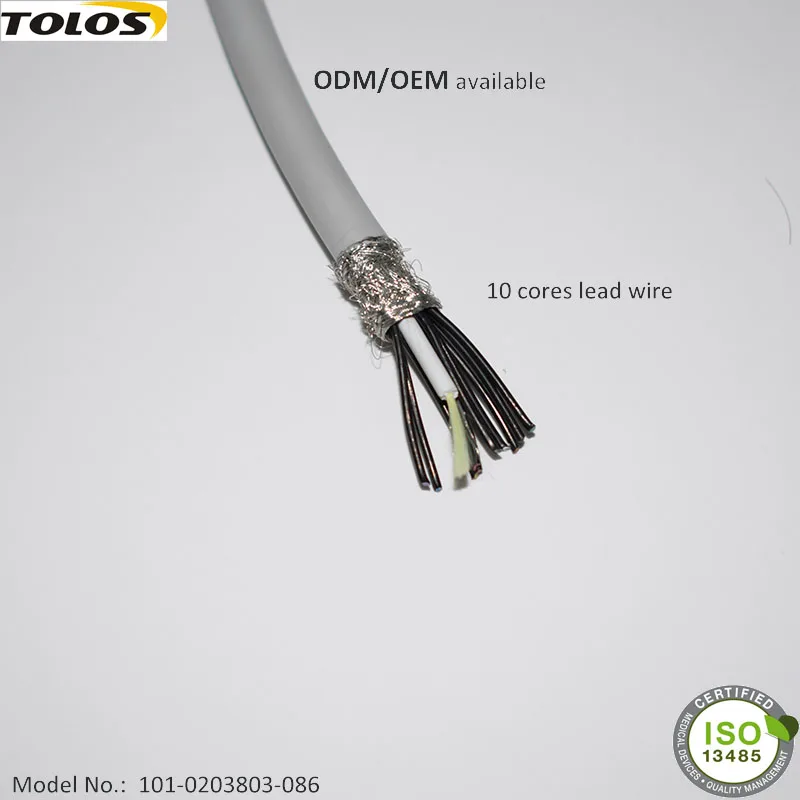

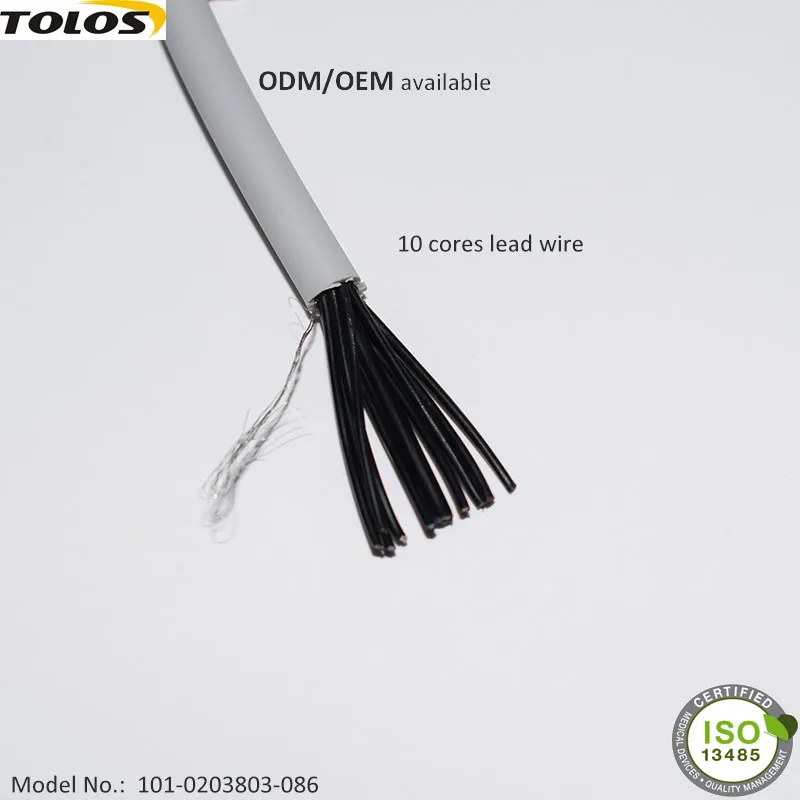

lead cable

Model

121201

Color

grey,white

Certificate:

ISO 13485

Conductor

19/0.05 BC

Insulation pp

Inner shield

BC spiral

Inner sheath

PVC

Filler

Cotton

Out shield

TC spiral

Jacket

TPU

OD

3.0 MM



2.Main technical parameters:

Main technical parameters

Conductor Resistance

0.5 Ω /M/3m Min

Dielectric Strength

AC1000V,Leakage Currence less than 0.25MA(3m)

Insulation Resistance

DC 500V 100MΩ /3M MIN

Flex test

300G,90° degree each side,6cycles/min,morn than 3000 cycles

Adhesion Test

Insulation adhesion during 1.15-2.5 LBS,Jack adhesion during 2-8LBS

Relative humidity

≤80%

Atmospheric pressure

700hPa~1060hPa




Packaging & Shipping

3. Advantage:

1. Factory direct, OEM & ODM

2. MOQ: 3 000M

3. Flexible delivery for sample and big order

4. A bath of professional technicians, advanced medical equipment

5. Jacket were adpoted international first-class enterprise material, all aspects of the performance is superior.

6. With high quality copper wire conductor material,ensure the stability of the signal.

7. Double shielding structure design to ensure the stability of signal transmission.

8. Filler material use kelvar resistance to tensile and bending strength guaranteed.

9. According to biological compatibility.

10. Advanced technology to ensure that the wire smooth level off,leading in the same industry.



4. Transpotation

1. Express (DHL,TNT, EMS,FEDEX) is available

2. Sea and Air delivery are available

3. Welcome your agent to deal with goods
Our Services

 Certification

ISO 13485

ROHS

YES

YES

Exporting country

Asia

Europe

Africa

North America

South America

Oceania

YES

YES

YES

YES

YES

YES



Company Information

  Donguan Tolos Wire Co.,Ltd is a professional medical wire manufacturer, mainly produce Silicone cable, Teflon cable, TPU cable, PVC cable, Spiral cable, Shadowless cable, Micro Coaxial cable, Military cable for application Spo2 probe, ECG cable, Trunk cable, Leadwire, EEG cable, MRI ECG cable, Defibrillator cable,Silicone rubber cable

Medical Equipment, Endoscope equipment, ESU pencil , Bipolar and Monopolar cable,Silicone rubber cable/wire.

 We have passed certification of ISO13485 quality management systerm in 2015 by SGS,all the material accorded with the medical grade and all cables are make according to AAMI EC53 standard.

Unshield, Single Shield, Duoble Shield are available for different.


FAQ

Q: How long is your delivery time?

A: Generally it is 10-20 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.



Q: Can we have our logo or company name to be printed on your products or the package? How can I get your price list?

A:  Yes,your Logo and company name can be printed on our products by silk screen printing. You can tell the  products details to my company.



Q:  How can I get your price list?

A:Please leave your contact way such as Email/MSN/Skype/Trademanager to us. We will contact to you and pass our quotation sheet to you.



If you have another question, pls feel free to contact us as below:
