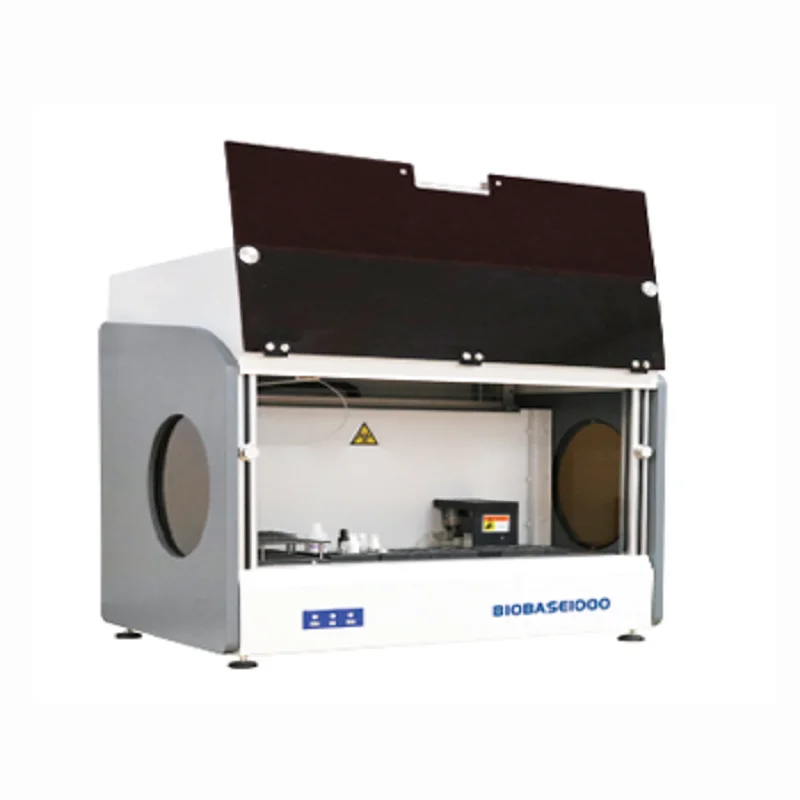

Biobase автоматический процессор ELISA (BIOBASE1000) лидер продаж

Model

BIOBASE 1000

Sample Pipetting Unit

Sample Rack

 80 sample positions(tubes 12mm)

Primary Sample Tubes

12*75mm

Pipetting

10ul~1000ul, (100ul) CV<0.5%

Dispensing System

1 aspirating-dispensing probe with X-Y-Z movement; dilution system with a syringe of 1000ul, continuous flow washing station.

Reagent Pipetting Unit

Reagent Racks

8 special reagent racks,1 general reagent racks

Removable Trays

Modular racks to hold calibrators, controls and reagents for 8 test on line

Pipetting

10ul~1000ul,1ul stepping

Pipetting precision

(100ul) CV<0.5%

Time to Dispense

4 minutes adding 96 reagents

Incubation Unit

Incubators

2 independent units

Temperature Range

RT to 45 °C

Temperature Accuracy

±0.5°C

Temperature Fluctuation

±0.5°C

Washing Unit

Programmable

Yes(options & parameters)

Wash Containers

2 wash buffers at 2.0L, with level-sensing

Washing System

Two 8 nozzle manifolds, one to dispense and the other one to aspirate

Washing Residual

<2μl

Reading Unit

Reading System

8 independent photometric channels with mono and dichromatic reading capability

Photometric Range

0.000 ~3.000 OD

Spectral Range

400-700nm

Optical Filters

2 precision filters (450,630nm); 2 more on request (4 filters max, 400-700nm)

Software Unit

Software System

Windows 7/8/10 or above, LIS system available

Function Application

Work list set up, patient reports and result filing; calibration curve storage for each carried out test

Data Reduction

cut-off (qualitative)

Physical Specification

Package Size(W*D*H)

1020*810*1240mm

Gross Weight

160kg

Power Supply

AC220V+10%,50/60Hz;110V+10%,60Hz; 500W

1.Why do we cooperate with BIOBASE?

BIOBASE group, founded in 1999 and been through high and stable development for 15 years.The products we manufacture extends to most of the laboratory items and scientific analytical equipments. Our mission is to enable our customers to make the world healthier, cleaner and safer.

2.How about BIOBASE payment term?

T/T in advance & L/C & Weatern Union(40% deposit,the balance before shipment).

3.How about BIOBASE delivery time?

10-15 days after we receive prepayment.

4.How about the package?

 Plywood case or carton or standard export wooden case.

5.What's the loading port?

FOB to Qingdao port China or as customer's request
