Сигнальные огни для зданий и башней подиумный вращающийся маячок подиума в аэропорту работающий от солнечной энергии световой ограничитель авиации
39,00 $
Башня авиационного освещения FAA L810 светодиодное освещение для аэропорта на солнечных батареях поставщик
- Категория: LED Aviation Obstruction Lights >>>
- Поставщик: Shaanxi Double Wise Digital Science And Technology Co. Ltd.Shaanxi Ltd.
Сохранить в закладки 60802460226:
Описание и отзывы
Характеристики
Products Description

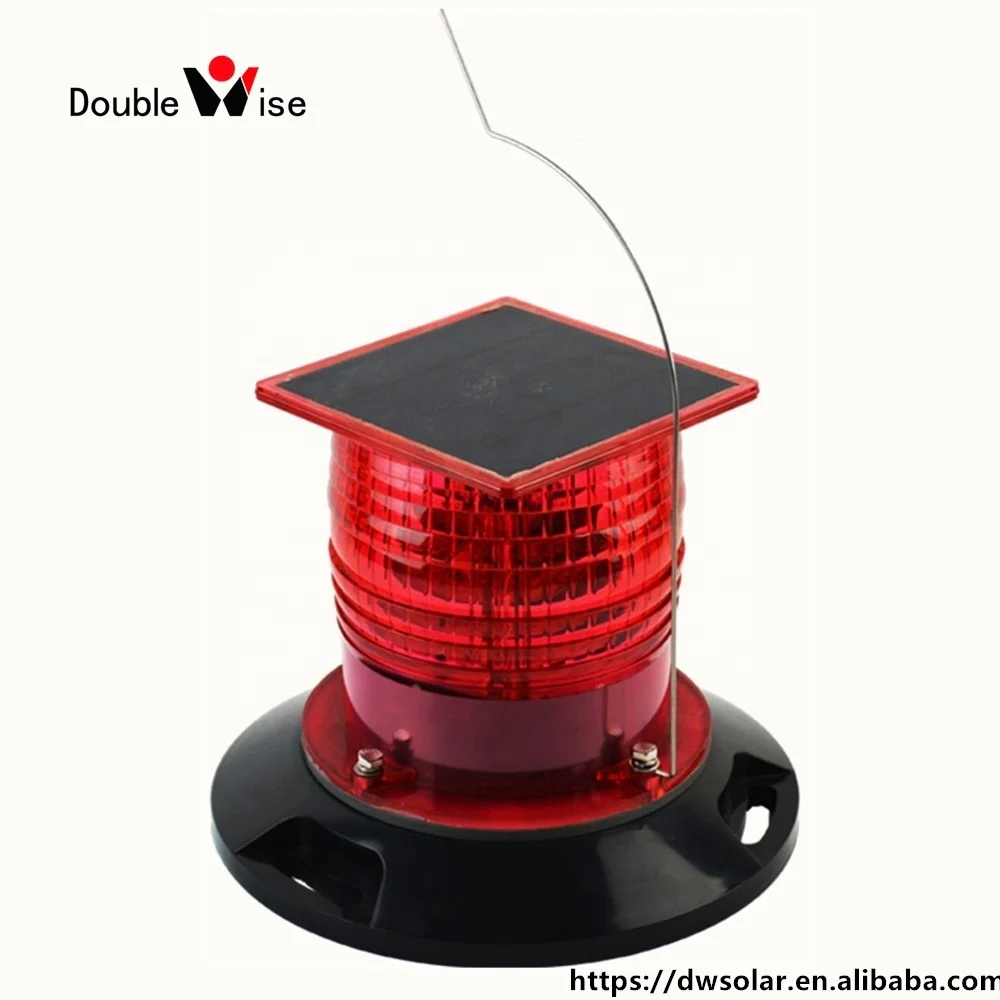

FAA L810 Tower Aviation Obstruction Lighting Solar Powered LED Airport Light Supplier
with the characteristics of solar self-contained, durable and anti-UV .It is widely used in the Aviation Obstacle Warning of
Telecommunication or Power Towers, Chimneys, Cranes, High-Buildings and other dangerous Prominent Parts. The aviation obstruction light installs in minutes and requires no maintenance or servicing for up to five years.
Features and Benefits
Red,Steady-Burning and its intensity is more than 32cd.
Solar panel 2.7Wp, replaceable Ni-HM battery 5Ah/4.8V.
Turns on at dusk and off at dawn automatically.
To charge under nearly all weather conditions and has the 70 hrs autonomy from a full charge.
Completely solar self-contained and waterproof IP65.
Lens is polycarbonate with anti-UV which is produced by Bayer.
Manufactured to ISO9001:2015 QAS .
Product Parameters
Specifications | |
Light Output | STEADY ON , Red, 360° |
Standards | ICAO Annex 14 Vol. Ⅰ and FAA AC 70/7460-1k |
Intensity / Visibility | ≥32cd / 5Km |
Minimum Autonomy | 150 Hours |
LED | Numbers: 12Pcs Lifespan: up to 50,000 Hrs |
Environmental Conditions | Latitude Range: 55°S to 55°N On/Off Level: 60/100 Lux Temperature Range: -40℃ to +80℃ Waterproof: IP65 |
Solar panels | Mono-crystalline;Maximum Power 2.7Wp;Efficiency 16% |
Battery | Ni-Mh , Replaceable;4.8Ah/4.8V |
Lens Material | Polycarbonate |
Mounting Option | 4 bolts or Magnetic base |
Quality Assurance | QAS: ISO9001:2008 |
Patents | Chinese patents: ZL201430444455.3 Other patents pending |
Alarm output | Optional |

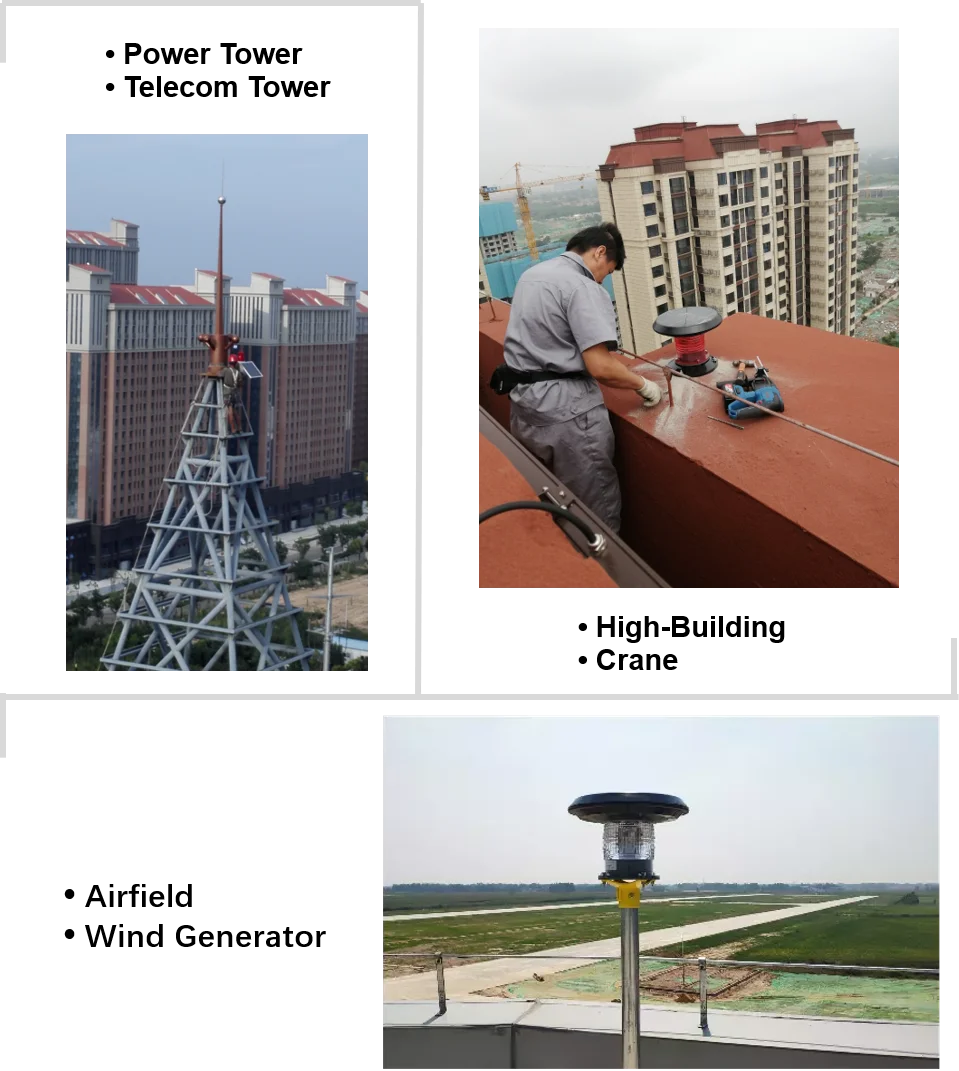

Typical Applications
● Iron Tower
● Crane
● Wind Power Generator
● Iron Tower
● Crane
● Wind Power Generator
Solar Tower Obstruction Lighting Solution
Solar Red Obstruction lights are used to increase conspicuity during nighttime. The solar red obstruction lighting system is composed of flashing omnidirectional beacons (L-864) and/or steady burning (L-810) lights. When one or more levels is comprised of flashing beacon lighting, the lights should flash simultaneously.
Telecommunications or Power Towers are typically tall structures designed to support Antennas or Power lines. They are among the tallest man-made structures.
Telecommunications or Power Towers are typically tall structures designed to support Antennas or Power lines. They are among the tallest man-made structures.
BASIC RULES

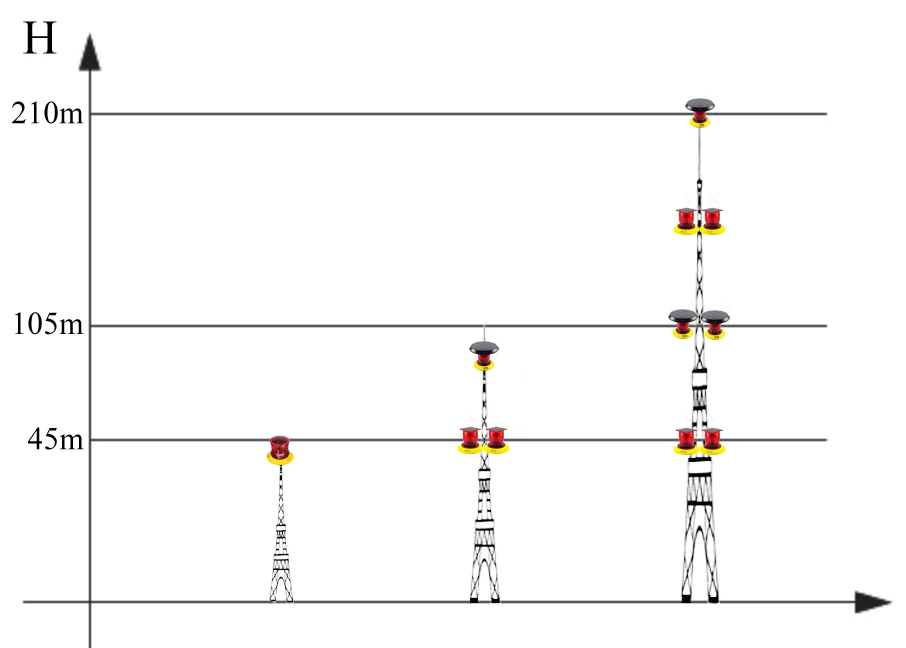

* The number of light levels recommended depends on the height of the structure;
* The number and arrangement of light units at each level should be placed so the lighting is visible from every angle in azimuth;
* Lights are applied to display the general definition of the structure;
* Width and length of buildings determine the number of lights installed at the top and at each light level.
SELECTION OF LIGHTS

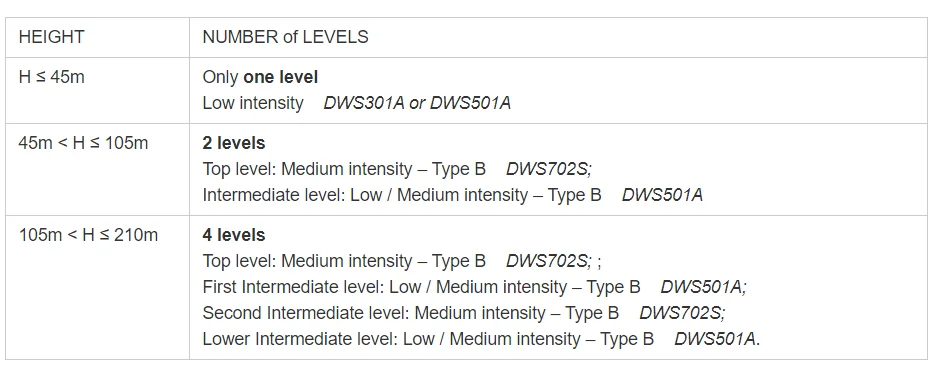

If the tower is needed to be lighted at night, please reference the following list.
* The number of light levels recommended depends on the height of the structure;
* The number and arrangement of light units at each level should be placed so the lighting is visible from every angle in azimuth;
* Lights are applied to display the general definition of the structure;
* Width and length of buildings determine the number of lights installed at the top and at each light level.
SELECTION OF LIGHTS
If the tower is needed to be lighted at night, please reference the following list.
Our Company
Certifications
FAQ
Table 2 Specifications for Obstruction Lighting Equipment Classification | ||
Type | Description | |
L-810 | Steady-burning Red Obstruction Light | |
L-856 | High Intensity Flashing White Obstruction Light(40FPM) | |
L-857 | High Intensity Flashing White Obstruction Light(60FPM) | |
L-864 | Flashing Red Obstruction Light(20-40FPM) | |
L-865 | Medium Intensity Flashing White Obstruction Light(40-FPM) | |
L-866 | Medium Intensity Flashing White Obstruction Light(60-FPM) | |
L-864/L-865 | Dual: Flashing Red Obstruction Light(20-40FPM) and Medium Intensity Flashing White Obstruction Light(40FPM) | |
L-885 | Red Catenary 60 FPM | |
FPM=Flashes Per Minute | ||
1.What are characteristics of obstacle lights in the standards of ICAO and FAA?
According to ICAO Annex 14 Volume Ⅰ,the characteristics of low-intensity obstacle lights are as follows.
Light Type Color Signal Type/(flash rate) Peak Intensity(cd) Intensity(cd) at given angles +6° +10°
Low-intensity,Type A Red Fixed 10 Min. 10 Min. 10 Min.
(fixed obstacle)
Low-intensity,Type B Red Fixed 32 Min. 32 Min. 32 Min.
(fixed obstacle)
Low-intensity,Type C Yellow/Blue Flashing 40 Min.
(mobile obstacle) (60~90fpm) 400 Max.
Low-intensity,Type D Yellow Flashing 200 Min.
(Follow-me Vehicle) (60~90fpm) 400 Max.
The Specifications for Obstruction Lights in FAA AC 70/7460 -1k can be seen in the above Table 2.
2. Under what circumstances DWS501A with a touch switch should be chosen?
In order to ensure reliable waterproof,we recommend you to choose DWS501A with a touch switch in Marine Applications such as Buoy, Aqua Cage, Seaport, Ocean Engineering etc. ,then its waterproof level will be increased to IP67.
3.Is there the adapter for easy-installation?
Yes, there is an adapter as follows.
Packing & Delivery
Packing
The package of DWS501AO is a 540*360*200mm carton that can be loaded with 6 lights.Each light has a small carton 170*170*170mm.The weight of one light is 1.5Kg after packing,so the gross weight of 6 lights is 9Kg .
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, DOUBLEWISE has provided lots of solar products to customers in more than 80 countries.
