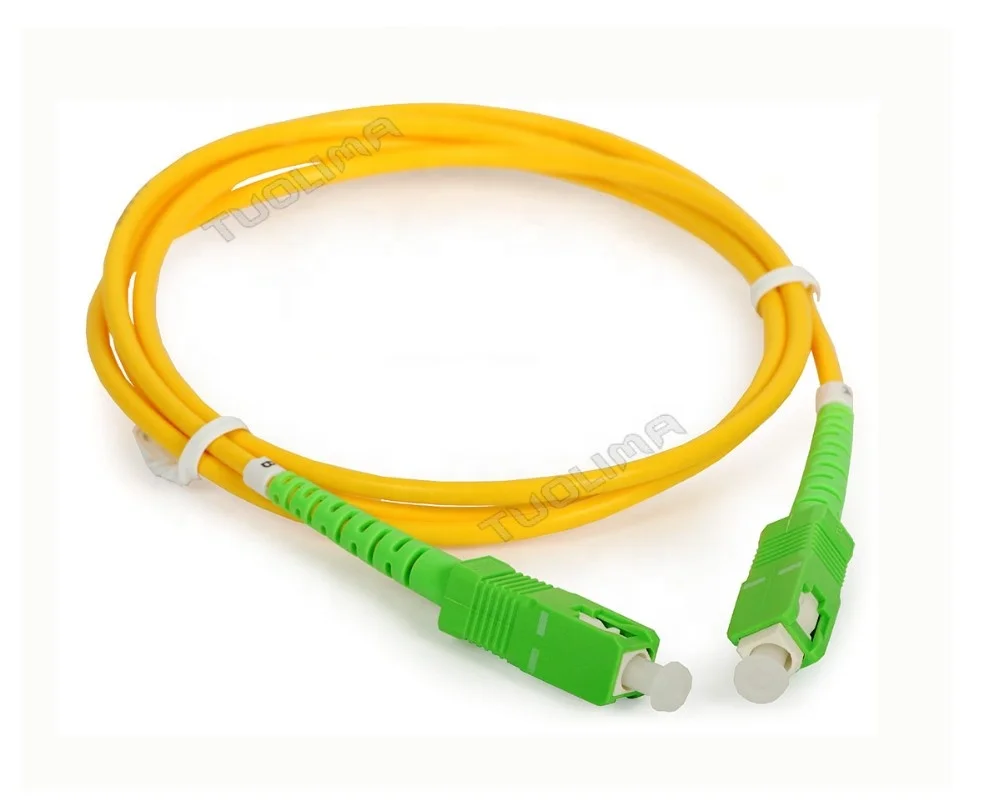

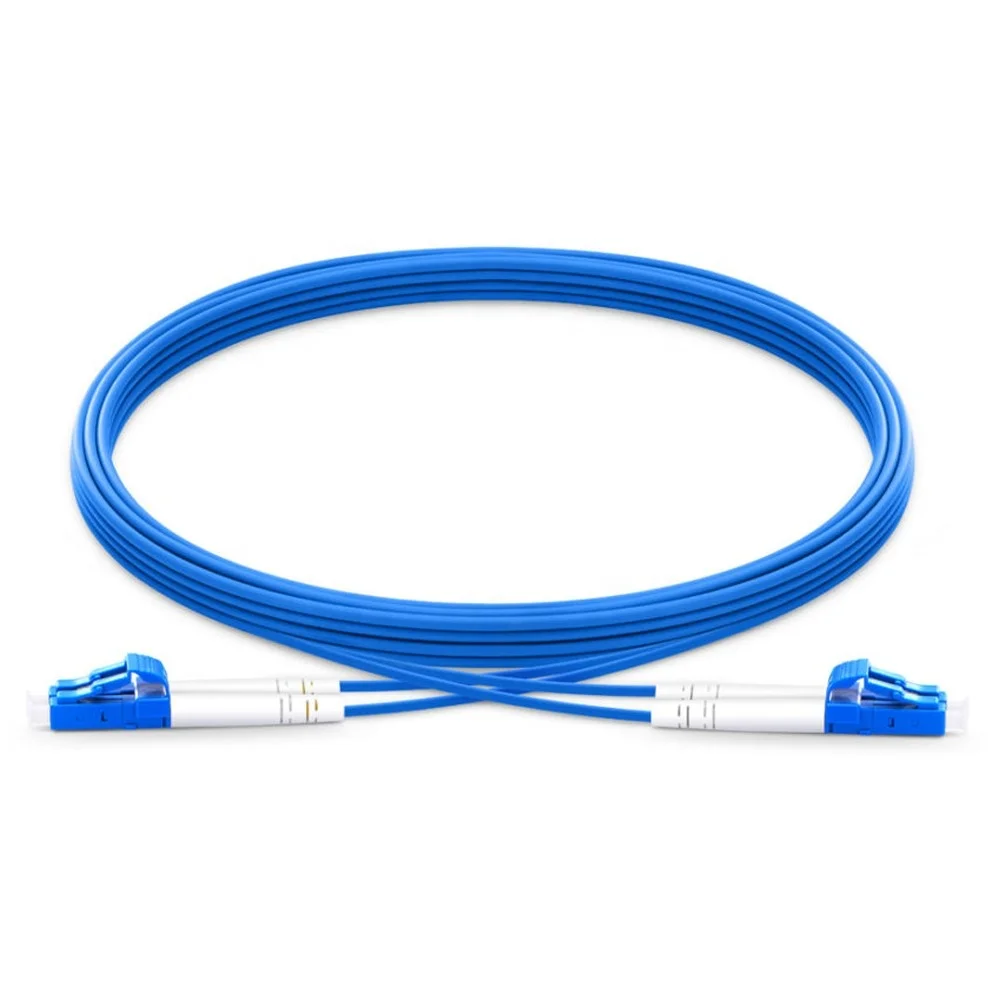

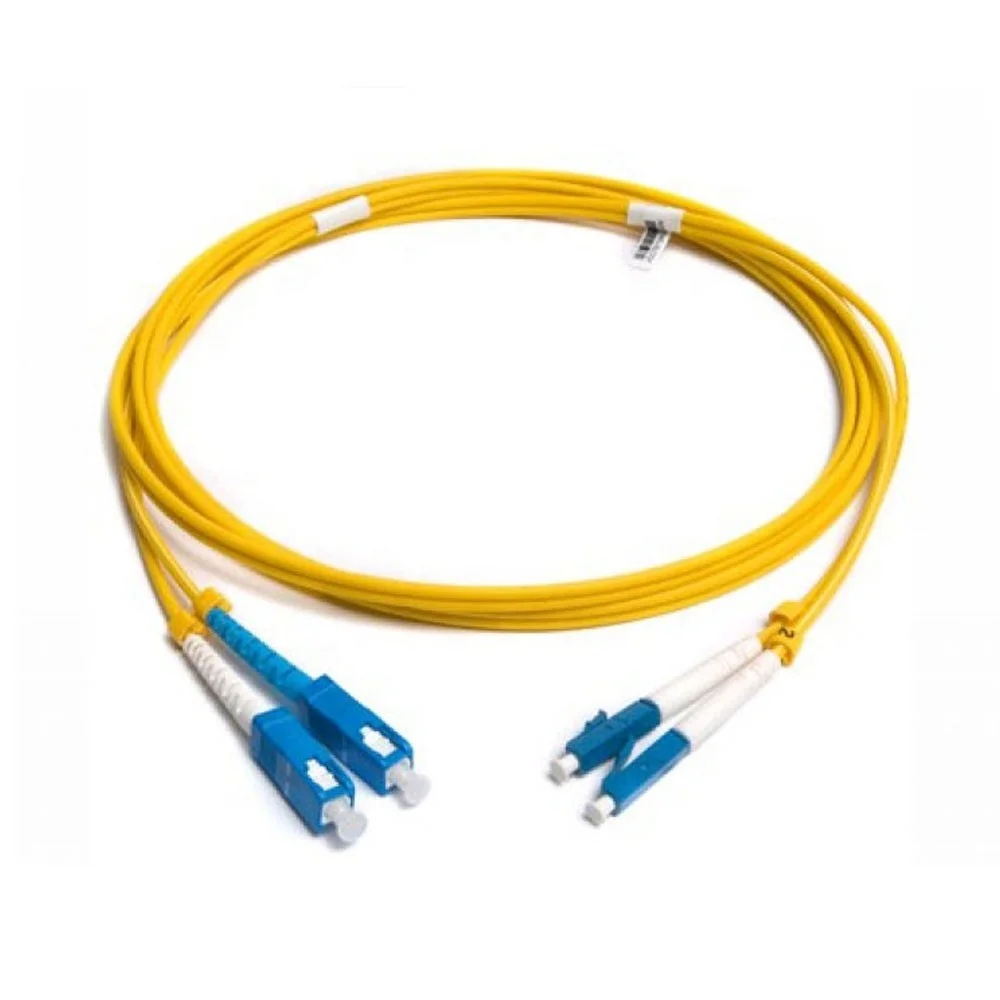

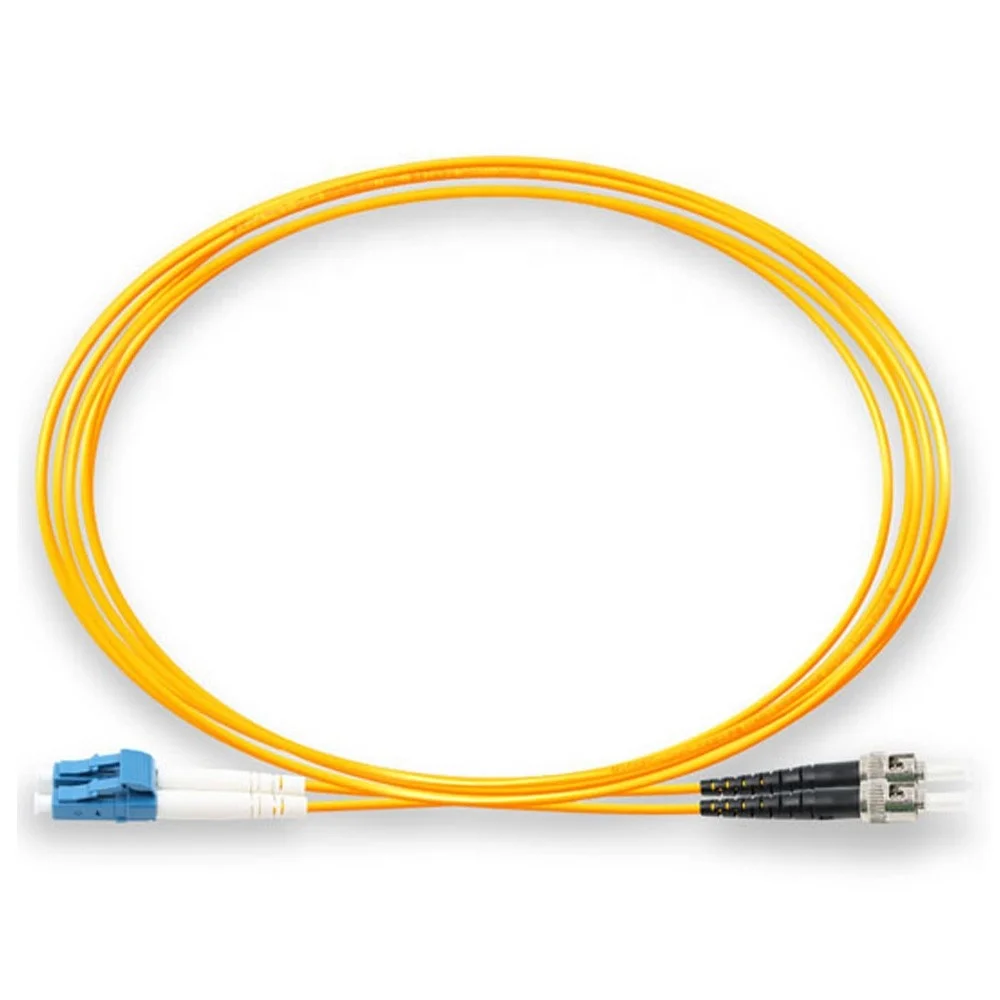

FTTH SC FC LC ST UPC Одномодовый мономодовый волоконно оптический фибра оптика патч корды
- Категория: "
Описание и отзывы
Характеристики
Product Description
Fiber Optic Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".
Item | Performance |
Mode Type | SM MM |
Cable Material | PVC LSZH |
Cable Diameter | 0.9mm, 2.0mm, 3.0mm |
Cable Length | 1m or customized |
Connector Type | SC FC LC ST |
Number of Fiber | Simplex duplex |
Fiber Type | G652D G657A |
Item | Unit | Specification | ||
SM | MM | |||
SC/PC SC/UPC SC/APC | SC/PC | |||
Insertion Loss | dB | ≤0.20 | ||
Max. Insertion Loss | dB | ≤0.30 | ||
Repeatability | dB | ≤0.10 | ||
Changeability | dB | ≤0.20 | ||
Return Loss | dB | 45 50 60 | / | |
Operation Temperature | ℃ | -25 ~ +70 | ||
Storage Temperature | ℃ | -40 ~ +85 | ||
Fiber type | um | 9/125 | 50/125; 62.5/125 | |
Core number | / | single or dual fiber | ||
Durability | times | ≥1000 | ||
Industry Standard | / | Bellcore TA-NWT-001209 | ||
Similar Products
Related Products
More Products
Company Profile
Packing & Delivery
Transportation Methods | Time | Features | ||
Air Transportation | About 7-10 days (Some special address not included) | Weight≥45KG (1. Fees will be the same as 45KG if within 45KG; 2. FOCC and products with battery forbidden in air.) | ||
Express Transportation | About 7-10 days (Some special address not included) | Usually used for Sample Order (FOCC and products with battery forbidden in Express.) | ||
Sea Transportation | About 35 days (Some special port not included) | No weight limit (The most economic way for not urgent goods.) | ||
Trunk or Railway Transpotation | About 30-40 days | Only used for inland countries or neighboring countries of China. | ||
