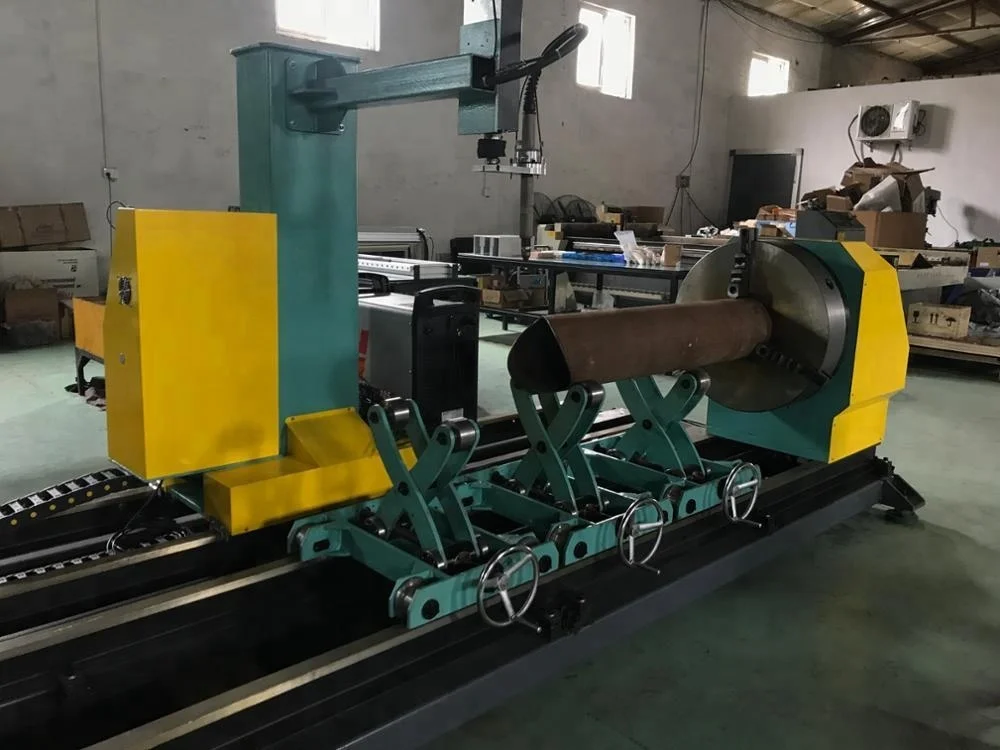

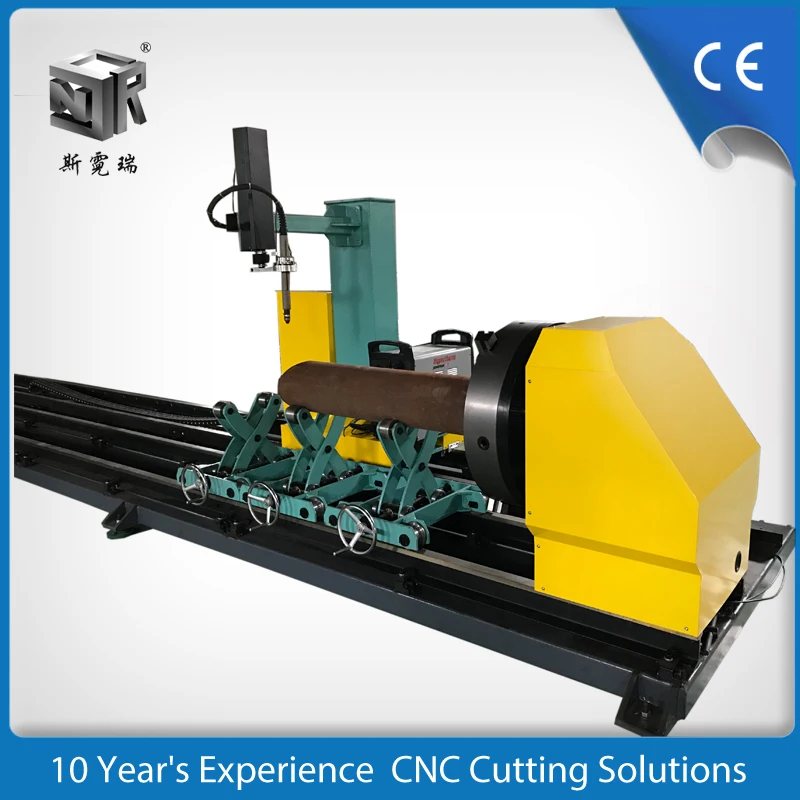

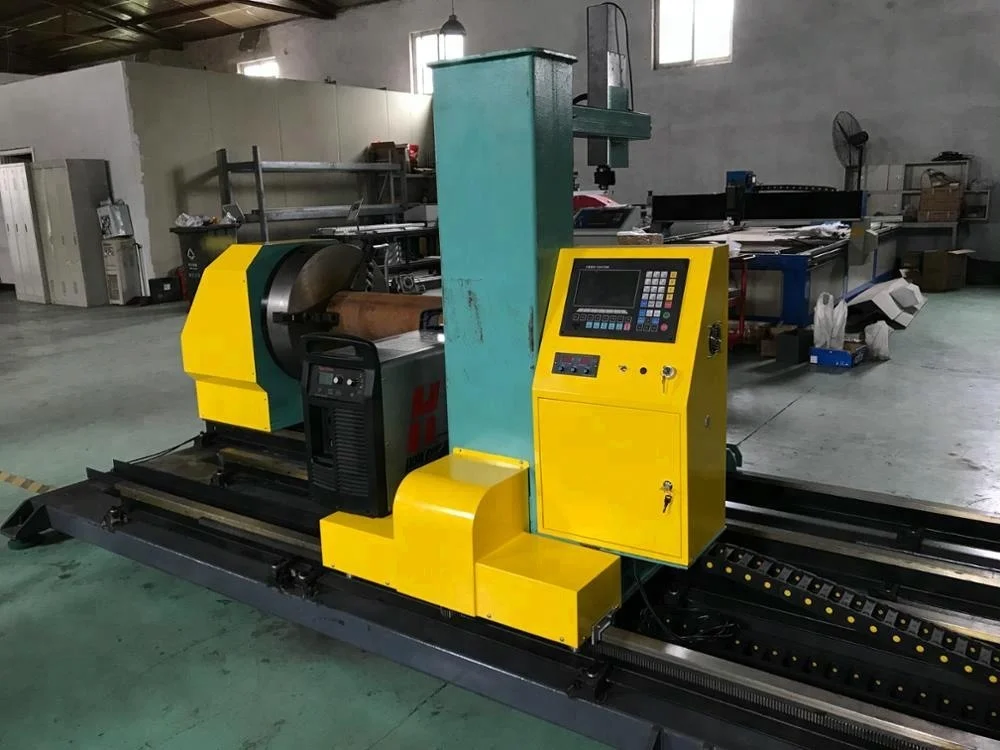

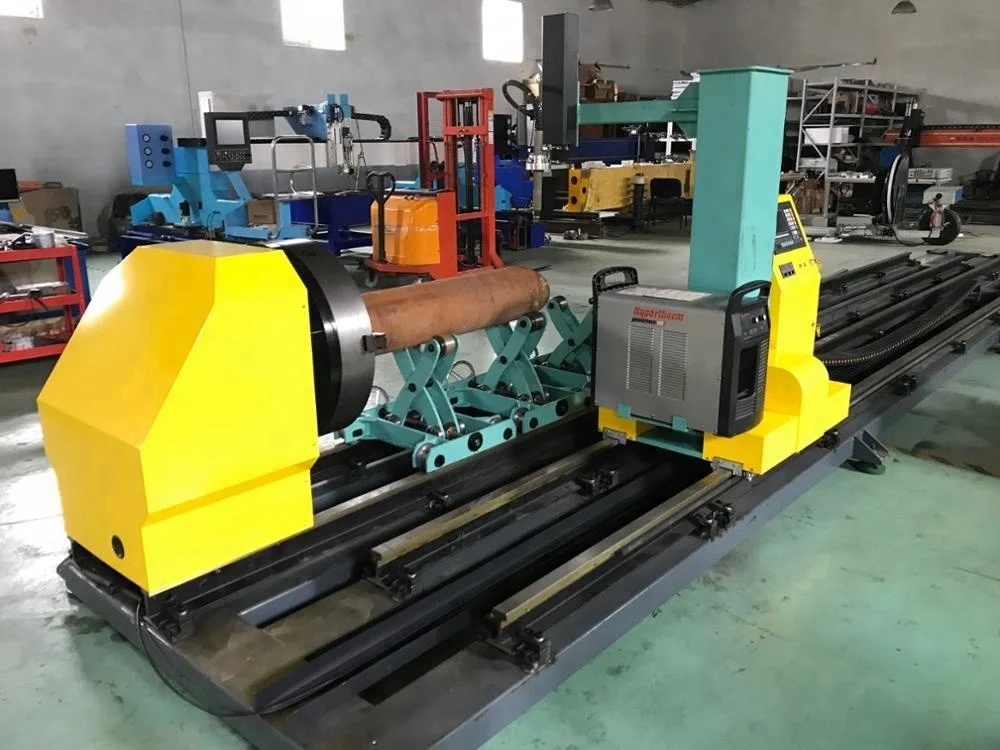

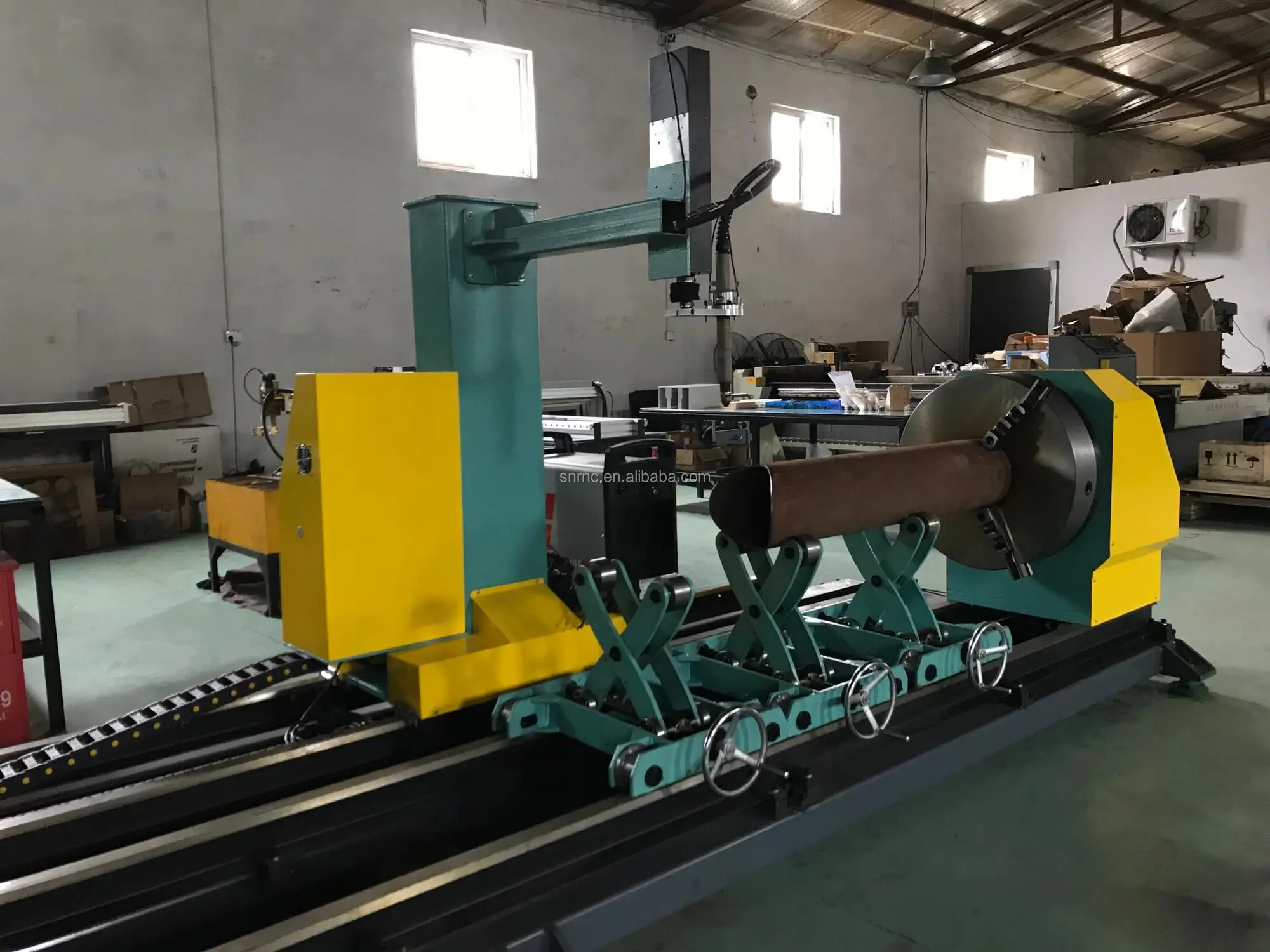

CNC plasma pipe cutting machine SNR-XG

3 axis without bevelling

Machine characters:

1) Equipped with “Three-Axis, Two-Axis Linkage Control” intersection NC system, and the 7 inch color LCD screen, Fit for pipe cutting without beveling.

2) Standard version not only can both flame cutting and plasma cutting, but also can cut both pipe and steel plate.

3) Using AC 3 phase high voltage step motor drive technology, the motors get more power but less noisy.

4) Can make intersecting pipe hole cutting in different directions and different diameters. Can make branch pipe and main pipe vertical or cross in some angle.

5) Can cut oblique section of the pipe.

6) Can cut branch intersecting pipe's end socket for main pipe.

7) Can cut square and slotted hole and all shapes on the pipe.

8) Can cut off the pipe.

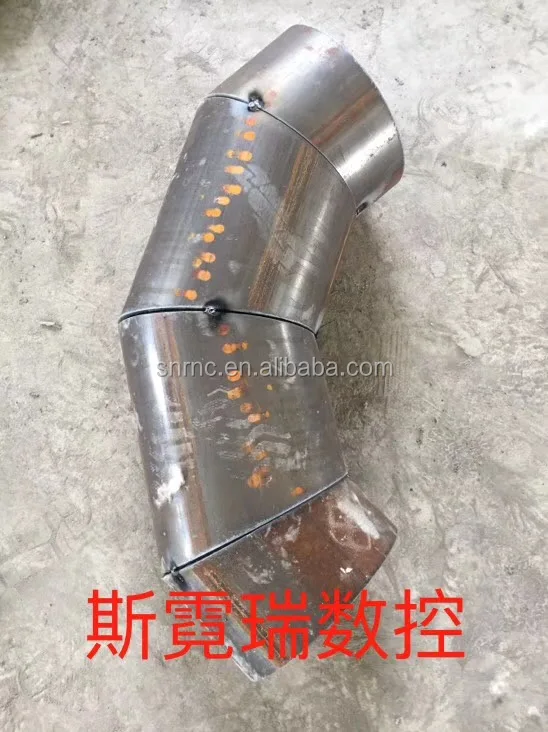

9) Can cut dual bending ends for bending of the pipe after welding.

Technical parameter:

Cutting Range:	the maximum effective cutting diameter	400mm
	the minimum effective cutting diameter	60mm
The guide rail length		14m
Pipe cutting length		12m
CNC flame cutting thickness		6-50mm
CNC plasma cutting thickness		according to plasma power decision
The machine runs		0-4000mm / min
The speed error setting		≤ ± 5%
We accept Customization!

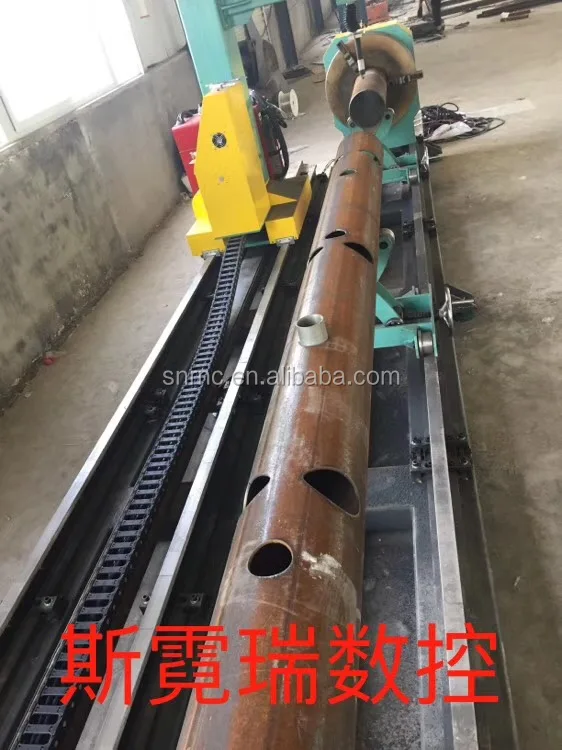

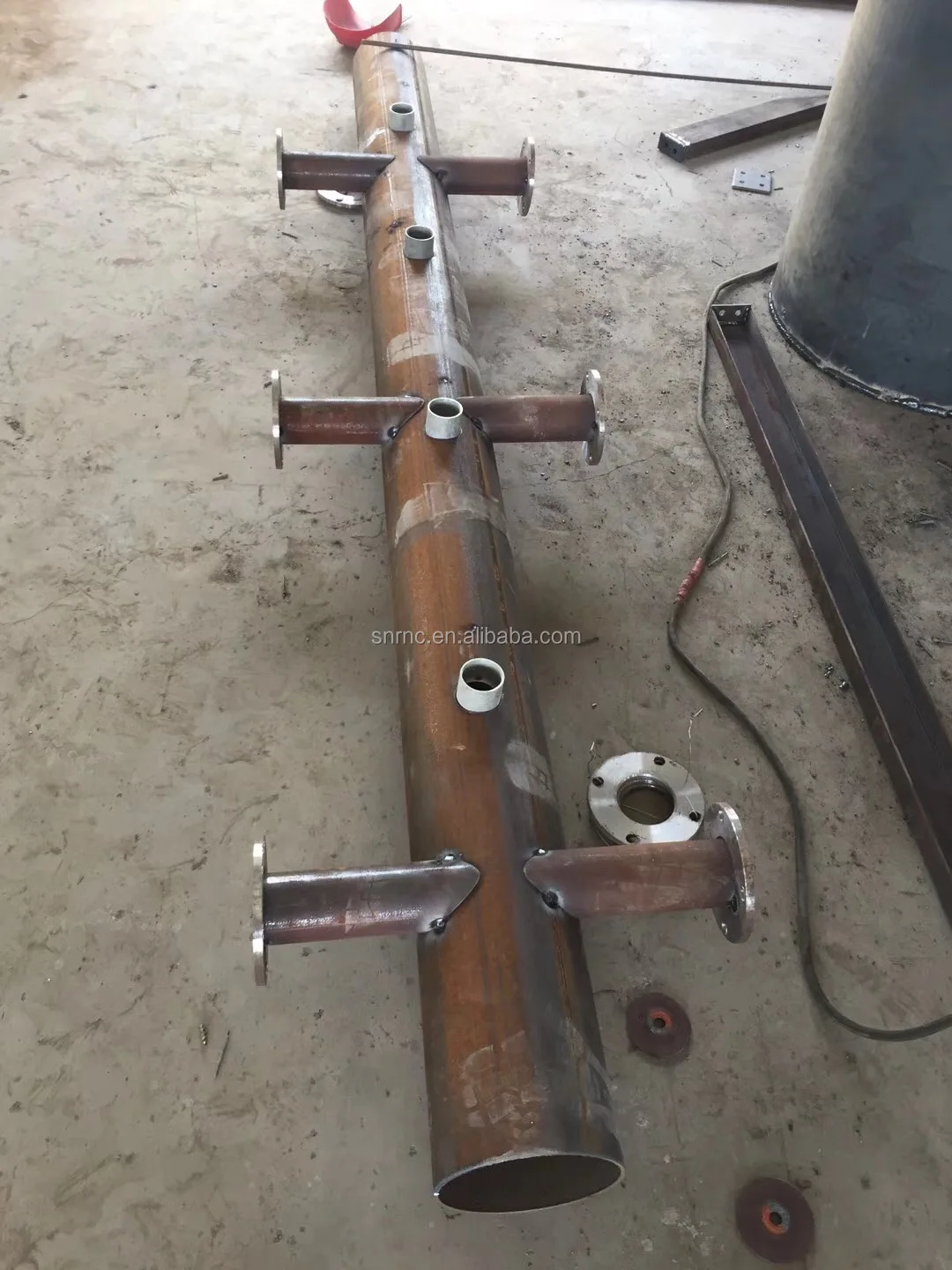

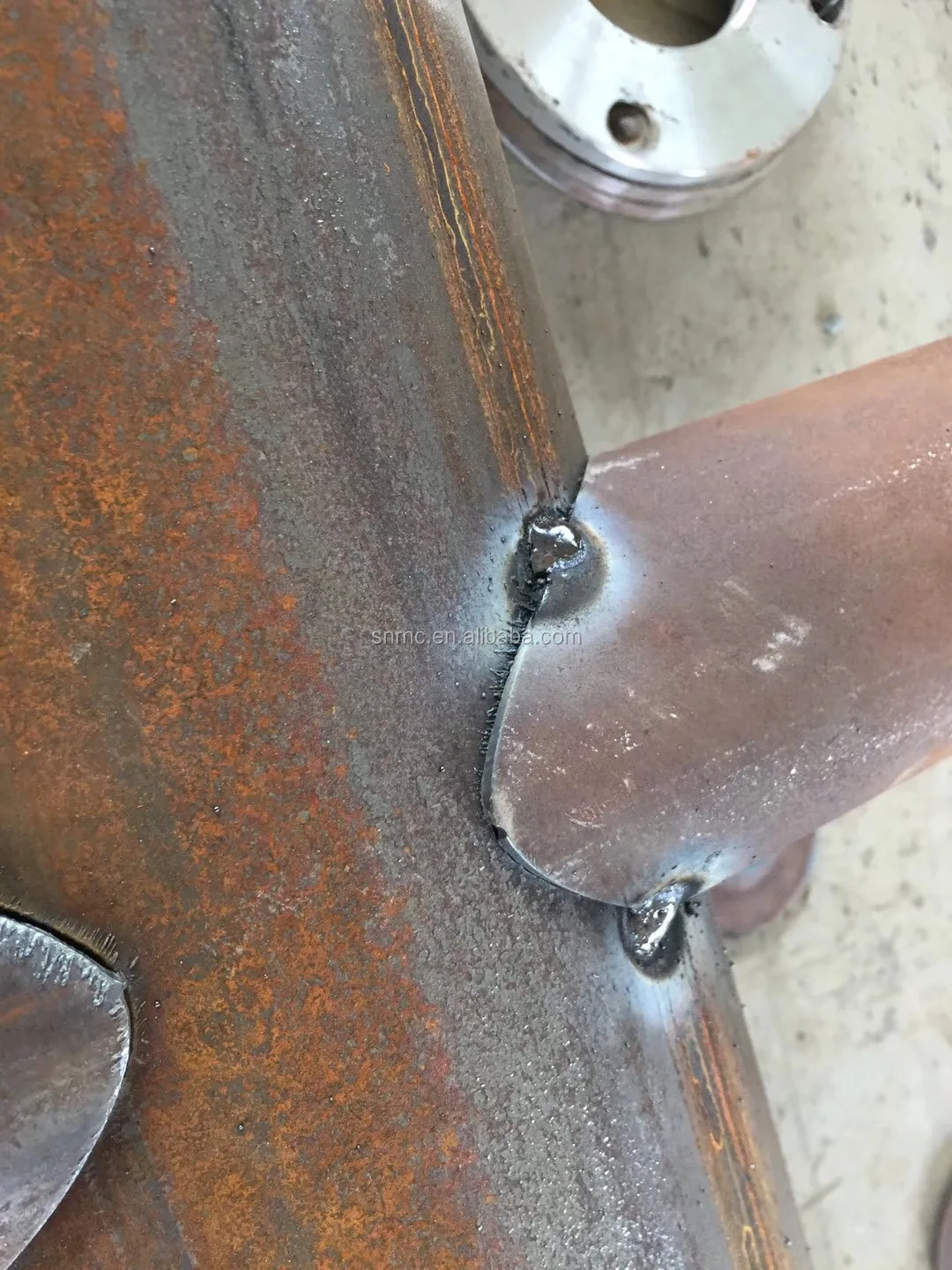

Cutting Sample&application:

If you are interested in this machine, would you please kindly advise us the information as follow:

1. The tube length?

3. The tube OD, and tube thickness separately?

4. Plasma or oxy-fuel?

5. Other special requirement? for example: if need bevel or not?

We will offer you the best solutions and quotation upon receipt of your detail requirement.
