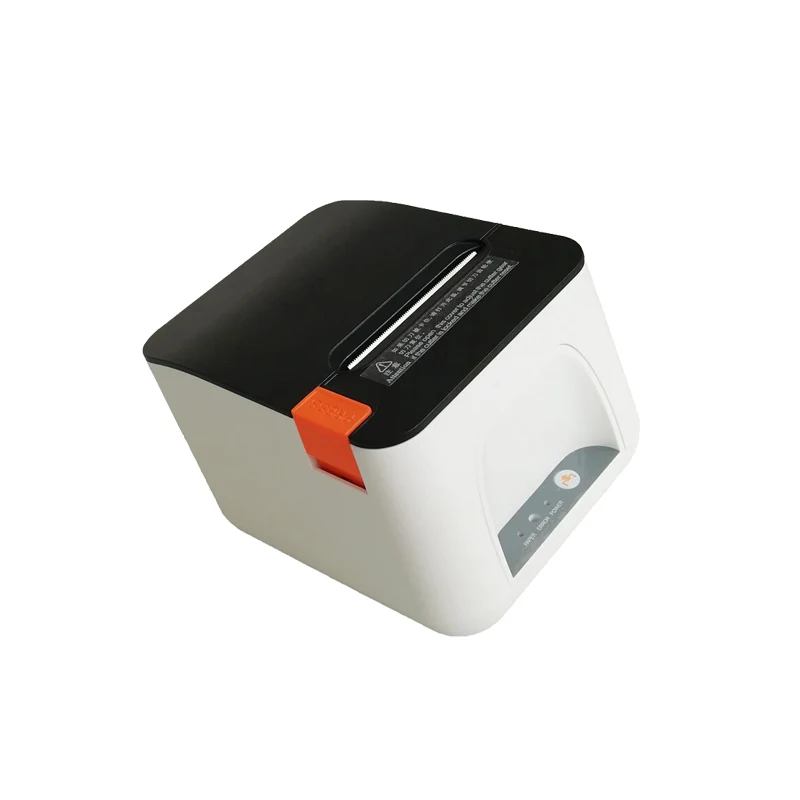

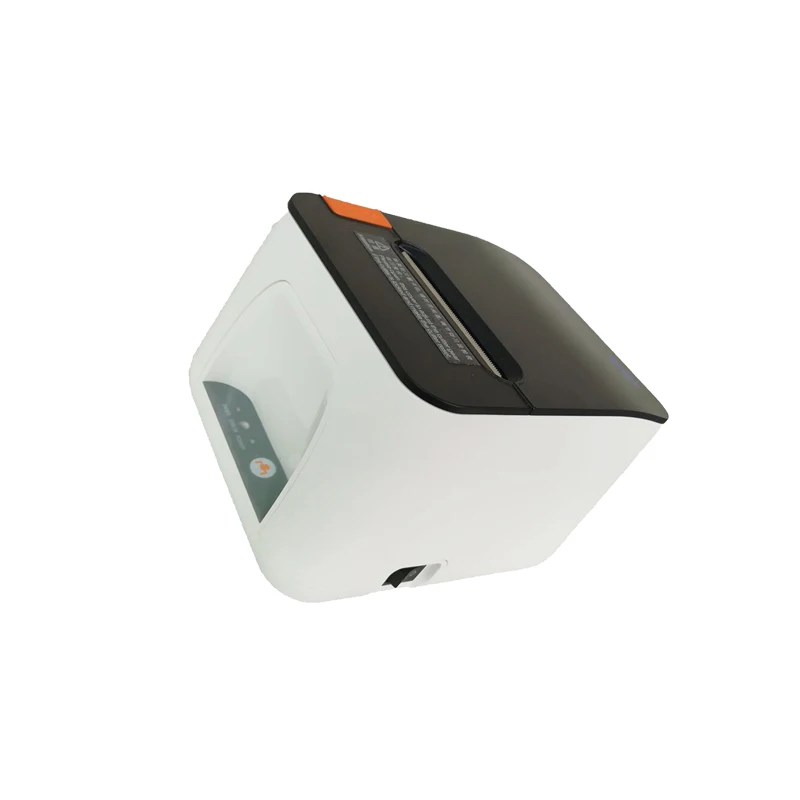

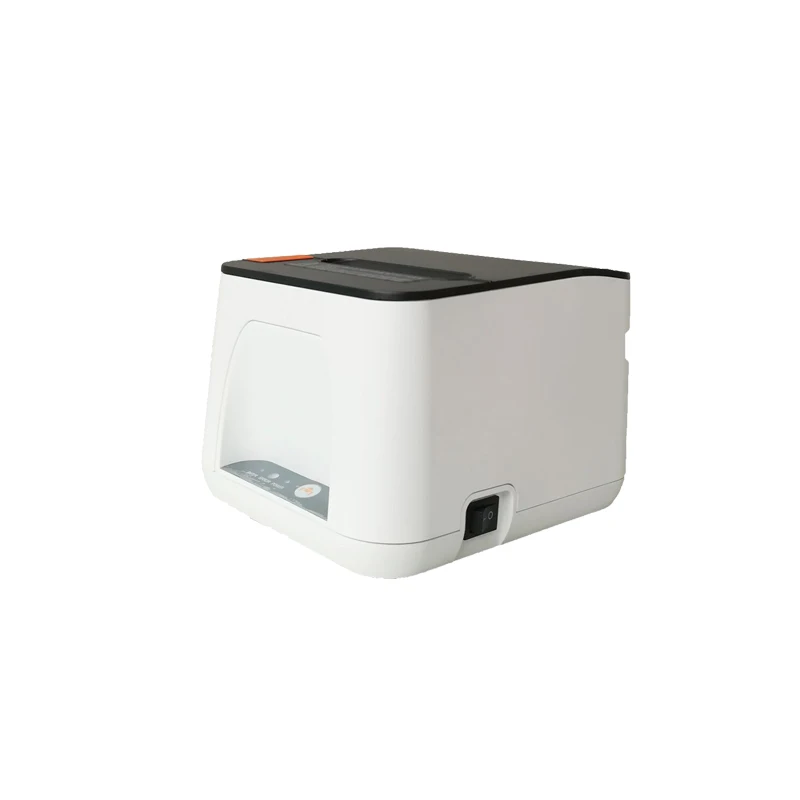

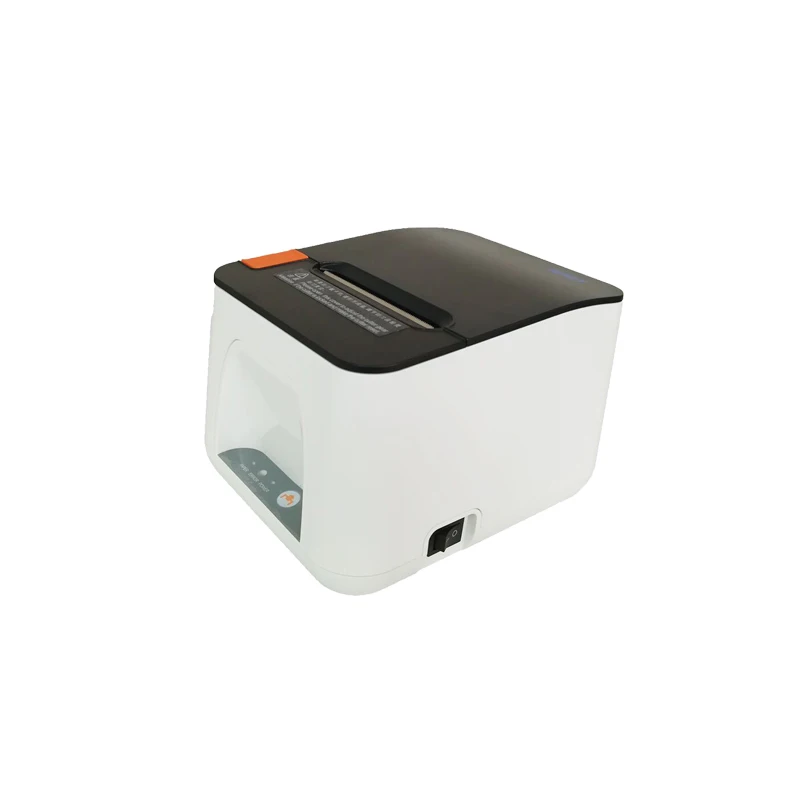

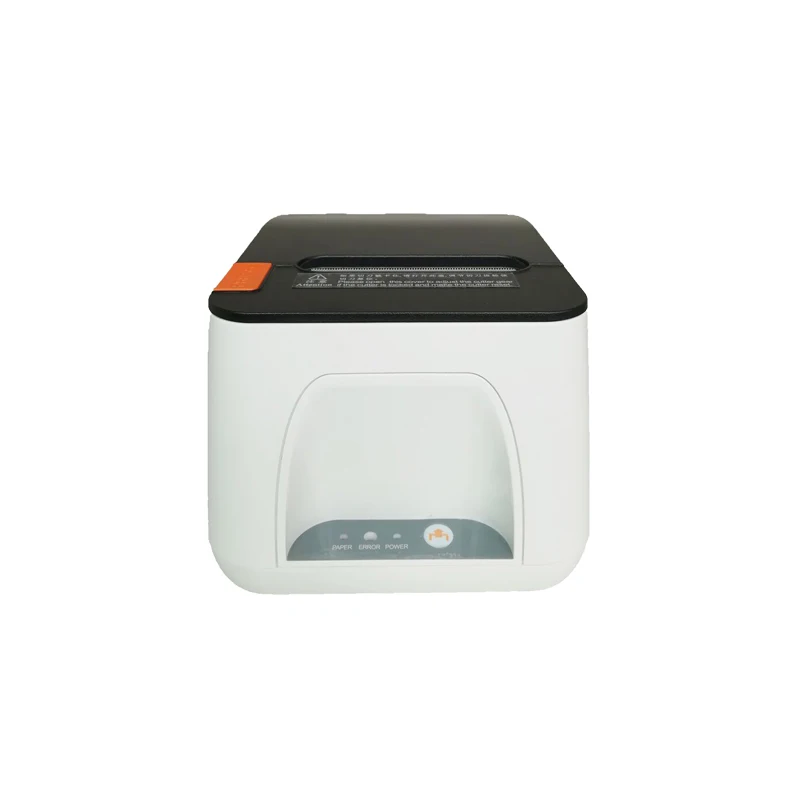

Newest POS printer 80 mm thermal printer USB Serial Ethernet interface printer

Print method: direct thermal

Print paper width: 79.5±0.5mm

Print density: 8 dots/mm, 576 dots/line

Print speed: max 250mm/s

Reliability

Print head life: 100km

   Using condition:

Print 12 × 24 ASCII characters, print 50 lines each time, intermittent print repeatedly

Use specified thermal paper

Cutter life: 500,000 cuts

Using condition: less than 30 cuts/minute

Valid print width: 72mm

 Print Paper

 Thermal paper roll model: TF50KS-E (Japan paper co.ltd)

                                   AF50KS-E (JUJO THERMAL)

 Thermal paper roll: Width--- 79.5±0.5mm

                            Outer Diameter --- 80mm (max.)

                     Inner Diameter---   13mm (min.)

                     Thickness   ---0.06mm~0.08mm

 Print Font

ANK Character Set

12×24 dots,1.5(W)×3.00(H)mm

GB GB2312-80(Chinese):

24×24 dots,3.00(W)×3.00(H)mm.

Interface

 RS-232C Serial Interface:

DB-25 socket (female), supports XON/XOFF and TR/DSR protocols.

Baudrate:1200,2400,4800,9600,19200,38400,57600,115200bps

adjustable.

Data structure: 1start bit + (7 or 8) data bits + 1 stop bit.

Parity checking: no parity or odd, even parity optional.

 Ethernet Interface: Normal Ethernet interface.

 USB Interface:USB interface

 Bluetooth Interface: Dual mode Bluetooth and one-to-many Bluetooth

 Cash Drawer Control

DC24V,1A,6-pin RJ-11 socket.

Print Control Commands

Character print commands: support double-width, double height print of ANK characters, user-defined characters and Chinese characters, the character line spacing is adjustable.

 Graphics print commands: support the print of bit-map graphics and download bit-map graphics with different density

GS bar code print commands: support UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF,CODEBAR,CODE93,CODE128,PDF417,QR bar code print.

Power Supply

 DC24V±10%,2A,A-1009-3P power socket.

Operation Environment

 Operation temperature: 5~50℃; Relative humidity: 10~80%

Storage temperature: -40~55℃; Relative humidity: 10~90℃

 Outline Dimension

185(L)mm×150(W) mm×123 (H)mm

Serial Interface

The serial interface of SP-POS887 printer is compatible with RS-232C, supports DTR/DSR and XON/XOFF handshaking protocols, uses DB 9 socket (female). The pin order of

Ethernet Interface

The model with Ethernet interface use RJ45 Network socket.

USB Interface

The standard accessories of SP-POS887 printer includes a Mini USB cable which connects printer and main device. The USB type belongs to the slave device type(DEVICE). Pins description of Mini-USB as Fig.2-4 below:

Bluetooth Interface connection

The handheld terminal, notebook computer or other terminals with Bluetooth interface can print by POS80 driver. The printer Bluetooth is compatible with Bluetooth 2.0 standard and power level is CLASS 2, the valid distance is 10m. The printer Bluetooth is slave device. The initial device name is POS88 BT Printer and initial password is “1234”. The user can change device name and password, etc by <SP-POS887 Setting Tool>. The detailed method about changing device name and password can be checked in Help file of <SP-POS887 Setting Tool>.

Before printing, the printer needs to pair with the Bluetooth host device. The pair needs to be sponsored by the host device. Usually, the pair steps are as below:

1. Turn on the printer

2. The host device searches the external Bluetooth device

3. If there are several external Bluetooth devices, choose printer “POS88 BT Printer”

4. Input password “1234”

5. Finish pairing.

Please see details in primary device Bluetooth function instruction for reference.

Illustration:

The Bluetooth of SP-L51 divided into dual mode Bluetooth and one-to-many Bluetooth. Dual mode Bluetooth supports one Android device and one IOS device, only one device can connect with the printer at the same timer. One-to-many Bluetooth supports six Android devices and one IOS device connect printer simultaneously.

Note:

1.     When pairing, the printer power must be in on status.

2.     After the printer Bluetooth is paired with host device Bluetooth successfully, it won’t be searched and paired with other host Bluetooth device, until the Bluetooth pairing with current host device stop.

Cash Drawer Interface

The cash drawer interface of POS-POS887 adopts RJ-11 6-pin socket

Power Connection

POS887 uses the external power supply adopter as 24V±10%,1.5A,
