Product Description

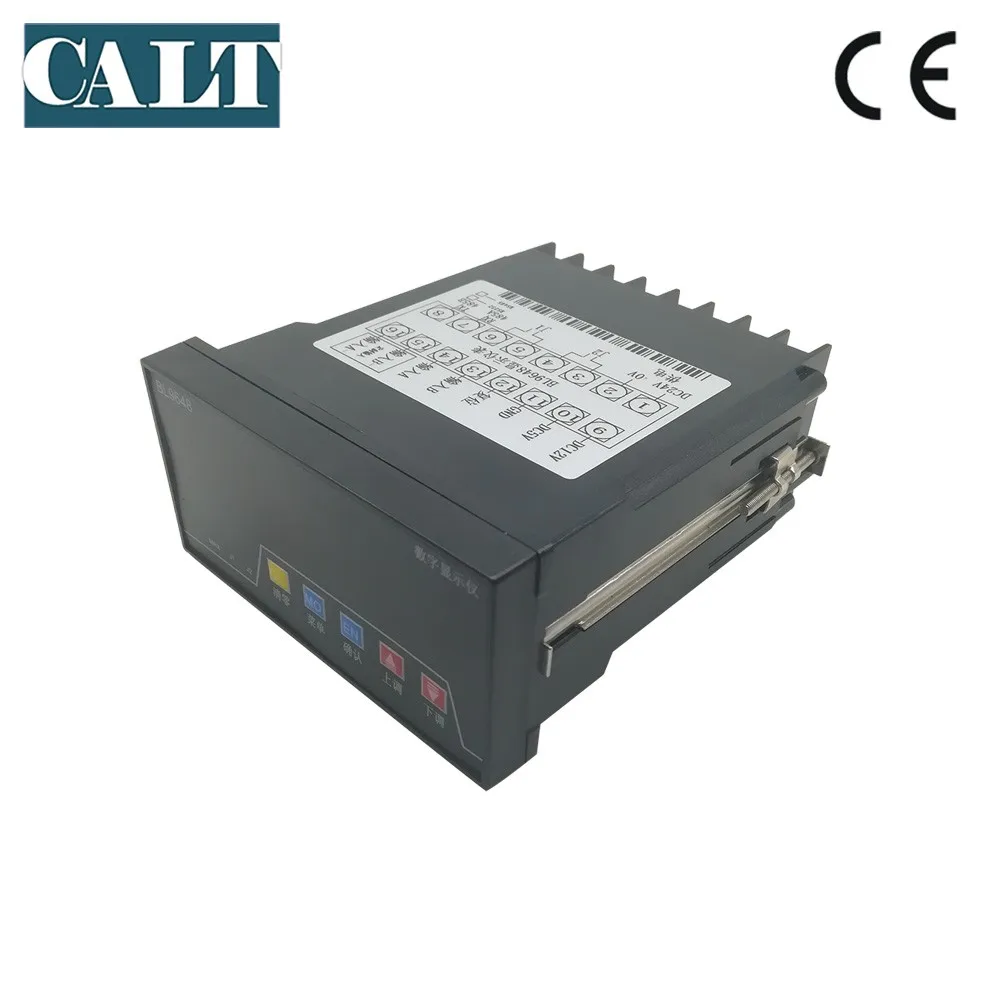

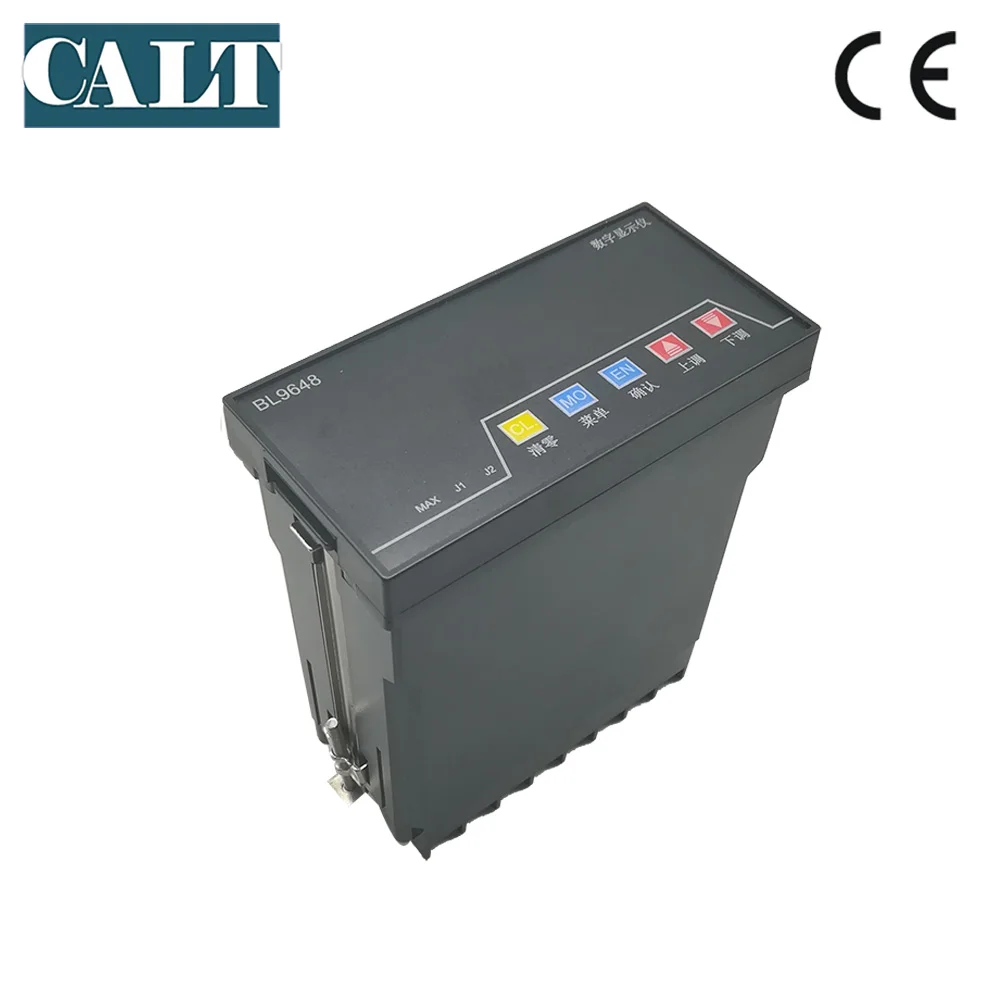

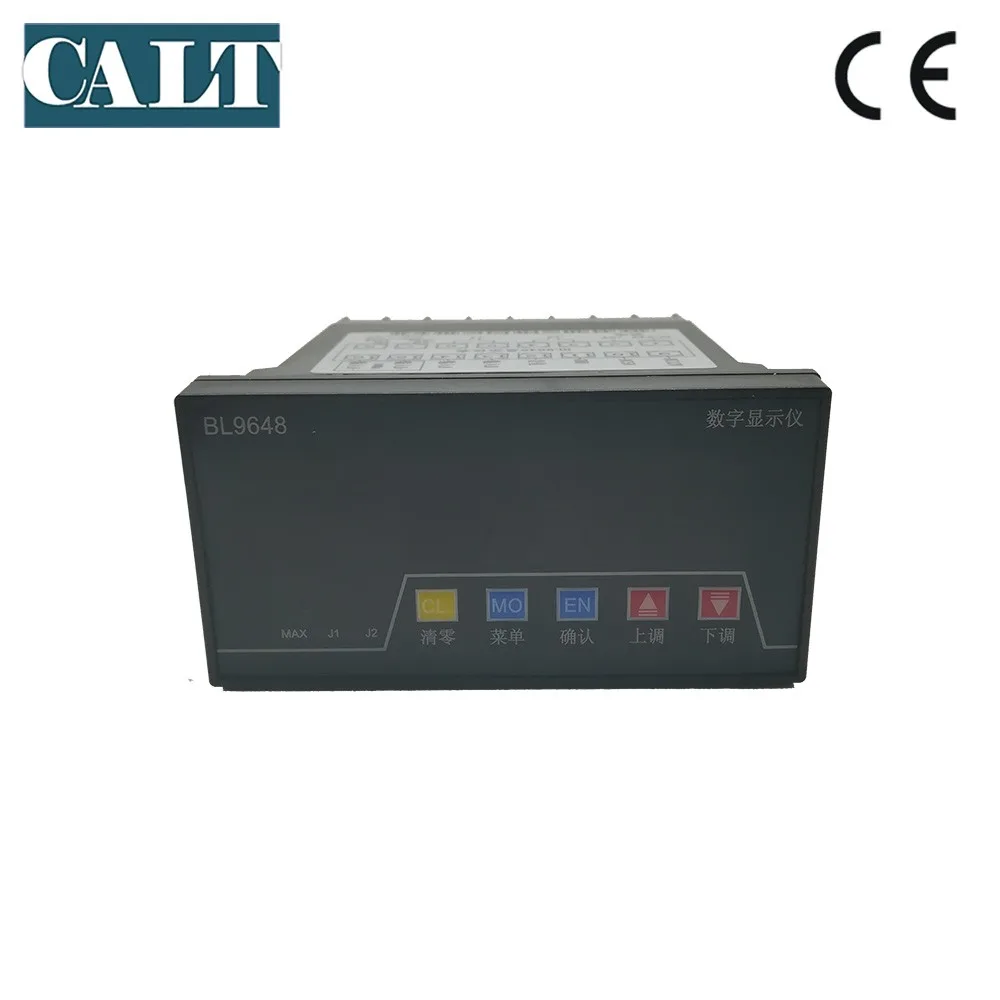

Draw wire digital display BL9468 Pulse Counter
Features:
BL9648-type is a display device with six digital, it can control and display position. BL9648 is widely used in industrial
control applications.
◆ internationally accepted standard 96 × 48 × 115mm, 0 .56 inches 6 digitals display.
◆ Enter the 4-20mA ,0-5v ,0-10k, 0-5k mv signals.
◆ Set zero with external switch control
◆ Set two controlled values, two relay outputs can be used for control or alarm.
◆ Optional three kinds of relay output.
◆ Can automatically reset the time delay.
◆ peak display.
◆ can count / measure speed, via the internal parameter settings.
◆ Parameter setting password protection.
◆ Setting value retain after power failure.
◆ Ratio can be set, determines the ratio between input signal and displayed value.
◆ External connect to sensors: angles, linear displacement sensor, can provides 5V (100mA), 12V (100mA) power
supply.
◆ Calibration function: Set 9 calibration points, in order to achieve linear differential fill feature.
BL9648-type is a display device with six digital, it can control and display position. BL9648 is widely used in industrial
control applications.
◆ internationally accepted standard 96 × 48 × 115mm, 0 .56 inches 6 digitals display.
◆ Enter the 4-20mA ,0-5v ,0-10k, 0-5k mv signals.
◆ Set zero with external switch control
◆ Set two controlled values, two relay outputs can be used for control or alarm.
◆ Optional three kinds of relay output.
◆ Can automatically reset the time delay.
◆ peak display.
◆ can count / measure speed, via the internal parameter settings.
◆ Parameter setting password protection.
◆ Setting value retain after power failure.
◆ Ratio can be set, determines the ratio between input signal and displayed value.
◆ External connect to sensors: angles, linear displacement sensor, can provides 5V (100mA), 12V (100mA) power
supply.
◆ Calibration function: Set 9 calibration points, in order to achieve linear differential fill feature.
Specifications:
◆ Power supply: 24VDC
◆ Input impedance: 5K
◆ Magnification range: 0.000 to 999.999
◆ Display range: -999999 to 999999
◆ pulse level: Low:-50V ~ 0.5V High level: 3.5 ~ 50V
◆ contact capacity: AC220V1A DC24V1A
◆ Installation: Snap-
◆ hole size: 92 × 43. 5mm
◆ Ambient temperature: -10 ℃ ~ 50 ℃
◆ Power supply: 24VDC
◆ Input impedance: 5K
◆ Magnification range: 0.000 to 999.999
◆ Display range: -999999 to 999999
◆ pulse level: Low:-50V ~ 0.5V High level: 3.5 ~ 50V
◆ contact capacity: AC220V1A DC24V1A
◆ Installation: Snap-
◆ hole size: 92 × 43. 5mm
◆ Ambient temperature: -10 ℃ ~ 50 ℃
