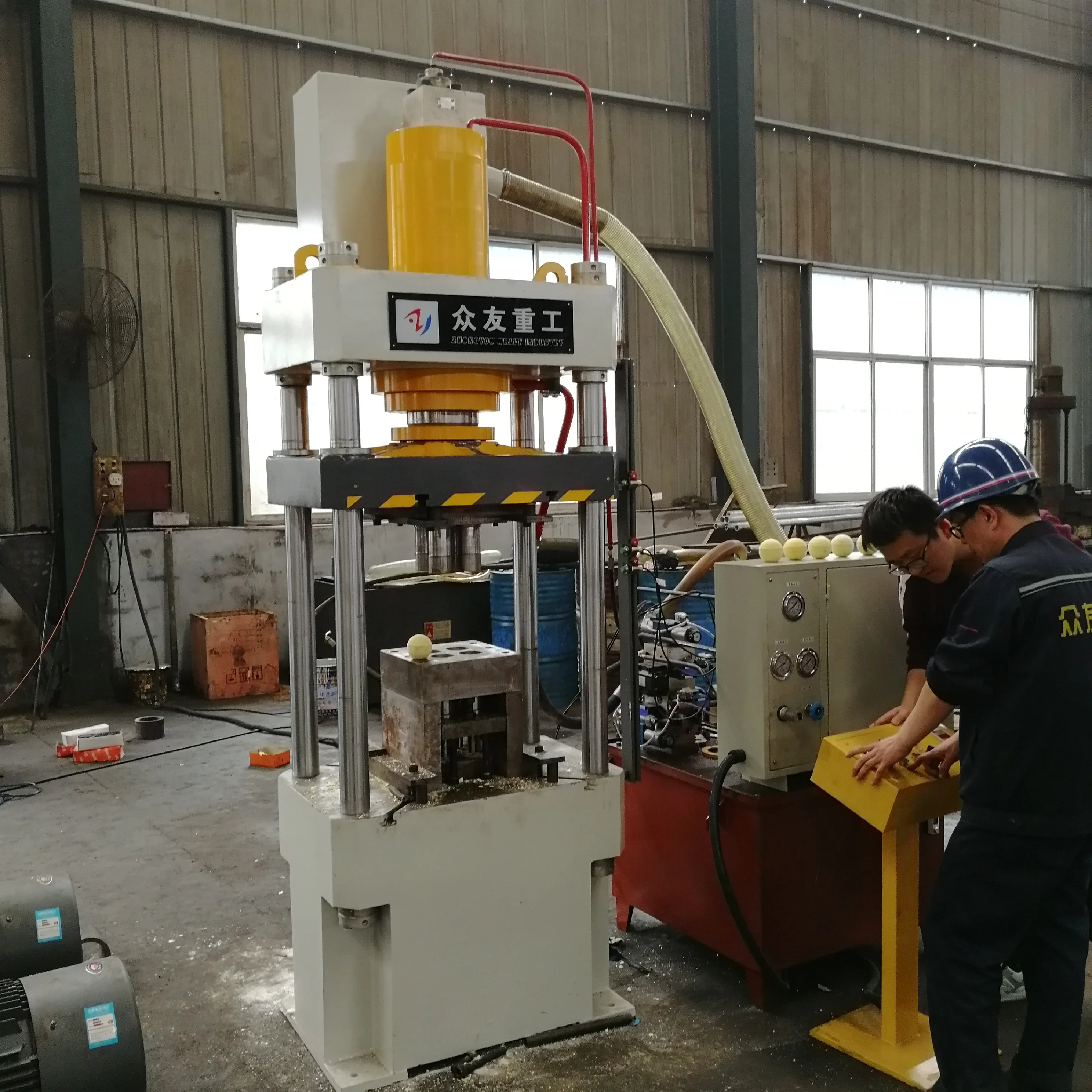

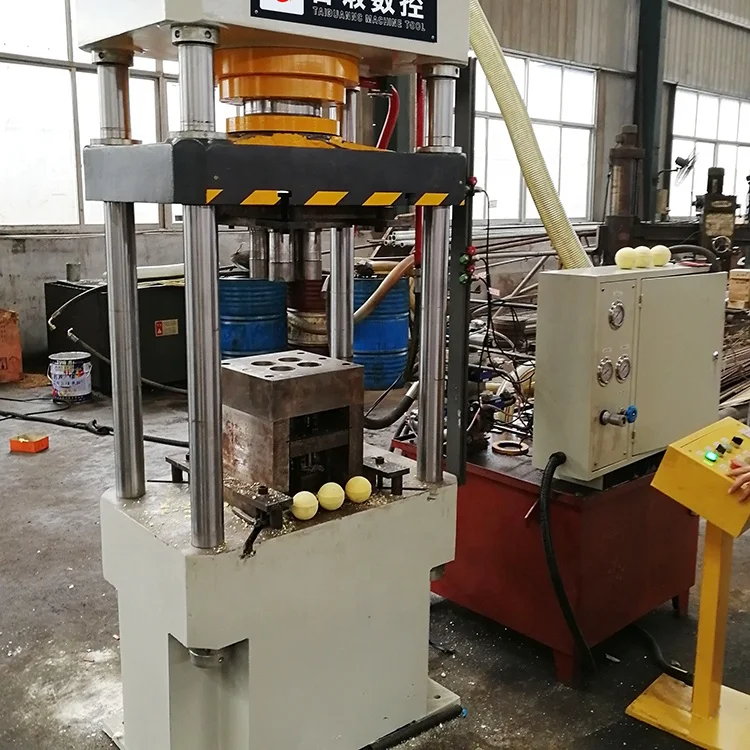

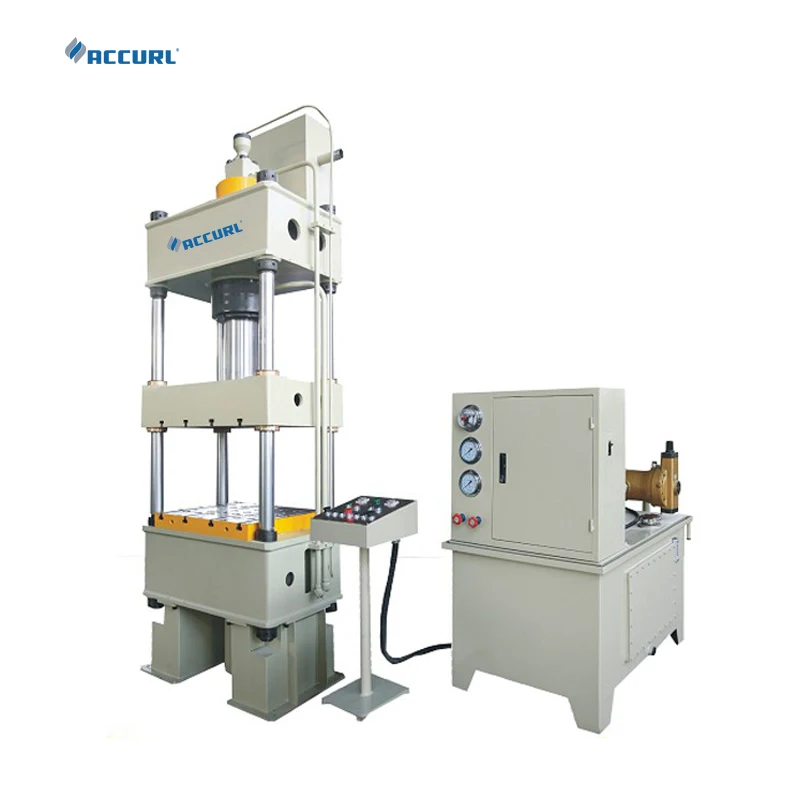

small cheap automatic Hydraulic bath bomb press machine








Product-description





Bath Bomb press machine is a powder molding machine, with also powder  forming function belongs to the three-beam four-column hydraulic press machine series. All with metal materials, stretching, bending, flanging, cold extrusion, punching and other processes, but also with the correction, pressure equipment, powder products, abrasive products, as well as plastic products, insulation materials, compression molding.


100T (39)







Product main technical specifications:


























































































Specifications



Units



60t



100t



160t



Nominal force



KN



600



1000



1600



ejector force



KN



200



400



400



Max. working force of liquid



MPA



25



25



25



Slide stroke



mm



450



400



800



Ejection stroke



mm



200



200



300



Table effective size



mmxmm



580x500



800x800



1600x1200



Empty stroke descent speed



mm/s



100



120



120



Slow down speed



mm/s



25



35



30



Pressing speed



mm/s



9



10



15



Return speed



mm/s



80



80



90



Motor power



KW



5.5



7.5



11






Product-details





The main structure of the bath bomb machine.
1 hydraulic power part - manual and electric.
2.Automatic/Mechanical control
3.Working cylinder part.
4.Hydraulic power part consists of hydraulic oil pump, elastic coupling motor and connection plunger pump.
5.The mechanical control part is controlled by the distribution box and the combination button switch.
6. tubing is connected by high pressure seamless steel pipe.





100T (41).jpg





100T (9)800





100T (29)800





100T (37)





Application

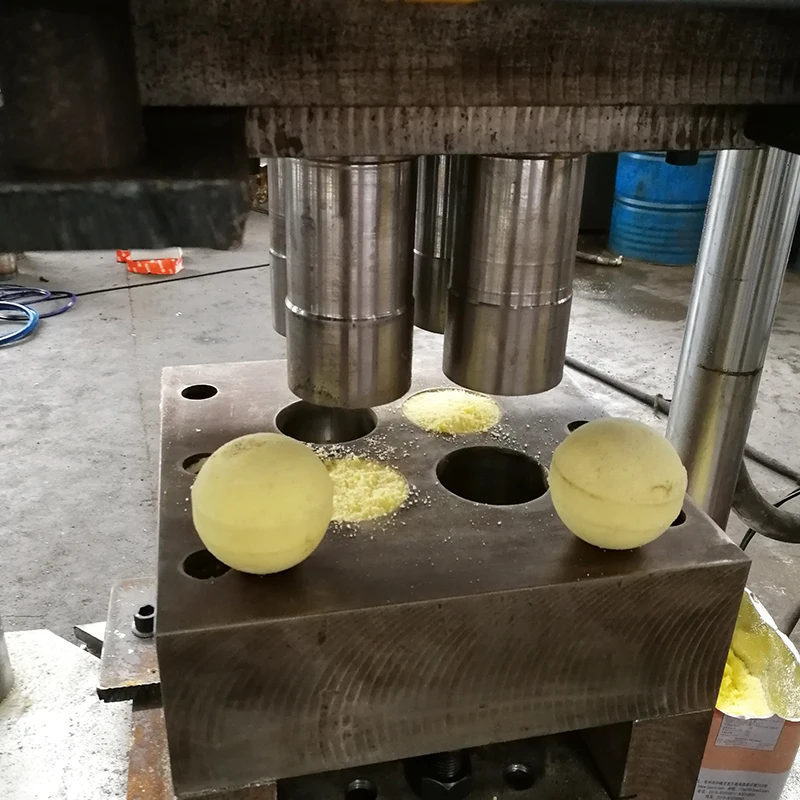

Salt Bath Bomb press machine is"Versatile", with tablet press machine we can get a series of products, including thermosetting products, powder products. For example , Saltblock, Bath Bomb , Seed Tray, Aluminum Foil Container, Souvenir coin, Wheel Barrow, SepticTank, Manhole Cover, Stainless Steel Cookware, Kitchen Sink and Car Brake Pad.Now take Bath Bomb Ball for example , its pressing process is as follows:


powder forming machine.jpg





Packaging-&-Shipping


Packaging Details


1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.


2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.


3.The outmost is wooden case with fixed formwork.


4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.


Delivery Detail:


Shipped in 45 days after payment

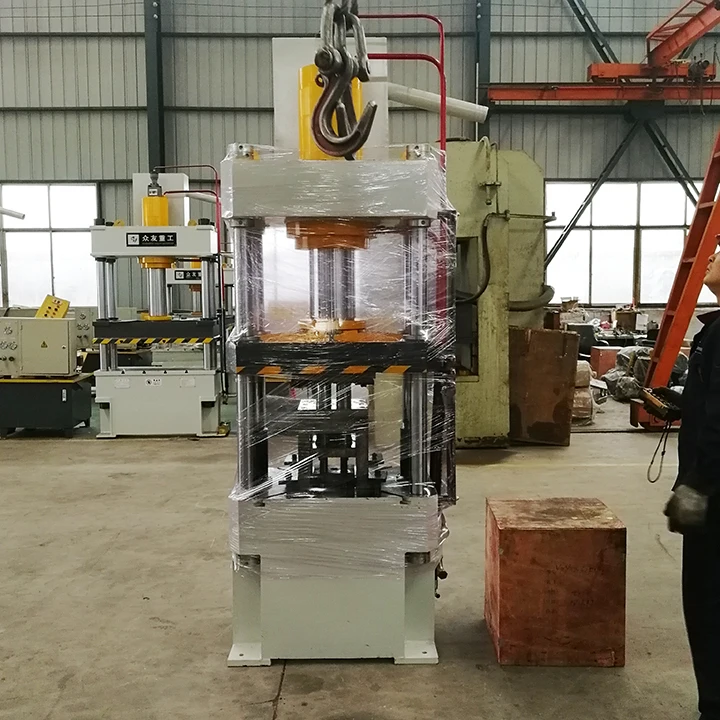

shipping of machine


 Workshop-&-factory

Our company is located in Tengzhou City, Shandong Province, China.A domestic leading hydraulic machine production of the Holy Land.Completely dependent on first-class production process,stand out  from a large number of hydraulic machine manufacturers .Over the years, widely praised by customers at home and abroad.  We have a number of innovative patents,because more than ten years to concentrate on only hydraulic press forklift tire press machine,in the small and medium enterprises has been the leader of the brand.
 Address:
No.219,Xingye North Road,Economic Development Area,Tengzhou City,Shandong Province
