ПВХ канал Nft гидропонная гулька система вертикальные системы выращивания клубники пластмассовая

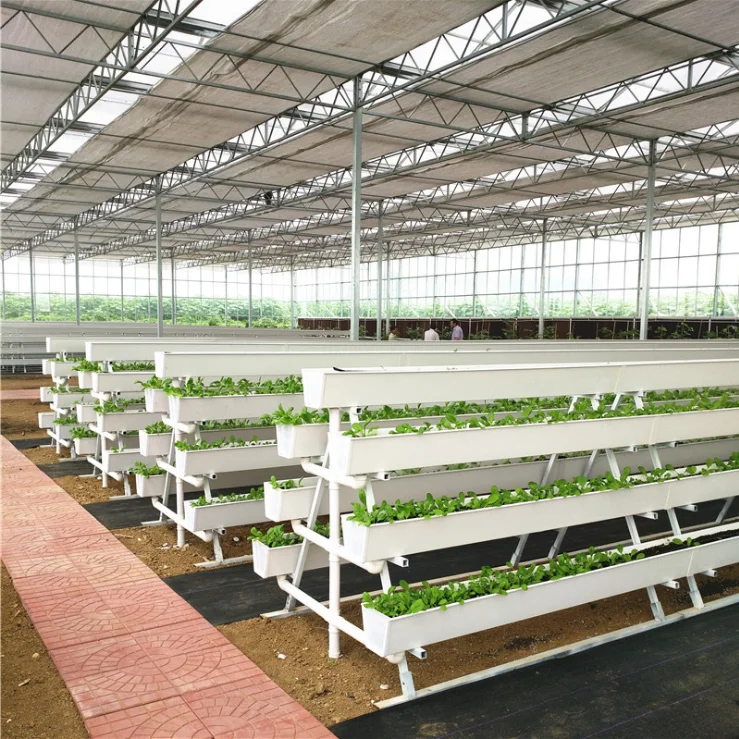

Strawberry vertical cultivation in greenhouse can greatly save greenhouse land, improve greenhouse use area and space, reduce pests and diseases, and facilitate daily management. It is a new modern strawberry cultivation

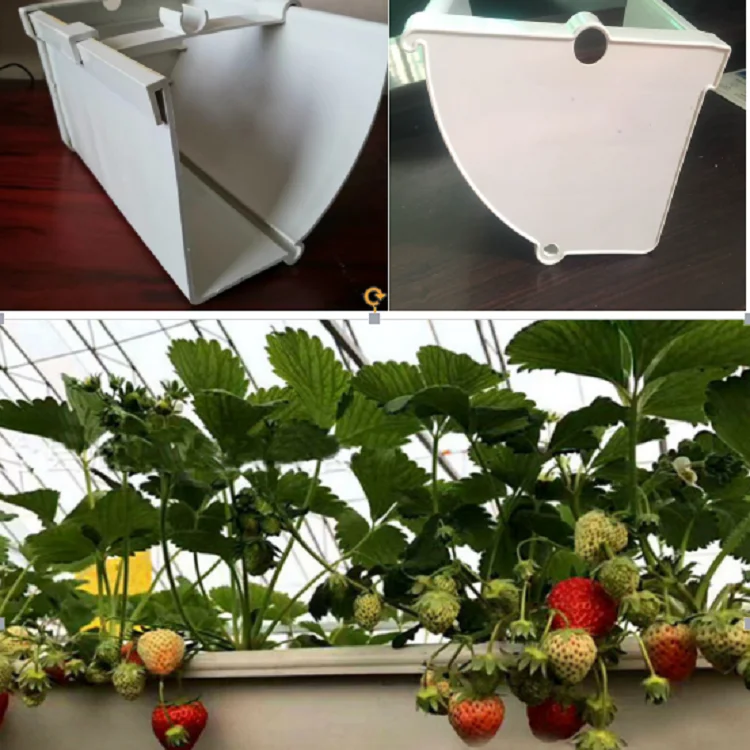

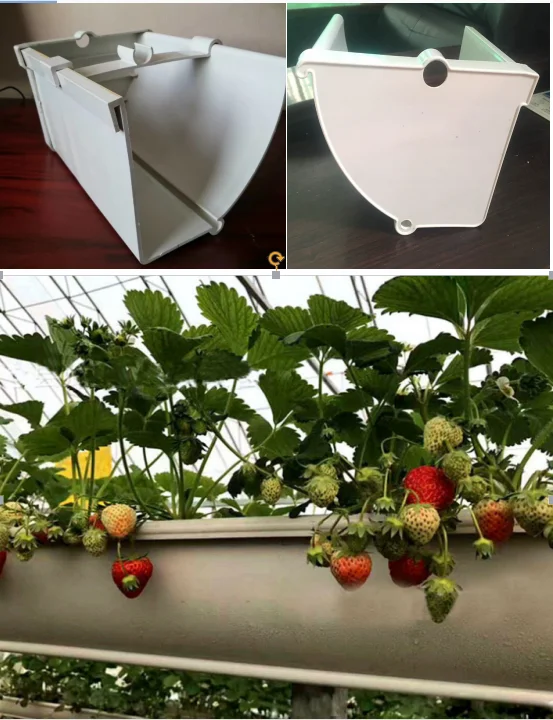

•  PVC Planting Trough

1) Planting trough material: PVC pipe, thickness 3-4mm, the top width 220mm, bottom width 130mm and height 190mm.

2)The planting trough can be put on shelves.

3)The PVC trough has many sizes, customized by the buyer. The trough length adjustable according to the greenhouse length.

4) A System with 7 pcs channel

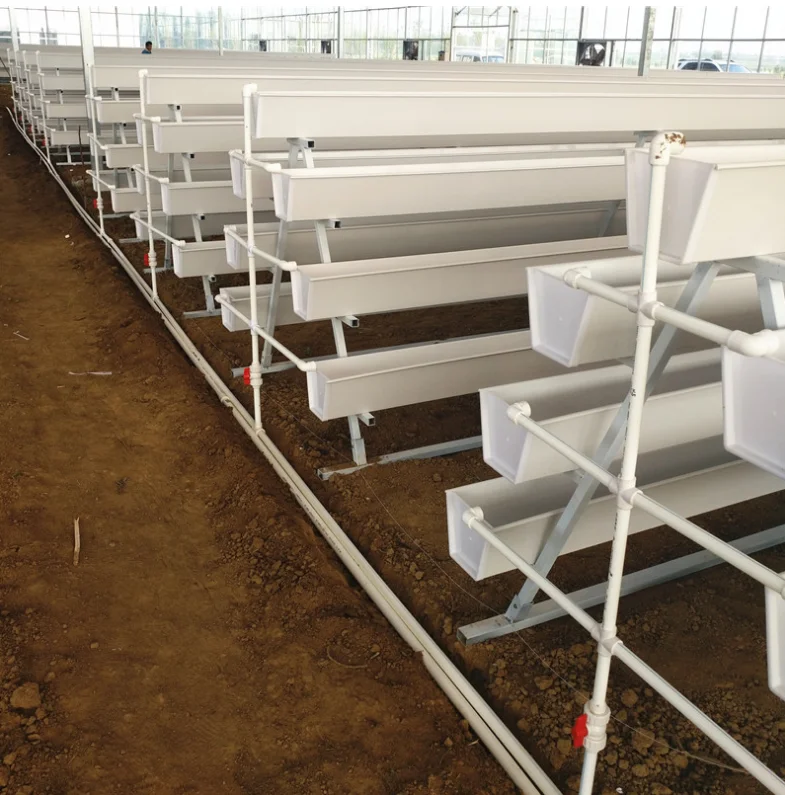

•  Planting Trough Shelves

Planting trough shelf material: hot-galvanized rectangular steel pipe, thickness 1.5mm. The shelf width is 1.4-1.6m and height 1.4-2.0m.

Size

 List

• 7 pcs channel in 2 m / SP-7B

Drain Board 14m ,  End Cup 14pcs ,  Drain Valve 7 pcs , Hot Galvanized Steel 2 pcs

• 7 pcs channel in 4m / SP-7B

Drain Board 28m ,  End Cup 14pcs ,  Drain Valve 7 pcs , Hot Galvanized Steel 3 pcs

• 7 pcs channel in 6m/ SP-7B

Drain Board 42m ,  End Cup 14pcs ,  Drain Valve 7 pcs , Hot Galvanized Steel 3 pcs

•  7 pcs channel in 8m / SP-7B

Drain Board 56m ,  End Cup 14pcs ,  Drain Valve 7 pcs , Hot Galvanized Steel 5 pcs

• 7 pcs channel in 2 m / SP-7C

Drain Board 14m ,  End Cup 14pcs ,  Drain Valve 7 pcs , Hot Galvanized Steel 2 pcs

• 7 pcs channel in 4m / SP-7C

Drain Board 28m ,  End Cup 14pcs ,  Drain Valve 7 pcs , Hot Galvanized Steel 3 pcs

• 7 pcs channel in 6m/ SP-7C

Drain Board 42m ,  End Cup 14pcs ,  Drain Valve 7 pcs , Hot Galvanized Steel 3 pcs

•  7 pcs channel in 8m / SP-7C

Drain Board 56m ,  End Cup 14pcs ,  Drain Valve 7 pcs , Hot Galvanized Steel 5 pcs
