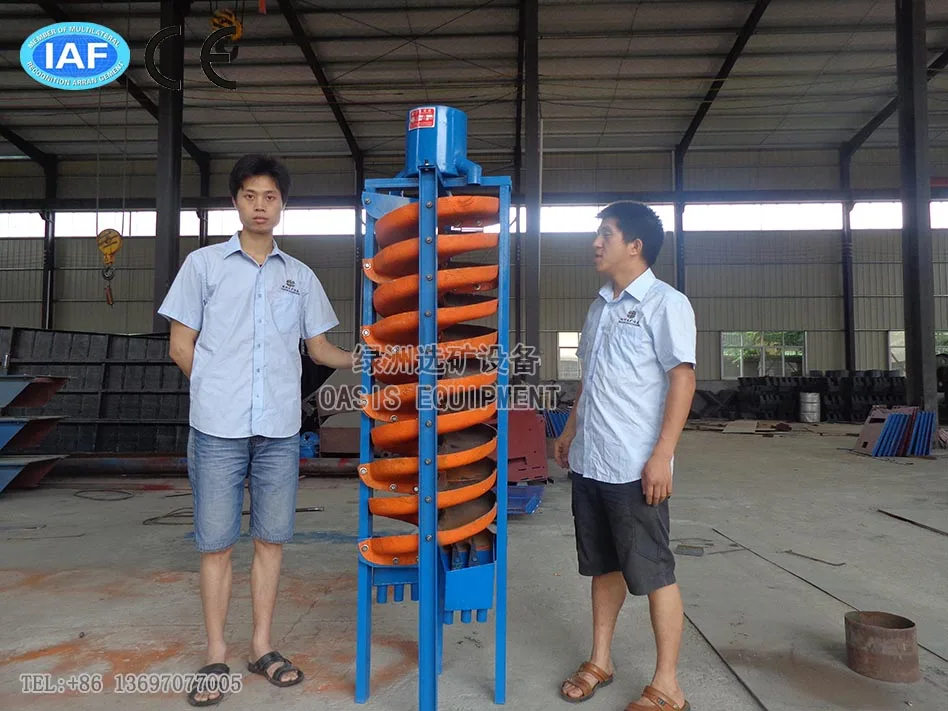

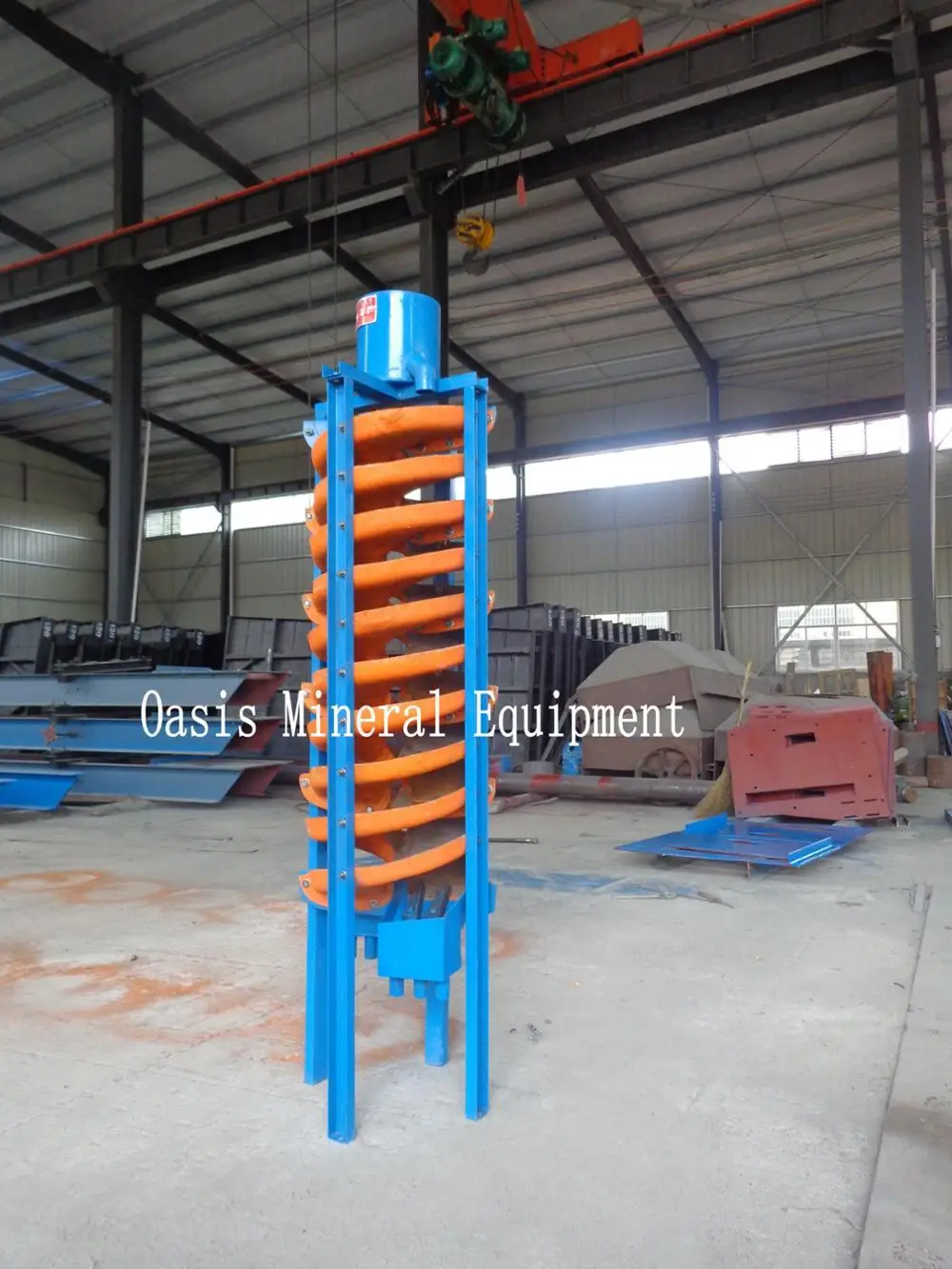

Мини лаборатория золотой спиральный концентратор/лабораторный гравитационный желоб для оборудования добычи золота
- Категория: >>>
- Поставщик: Shicheng Oasis Mineral Equipment Manufacturing Co. Ltd.
Сохранить в закладки 60806878471:
Описание и отзывы
Характеристики
Product Overview

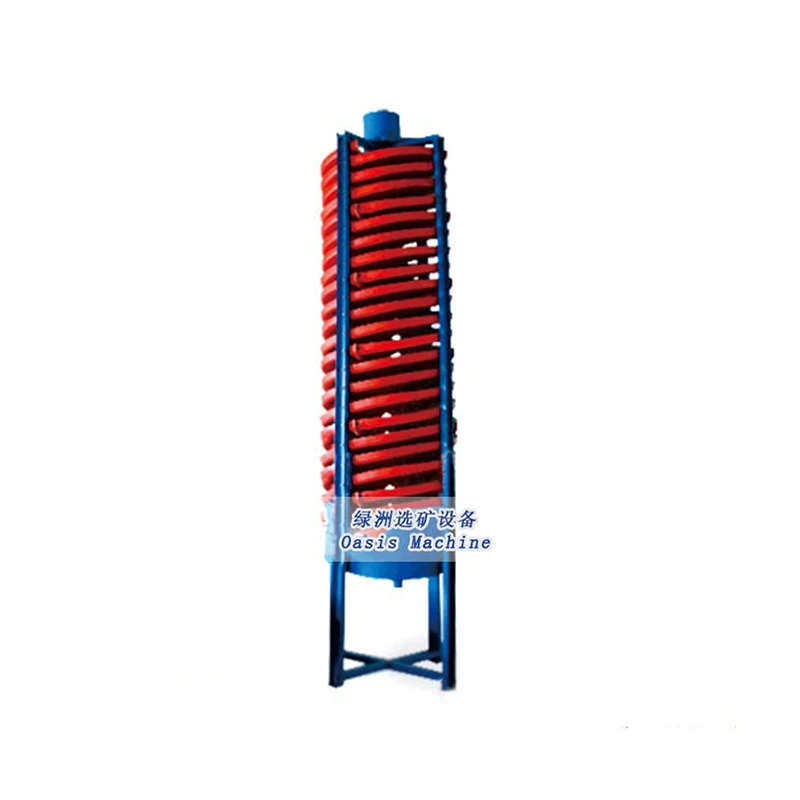

Gravity Spiral Chute
It has been widely used in to enrichment the particle size3-0.02 millimeters fine grain like
iron,tin,chrome,tungsten,zinc,tantalum-niobium,gold,coal,monazite,rutile,zircon,copper,sulphur,other low-grade ores or non-metallic minerals which have a enough specific gravity difference,Working characteristics of the spiral chute is respectively in the end of the groove of the interception , the tailing, and without rinsing water. In the process of sorting spiral groove is the main body parts, the equipment made of glass fiber reinforced plastic (or plastic) screw bolt connection and intowe make lab and big and high-efficiency rotary for spiral chute
iron,tin,chrome,tungsten,zinc,tantalum-niobium,gold,coal,monazite,rutile,zircon,copper,sulphur,other low-grade ores or non-metallic minerals which have a enough specific gravity difference,Working characteristics of the spiral chute is respectively in the end of the groove of the interception , the tailing, and without rinsing water. In the process of sorting spiral groove is the main body parts, the equipment made of glass fiber reinforced plastic (or plastic) screw bolt connection and intowe make lab and big and high-efficiency rotary for spiral chute
PRODUCT SPECIFICATIONS
Model | LZBLX1200 | LZBL2000 | LZBL1500 | LZBL1200 | LZBL900 | LZBL600 | LZBL400 | ||
Diameter(mm) | 1200 | 2000 | 1500 | 1200 | 900 | 600 | 400 | ||
Spiral Pitch(mm） | 720 | 1200 | 680/540 | 720/540 | 540/405 | 400 | 240 | ||
Starts(piece) | 2/3/4 | 2/3/4 | 2/3/4 | 2/3/4 | 2/3/4 | 2 | 1/2 | ||
Feeding Size (mm) | 0.6-0.03 | 4-0.04 | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | ||
Feeding Density | 25-35 (%) | 20-45 | 30-60 | 25-35 | 25-55 | 25-55 | 25-55 | ||
Power | 1.5kw | ||||||||
Capacity (t/h) | 7-9 | 15-40 | 6-8 | 4-6 | 2-3 | 0.4-0.8 | 0.15-0.2 | ||
Dimension (mm) | Length | 1420 | 2300 | 1560 | 1360 | 1060 | 700 | 460 | |
Width | 1420 | 2300 | 1560 | 1360 | 1060 | 700 | 460 | ||
Height | 5680 | 6500 | 5230 | 5230 | 4000 | 2600 | 1500 | ||
Weight（Kg） | 760 | 1100 | 800 | 600 | 400 | 150 | 60 | ||

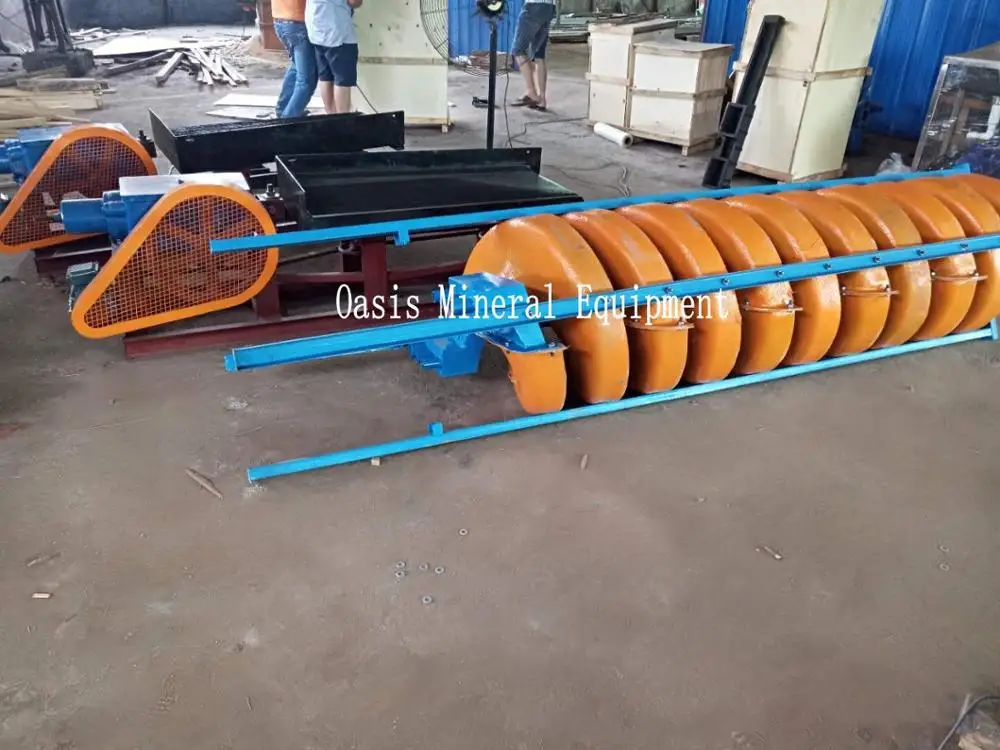

Product Show

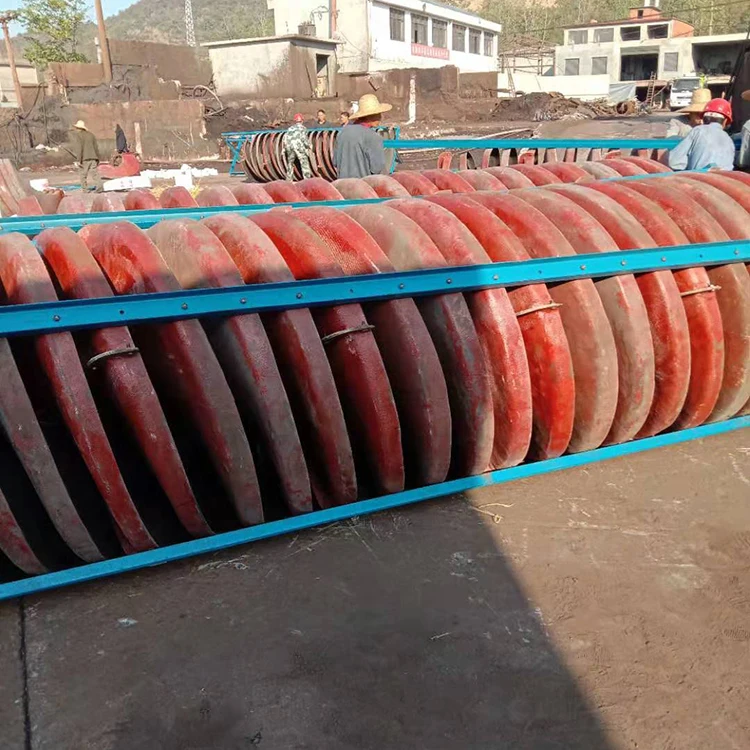

Successful Project
Company Profile
Shicheng Oasis Mineral Equipment Manufacturing Co.,Ltd(Stael Machinery) is an import-export trade enterprise specializing in the production, sale and installation of mineral equipment, environmental protection equipment, hardware and machinery. We awarded CE and ISO9001:2008 international quality management system certification.
Quality, credibility, service, innovation is our company consistent style, hope our efforts for the customer's inheritance to create brilliant.
Quality, credibility, service, innovation is our company consistent style, hope our efforts for the customer's inheritance to create brilliant.
SIMILAR PRODUCTS
Our Service
1.Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;
2.Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;
2.Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;
3.After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.
FAQ
1.Q: What Information needed to get accurate quotation and proposal?
A:1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone, what is the general particle size(mm) of the raw ore?
3). What is the handling capacity (tons per hour) you need?
4) .What is the elements of the raw ore? How much percent % of each minerals?
2. Q: Can we send the mineral samples to you to run the ore-dressing experiments test?
A:Yes, we can run the ore-dressing experiments for our customers. After the test, we will give you the reasonable flowchart, suitable solution and equipment selection. etc. based on the test results.
3.Q: What about warranty of the equipment? Any spare parts supplied?
A:The warranty period of OASIS equipment is 12 months. And of course we will supply the spare parts to you for life-long time at lowest cost.
4.Q: The reason you choose OASIS?
A:1). Professional manufacturer of supplying mining equipment, Ore beneficiation equipment and mining dryers.?
2). Experienced and professional R&D team and manufacturing team.
3). Professional sales team consisted of dedicated, dynamic and innovative staff with international version.
4). Professional logistics service ensuring safety and timely delivery of products all over the world.
A:1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone, what is the general particle size(mm) of the raw ore?
3). What is the handling capacity (tons per hour) you need?
4) .What is the elements of the raw ore? How much percent % of each minerals?
2. Q: Can we send the mineral samples to you to run the ore-dressing experiments test?
A:Yes, we can run the ore-dressing experiments for our customers. After the test, we will give you the reasonable flowchart, suitable solution and equipment selection. etc. based on the test results.
3.Q: What about warranty of the equipment? Any spare parts supplied?
A:The warranty period of OASIS equipment is 12 months. And of course we will supply the spare parts to you for life-long time at lowest cost.
4.Q: The reason you choose OASIS?
A:1). Professional manufacturer of supplying mining equipment, Ore beneficiation equipment and mining dryers.?
2). Experienced and professional R&D team and manufacturing team.
3). Professional sales team consisted of dedicated, dynamic and innovative staff with international version.
4). Professional logistics service ensuring safety and timely delivery of products all over the world.
