Китайский производитель хорошая цена VMC CNC фрезерный станок вертикальный обрабатывающий центр VMC1370

Китайский производитель хорошая цена VMC CNC фрезерный станок вертикальный обрабатывающий центр VMC1370

Категория: >>>
Поставщик: Tengzhou Topway Machinery Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

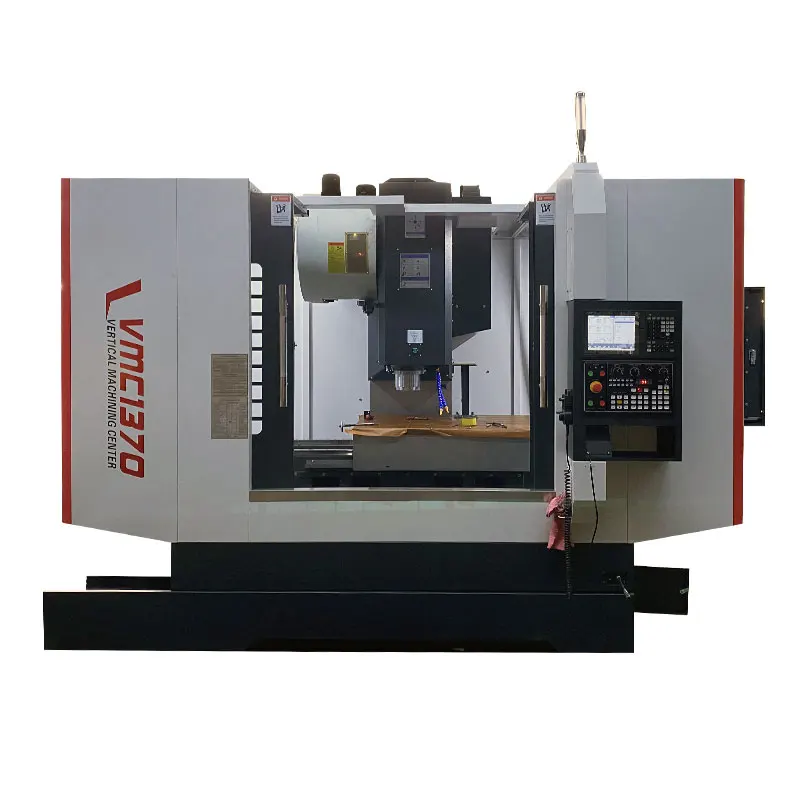

VMC1370 CNC Machining Center / CNC Milling Machine

Vertical machining center use :
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.

Features :
* High quality resin sand , ensure machine driven stability
* Taiwan high precision and speed spindle
* Taiwan armless type ATC with 16 tools or 24 tools
* Coolant system with high flow and high head pump, ensure sufficient cooling at high speed running.
* Totally enclosed, safety and beautiful

\t SPECIFICATIONS CNC MACHINING CENTER VMC1060/VMC1160/VMC1370
\t Specifications	\t Unit	\t VMC1060	\t VMC1160	\t VMC1370
\t Table size	\t mm	\t 1200x600	\t 1200x600	\t 1400x700
\t T-slot(NO.x width x pitch)	\t mm	\t 5x18x100	\t 5x18x100	\t 5x18x110
\t Max.table load	\t kg	\t 850	\t 850	\t 1200
\t Guide rail type	\t	\t X/Y/Z Linear way	\t X/Y/Z Linear way	\t X/Y/Z Linear way
\t X/Y/Z axis traverse	\t mm	\t 1000x600x600	\t 1100x600x600	\t 1300x700x700
\t Distance from spindle nose to worktable	\t mm	\t 120-720	\t 120-720	\t 110-810
\t Distance from spindle center to column	\t mm	\t 650	\t 650	\t 750
\t Spindle taper	\t	\t BT40/BT50	\t BT40/BT50	\t BT40/BT50
\t Spindle Speed	\t rpm	\t 8000	\t 8000	\t 8000
\t Spindle Motor	\t kw	\t 11	\t 11	\t 15-18.5
\t X/Y/Z axis rapid feed speed	\t m/min	\t 36/36/36	\t 36/36/36	\t 32/32/32
\t X/Y/Z axis cutting feed rate	\t m/min	\t 10	\t 10	\t 10
\t Magazine type	\t	\t Arm / Armless	\t Arm / Armless	\t Arm / Armless
\t Magazine capactiy	\t	\t BT40-16/24	\t BT40-16/24	\t BT40/50-16/24
\t Max.Tool length	\t mm	\t 300	\t 300	\t 300
\t Max.Tool weight	\t kg	\t 11	\t 7.5	\t 7.5
\t Electricitty supply required	\t KVA	\t 25	\t 25	\t 25
\t Air pressure required	\t kgf/cm2	\t 5-7	\t 5-7	\t 5-7
\t Positioning accuracy	\t mm	\t 0.005	\t 0.005	\t 0.005
\t reposttioning accuracy	\t mm	\t 0.003	\t 0.003	\t 0.003
\t Machine dimensions(LxWxH)	\t cm	\t 310x315x328	\t 310x315x328	\t 320x315x328
\t Machine weight(N.W/G.W)	\t T	\t 7.2/7.7	\t 7.4/7.9	\t 10.0/10.6

Standard Accessories:

Spindle taper hole cleaning system;
16pcs Armless type Tool Magazine

Cooling system;
Automatic Lubrication Systems;
Pneumatic system;
Full splash guard;
Lighting;
Stainless steel protection plate;
Tri-color alarm lamp;
Air gun;
Fixed sizing block;
Cool-heat exchanger. Taiwan Spindle;
Taiwan Lead screw;
Taiwan Linear guideway;
Taiwan Unclamping Cylinder.
