Низкая цена опорный подшипник SKF SY55TF Италия высокопроизводительный

SKF Pillow Block Bearing Design:

SKF Y-bearings, which are usually referred to as insert bearings, are basically sealed deep groove ball bearings in the 62 and 63 series, with a convex outer ring. These bearings are manufactured in a number of different sizes and series and are available with a standard inner ring or an inner ring that is extended on one or both sides.

SKF Y-bearing plummer block units with a grey cast iron housing can be relubricated through a grease nipple in the housing. This makes them especially suitable for bearing arrangements that operate under any of the following conditions:

• high levels of contamination
• high speeds
• high temperatures
• relatively heavy loads.

Two different housing designs are available. These are housings in the
• SY(J) series with two oblong holes for the attachment bolts in the base of the housing

• SYF(J) series with a shortened base that contains two threaded holes in the support base

Housings in the SY(J) and SYF(J) series are manufactured from grey cast iron EN-GJL HB195 according to EN 1561:1997.

Why SKF Pillow Block Bearing ?

Suitable for heavy loads

SKF pillow block bearings are designed for heavy combined axial and radial loads.

Offer longer life and higher reliability

SKF's pillow block bearing design is less sensitive to misalignment (up to two minutes of arc) and offers long life, high reliability and low operating temperatures.

High Temperature

High Load

Y-bearings and Y-bearing units are often subjected to simultaneously acting radial and axial loads.

Low friction

The optimized roller end design and surface finish on the flange promote lubricant film formation, resulting in lower friction.

Long service life

SKF pillow block bearings optimize the load distribution along the contact surfaces, reduce stress peaks at the roller ends , and reduce the sensitivity to misalignment and shaft deflection compared with conventional straight raceway profiles

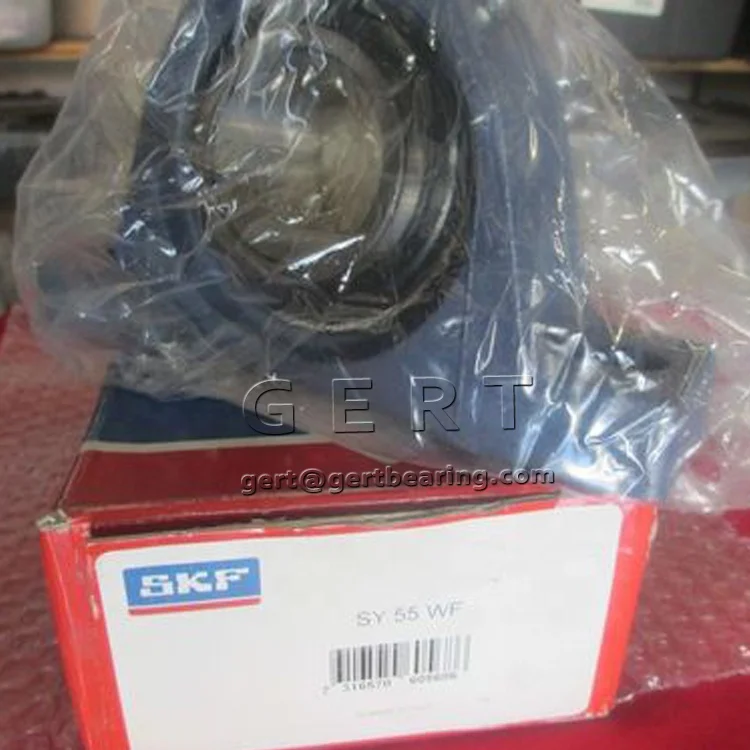

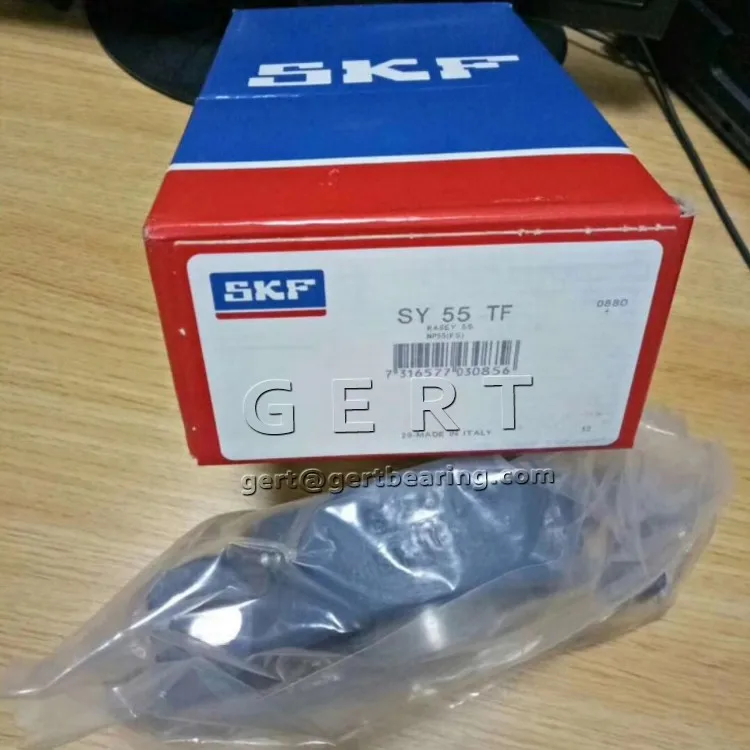

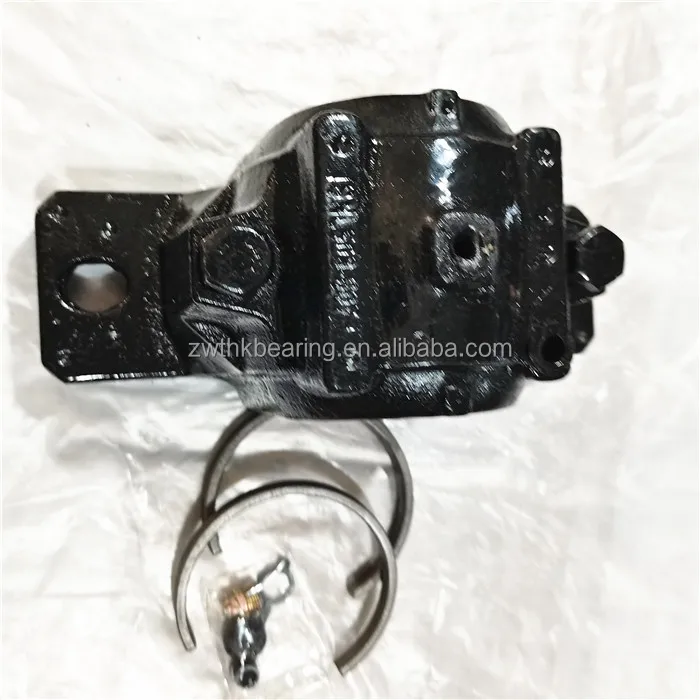

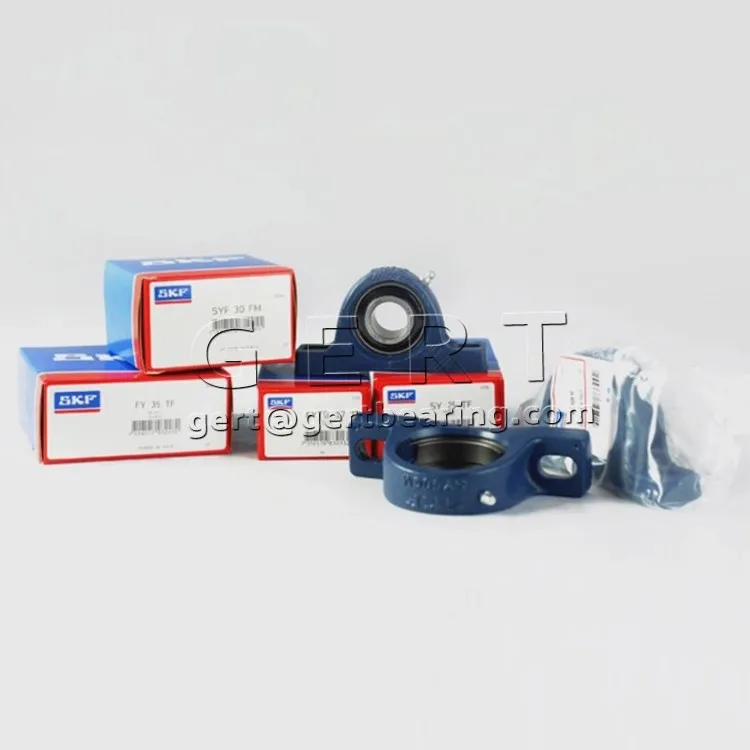

PICTURES OF SKF PILLOW BLOCK BEARINGS

SKF Pillow Block BEARING PACKING

1. Original SKF individual box packing
2. Packaged the SKF pillow block bearings into one carton box
3. Put the carton boxes into wooden boxes
4. Packaged the wooden boxes into one pallet

DELIVERY OF SKF Pillow Block BEARINGS

The SKF Bearings can be sent to you in many ways:

1. For small quantity, we can send to you by express, DHL/FedEx/EMS/UPS/ARAMEX. All these express are door to door. The freight charge is higher than other ways.

2. For bigger quantity, we can send to you by airport. This way is fast and cheaper than express. But the customer should pick up bearings on airport.

3. For large quantity, we can send to you by sea. This way is the cheapest one, but also spends the most days.

PAYMENT METHODS OF SKF Pillow Block Bearings

We accept many types payment:
1. For small amount, pay by Paypal/ Western Union
2. For bigger amount, pay by T/T
3. By escrow and others
