Оптовая продажа армированный силовой кабель 1kV XLPE из пвх стальной проволоки 4 ядра 95 мм 120 150 185
- Категория: >>>
- Поставщик: Ruitian Cable Co. Ltd.
Сохранить в закладки 60808489995:
Описание и отзывы
Характеристики

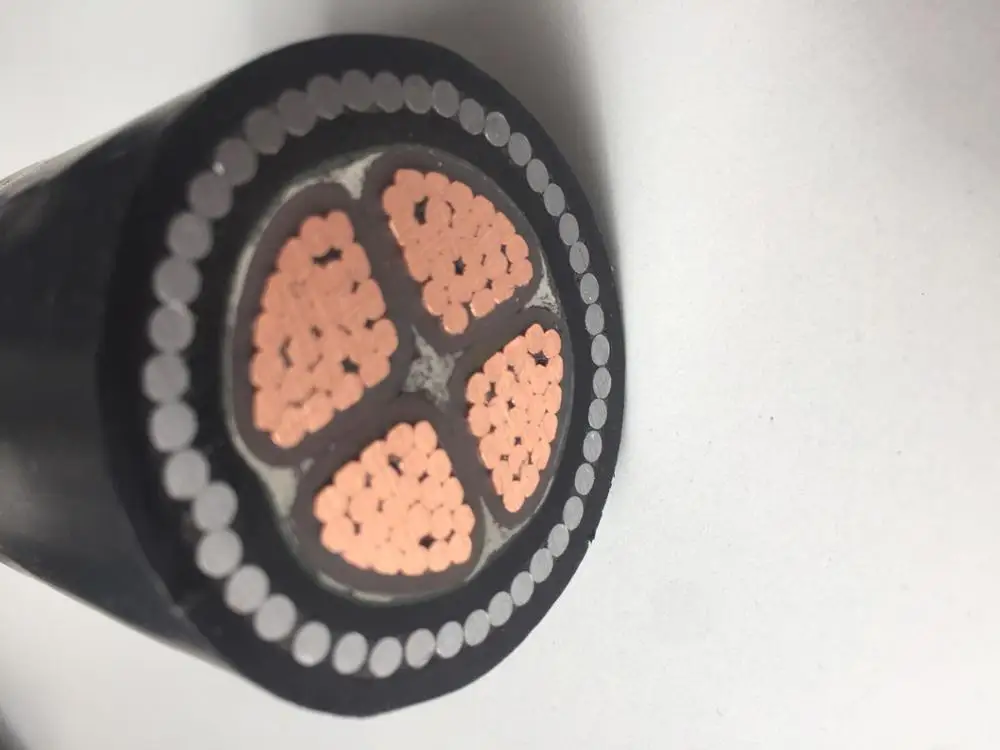

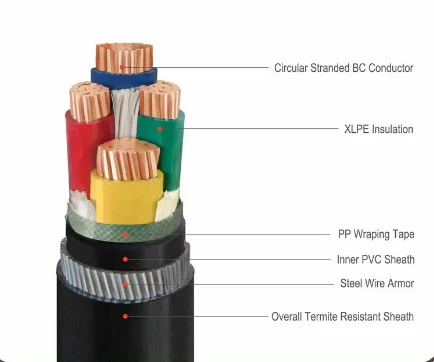

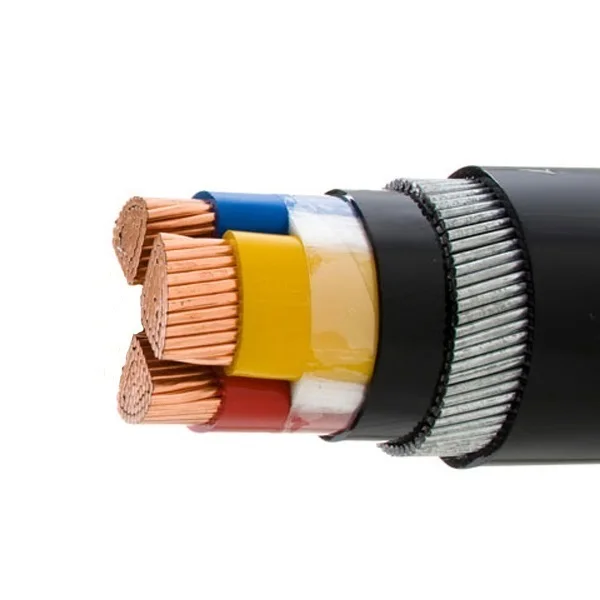

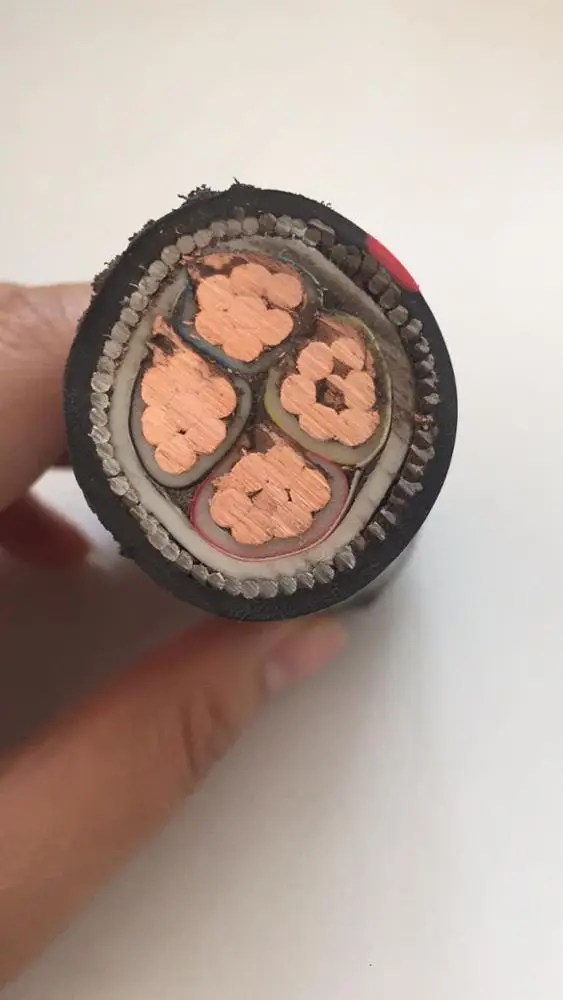

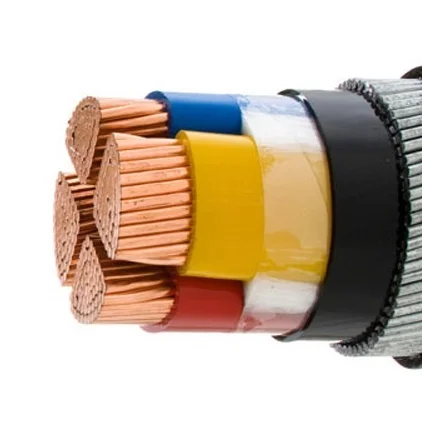

Wholesale 1kV XLPE PVC Steel Wire Armoured 4 Core 95mm 120mm 150mm 185mm Armoured Power Cable![9.11_01]()
1. Standard of XLPE Cable:
According to GB12706( Equal to IEC60502). Also can make the production according to your requirement.
2. Characters of XLPE Cable:
a.Max Long-time operating temperature of XLPE insulated cable is 90°C
b.Installing temperature of cable should not be less than 0°C
c.Max short-circuit temperature is not exceed 250°C,Not more than5 Sec.
d.Unable be laid without the limit of fall with enough mechanical pull,Single core cable can not be laid in iron tube or fixed by circled iron tools around cables
3. Advantage:
a. Excellent electric and mechanical characteristics
b. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
c. Simple in structure,Convenient to use
d. Reduce costs
4. Specification And Description:
Model | Name | Application site | Section area | Cores | Rate voltag |
VV | Copper Conductor PVC insulated PVC sheathed power cable |
Indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single-core cables laid in magnetic ducts are not allowed . | 10 16 25 35 50 70 95 120 150 185 240 300 400 | 1 2 3 4 5 3+1 4+1 3+2 | 0.6/1kv 8.7/15kv 12/20kv 18/30kv 21/35kv |
VLV | Aluminum Conductor PVC insulated PVC sheathed power cable | ||||
YJV | Copper Conductor XLPE insulated PVC sheathed power cable | ||||
YJLV | Aluminum Conductor XLPE insulated PVC sheathed power cable | ||||
YJY | Copper Conductor XLPE insulated PE sheathed power cable | ||||
YJLY | Aluminum Conductor XLPE insulated PE sheathed power cable | ||||
VV22 | Copper Conductor PVC insulated steel tape armored PVC sheathed power cable |
Indoor, tunnel, cable trench or underground laying, able to bear external mechanical forces, but can not afford a big pull. | |||
VLV22 | Aluminum Conductor PVC insulated steel tape armored PVC sheathed power cable | ||||
YJV22 | Copper Conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||
YJLV22 | Aluminum Conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||
YJV23 | Copper Conductor XLPE insulated steel tape armored PE sheathed power cable | ||||
YJLV23 | Aluminum Conductor XLPE insulated steel tape armored PE sheathed power cable | ||||
VV32 | Copper Conductor PVC insulated steel wire armored PVC sheathed power cable |
Indoors, in tunnel, cable trench, well or burying, able to bear external mechanical forces and a certain tension. | |||
VLV32 | Aluminum Conductor PVC insulated steel wire armored PVC sheathed power cable | ||||
YJV32 | Copper Conductor XLPE insulated steel wire armored PVC sheathed power cable | ||||
YJLV32 | Aluminum Conductor XLPE insulated steel wire armored PVC sheathed power cable | ||||
YJV33 | Copper Conductor XLPE insulated steel wire armored PE sheathed power cable | ||||
YJLV33 | Aluminum Conductor XLPE insulated steel wire armored PE sheathed power cable |
Customer feedback
Our advantage
Ruitian Wire&Cable Co., Ltd. is established in 2008. Factory is located in HengShui, HeBei province, which covers more than 36000 square meters. With more than 20 production lines, advanced production and testing machines, Ruitian Wire&Cable can guarantee you high quality goods and on-time delivery.
Packaging & Shipping
Packaging
Packing Length: 500M 1000M etc.
Inner Packing: Wooden reel, Plastic reel, and Paper Reel
Outer Packing: Carton box, Pull out box, Pallet available
Other packing available according to clients' request
Shipping
By Express, By Air, By Sea
We cooperate with lots of Shipping Companies, which can offer you the best price by the fastest way.
If you have your own Courier, you can arrange for the shippment as well.
Hot Selling
FAQ
1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files,the samples will be ready for delivery in 37 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
