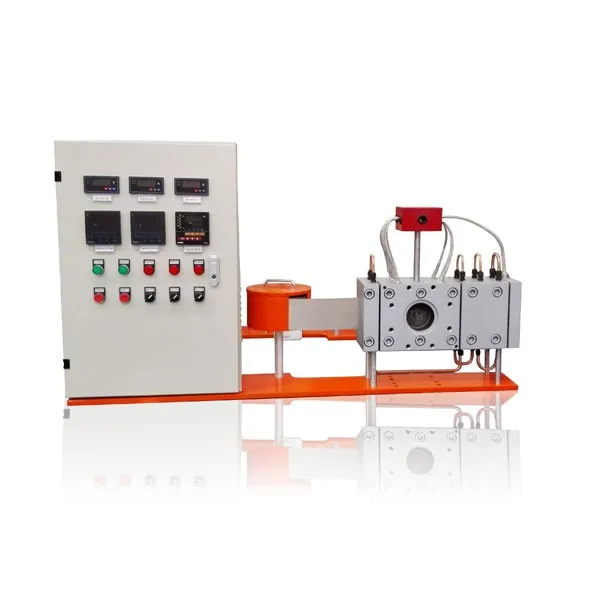

With hydraulic station screen changer for recycled plastic



Product Description

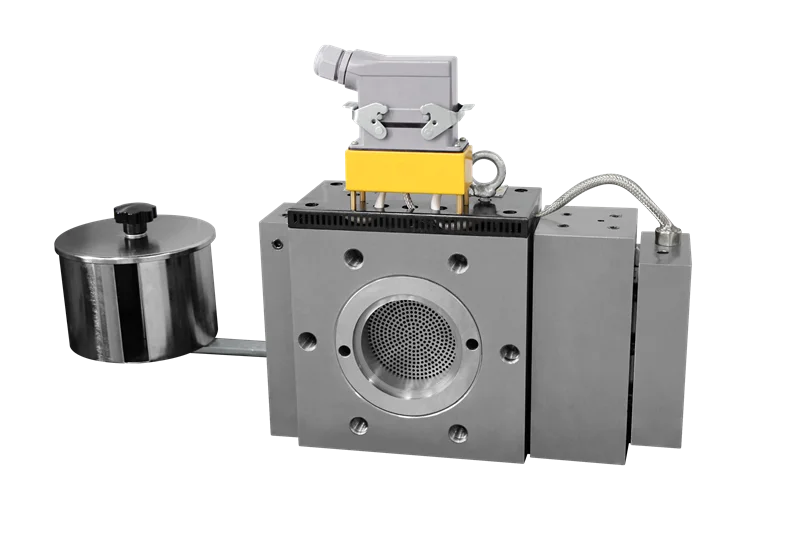

Introduction of ZB-SP-R-120 screen changer for recycled plastic



  • Adopts high-performance steel and special processing, heating processing technology, it specially designs for high pressures technological.

  • With grinding-resistant, pressure-resistant and high precision filter to ensure maximized filtering area and optimized filtering results.

  • This series screen changer can work well under 300℃ and 25-30Mpa.

  • It is suitable for high-pressure production process, especially for blown film, cast film, drawbench, pelleting, and the most of thermoplastic plastics.


Features of ZB-SP-R-120 screen changer for recycled plastic



  • No mechanical seal structure, which can guarantee the high pressure and high temperature

  • Condition not seep material. Effectively reduce the

  • Change screen resistance, reduce hydraulic system work pressure .

  • Using High quality alloy steel, after nitriding process to extended product life span greatly.

  • Integral engineering oil cylinder, a long use life.

  • Alternating work mode, can guarantee the material flow continuous, stability and the process parameters of repeatability,when change the screen

  • After optimization of rheological through cellular plate, to reduce the extrusion process fluid shear.

  • Cooperate with stroke position sensor, change the screen more accurate, more controllable.


Parameters of ZB-SP-R-120 screen changer for recycled plastic



















































































































Type



Capacity


 (kg/h)



Dimension (mm)



Screen size



Heater



L1



L2



L3



L4



Diameter


(mm)



Area


(cm2)



Quantity



Voltage


 (v)



Power


(w)



ZB-SP-R-100



50-150



100



700



180



180



80



50



4



230/400



500/800



ZB-SP-R-120



100-260



110



730



210



210



100



78



4



230/400



600/1000



ZB-SP-R-145



200-380



125



800



240



240



125



123



4



230/400



700/1200



ZB-SP-R-170



290-600



135



860



260



260



150



177



4



230/400



1000/1600



ZB-SP-R-195



400-820



150



960



300



300



175



240



4



230/400



1600/2000



ZB-SP-R-220



600-1300



160



1150



330



330



200



314



8



230/400



1000/1400



ZB-SP--R-250



800-2000



180



1250



380



380



230



415



8



230/400



1600/2000



Notes: The capacity will be affected by the fluidity, filter fineness and purity of materials.





Parameters of E series screen changer for recycled plastic



















































































































Type



Capacity


 (kg/h)



Dimension (mm)



Screen size



Heater



L1



L2



L3



L4



Diameter


(mm)



Area


(cm2)



Quantity



Voltage


(v)



Power


(w)



ZB-SP-E-120



180-450



130



870



210



210



100*145



124



4



230/400



800/1200



ZB-SP-E-145



280-600



145



900



240



240



125*170



179



4



230/400



900/1500



ZB-SP-E-170



600-1300



185



1100



260



260



150*230



296



4



230/400



1600/2200



ZB-SP-E-195



790-2500



200



1200



300



300



175*270



406



4



230/400



2300/3000



ZB-SP-E-220



900-3500



215



1300



330



330



200*300



514



8



230/400



2000/2500



ZB-SP-E-250



1570-4600



220



1350



380



380



230*310



600



8



230/400



2000/2500



ZB-SP-E-270



1950-6000



240



1450



410



410



250*345



737



8



230/400



2500/3000



Notes: The capacity will be affected by the fluidity, filter fineness and purity of materials.





20132

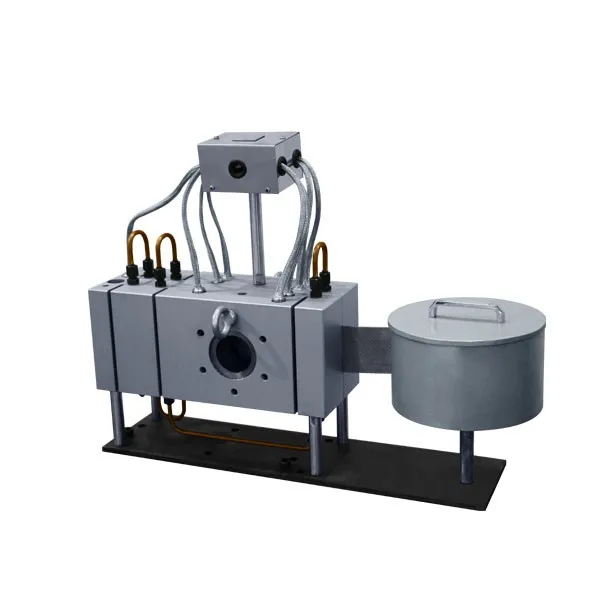

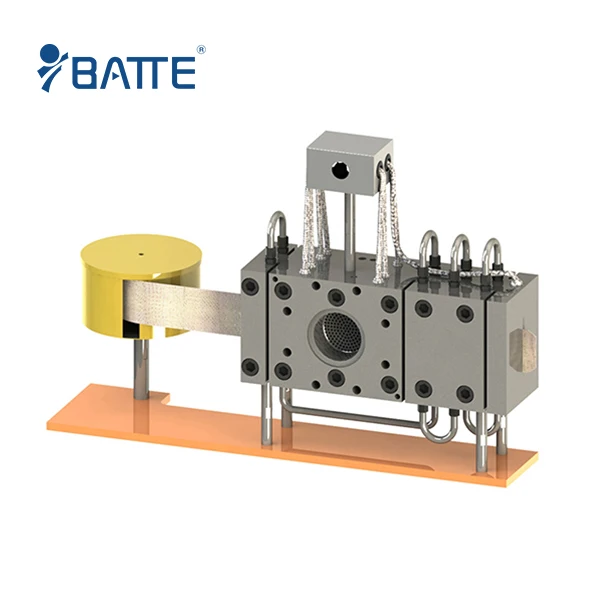

R series screen changer



screen changer for recycled plastic

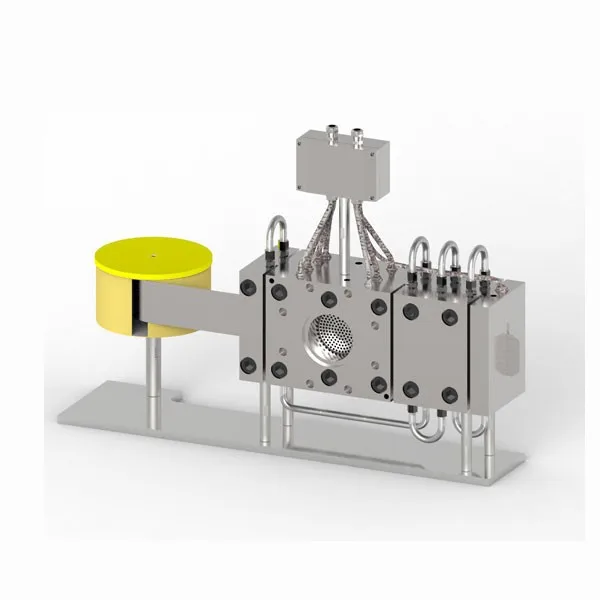

E series screen changer


screen changer for recycled plastic



Successful Case








screen changer for recycled plastic








Packaging & Shipping


screen changer for recycled plastic














Our Services


Batte persists in the business philosophy that technology goes with quality: technology is the root, innovation is the soul, customers come first.


1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation and maintenance.


2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.



  • When trainning your operators, our engineers will give them advice on how to operate the machines correctly;

  • We will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;

  • Call us at any time if you have problems about our equipment;

  • If needed, we will send engineers to your site to solve your problems.


3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.


4. Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;








Company Information


Batte is high-tech company which integrate R&D, design and manufacture. Batte’s main product includes high-qualified screen changer, metering gear pump, extrusion dies. Batte has advanced processing equipment and rich experience in production, has a perfect quality control system and perfect after-sale service system. Batte has right to import and export.


Batte have extra years experience in melt filtration system. And Batte make our products multivariate, long lived, with high degree of accuracy, leak-proof, and so on, to stand out in our profession and take leading position so that we are welcomed and trusted by the market. And combination with the practical requirements of customers, continuously improve the quality of products and using function to meet customers’ demand for products of high quality.


Our product are exported to Taiwan, Japan, USA, Turkey, Mexico, Brazil, Russia, India, Malaysia, Vietnam, , and other countries and regions and received high praised by our customer.


Our advantages:


1. we have CE,ISO,SGS and BV certificate;


2. we have 11-year experience;


3. we are a leading brand in China;


4. we have over 100 workers to ensure quick delivery;


5. we have 10 engineers to design special concrete plants for our customers;


6. we have after sales service like: installation, debugging, operator trainning and spare parts supply.
