Fanless OPS computer Quad-core CPU industrial PC with JAE TX25 80pin connector



Product Description



 Features of Our industrial computer

  • Standard Intel OPS PC design, Support OPS Expansion;

  • 1*DDR3  RAM slot,Maximum support 12GB;

  • 1*VGA,1*HDMI,1*LAN,4*USB,1*COM;

  • On board Intel I3/I5/I7/1037U CPU;

  • Size:204mm*175mm*42mm (W*L*H);

  • 12V DC  power supply.
    .

 Specification of our industrial computer



Model

EP901

Chassis

Colour

Black

Dimension

204mm*175mm*42mm(W*L*H)

Structure

Compatible OPS C standard chassis

material

Galvanized steel sheet

Motherboard

Processor

Intel® i3/i5/i7/Celeron 1037U processor

Graphics

Onboard Intel® HD Graphics

RAM

Onboard 2GB/4GB DDR3L,1 DDR3 SODIMM 204 Socket (12GB RAM Max.)

Storage

1*MINISATA SSD; 4*SATA3.0

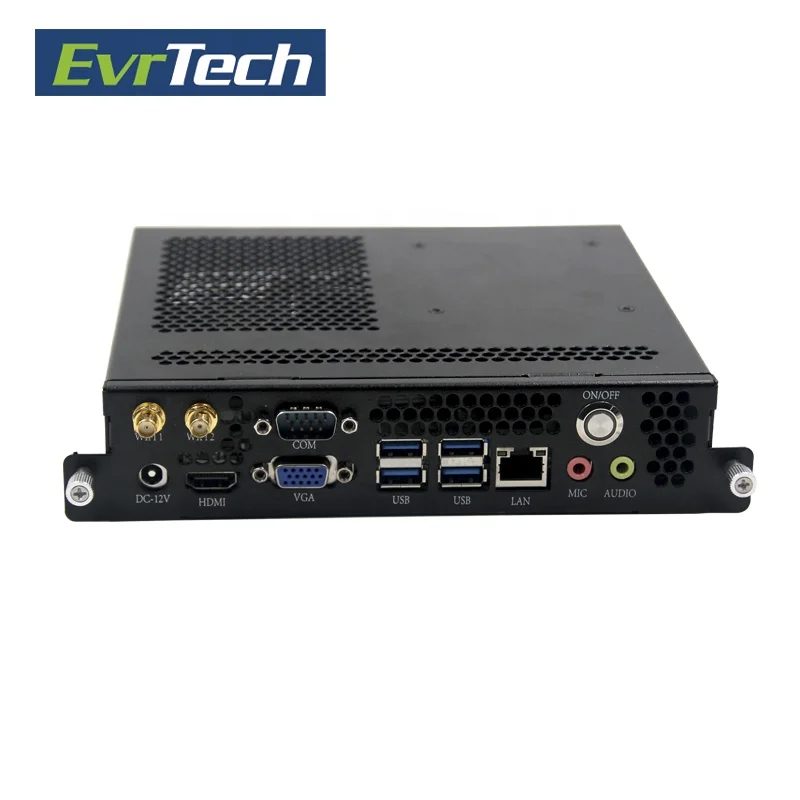

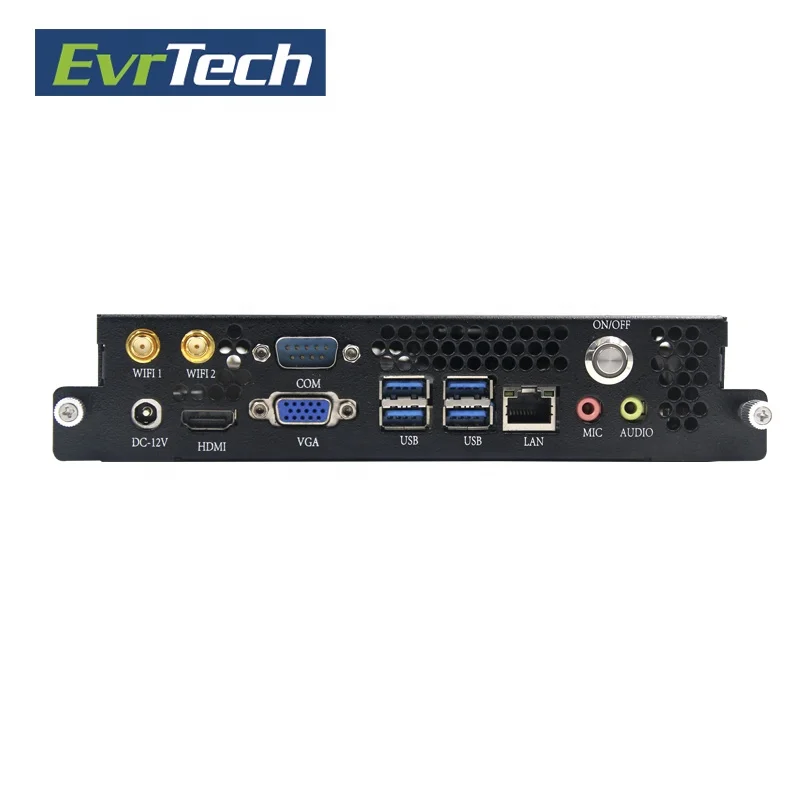

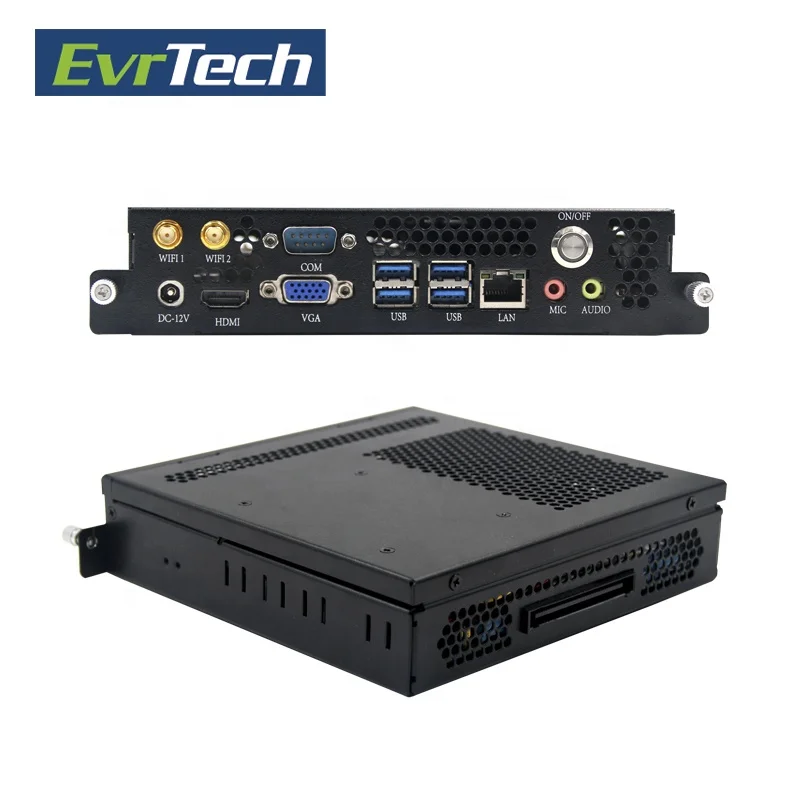

Front I/O

Switch

1*Power On/Off

USB

4*USB3.0

COM

1*RS232

Network

1*INTEL 1000/100/10Mbps LAN

Video

1* HDMI 1*VGA

Audio

1* Audio ,1* MIC

Wireless

2*WIFI antenna (optional)

Back I/O

OPS

1* support OPS C standard slot (80pin)

Adapter

Input

AC 110V~ 220V

Output

DC12V/5A

Reliability

Installation

OPS slot type installation

Operating Temp.

0℃~45

Storage Temp.

-20℃~70℃

Relative humidity

5%-95%, no condensing

Vibration

0.5g rms/5-500HZ/random/operating

Certifications

CE/ROHS

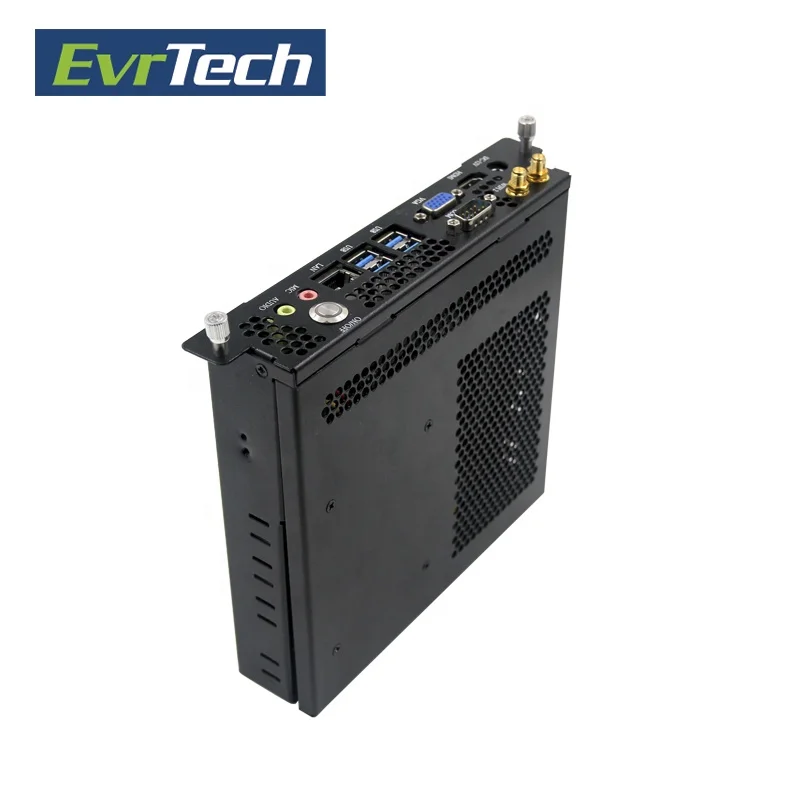

Detailed Images










Packaging & Shipping



 1.Delivery      Time: 1 ~ 3 Days for one sample, 25 Working days for a large quantity.

 2.Packaging Ways: Each pc for one neutral box,

 3.Shipping    Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.

                                  For a large quantity, we can support to ship by air or by sea.




Our Services



1.We can provide OEM/ODM services .

2.We can sell one sample for your test .

3.High-quality product and competitive price.

4.1 years Warranty, the second year and the third year,

   we can repair it ,but we will charge for the parts that need to change.



Company Information




FAQ



Q1: Can you put Our brand name (logo) on these products
A1:  Yes,.We can support OEM/ODM service, the process of customization is following:
       1:provide your specific requirement.    2:our design engineer draw the design draft.
       3:you confirm the design draft.            4.we start produce it.



Q2:  What payment method do you accept?
A2:   T/T,Western Union,PayPal.



Q3: What is the Minimum Order Quantity(MOQ)?
A3:  We can sell one piece sample for your test.



Q4: What is the lead time of your products?
A4:  1-3 days for one sample, 15 working days for a large quantity.



Q5: Will it be ok to run the device 24 hrs a day 7 days a week, just like a desktop pc? will it be overheated?
A5: There's no problem with running the device 24/7. I've done it for about a month and have had no problems. Just set your monitor to sleep when you're not using the computer.



Q6: How does your factory do related quality control?
A6: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.



Q7: What’s the warranty of motherboard or MINI PC?
A7: Non-artificial damage,1 years warranty,the second year and the third year,
   we can repair it free. but we will charge for the parts that need to change.



Q8: Are you a factory or trading company?
A8: We are the professional consumer electronics manufacturer which located in SHENZHEN, China



Q9: If we come to China, can you arrange the visiting to your factory?
A9: We warmly welcome and look forward to your visiting to our factory at any time.



"Quality assurance" is our eternal pursuit and promise. Welcome your any inquiry about

our products. We will try our best to help you.
